Getting Started with LangGraph Multi-Agent Development: Architecture Analysis and Three Practical Case Studies

Why Choose a Multi-Agent Architecture

As the complexity of large language model applications continues to grow, single agents can no longer handle scenarios requiring multi-task, multi-role collaboration. Multi-Agent architecture has thus become a crucial direction for building complex AI applications.

Multi-Agent Systems (MAS) originated in the field of distributed artificial intelligence, dating back to academic research in the 1980s. Early landmark works include MIT's Blackboard System and Stanford's HEARSAY speech understanding project—these systems enabled multiple specialized "knowledge sources" to share a common data structure for collaborative problem-solving, establishing the foundational concept of MAS task division. The core metaphor of the Blackboard System comes from a classroom scenario: multiple experts sit around a blackboard, each responsible only for their area of expertise. When one expert writes new information on the board, others can use it to advance their work—this pattern of "shared state, asynchronous collaboration" remains clearly visible in today's multi-agent designs.

From a historical evolution perspective, MAS has gone through three key phases: the Rule-Driven Phase (1980s-90s, represented by Blackboard Systems), the Semantic Collaboration Phase (2000s, represented by the FIPA standard—FIPA, the Foundation for Intelligent Physical Agents, whose ACL communication language was the first attempt to standardize "inform-request-commit" dialogue protocols between agents), and the current Neural-Symbolic Fusion Phase (modern MAS frameworks with LLMs as the reasoning core). This evolutionary trajectory reveals a pattern: each generation of MAS advancement essentially lowers the barrier for "describing agent responsibilities"—from hardcoded rules, to ontological semantics, to today's natural language.

Notably, while the FIPA standard was highly influential in academia, its complex Ontology definitions and strict formal semantic requirements made engineering implementation extremely costly, ultimately preventing large-scale industrial adoption. This historical lesson perfectly validates the importance of "lowering the description barrier": today's LLM-driven MAS can spread rapidly precisely because developers only need natural language to describe agent roles and responsibilities, without mastering complex formal specifications.

In the era of large models, MAS has been given new meaning: each agent is no longer a simple rule engine but uses an LLM as its core reasoning unit, with capabilities for natural language understanding, tool invocation, and contextual memory. This transformation allows agent "responsibility boundaries" to be described in natural language, dramatically lowering the system design threshold. In simple terms, multi-agent means having multiple agents with independent responsibilities collaborate and coordinate to accomplish complex tasks—just like different team members performing their respective roles.

Compared to single-agent systems, multi-agent architectures have clear advantages when handling complex business processes: tasks can be decomposed, modules can be reused, and each agent can focus on its area of expertise while coordinating through message passing or state sharing. This design not only improves system maintainability but also makes complex logic orchestration more clear and controllable. It's worth mentioning that multi-agent architectures naturally possess fault isolation advantages: a single agent's failure won't crash the entire system, and robustness can be maintained through retries, graceful degradation, or switching to backup agents—this is particularly important in production environments.

Common multi-agent architecture patterns in the industry include: Supervisor mode (a master agent handles task distribution and result aggregation), Collaboration mode (multiple parallel agents exchange information through a message bus), and Hierarchical orchestration (combining both into a tree-structured command chain). Understanding the differences between these architecture patterns is the first step toward designing stable and usable agent systems.

LangGraph Core Concepts and Version Selection

LangGraph is an important component of the LangChain ecosystem and the officially recommended agent development framework. After LangChain version 0.2, the team independently strengthened LangGraph, integrating the Agent module and Memory capabilities from LangChain into LangGraph.

This means that if you're doing agent development now, LangGraph has become an essential core tool. It organizes the flow relationships between agents using a "Graph" approach—a design that combines two classical computer science theoretical frameworks:

Directed Graph theory provides the abstraction of nodes and edges, allowing invocation relationships between agents to be formally expressed and visualized. In graph theory, each edge in a directed graph has directionality, which corresponds precisely to the unidirectional dependency of "who calls whom" between agents; reachability analysis can help developers detect potential deadlocks or infinite loop risks in advance. Directed Acyclic Graphs (DAGs) are the most common special case, widely used in task scheduling (e.g., Apache Airflow) and build systems (e.g., Makefile); LangGraph intentionally supports Cyclic Graphs to enable iterative reasoning and self-correction capabilities in agents—this is the fundamental difference from traditional DAG scheduling frameworks. The introduction of cyclic graphs means the system can express feedback loops like "try → evaluate → correct → try again," which is precisely the core thinking pattern humans use to solve complex problems.

Finite State Machine (FSM) theory ensures the system is in a clearly defined state at any given moment, with state transitions determined by condition functions on edges. The core value of FSM is predictability: given the current state and input, the system's next state is deterministic, making complex multi-agent processes testable and debuggable. LangGraph extends the FSM state concept into a TypedDict object that can carry arbitrary data, with each node returning incremental state updates after execution that the framework merges—this design preserves FSM's rigor while giving states sufficient expressive power. Traditional FSM states can only be enumerated values, but LangGraph's "extended state machine" can carry conversation history, intermediate results, tool call records, and any structured data in the state, enabling it to express business logic far more complex than traditional FSMs.

It's worth understanding deeply that LangGraph's state merging mechanism is theoretically a Monoid operation: each node's incremental update is merged into the global state through predefined Reducer functions. This mathematical property guarantees state consistency during concurrent node execution, preventing Race Conditions. A monoid requires two conditions: an identity element (empty updates don't change state) and associativity (the order of multiple merges doesn't affect the final result)—these two properties together ensure correctness of parallel execution. This design is highly similar to the state management approach of stream processing frameworks like Apache Flink, giving LangGraph native ability to handle parallel subgraphs—when multiple agents need to simultaneously execute independent subtasks, the framework can safely schedule them in parallel and merge results upon completion. Additionally, LangGraph's design philosophy is deeply influenced by Dataflow Programming: data (state) drives computation (node execution), rather than imperatively calling functions line by line, making the entire execution flow easier to reason about and test.

Specifically, each Node encapsulates an executable computation unit, which can be an LLM call, a tool function, or a conditional judgment; Edges define the state flow rules between nodes, supporting Conditional Edges for dynamic routing. This design naturally supports Loops and Branches, solving the pain point of traditional Chain architectures that cannot handle iterative optimization and conditional routing. Furthermore, LangGraph introduces a "Persistent Checkpoint" mechanism, allowing execution to be paused, resumed, or rolled back at any node—this is crucial for enterprise applications requiring Human-in-the-Loop review, and facilitates debugging and tracking state changes at each step. In engineering implementation, checkpoints typically rely on key-value stores (e.g., Redis) or relational databases to persist state snapshots. Combined with the Event Sourcing pattern, they can fully replay any historical execution path, which is valuable for compliance auditing and troubleshooting. The core idea of Event Sourcing is: rather than storing the current state directly, store all event sequences that caused state changes, and rebuild the system state at any point in time by replaying the event sequence—this is essentially the same approach as blockchain's immutable ledger and database WAL (Write-Ahead Log) mechanisms.

Version Selection Pitfall Guide

Here's an important engineering detail: this course is primarily developed based on LangChain and LangGraph version 0.3, which is currently the latest and relatively stable version. Previous versions 0.0, 0.1, and 0.2 may have compatibility issues.

Frankly, LangChain has been somewhat controversial regarding engineering stability, and it wasn't until version 0.3 that it truly entered a stable state. LangChain's rapid iteration caused numerous Breaking Changes in early versions—API naming, module paths, and parameter signatures were frequently adjusted, leading to the community joke that "LangChain code becomes outdated as soon as you write it." Version 0.3 significantly improved this by introducing stricter Semantic Versioning and more comprehensive deprecation warning mechanisms. The core convention of Semantic Versioning (SemVer) is: Major version changes represent incompatible API modifications, Minor version changes represent backward-compatible new features, and Patch version changes represent backward-compatible bug fixes—following this convention, developers can directly assess upgrade risk from the version number. SemVer was proposed by Tom Preston-Werner in 2010 and has been widely adopted by mainstream package management ecosystems including npm, PyPI, and Cargo, serving as the foundational contract for modern open-source software collaboration. For learners and developers, this is an important reminder—before starting hands-on practice, always confirm your framework version to avoid numerous runtime errors caused by version differences.

Three LangGraph Practical Case Studies

Beyond theoretical learning, truly mastering LangGraph requires hands-on practice. This tutorial features two small projects and one large project, covering a complete path from beginner to advanced.

Small Project 1: Code Assistant

The first project builds a code assistant. Such tools can generate, explain, or optimize code based on requirements—a high-frequency scenario in developers' daily work. Under a multi-agent architecture, the code assistant can be split into multiple roles such as a "requirements understanding agent," "code generation agent," and "code review agent," each performing their duties collaboratively.

The multi-agent design for a code assistant can also incorporate a Sandbox Execution step: generated code automatically runs in an isolated environment, with execution results and error messages fed back to the review agent to trigger iterative corrections—this "generate-execute-feedback" loop is a typical use case for LangGraph's cyclic structure, and the core value that pure chain architectures cannot elegantly implement. In engineering practice, sandbox execution typically uses container technology (e.g., Docker) or dedicated code execution services (e.g., E2B, Modal) for isolation, preventing generated code from damaging the host environment; combined with LangGraph's persistent checkpoint mechanism, the state of each "generate-execute-feedback" iteration can be fully recorded for post-hoc auditing and debugging.

Among these, E2B (Environment to Build) and similar dedicated sandbox services offer the core advantage of extremely low startup latency (typically under 200ms), making them more suitable for interactive code generation scenarios compared to cold-starting Docker containers (which typically take several seconds); lightweight virtualization technologies like gVisor and Firecracker provide finer trade-offs between security isolation strength and startup speed. Firecracker was developed by AWS and used for Lambda and Fargate services—its KVM-based microVM design can start in under 125ms while providing near-physical isolation security boundaries; gVisor reduces the attack surface by implementing Linux system call interception in user space, making it particularly suitable for scenarios involving untrusted code execution. These two technology approaches represent "hardware virtualization" and "system call interception" isolation strategies respectively, each with applicable boundaries in code sandbox scenarios.

From a software engineering perspective, this closed loop is essentially an AI extension of Test-Driven Development (TDD): first define expected execution results (test cases), then have agents iteratively generate code that satisfies the conditions until all tests pass. This pattern is already embodied in cutting-edge products like GitHub Copilot Workspace, representing an important evolutionary direction for AI-assisted programming. This case can be deployed to production environments with minor modifications, making it highly practical.

Small Project 2: Prompt Generation Assistant

The second project is a Prompt generation assistant. Prompt Engineering has developed into an independent research direction, encompassing multiple technical paradigms:

• Zero-shot Prompting: Directly describe the task without providing examples, relying on the model's pre-trained knowledge
• Few-shot Prompting: Embed several input-output examples in the prompt to guide the model toward the desired output format and style. Example selection strategy significantly impacts effectiveness—random selection, semantic similarity-based retrieval (RAG-style), or adversarial selection (choosing samples where the model is most likely to err) produce vastly different results
• Chain-of-Thought (CoT): Proposed by the Google Brain team in 2022, adding intermediate reasoning steps ("Let's think step by step") to prompts can significantly improve accuracy on complex reasoning tasks, with particularly notable effects on mathematical reasoning and logical judgment tasks. CoT's effectiveness is believed to stem from the model activating reasoning patterns acquired during pre-training when generating intermediate steps—essentially a trade-off of "computation resources for reasoning quality"
• Self-Consistency: Generate multiple reasoning paths for the same problem and select the most consistent answer through voting, further improving CoT's reliability
• ReAct (Reasoning + Acting): Interleaves reasoning steps with tool invocations, the mainstream paradigm for current Agent prompt design, where the model outputs both thinking processes and next-action decisions at each step. ReAct was jointly proposed by Princeton University and Google Research in 2022, with the core insight that interleaving "thinking" and "acting" in the same sequence more effectively utilizes external tool feedback than complete reasoning followed by action
• Tree-of-Thoughts (ToT): Extends CoT into tree-search, exploring multiple reasoning paths through BFS/DFS, suitable for complex problems requiring systematic exploration of the solution space

Particularly noteworthy is the emerging paradigm of Meta-Prompting: using prompts to generate prompts, having LLMs act as prompt optimizers. This is precisely the core idea of this project—the agent receives the user's vague intent description, clarifies requirements through multi-turn dialogue, and ultimately outputs high-quality prompts optimized for the target model. Research shows that well-designed prompts can improve model output quality by over 30%, and the value of automating this process lies in democratizing prompt engineering expertise, enabling non-technical users to fully leverage large models' capability ceiling. OpenAI's APE (Automatic Prompt Engineer) and the DSPy framework are both engineering implementations of the meta-prompting idea, with the latter going further to model prompt optimization as a differentiable optimization problem, automatically searching for optimal prompts through a small number of labeled samples—this represents an important direction of prompt engineering evolving from "craftsmanship" to "automated science."

In large model applications, prompt quality directly determines output effectiveness. The core challenge of an automated prompt generation assistant is: how to make the agent understand the user's implicit intent and convert it into the most effective instruction format for the target LLM—this itself is a complex process requiring multi-round iteration and effectiveness evaluation. Therefore, an agent that can automatically generate and optimize prompts internally contains multiple sub-processes such as "intent analysis," "template matching," and "effectiveness evaluation"—making it an ideal scenario for practicing multi-agent orchestration. This case also has direct deployment potential, significantly lowering usage barriers and improving interaction quality.

Major Project: WebRTC Digital Human Multi-Agent

The most substantial project combines WebRTC with a digital human multi-agent system.

WebRTC (Web Real-Time Communication) was open-sourced by Google in 2011 and officially became a W3C and IETF standard in 2021. It's an open-source real-time communication protocol stack supporting peer-to-peer audio/video transmission between browsers and mobile devices, requiring no plugins. Its protocol stack is divided into three layers:

• Signaling Layer: Handles session negotiation, typically implemented via WebSocket. Signaling itself is not within the WebRTC standard scope—developers can freely choose implementation methods, but its core task is exchanging SDP (Session Description Protocol) description files so both communication parties can agree on codec formats, network addresses, and other parameters. SDP isn't truly a "protocol" but a text format for describing multimedia session parameters, with its design dating back to RFC 2327 in 1998 and over twenty years of application in the VoIP field
• Transport Layer: Relies on the ICE (Interactive Connectivity Establishment) framework integrating STUN/TURN servers for NAT traversal. STUN servers help clients discover their public IP, while TURN servers act as relay nodes when P2P direct connection fails; DTLS protocol provides TLS-like encrypted handshakes over UDP to ensure transport security. NAT traversal is one of the most complex parts of WebRTC engineering practice: in enterprise network environments, Symmetric NAT can cause STUN traversal failure rates exceeding 30%, requiring TURN relaying, and TURN server bandwidth costs are often the primary operational expense of WebRTC deployment
• Media Layer: Uses SRTP (Secure Real-time Transport Protocol) encrypted RTP/RTCP protocols for transmitting and controlling audio/video streams, supporting Adaptive Bitrate (ABR) and Jitter Buffer mechanisms to maintain call quality in poor network conditions

In digital human scenarios, WebRTC's value extends beyond low-latency transmission. Its built-in congestion control algorithm (GCC, Google Congestion Control) dynamically adjusts bitrate based on network conditions, equally applicable to real-time streaming output of AI inference results—when the network is congested, the system can prioritize audio stream fluidity while moderately reducing video frame rate to maintain conversation coherence. Additionally, WebRTC's DataChannel API supports P2P transmission of arbitrary binary data, which can be used in digital human scenarios to transmit AI inference intermediate states, emotion annotations, gaze direction, and other metadata for richer interactive experiences beyond just audio/video streams. DataChannel is built on SCTP (Stream Control Transmission Protocol) and supports both reliable and unreliable transmission modes—reliable mode for ordered control instructions, and unreliable mode for real-time status updates where packet loss is acceptable to reduce latency. This flexibility makes it well-suited for the diverse data transmission needs in digital human scenarios.

From a system architecture perspective, the digital human multi-agent system is essentially a real-time Perception-Decision-Action loop: WebRTC handles the perception layer (capturing user audio/video input) and execution layer (rendering digital human audio/video output), while the LangGraph multi-agent system handles the decision layer (speech recognition → intent understanding → dialogue generation → speech synthesis → animation driving). This architecture is highly similar to the Robot Operating System (ROS) design philosophy, with the difference being that LangGraph replaces each decision module with LLM-driven agents, giving the system stronger semantic understanding and open-domain dialogue capabilities.

Traditional HTTP polling solutions typically have latency above 500ms, while WebRTC's P2P direct connection can compress end-to-end latency to 100-200ms, enabling digital human lip synchronization and facial expression responses to reach natural interaction experience thresholds—making it critical infrastructure for building real-time interactive digital humans. Human perception research shows that response delays exceeding 200ms in conversation are perceived as "lag," and exceeding 500ms severely disrupts natural interaction flow—this is precisely the decisive significance of WebRTC's low-latency characteristics for digital human experience.

This case combines real-time audio/video communication (WebRTC) with multi-agent systems, demonstrating how to build an interactive digital human application: the speech recognition agent converts user input to text, the dialogue management agent generates responses, and the speech synthesis and animation driving agents transform text into perceivable digital human expression—with WebRTC serving as the input/output channel in the "perception-decision-execution" loop, connecting users to the AI inference cluster. Compared to the two smaller projects, it better demonstrates the value of multi-agent architecture in real complex scenarios and is an excellent hands-on project for testing comprehensive capabilities.

Code Hosting and Learning Approach

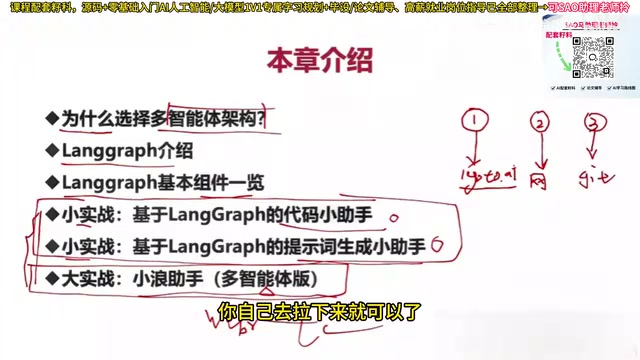

Since the entire course is practice-oriented with substantial code volume, the demonstration code is divided into three parts with differentiated hosting strategies to accommodate learners of different skill levels.

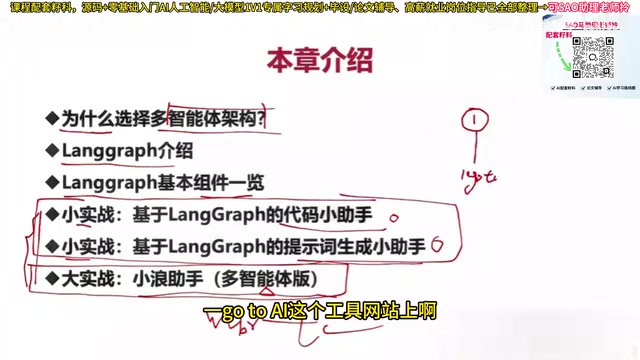

The first part is teaching demonstration code, hosted on an online AI tool website. The biggest advantage of such platforms is zero environment configuration—learners can run code and view results directly in the browser, with code assessment environments to help self-test mastery of code snippets.

The second part is code that cannot run online. For security reasons, online IDEs don't support local file operations, cross-threading, or multi-threading capabilities. So while this code can be viewed online, it needs to be downloaded and run locally.

The third part is project code, hosted in a Git repository for learners to pull and develop locally.

This three-tiered design of "online execution + local download + Git repository" comes from accumulated teaching experience. Many beginner learners encounter numerous configuration difficulties with local environment setup, blocking their learning experience. Therefore, simple single-threaded code runs online with one click, while complex code requiring local environments comes with detailed installation documentation, allowing learners of all levels to get started smoothly.

For learners who wish to further standardize their local development environment, it's recommended to use Python virtual environments (venv or conda) to isolate dependencies across different projects, combined with requirements.txt or pyproject.toml to lock exact version numbers—this is the best practice for avoiding dependency conflicts and reproducing the course environment. pyproject.toml is the modern Python project configuration file introduced by the PEP 517/518 standard. Compared to requirements.txt, it can simultaneously describe project metadata, build systems, and dependencies, and has become the new standard format for Python package management. PEP 517/518 was formally established in 2017, solving the long-standing "chicken-and-egg" problem in the Python ecosystem: how should the build system's own dependencies be declared before installing project dependencies? pyproject.toml explicitly separates build dependencies from runtime dependencies through the [build-system] table, enabling modern build tools like Poetry, Hatch, and PDM to coexist under a unified configuration format.

Advanced users may also consider using uv (a next-generation Python package management tool by Astral) as a replacement for pip. Its Rust-implemented dependency resolver is 10-100x faster than traditional pip, with more comprehensive support for dependency lock files, and is becoming the new standard for Python engineering. uv's core advantage lies in its Universal Lockfile mechanism: a single uv.lock file can precisely lock all direct and indirect dependency versions across platforms, completely solving the classic "works on my machine" problem—particularly important for AI projects requiring multi-person collaboration or production deployment. uv's dependency resolution algorithm is based on the PubGrub algorithm (originally implemented by Dart's pub package manager), which has better time complexity than pip's backtracking algorithm when handling large dependency graphs—this is one of the core sources of its speed advantage. PubGrub's core innovation models dependency resolution as a satisfiability problem (SAT), using Conflict-Driven Clause Learning (CDCL) strategy to immediately prune and backtrack upon discovering conflicts, avoiding the combinatorial explosion of traditional backtracking algorithms in large dependency trees, achieving near-linear resolution time in practice.

Summary

For learners who want to systematically master large model agent development, LangGraph is undoubtedly the core framework worth investing in deeply. From understanding the value of multi-agent architecture (MAS's collaborative task division philosophy evolving from 1980s Blackboard Systems through FIPA semantic collaboration standards to today), to familiarizing with LangGraph's basic components (nodes, edges, and persistent checkpoint mechanisms that combine directed graph theory, state machine design, and monoid state merging), to hands-on practice through three progressively challenging projects—code assistant, prompt assistant, and digital human—this learning path is clear and closely aligned with engineering reality.

It bears repeating regarding version concerns—be sure to use version 0.3 or above, and configure according to the dependency and environment version specifications provided for each project. This is how you avoid pitfalls and truly bring what you've learned into production environments.
