meshoptimizer: A Deep Dive into This Open-Source 3D Mesh Compression and Rendering Optimization Library

The Hidden Bottleneck in 3D Rendering Performance

In real-time 3D graphics, game engines, and WebGL applications, the size and rendering efficiency of mesh data directly determine an application's load time and frame rate. As model fidelity continues to rise, geometric data with millions of triangles has become a performance burden that can no longer be ignored. meshoptimizer, developed by renowned graphics programmer Arseny Kapoulkine (GitHub handle: zeux), was built specifically to tackle this problem.

Zeux spent years at Roblox as a graphics engineer, responsible for performance optimization of the platform's core rendering engine. With over 200 million monthly active users across PC, console, mobile, and web platforms, the extreme rendering demands of Roblox directly drove the development of many of meshoptimizer's core algorithms. He is also the author of pugixml (a high-performance C++ XML parsing library), and his deep background in C++ performance engineering ensures the library maintains a high standard in both algorithmic correctness and practical engineering utility.

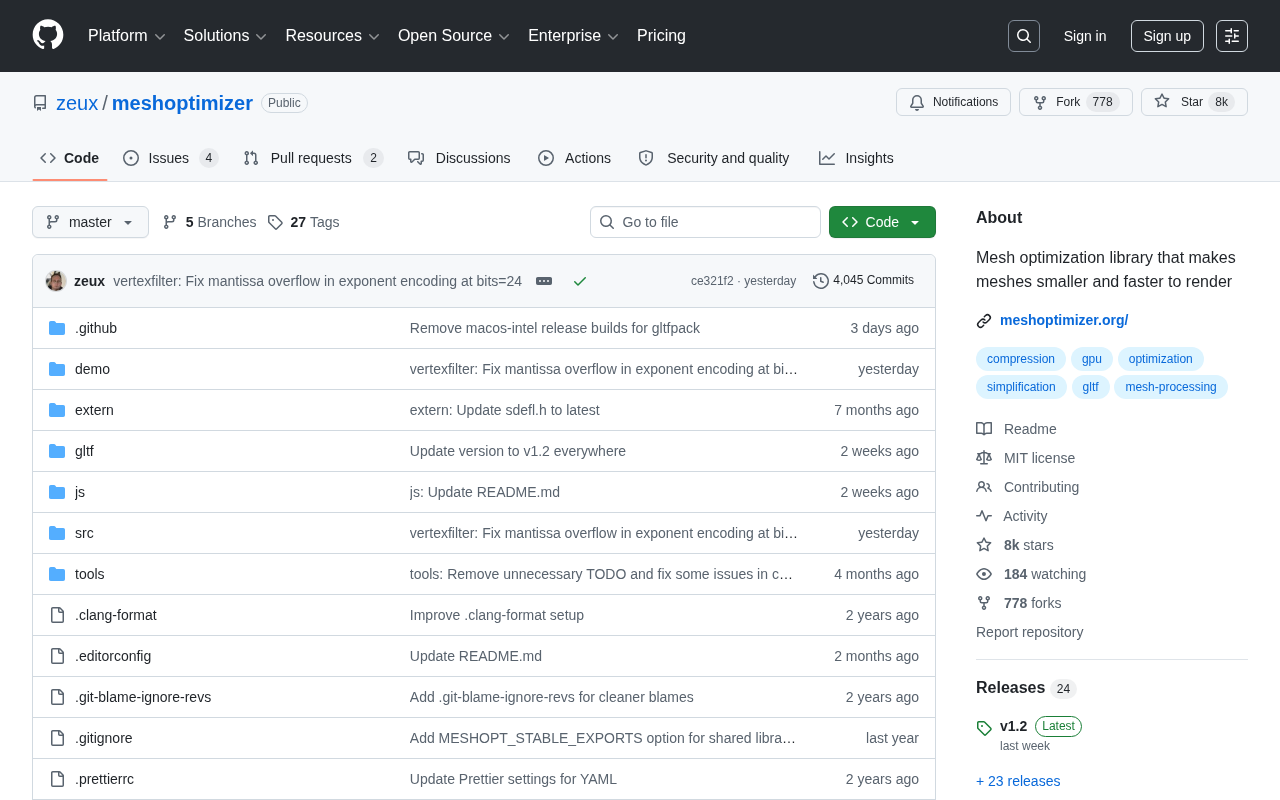

This C++-based open-source library has earned approximately 7,978 stars and 778 forks on GitHub, with an active momentum of 86 new stars per day — a testament to its strong reputation in the graphics development community.

What Is meshoptimizer

meshoptimizer is a toolkit focused on mesh optimization, with a core goal that can be summarized in two words: smaller and faster to render. It is not a single-purpose plugin but a comprehensive collection of algorithms for processing 3D geometry data, helping developers compress mesh size and improve GPU rendering throughput without significantly sacrificing visual quality.

The project is implemented in C++, with a lightweight codebase and zero external dependencies, making it easy to integrate into game engines, 3D asset pipelines, and web-based graphics applications. It is also deeply embedded in the glTF ecosystem — glTF (GL Transmission Format) is a 3D asset transmission standard defined by the Khronos Group, often called the "JPEG of 3D," and is widely used for model exchange across the web, AR/VR, and game engines.

Unlike traditional formats such as FBX and OBJ, which require extensive parsing and conversion, glTF's design philosophy is "runtime-ready for direct consumption" — its binary form (.glb) can be uploaded to the GPU with near-zero overhead by modern graphics APIs like WebGL and Vulkan. This makes compression optimization at the transmission layer particularly valuable. meshoptimizer has become the underlying engine for several mainstream model compression toolchains such as gltfpack, and leading WebGL frameworks like Three.js and Babylon.js natively support the EXT_meshopt_compression extension format built on this library.

EXT_meshopt_compression is a glTF official extension designed by zeux himself, formally entering the Khronos extension registry in 2020. The extension defines an entropy-coding scheme specifically designed for the characteristics of geometric data: vertex attribute data uses delta encoding based on neighboring vertex prediction for decorrelation, while index data exploits the locality of triangle topology for further compression, with a general-purpose compression algorithm (such as zstd or LZ4) handling remaining redundancy. This layered compression strategy tailored to semantic characteristics typically outperforms applying general-purpose compression directly to raw binary data, usually reducing model size to 10%–30% of the original.

Why Mesh Optimization Matters

To appreciate the value of mesh optimization, it helps to understand how the modern GPU graphics pipeline works. From vertex data input to final pixel output, the GPU goes through vertex shading → primitive assembly → rasterization → fragment shading → framebuffer write-out in sequence. The vertex shading stage handles coordinate transforms (MVP matrix multiplication), skinning animation calculations, and other operations — this is where geometric complexity is primarily consumed. The fragment shading stage handles per-pixel lighting and texture sampling, which is where fill-rate bottlenecks occur. The various optimizations in meshoptimizer target the different bottlenecks in each of these stages.

Modern GPU performance is not just a function of raw triangle throughput — it is also constrained by vertex cache hit rate, memory bandwidth, and overdraw. The same model, left unoptimized, may suffer frequent cache evictions due to a chaotic vertex ordering; after reordering, rendering efficiency can often improve by tens of percent. meshoptimizer is built around deep optimization of these underlying mechanisms.

It is worth noting that GPU memory bandwidth bottlenecks are especially acute on mobile. Mobile GPUs (such as ARM Mali, Apple GPU, and Qualcomm Adreno) commonly use a Tile-Based Deferred Rendering (TBDR) architecture, dividing the screen into small tiles for batch processing to reduce reliance on off-chip memory bandwidth. However, these architectures are equally sensitive to vertex data locality — vertex cache misses force frequent reads from system memory (rather than on-chip cache), causing significant frame rate drops and heat buildup on bandwidth-constrained mobile devices. As a result, the optimizations provided by meshoptimizer are also highly valuable for mobile 3D applications, particularly for WeChat Mini Programs, H5 games, and mobile AR scenarios.

Core Features Explained

Vertex Cache Optimization

meshoptimizer provides index reordering algorithms that reorganize the draw order of triangles to maximize reuse in the GPU's Post-Transform Vertex Cache (PTVC).

The PTVC is a critical micro-architectural component in the modern graphics pipeline. When the GPU processes geometry data, the vertex shader must perform matrix transforms, lighting calculations, and other operations for each vertex. The PTVC is designed so that when the same vertex index appears multiple times in the index buffer, the GPU can query the cache and reuse the already-computed transform result, avoiding redundant shader execution. NVIDIA, AMD, and Intel GPUs typically have cache capacities in the range of 16 to 32 vertex entries.

Understanding how the PTVC works is key to grasping the nature of this optimization: in a typical triangle mesh, each interior vertex is shared by approximately 6 triangles on average. If triangles are submitted in a completely random order, the shared vertices referenced by adjacent triangles are likely to have already been evicted from the cache, forcing redundant computation. The "locality" of a mesh — meaning spatially adjacent triangles are also adjacent in the index sequence — is the core factor determining cache hit rate. This is typically quantified using ACMR (Average Cache Miss Ratio), defined as the number of vertex shader invocations divided by the number of triangles, with a theoretical optimum of approximately 0.5 (each triangle contributes half a new vertex on average).

The Forsyth algorithm (proposed by Tom Forsyth in 2006) is one of the most classic vertex cache optimization algorithms in the industry, using a greedy scoring strategy to sort triangles, and remains the default approach in many engines. meshoptimizer builds on this foundation with further improvements, introducing more accurate modeling of modern GPU behavior. A typical unoptimized mesh may have an ACMR as high as 1.5 or more; after optimization, this can be reduced to near the theoretical lower bound of 0.5, yielding a significant improvement in rendering efficiency.

Overdraw Optimization

Overdraw refers to the phenomenon where the same pixel on screen is written with a color value multiple times within a single frame. Modern GPUs typically rely on Early-Z (early depth testing) to discard occluded fragments — when opaque objects are rendered front-to-back, occluded fragments are discarded at the depth testing stage; but if rendered back-to-front, each pixel may require multiple fragment shader executions, wasting significant GPU cycles on pixels that are ultimately invisible.

At the triangle level, even within the same mesh, the submission order of different triangles affects Early-Z efficiency. meshoptimizer analyzes the depth relationships within a mesh (using a view-independent approximation) and sorts triangles to reduce self-occlusion overdraw. This is especially effective for meshes with complex internal structures such as terrain and vegetation. It is worth noting that overdraw optimization and vertex cache optimization have somewhat competing objectives, and meshoptimizer uses a weighted blending strategy to strike a balance between the two.

Vertex Data Compression and Quantization

Beyond ordering optimization, meshoptimizer also supports efficient encoding and decoding of vertex and index data. It has a built-in dedicated compression encoder that, combined with quantization techniques, can compress vertex attributes from 32-bit floats to more compact representations, dramatically reducing memory footprint and transmission size — an advantage that is particularly pronounced in web-based 3D model loading scenarios.

Quantization is essentially a form of lossy precision trimming: many vertex coordinates in 3D models are stored as float32 (single-precision floating point, approximately 7 significant decimal digits), but at actual rendering resolutions, 16-bit or even 10-bit precision is often sufficient to represent geometric detail with no visible difference. The quantization tools provided by meshoptimizer can encode position coordinates as 16-bit integers (int16) and normals as 8-bit integers (int8), with decoding shaders restoring the original values on the GPU in real time — the entire process is nearly transparent to the rendering pipeline. For a mesh with 1 million vertices, each with position + normal + UV totaling 32 bytes per vertex, quantization can compress this to approximately 14 bytes per vertex, reducing memory usage by more than 55% — a significant benefit for bandwidth-sensitive mobile and web applications.

Mesh Simplification and LOD Generation

The project includes built-in mesh simplification algorithms for LOD (Level of Detail) generation. LOD is a core technique in real-time rendering for controlling rendering complexity: objects farther from the camera are perceived with less detail by the human eye, and can be replaced with simplified versions with fewer polygons, saving GPU cycles.

meshoptimizer's simplification algorithm is based on a variant of Quadric Error Metrics (QEM). QEM was introduced by Garland and Heckbert at SIGGRAPH in 1997 and remains one of the most influential algorithms in mesh simplification. Its core idea is to associate each vertex with a 4×4 error matrix Q that measures the approximate error relative to the original surface when the vertex is moved to any position. The simplification process reduces the triangle count through iterative edge collapses — each iteration selects the edge whose collapse results in the minimum error increase, and the position of the new merged vertex is determined by minimizing the sum of the Q matrices from both endpoints. This allows the algorithm to naturally preserve regions of high curvature (such as edges and protrusions) while aggressively simplifying flat areas.

meshoptimizer enhances the classic QEM with engineering improvements, including support for joint error constraints on vertex attributes (UV coordinates, normals), preventing visual artifacts such as UV seam tearing or sudden normal discontinuities after simplification. Additionally, the library provides an error bound output interface for mesh simplification — developers can dynamically select the appropriate LOD level at runtime based on an object's screen-space coverage. This capability is an important foundation for building Continuous LOD (CLOD) systems or Nanite-like virtual geometry systems.

Indeed, Epic Games' Nanite virtual geometry system introduced in Unreal Engine 5 represents the cutting edge of LOD technology. Nanite decomposes models into a hierarchy of clusters, computes per-cluster screen-space error on the GPU in real time, and dynamically determines the level of detail to use for each cluster — achieving the ideal state where rendering complexity scales with screen pixel count. The error bound interface and cluster-level simplification capabilities provided by meshoptimizer are important infrastructure for building similar systems, and several independent engines and research projects have already used them to construct lightweight Nanite alternatives. For a 1-million-polygon model, LOD1 can be simplified to 250,000 polygons and LOD2 to 60,000 polygons, reducing GPU load by more than 75% during distant rendering with virtually no impact on visual quality.

Typical Use Cases

meshoptimizer's value spans the entire 3D asset processing pipeline:

• Game Development: Optimize geometry data during asset import to improve runtime frame rates;
• Web 3D / glTF: Serve as the underlying library for tools like gltfpack, enabling high-compression-ratio model transmission and faster web page loading;
• Digital Twins and Visualization: Process large volumes of CAD or point-cloud-to-mesh data to reduce rendering pressure;
• Engine Integration: Embed into proprietary or commercial engines in pure C++ with zero dependencies, seamlessly integrating into existing pipelines.

It is worth mentioning that the author, zeux, is a seasoned graphics engineer with years of deep experience in rendering performance optimization. His extensive industry-level practical experience ensures the library maintains a high standard in both algorithmic correctness and engineering utility.

Summary

meshoptimizer delivers a compact yet powerful C++ library that systematically covers multiple dimensions of mesh optimization — from vertex caching and overdraw reduction to compression, quantization, and LOD simplification. For any developer who needs to work with 3D geometry data, it is a near-zero-cost addition that delivers tangible performance gains.

Nearly 8,000 stars and a continuously active community confirm its important place in the open-source graphics ecosystem. If you are struggling with oversized models or insufficient rendering performance, meshoptimizer is well worth serious consideration as part of your tech stack.
