Open Agent Builder: Deployment Tutorial & Hands-On Guide for This Open-Source AI Agent Visual Builder

Introduction: Why You Should Pay Attention to Open Agent Builder

Last week, OpenAI launched a brand-new agent workflow building solution centered around an AI tool called Agent Sheet. While it works well enough, many users have been put off by rate limits, limited customization, and frequent early-stage bugs. The tool we're discussing today — Open Agent Builder — is an open-source visual AI agent builder that offers richer features, is completely free, and can be deployed locally. It's a compelling alternative to both n8n and OpenAI's Agent Builder.

Open Agent Builder is powered by FireCrawl technology and supports designing complex agent workflows through simple drag-and-drop operations, with real-time streaming updates during execution. FireCrawl is an open-source web scraping and crawling framework designed specifically for AI applications, developed by the Mendable team. Unlike traditional crawling tools (such as Scrapy or Puppeteer), FireCrawl's core design philosophy is to transform web content into LLM-friendly structured data formats (like Markdown or JSON), rather than simple HTML parsing. It automatically handles JavaScript-rendered pages, anti-crawling mechanisms, dynamically loaded content, and other common challenges, while providing APIs for batch scraping, sitemap crawling, and data extraction. FireCrawl has become a popular choice in the AI agent ecosystem because it's naturally suited for RAG (Retrieval-Augmented Generation) and agent tool-calling scenarios — agents can directly call FireCrawl to obtain real-time web information as a data source for reasoning and decision-making.

Whether it's web scraping, data extraction, multi-step AI agent workflows, or automated research and content generation, it handles it all — and even supports human-in-the-loop review steps.

Open Agent Builder Core Features Explained

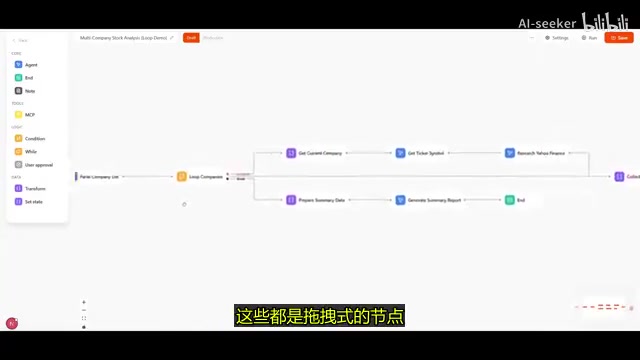

Visual Drag-and-Drop Workflow Editor

Open Agent Builder's biggest highlight is its intuitive visual interface. You can build complete automation workflows by dragging and dropping various functional nodes — no coding required. These nodes include LLM-powered agent nodes, MCP tool nodes, data processing nodes, and more, with each node functioning as an independent module.

Here, MCP (Model Context Protocol) is an open standard protocol released by Anthropic in late 2024, designed to provide LLMs with a unified way to connect to external data sources and tools. Think of MCP as the "USB port" of the AI world — regardless of what the underlying tool is (database queries, API calls, file operations), as long as it follows the MCP protocol, LLMs can invoke it in a standardized way. MCP uses a client-server architecture: MCP servers expose tools and resources, while MCP clients (typically AI applications) communicate with them via the JSON-RPC protocol. This design solves the fragmentation problem where every AI application previously needed to write separate integration code for each external tool, dramatically reducing the cost of building agent tool chains. Open Agent Builder natively supports the MCP protocol, meaning you can easily connect to the many existing MCP tool servers in the community and quickly expand your agent's capabilities.

The interface design is similar to OpenAI's Agent Builder, but more powerful. You can freely combine different nodes, define data flow directions, and build automation workflows ranging from simple to complex.

Built-in Practical Workflow Templates

The system comes with multiple pre-built templates for quick onboarding:

• Multi-Company Stock Analysis: Automatically analyze market performance of multiple stocks
• Financial Stock Analysis: Deep financial data mining
• Product Research: Automated product research workflow
• Property Search: Intelligent real estate information aggregation
• Human-in-the-Loop Approval: Workflows with manual review steps
• Simple Loop Test: Basic loop automation demo

Of course, you can also create your own workflows from scratch.

Real-Time Execution Monitoring & Debugging

During workflow execution, the system provides visual execution logs that clearly show the status of each step, data flow, and final results. This real-time feedback capability is enabled by the reactive architecture of the underlying Convex database — all data changes are automatically pushed to the frontend without manual refreshing. This feature is extremely useful for debugging and optimizing workflows.

Open Agent Builder Local Deployment & Installation Guide

Prerequisites

Before getting started, you'll need the following environment and API keys:

• Node.js: Version 18 or higher
• FireCrawl API Key: Provides web scraping capabilities
• Convex API Key: Provides database services
• Clerk API Key: Provides user authentication

Convex is a fully managed Backend-as-a-Service (BaaS) platform that provides real-time reactive databases, server functions, and file storage. Unlike traditional databases, Convex uses a transactional document database model where all data changes are automatically pushed to the frontend in real-time — meaning when workflow states change, the user interface instantly reflects the latest status without manual polling. This explains how Open Agent Builder achieves its streaming real-time execution log feature. Convex's free tier provides sufficient storage and compute quotas for personal projects, so developers don't need to set up and maintain database infrastructure themselves.

Clerk is a user authentication and identity management platform for modern web applications, offering out-of-the-box login/registration, multi-factor authentication, session management, and user management features. In Open Agent Builder, Clerk handles user authentication, ensuring each user can only access their own workflows and data. Compared to implementing OAuth, JWT, and other authentication logic from scratch, using Clerk significantly reduces security-related development effort while avoiding common authentication vulnerabilities.

All of these services offer free tiers, so you can get started at zero cost.

Five Steps to Complete Installation

Step 1: Clone the repository and install dependencies

Open your terminal, clone the Open Agent Builder repository, navigate to the project directory, and run npm install to install all dependency packages.

Step 2: Initialize the Convex database

Install the Convex CLI globally, then run npx convex setup to initialize the Convex project. Log into your Convex account to complete the database configuration. Note: After initialization, this terminal window needs to remain open — don't close it.

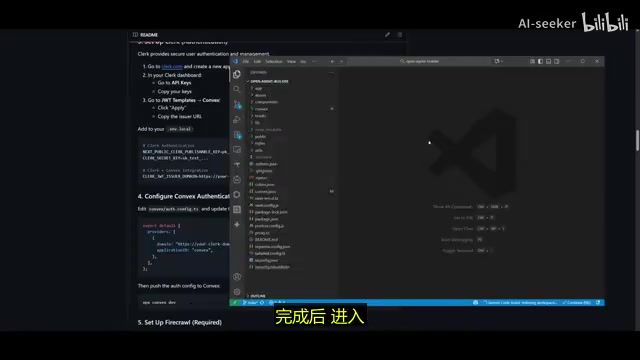

Step 3: Configure Clerk user authentication

Create a new application in the Clerk dashboard, get the API keys, and add them to the project's environment variables file. You'll also need to set up Clerk's domain and issuer URL in Convex's authentication configuration file, then push the auth config to Convex.

Step 4: Configure FireCrawl and the LLM

Add the FireCrawl API key to the environment variables file and configure the default LLM provider. If you're on a budget, you can also choose free local models like Ollama. Ollama is an open-source local LLM runtime framework that allows users to run open-source models like Llama 3, Mistral, and Gemma on their own computers without GPU cloud services or API payments. Ollama wraps model downloading, quantization, and inference serving into simple command-line operations and provides a local API interface compatible with the OpenAI format. This means Open Agent Builder can use Ollama directly as an LLM backend, enabling completely offline, zero-API-cost agent execution. For users who prioritize data privacy or want to control inference costs, the Ollama + Open Agent Builder combination provides a fully self-controlled AI automation path.

Step 5: Start the local service

Once all configuration is complete, run npm run dev in the project directory to start the local service, then open your browser and navigate to the local address to start using it.

Hands-On Demo: Multi-Company Stock Analysis with Open Agent Builder

To demonstrate Open Agent Builder's real-world capabilities, let's run through the complete workflow using the "Multi-Company Stock Analysis" template.

Workflow Structure Breakdown

The execution logic of this workflow is as follows:

1. Start Node: Parses the user-input list of companies
2. Loop Processing: Executes two parallel branches for each company
3. Information Retrieval: Scrapes basic company information and stock tickers
4. Research & Analysis: Calls tools like Yahoo Finance for data research
5. Summary Generation: Aggregates analysis results and outputs a report for each company

The "parallel branches" here are a common design pattern in agent workflows. Unlike traditional sequential execution, parallel branches allow multiple tasks to run simultaneously — for example, fetching basic company information while another branch concurrently queries stock tickers and financial data. This design significantly reduces overall execution time, especially when multiple external API calls are involved.

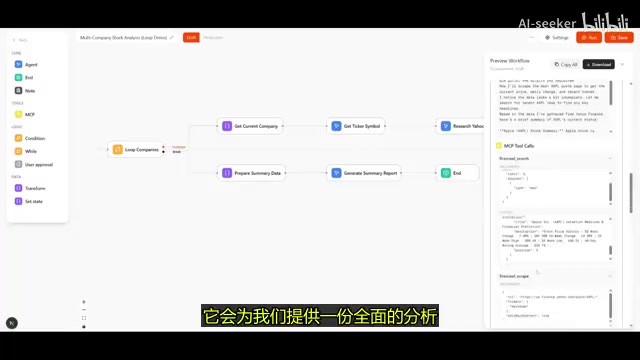

Execution Results

Click the run button, input the companies to analyze (e.g., Tesla, Microsoft, Apple), and the workflow will automatically loop through execution. The system sequentially calls Yahoo Finance research tools and FireCrawl's MCP tools to collect and aggregate information.

In the end, the system generates a complete analysis report for each stock, covering price overview, market performance, key financial metrics, and more. If you need more concise output, you can pipe the results to an MCP node to automatically generate a Word document summary report.

The Practical Value of Loop Automation

This demo fully demonstrates the power of loop automation — the system repeatedly executes the same analysis workflow, processing each stock in sequence. After analyzing Tesla, it automatically moves to Microsoft, then Apple, with no manual intervention required. This pattern is particularly suited for batch processing business scenarios, such as bulk competitor analysis in e-commerce, batch resume screening in recruitment, or bulk content generation for marketing teams. The core value of loop automation lies in freeing human labor from repetitive tasks while ensuring consistency and traceability in every execution.

Open Agent Builder vs. n8n vs. OpenAI Agent Builder

Before comparing, it's worth understanding n8n's background. n8n is one of the most popular open-source workflow automation platforms today, often called the "open-source Zapier." It offers over 400 pre-built integration nodes covering services from CRM and email to databases. n8n uses a Fair-code License, allowing self-hosted deployment but with certain restrictions on commercial distribution. In recent years, n8n has been actively embracing AI capabilities, adding AI Agent nodes and vector database integrations. The core difference between Open Agent Builder and n8n is that the former was designed from the ground up with AI agents at its center, natively integrating MCP protocol and AI tool chains like FireCrawl, while n8n's AI capabilities are more of an extension built on top of its existing automation framework.

Feature	Open Agent Builder	OpenAI Agent Builder	n8n
Open Source	✅	❌	✅
Local Deployment	✅	❌	✅
Rate Limits	None	Yes	Depends on deployment
Visual Drag-and-Drop	✅	✅	✅
Real-Time Execution Logs	✅	Limited	✅
MCP Tool Support	✅	Limited	Requires plugins
Pre-built Templates	Rich	Few	Rich
Free to Use	✅	Limited	Community edition free

From this comparison, Open Agent Builder has clear advantages in open-source freedom, native MCP tool support, and zero-cost usage, making it ideal for developers who want full control over their AI automation workflows.

Conclusion: Is Open Agent Builder Worth Trying?

As an open-source visual AI agent building tool, Open Agent Builder excels in feature completeness, customization flexibility, and deployment freedom. It combines the intuitive experience of n8n-style visual workflows with cutting-edge AI agent capabilities — particularly FireCrawl-powered web scraping and MCP tool integration — giving it unique advantages in data acquisition and processing.

If you're a developer or tech enthusiast looking to build AI automation workflows in a local environment, Open Agent Builder is worth a try. As the open-source community continues to grow and features keep iterating, it has the potential to become a significant open-source force in the AI agent building space.

Key Takeaways

• Open Agent Builder is an open-source visual AI agent workflow builder powered by FireCrawl, supporting drag-and-drop operations and real-time execution monitoring
• Compared to OpenAI's Agent Builder, it has no rate limits, offers higher customization, and supports fully local deployment
• Includes multiple practical templates (stock analysis, product research, property search, etc.), supports MCP tool integration and loop automation
• Deployment requires Node.js 18+ and three free API keys (FireCrawl, Convex, Clerk), with a relatively straightforward installation process
• Supports multiple LLM providers including free Ollama models, lowering the barrier to entry
