OpenClaw Fallback Configuration: Dual-Model Auto-Switching + Image Recognition in Practice

Introduction

In previous OpenClaw tutorials, we configured MiniMax 2.5 as the primary model for our AI agent. While it offers solid value for money, it has one glaring limitation — no image recognition support. In other words, when you send OpenClaw a picture, it simply can't "see" it.

This brings up an important technical concept: Multimodal AI. Multimodal refers to AI models that can simultaneously process and understand multiple types of input — text, images, audio, and even video. Traditional large language models only handle text input, making them single-modal. Multimodal models, by contrast, incorporate visual encoders (such as ViT, Vision Transformer) during training to convert image data into vector representations the model can understand, then fuse that with text. MiniMax 2.5 is primarily a text-generation model and doesn't include a visual processing module in its architecture — which is why it can't parse images. Kimi Code K2P5, on the other hand, integrates visual understanding directly into its architecture, allowing it to accept image tokens and perform semantic analysis. That's the fundamental reason these two models behave so differently when it comes to image input.

This tutorial addresses two key problems: first, integrating the vision-capable Kimi Code model into OpenClaw to fill the image recognition gap; second, configuring a Fallback mechanism that automatically switches to a backup model when the primary model fails, ensuring uninterrupted service.

Getting Your Kimi Code API Key

To use the Kimi Code model, the first step is obtaining an API key from the Kimi website.

Subscribe and Create a Key

1. Open the Kimi website and navigate to the "Kimi Code" section in the left sidebar
2. Click "Member Benefits," choose a suitable subscription plan, and complete the purchase
3. Go to the "Console" page

In the console, you'll see API keys you've previously created for different use cases. Note that Kimi enforces an upper limit on the number of API keys. If you've hit that limit, you'll need to delete an existing key before creating a new one.

Click the "New" button, enter a name, and confirm to generate your new API key.

Tip: Copy and save your API key immediately after creation — you'll need it for the configuration steps ahead.

API Key Security Best Practices

An API key is your credential for accessing cloud-based AI services — essentially a digital key. If it leaks, others can use it to call the API, drain your token quota, and potentially rack up significant charges. Industry best practices include: never hardcode keys directly in your code; instead, use environment variables or a secrets management service. Create separate keys for different applications so you can track usage and revoke access quickly. Rotate keys regularly to reduce exposure risk. Kimi's cap on the number of API keys is also a security and resource management measure — it prevents users from accumulating too many unused credentials that could expand the attack surface.

Configuring the Kimi Code K2P5 Model in OpenClaw

With your API key in hand, the next step is integrating the model into OpenClaw.

Run the Configuration Command

Open your terminal and run:

openclaw config

The system will display your current default model information. Now you need to add a new model configuration:

1. Press Enter to enter the configuration interface, and use the arrow keys to navigate options
2. Select the configuration for your current machine
3. Under the Model option, select Moonshot AI
4. Select Kimi Code API
5. Paste in the API key you copied earlier and press Enter to confirm
6. The system will prompt you to select a specific model — choose Kimi Code K2P5

Once configured, press Ctrl + C to exit. At this point, Kimi Code K2P5 is successfully integrated into OpenClaw.

Setting Up the Fallback Backup Model Mechanism

The Fallback mechanism is the most practical part of this entire setup. The core logic is straightforward: when the primary model (MiniMax 2.5) fails due to exhausted tokens or other issues, the system automatically switches to the backup model (Kimi Code K2P5) to continue service — with virtually no interruption perceived by the user.

The Engineering Principles Behind Fallback

Fallback is a classic design pattern in distributed systems and microservice architectures, rooted in fault-tolerant engineering. At the API gateway level, Fallback is typically used alongside the Circuit Breaker Pattern: when the system detects that the primary service has failed consecutively beyond a threshold (e.g., HTTP 429 Too Many Requests, 500 Internal Server Error), the circuit breaker automatically "trips" and routes subsequent requests to a preconfigured backup service. In large language model applications, this mechanism is especially critical because every vendor's API has rate limits and token quotas — once exhausted, they return errors. By configuring models from different providers as mutual Fallbacks, you're essentially implementing a simplified multi-active architecture that significantly improves service availability.

Configure the Gateway

Run the following command to open OpenClaw's gateway management interface:

openclaw gateway

An API Gateway is a middleware layer between clients and backend services, responsible for request routing, load balancing, authentication, and traffic control. In OpenClaw's architecture, the gateway acts as a "traffic controller" — all requests to large language models pass through it first, and the gateway decides which model to forward each request to. This design decouples model scheduling logic from business logic: users and upstream applications don't need to know which model is running underneath. The gateway handles everything automatically based on configured rules (primary model first, switch to Fallback on failure). That's why we configure Fallback in the gateway management interface rather than in the model settings directly.

Once inside the interface, follow these steps:

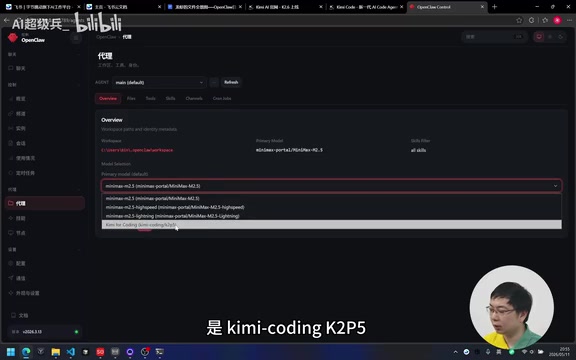

1. Select "Proxy" from the left sidebar
2. You'll see the current primary model is MiniMax 2.5
3. In the Fallback model field, manually enter: kimi-coding-k2p5
4. Click Save to apply the configuration

After saving, whenever MiniMax 2.5's token quota runs out or its API encounters an error, the system will automatically call Kimi Code K2P5 as the backup, keeping conversations uninterrupted.

Real-World Test: Image Recognition Comparison

With the configuration complete, let's test how the two models actually perform on image recognition.

MiniMax 2.5's Performance

With MiniMax 2.5 still set as the primary model, upload a photo of a flower and ask "What is in this image?" The result: MiniMax 2.5 invokes a tool and then replies that it "cannot directly access the image you sent" — it simply cannot process image input.

Kimi Code K2P5's Performance

Switch the proxy's primary model to Kimi Code K2P5, save, and re-enter the chat interface. Upload the same flower photo and ask the same question.

This time, Kimi Code successfully reads the image and accurately describes details like "two white speckled flowers." Image recognition capability confirmed.

This comparison makes one thing clear: if you want OpenClaw to be able to "look at and describe" images, you must use a multimodal model like Kimi Code K2P5.

Configuration Strategy Recommendations

Depending on your actual needs, you can adopt one of the following configuration strategies:

Strategy	Primary Model	Fallback Model	Best For
Cost-first	MiniMax 2.5	Kimi Code K2P5	Mostly text-based conversations with occasional image needs
Vision-first	Kimi Code K2P5	MiniMax 2.5	Frequent image understanding requirements
Stability-first	Any model	Another model	High service availability requirements

Core principle: Choose your primary model based on your most common use case, and use the Fallback model as a safety net. Having two models from different providers back each other up minimizes the risk of a single point of failure.

Thoughts on Single Points of Failure and Multi-Model Scheduling

A Single Point of Failure (SPOF) is a critical risk concept in system architecture — it refers to any component whose failure would bring down the entire system. When only one large language model is configured, that model's API becomes a classic SPOF: whether it's a vendor server outage, network instability, or quota exhaustion, any of these will directly cause your AI agent to go silent. Dual-model or multi-model scheduling architectures borrow from the redundancy design principles of high-availability systems. More advanced multi-model scheduling can also incorporate intelligent routing strategies — for example, automatically selecting the most suitable model based on task type (cost-efficient models for text tasks, multimodal models for image tasks) — achieving an optimal balance between cost and capability.

Summary

This tutorial covered two important configurations:

1. Integrating the Kimi Code K2P5 model, giving OpenClaw image recognition (multimodal) capabilities
2. Configuring the Fallback backup mechanism, enabling automatic switching when the primary model fails

The dual-model backup setup not only expands the agent's functional range — more importantly, it enhances the system's stability and availability. In real-world use, API instability and token quota exhaustion are common occurrences. With a Fallback mechanism in place, your OpenClaw agent stays "online" no matter what.

If you want to take things further, try integrating additional models (such as Claude, GPT-4o, etc.) to build a more robust multi-model scheduling system.

Key Takeaways

• Integrating Kimi Code K2P5 gives OpenClaw image recognition capabilities, compensating for MiniMax 2.5's lack of multimodal support
• The Fallback backup mechanism automatically switches to the backup model when the primary model's tokens are exhausted or the API fails, ensuring service continuity
• Real-world testing confirms that MiniMax 2.5 cannot process image input, while Kimi Code K2P5 accurately recognizes and describes image content
• A dual-model mutual-backup architecture effectively reduces single point of failure risk and improves the robustness of the agent system
