Real-Time Data Augmentation for Single-Class Segmentation Models: Frequency, Combinations, and Boundary Precision Explained

Background: Starting From Aerial Ground Art Photography

In deep learning image segmentation tasks, Data Augmentation is one of the core techniques for improving model generalization. Theoretically, data augmentation is essentially a regularization method rooted in the statistical learning tradeoff between "empirical risk minimization" and "structural risk minimization." When training samples are limited, models are highly prone to overfitting the specific distribution of the training set. By artificially expanding the training distribution to approximate the true data-generating distribution, we can systematically reduce generalization error. This approach is especially effective in the image domain, since visual variations (lighting, angle, occlusion, etc.) form a vast yet structured transformation space.

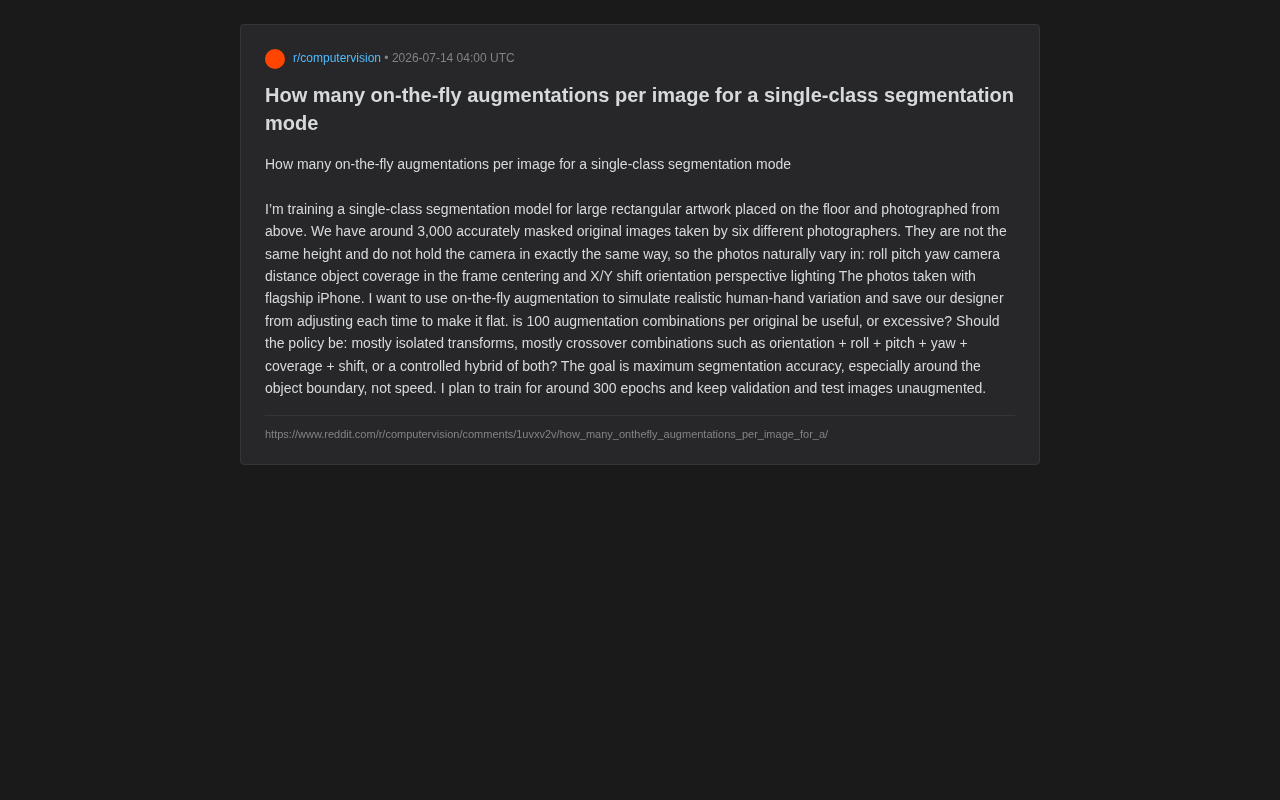

A developer posed a highly representative practical question: he was training a single-class segmentation model to recognize large rectangular artworks placed on the ground and photographed from above.

The project has approximately 3,000 raw images with precise annotated masks, captured by six different photographers. Because the photographers vary in height and shooting posture, the photos naturally cover multiple dimensions of variation:

• Pose angles: roll, pitch, yaw
• Shooting distance and the proportion of the frame covered by the subject
• Compositional offset: centering, X/Y translation
• Orientation and perspective distortion
• Lighting differences

All photos were taken with flagship iPhones. The project goal is clear: use on-the-fly augmentation to simulate real-world handheld shooting variation, while achieving the highest possible segmentation precision at object boundaries.

The Core Question: Is 100 Augmentation Combinations Per Image Reasonable?

The author's specific question is:

Is generating 100 augmentation combinations per original image useful, or is it overkill?

This is a very common point of confusion in practice. To answer it, we first need to clarify what "on-the-fly augmentation" actually means.

On-the-Fly Augmentation ≠ Fixed Multiplication

Many beginners mistakenly think data augmentation is an offline operation that "turns 3,000 images into 300,000." In reality, Offline Augmentation and On-the-Fly Augmentation differ fundamentally at the engineering level. Offline augmentation pre-generates and stores all augmented samples before training — disk usage grows linearly with the multiplier, but I/O pressure during training is lower. On-the-fly augmentation dynamically generates transformations within the CPU/GPU data loading pipeline, adds almost no storage overhead, and produces different transformations every epoch, theoretically providing infinite diversity. Modern deep learning frameworks (such as PyTorch's DataLoader paired with torchvision.transforms, or the Albumentations library) natively support multi-threaded on-the-fly augmentation, making it the go-to choice in mainstream training pipelines.

On-the-fly augmentation works quite differently: in each training epoch, each image is randomly transformed once (or with one set of transforms) before being fed into the network.

Using this project as an example:

• Planning to train for 300 epochs
• In each epoch, every image is randomly augmented once
• So each original image will go through approximately 300 different random variants

From this perspective, the fixed-number mindset of "100 combinations per image" doesn't align with the logic of on-the-fly augmentation. The real key is not the "number of combinations" but rather the range and intensity of the augmentation's random distribution. As long as parameters are sampled from a reasonable continuous distribution, 300 epochs will naturally produce far more than 100 diverse samples — no need to manually specify a fixed combination count.

Augmentation Strategy: Isolated Transforms, Combined Transforms, or Mixed?

For this type of scenario, there are typically three candidate strategies:

1. Primarily isolated transforms: apply only one transformation at a time
2. Primarily cross-combined transforms: simultaneously apply orientation, roll, pitch, yaw, coverage, and translation
3. A controlled mixture of both

Recommended: Controlled Mixed Strategy

For multi-photographer, multi-pose shooting scenarios, a controlled mixed strategy is almost always the optimal choice. The core principle is simple: the augmentation distribution should match the real test distribution.

Behind this principle is a direct application of Domain Matching theory, which originates from transfer learning. Its central claim is that when the training data distribution (source domain) and the test data distribution (target domain) diverge, model performance systematically degrades. In the context of data augmentation, "over-augmentation" is equivalent to artificially creating a shift between the source and target domains — for example, applying random pitch perturbations of ±90° would expose the model to extreme viewpoints during training that would never appear during inference, which not only fails to improve generalization but actually dilutes the effectiveness of gradient signals. Therefore, the ideal augmentation strategy makes the training transformation distribution a "superset" of the real test distribution: covering all variations that may realistically appear, without introducing artificial noise that departs from reality.

In real photographs, a single image often simultaneously exhibits slight roll, pitch, offset, and lighting variation — that's simply what handheld photography looks like. During training, these transformations should also appear together randomly, which aligns closely with the concept of domain matching: making the augmented images seen during training as close as possible to the actual photos the model will process at inference time.

Specific recommendations:

• Apply geometric transforms in combination: perspective, rotation, scale, and translation sampled jointly to simulate real-world handheld poses
• Keep each transform's intensity controlled: for example, limit pitch to around ±15° — the realistic range for handheld shooting — rather than ±90°
• Handle lighting and color separately: set the jitter range for brightness, contrast, and white balance based on actual iPhone imaging characteristics

Boundary Precision: Special Considerations for Segmentation Tasks

For image segmentation models, boundary segmentation precision is often the core business metric, and the augmentation strategy must be designed around this.

Be Careful With Augmentations That Degrade Boundaries

When pursuing boundary precision, pay special attention to the side effects of the following augmentation types:

• Interpolation artifacts: geometric transformations such as rotation and perspective can blur boundaries during resampling. Understanding the characteristics of different interpolation algorithms is crucial. Nearest Neighbor interpolation directly takes the nearest pixel value, introduces no new intermediate values, and strictly preserves the binary nature of masks (0 or 1) without creating semi-transparent transition pixels at boundaries — this is the gold standard for mask processing. Bilinear interpolation computes a weighted average of the surrounding 4 pixels, producing sub-pixel-level smooth transitions at boundaries that effectively reduce aliasing in RGB images and improve visual quality. Bicubic interpolation considers the surrounding 16 pixels, offering the best smoothing but the highest computational cost, suitable for scenarios demanding the highest image quality. The golden rule in practice: use bilinear or bicubic for images, and always use nearest neighbor for masks — never mix the two.

• Overly aggressive elastic deformations: these can distort the straight edges of rectangular artworks, introducing unrealistic annotation noise that does more harm than good

• Aggressive random cropping: this may cut off part of the target object; ensure the mask remains complete after cropping, or establish clear edge-handling rules

Since the target is a geometrically regular rectangular artwork with clearly structured boundaries, moderate perspective and rotation augmentation can actually help the model learn to "identify rectangular edges from various viewpoints," which directly serves the business objective.

Keep the Validation and Test Sets Untouched

The validation and test sets should not have any data augmentation applied — this is a principle that must never be compromised. Evaluation should be performed on real, unprocessed data to accurately reflect the model's performance in production. Data augmentation is exclusively for the training phase. From an information-theoretic perspective, the validation set's purpose is to provide an unbiased estimate of the model's generalization capability. Once any transformation is applied to the validation set, this estimate is corrupted by systematic bias, causing developers to misjudge the model's true performance and make incorrect hyperparameter tuning decisions.

Practical Recommendations Summary

For this 3,000-image single-class segmentation project, here are the key concrete recommendations:

1. Abandon the "fixed combination count" mindset: on-the-fly augmentation over 300 epochs already provides sufficient diversity — there's no need to fixate on a number like "100 combinations."
2. Use a controlled mixed strategy: apply geometric transforms jointly and randomly to simulate real handheld shooting jitter, but keep each transform's intensity constrained to match the real distribution.
3. Protect mask boundaries: use nearest neighbor interpolation for masks during geometric transforms to avoid boundary blurring; avoid extreme elastic deformations.
4. Match the real domain: the augmentation range for lighting, perspective, and angle should closely follow the actual variation range of real iPhone photography — don't indiscriminately crank everything to maximum.
5. Monitor validation curves: if the validation loss plateaus or rebounds before training converges, the augmentation intensity may need fine-tuning.

The essence of data augmentation is "like the real world, but richer than the real world." For multi-photographer, multi-pose scene data, truly understanding the sources of variation is the most reliable foundation for designing an augmentation strategy.
