The Truth Behind Three RAG Pipeline Crashes: Why Inter-Stage Data Contracts Matter

A "Stupid" Root Cause That Keeps Coming Back

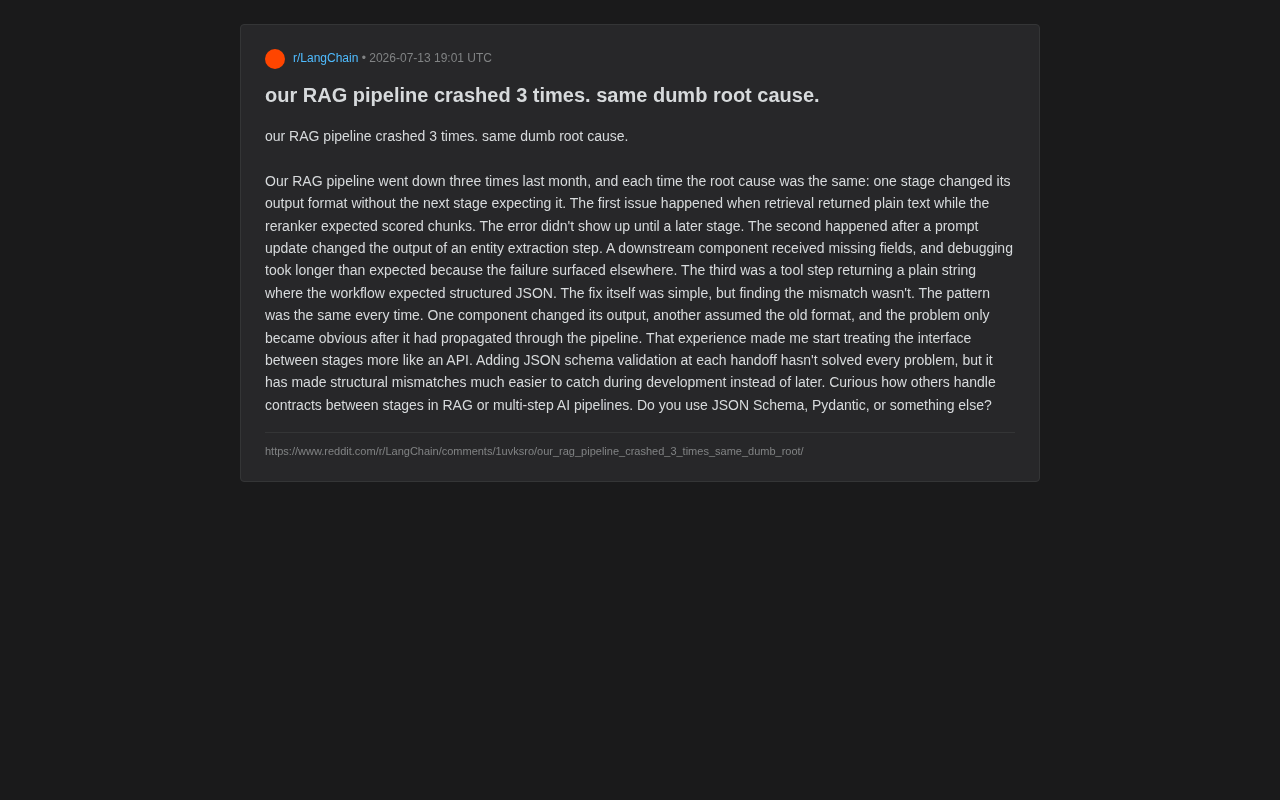

When building complex RAG (Retrieval-Augmented Generation) or multi-step AI pipelines, developers tend to focus on model performance, retrieval accuracy, or prompt optimization. Yet a real-world account shared by a Reddit developer serves as a reminder: what actually brings systems crashing down repeatedly may be a long-overlooked architectural blind spot — the data contracts between pipeline stages.

RAG is an architectural paradigm that combines retrieval from external knowledge bases with the generative capabilities of large language models. A typical pipeline chains together multiple independent modules: query understanding, vector retrieval, document reranking, context compression, prompt construction, and model generation. Data flows between these modules in structured or semi-structured form, and each handoff carries implicit assumptions about format. This architecture is flexible and powerful, but the dependencies between modules are intricate, and interface fragility is a particularly acute problem.

According to the developer, their RAG pipeline went down three times in a single month, each time with a strikingly identical root cause: one stage quietly changed its output format, while the downstream stage continued parsing against the old format. The problem sounds simple, but tracking it down was agonizing.

This isn't an isolated technical failure — it's a microcosm of a systemic issue. As AI applications evolve from single model calls into complex pipelines chaining retrieval, reranking, extraction, and tool invocation, the "interfaces" between stages are becoming the most fragile link.

Three Crashes, Three Disguises

All three failures shared the same root cause, yet each wore a different disguise — which is precisely why they were so hard to pinpoint quickly.

Crash #1: Format Mismatch Between Retrieval and Reranking

The first failure occurred at the retrieval stage. The retrieval module returned plain text content, while the downstream reranker expected scored chunks. In modern RAG architectures, the reranker plays a critical role: it receives the candidate document list from the initial retrieval pass and re-ranks it based on query semantics, typically using a Cross-Encoder model to compute relevance scores between the query and each document, then passes the highest-quality context fragments to the generation model. This step significantly impacts final answer quality, but it also has much stricter requirements on input data structure. Critically, the error didn't surface at the handoff point — it appeared much further downstream. The error message pointed somewhere far from the actual source of the problem.

Crash #2: A Prompt Update Triggers a Chain Reaction

The second issue stemmed from a seemingly harmless prompt update — it changed the output structure of the entity extraction step, causing downstream components to receive data with missing fields. Entity extraction is a key step in NLP pipelines, where prompt engineering guides the LLM to identify and output named entities (people, locations, dates, keywords, etc.) from unstructured text, typically in structured JSON format. However, the output of a large language model is fundamentally probabilistic text generation — a single phrasing tweak can silently change field names, nesting levels, or enumeration values, and this change triggers no compile-time or static-analysis warnings. The failure again "migrated" elsewhere before exploding. Developers had to trace back through the data flow layer by layer before finally pinpointing the root cause, at a debugging cost far exceeding expectations.

Crash #3: The String vs. Structured JSON Dispute

In the third failure, a tool-calling step returned a plain string where the workflow expected a structured JSON object. Tool calling (also known as Function Calling) is a core capability of today's leading LLMs, allowing the model to invoke external functions or APIs during inference and integrate the results into its response. The model should output structured parameters following a predefined function signature, but in certain situations — especially when prompt wording is ambiguous or after a model version upgrade — the model may fall back to natural language descriptions instead of standard JSON output. The fix itself required only a few lines of code, but finding the mismatch was where the real cost lay.

All three failures followed the same pattern: one component changed its output, another component operated on stale format assumptions, and the problem only became visible after propagating deep into the pipeline.

Why Are These Problems So Hard to Spot?

What makes these failures so insidious is their "delayed exposure" characteristic. In a traditional monolithic application, a type error in a function call typically throws an exception at the call site immediately. But in an AI pipeline, data flows between stages in loose text or semi-structured form with no enforced type validation.

A format change can be "tolerated" and passed along until some downstream stage tries to access a nonexistent field — and only then does it crash. At that point, the error stack points to where the symptom appeared, not where the cause originated. This phenomenon of "failure point divorced from root cause" is a classic challenge in debugging multi-stage systems. In the distributed systems world, this class of problem is typically mitigated through Distributed Tracing — by injecting trace IDs at each service boundary, you can reconstruct the complete path of a request through all components. Bringing similar observability thinking to AI pipelines means recording the structural characteristics of inputs and outputs at each stage boundary, not just the final result.

What makes this even harder is that many outputs in an AI pipeline are generated by LLMs and carry inherent nondeterminism — a single prompt tweak or a model version upgrade can silently change the "shape" of the output.

Treat Stage Interfaces Like APIs

The core lesson from this hard-earned experience is: treat the interfaces between pipeline stages with the same seriousness as APIs.

In traditional software engineering, services communicate through clearly defined API contracts, with strict constraints on input and output structures. In many early AI pipeline implementations, data transfer between stages is implicit — everyone assumes "upstream will return what I expect," but this unspoken agreement is extremely fragile.

The developer's solution was to add JSON Schema validation at every data handoff point. JSON Schema is a declarative specification based on the JSON format, standardized by IETF, supporting field type definitions, required field declarations, enum value constraints, and nested object validation. It is language-agnostic and can serve as a formal expression of the data contract between stages. Paired with libraries like jsonschema, it can automatically validate data compliance at runtime — when upstream output doesn't conform to the agreed structure, the system throws an error at the first point of data exchange rather than waiting for the problem to propagate to the end of the pipeline.

This change didn't solve every problem, but it delivered a critical shift: structural mismatches moved from being "deep runtime failures" to something that could be caught at development time. The essence of this approach is injecting explicit contracts into a loosely coupled AI pipeline — using the determinism of engineering to hedge against the nondeterminism of AI outputs.

Common Technology Choices for Contract Validation

How to implement contract validation between stages is worth exploring in depth. The mainstream approaches in the community are:

JSON Schema

JSON Schema is a language-agnostic declarative format for describing JSON data structures. Its advantages are cross-language portability and suitability for heterogeneous systems or scenarios where contracts need to be externally exposed. A JSON Schema file can also be version-controlled, serving as both interface documentation and validation logic in one. The downside is that writing and maintaining it can be tedious; for deeply nested data structures, the Schema file itself can become a maintenance burden.

Pydantic

Within the Python ecosystem, Pydantic has become the de facto standard for data validation. Built on Python's type annotation system, it provides not only runtime type checking but also automatic type coercion, serialization/deserialization, and detailed error reporting. Pydantic v2 rewrote its core validation logic in Rust, delivering several times the performance improvement over v1. LangChain, LlamaIndex, FastAPI, and the instructor library (designed specifically for structured outputs) all deeply integrate Pydantic, making it the go-to solution for defining inter-stage data models in AI application development. For AI applications heavily built in Python, Pydantic is often the most natural choice.

Other Options

Dataclasses with manual validation, TypedDict, or dedicated data validation libraries are all viable. The core considerations for choosing are: team tech stack, whether cross-language support is needed, and the trade-off between performance and developer experience. It's worth noting that Contract Testing, a mature practice in microservices architecture, applies equally to AI pipelines — through Consumer-Driven Contracts, you can automatically verify interface compatibility as modules evolve independently. Pact is the best-known open-source tool in this space.

Lessons for AI Engineering Practice

This case may seem small, but it reflects an important direction in the maturing of AI engineering: moving from "it runs" to "it's maintainable and trustworthy".

For teams building multi-step AI systems, the following points deserve close attention:

• Establish validation checkpoints at stage boundaries, so format errors surface early and close to their source rather than exploding at a distance;
• Include data contracts in version control and change reviews — any modification that changes output format should be treated as a potential Breaking Change and trigger a downstream compatibility assessment;
• Build regression tests for prompt updates, since prompt changes can also alter output structure; these tests should cover Schema compliance of the output, not just semantic correctness;
• Log and monitor input/output samples at each stage to preserve a traceable trail for debugging; in production, consider introducing an async sampling mechanism to check Schema compliance across a percentage of requests, enabling early detection of gradual format drift.

As AI application complexity continues to rise, the "stupid" root causes are often the ones that truly undermine system stability. Treating interfaces like APIs and contracts like code is an important step toward making RAG pipelines reliable.
