Apple Embeds Graphite Heat Pipe in iPhone Duo Hinge

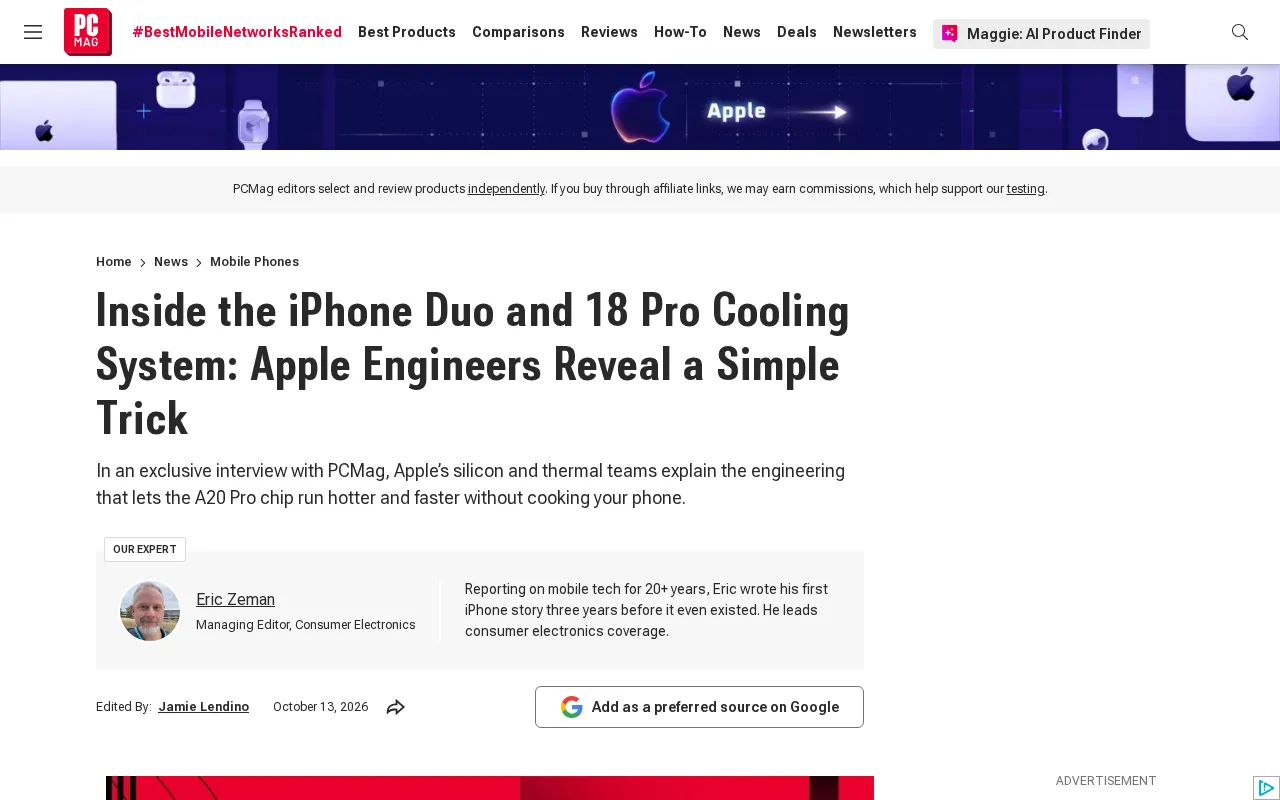

Apple has tucked a graphite heat pipe into the hinge structure of the iPhone Duo, a detail that surfaced from a discussion on Hacker News. The tip itself is brief—just a screenshot and a link pointing to the HN comment thread—but the engineering thinking behind it is worth unpacking.

Why the Hinge

The most awkward thing about foldable phones is that their heat dissipation paths are inherently narrower than those of slab phones. With two screens, two mainboard zones, and a moving joint that must bend repeatedly, heat can't spread evenly through a single midframe or back panel the way it does in a conventional phone. By routing a graphite pipe through the hinge, Apple is essentially forcing a continuous thermal channel across the fold that spans both halves.

Graphite itself is nothing new. It has strong anisotropic thermal conductivity—its in-plane thermal conductivity can be far higher than copper while weighing much less—which is why it's widely used in heat-spreading plates inside phones. The real challenge is the act of "passing through the hinge." The hinge is the most precise component in the entire device and the most vulnerable to foreign object intrusion; any excess thickness, bend radius, or material fatigue can affect its open-close lifespan. Being able to route a graphite pipe through it suggests Apple has reworked the trade-offs in the hinge's routing space.

The Hinge Is More Than a Mechanical Part

Over the past few years, competition in foldable hinges has centered on two metrics: crease depth and open-close feel. Heat dissipation is usually lumped into the mainboard and VC vapor chamber category, and few people treat the hinge as a thermal management component. If Apple's tip is accurate, it expands the hinge's role from "purely mechanical structure" to "part of the thermal conduction path."

From an engineering standpoint, this means hinge tolerances will need to be even tighter. The graphite pipe must bend along with the hinge without being repeatedly compressed to the point of fracture or delamination—a test for both material edge sealing and routing fixation. In other words, this isn't simply stuffing a pipe inside; it's simultaneously satisfying mechanical lifespan and thermal performance within a limited space.

Graphite's anisotropic thermal conductivity deserves elaboration: graphite has a typical layered crystal structure, with carbon atoms forming strong covalent bonds through sp2 hybridization within each layer. Heat conduction along the layer direction (ab plane) is extremely efficient—artificial graphite film can achieve in-plane thermal conductivity of 1500–1900 W/(m·K), far exceeding pure copper's roughly 400 W/(m·K). But in the perpendicular direction (c-axis), thermal conductivity is only a few W/(m·K), a gap of nearly three orders of magnitude. The common "graphite heat spreader" in phones exploits precisely this anisotropy, rapidly spreading heat from a hotspot across the plane rather than penetrating vertically. This is also why graphite film is typically made as very thin multilayer stacks (on the order of tens of microns), ensuring in-plane heat spreading efficiency while avoiding wasted space in the thickness direction. Turning graphite into a "pipe" that passes through a repeatedly bending hinge means encasing an inherently brittle, delamination-prone graphite material in a flexible substrate or sealing it inside a thin-walled tube—which goes well beyond the scope of conventional graphite film applications.

The Structural Contradiction Between Heat Dissipation and Foldables

Space Is Consumed by Screens and Batteries

When a foldable is unfolded, the screen area doubles, but the internal stacking space doesn't grow proportionally. The battery is split into two or more pieces, the mainboard typically occupies only one side, and the other side is often a secondary board or wireless charging coil area. If heat generated by the SoC can only remain on its original side, the temperature in the screen area on the other side will be noticeably uneven when unfolded.

This is where the graphite pipe passing through the hinge proves its value: it can guide heat from one side to the other, using the larger body area to distribute it. For sustained-load scenarios like extended gaming, video calls, or external display use, increasing the heat-spreading area is more direct than simply stacking more VC plates.

The Hinge Is a Natural Break Point in Thermal Management

From a thermal resistance perspective, the hinge is the worst segment in the entire device—it's composed of multiple metal parts and a rotating shaft, with gaps between contact surfaces, and air is a poor conductor of heat. Without special treatment, the two sides of the hinge are essentially thermally isolated. By routing a graphite pipe across this break point, Apple is effectively building a thermal bridge over the hinge.

The cost of this bridge is design complexity. The graphite pipe needs to follow the hinge's motion trajectory, and stress concentration at bends, friction with the rotating shaft, and material fatigue after long-term opening and closing are all engineering problems that must be solved. The tip doesn't provide specific pipe diameter, routing shape, or lifespan test data, but judging purely from structural logic, Apple's R&D investment here is unlikely to be cheap.

What This Tip Suggests

Foldable Competition Is Moving Into Structural Details

Early foldable competition focused on screen supply and whether the hinge worked at all. Now leading manufacturers are turning their attention to finer levels: how to maintain heat dissipation in a folded form factor, how to make the hinge carry more functions, how to do thermal design in millimeter-scale spaces. A graphite pipe through the hinge is a typical "structural-level optimization"—it won't appear prominently on a launch event slide, but it will affect thermal performance in actual use.

The Information Itself Is Still Limited

It should be noted that the only available information is a single post on Hacker News and a link to its comment section. There's no Apple official documentation, teardown report, or supply chain source for cross-verification. There's no data supporting the graphite pipe's specifications, specific routing method, or actual contribution to thermal performance. Treating it as a signal of an engineering direction is reasonable, but it's not appropriate to directly conclude that "iPhone Duo heat dissipation is greatly improved as a result."

If you're following the long-term reliability of foldables, this graphite pipe in the hinge is worth tracking—it touches on three dimensions simultaneously: heat dissipation, lifespan, and repairability.

Background Supplement

VC vapor chamber is another key to understanding this structural contradiction: it's a flat metal cavity internally evacuated and filled with a working fluid, using phase change (evaporation-condensation) to transfer heat across a two-dimensional surface, with extremely high equivalent in-plane thermal conductivity. It's currently the primary workhorse for flagship phones handling SoC peak heat dissipation. But the VC plate itself requires a certain cavity thickness and sealing structure, and it's a relatively rigid whole that's difficult to span a bending moving joint like a hinge. So in foldables, the VC plate typically can only cover one side's mainboard area and can't cross the hinge to distribute heat to the other side of the body. The significance of the graphite pipe solution is that it's thinner and more flexible than a VC plate and can route along the hinge's bending path, at the cost of lower heat flux per unit cross-section compared to VC. The two are actually complementary—VC handles high heat flux density diffusion on one side, while the graphite pipe handles "channeling" heat from one side to the other's large-area body for secondary spreading.

One-line Summary

Apple embeds a graphite heat pipe in the iPhone Duo hinge, turning the foldable hinge from a purely mechanical part into a thermal conduction path

Paragraph Summary

Apple has been reported to have embedded a graphite heat pipe in the hinge structure of the iPhone Duo, with the only source being a single Hacker News post. The article analyzes the engineering logic behind this design: foldables inherently have narrower heat dissipation paths than slab phones, and the two sides of the hinge are almost thermally isolated due to shaft gaps and air, making it the highest thermal resistance break point in the device. Graphite has extremely strong anisotropic thermal conductivity, with in-plane thermal conductivity far exceeding copper while being lightweight. A graphite pipe passing through the hinge is equivalent to building a thermal bridge at this break point, guiding heat generated by the SoC on one side to the other side's body, using the larger unfolded area to distribute heat. But this also means hinge tolerances, bending stress, and material fatigue requirements are further raised. The article also emphasizes that this tip lacks cross-verification from official or teardown sources and should be viewed as a signal of engineering direction rather than a confirmed conclusion about heat dissipation improvement.
