Building a Robot Duck with Arduino Uno Q and Feetech Servos: An Open-Source Hardware Journey

A Robot Duck Project That Sparked Discussion

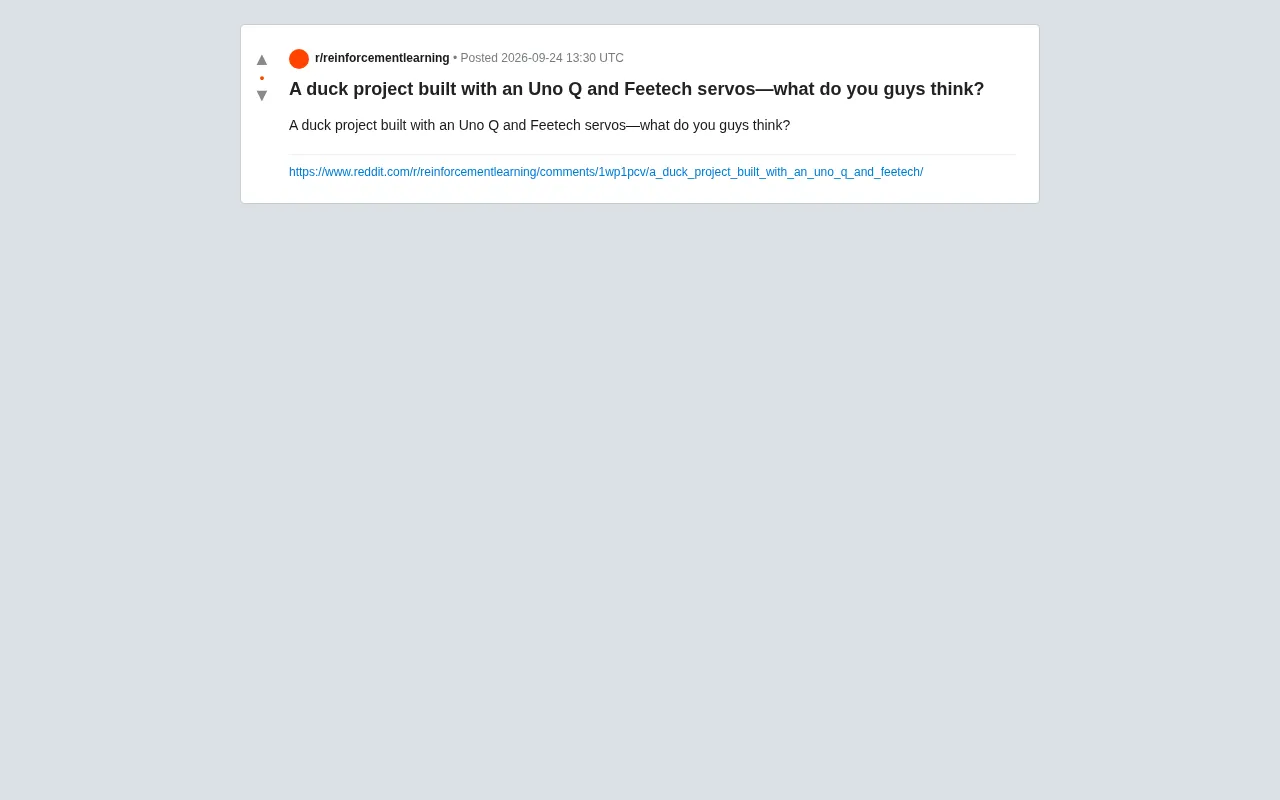

A maker recently shared their robot duck project on Reddit, built around an Arduino Uno Q control board and Feetech servos. Although the original post was brief — simply asking "What do you think?" — DIY robot projects like this are always a popular topic in open-source hardware communities.

From the project description, it's clear the creator chose two key hardware components: an Arduino Uno Q as the main controller and Feetech servos as the actuators. This kind of setup is quite typical among hobbyist robotics enthusiasts — it offers enough room for creativity without pushing the budget or technical barrier too high.

Hardware Choices Explained

Arduino Uno Q: The Role of the Main Controller

The Arduino family has long been the go-to platform for entry-level hardware projects. The Uno series is known for its ease of use, rich community resources, and a vast library of ready-made code. For a robot duck project that needs to control multiple servos and coordinate movement, Arduino provides sufficient I/O pins and processing power to handle basic motion sequences.

For beginners, Arduino's biggest advantage is its mature ecosystem — nearly any problem you run into can be solved by searching forums or documentation. That's precisely why so many projects like this start with Arduino.

Feetech Servos: The Actuators Behind the Motion

Feetech is a well-known brand in the servo market, with a product line ranging from budget standard servos to smart servos that support serial bus communication. Servos are the core components that enable the robot duck to turn its head, walk with its legs, or sway its body.

Choosing Feetech servos means the creator can strike a balance between torque, precision, and cost. For a project that mimics the natural movements of a duck, servo response speed and angular control accuracy directly affect how fluid and lifelike the final motion looks.

Feetech's serial bus servos (such as the SCS series) differ significantly from traditional PWM servos in terms of control. Traditional PWM servos each require a dedicated pin on the controller, with angle controlled by pulse width (typically 500–2500µs). Serial bus servos, by contrast, are daisy-chained on a single data line — each servo has its own ID, and the controller can address and command dozens of servos using just one serial port, while also reading back position, temperature, load, and other status data. For a multi-joint project like a robot duck, using bus-type servos dramatically reduces wiring complexity. However, it also requires the controller to support half-duplex serial communication and the software to handle the send/receive protocol for command packets.

The Value of DIY Projects Like This

A robot duck might seem like a "toy" project, but it actually spans mechanical structure design, circuit wiring, servo control, and kinematic programming. For hobbyists looking to break into robotics, a complete biomimetic project like this ties together the full chain from hardware to software.

Beyond the technical aspects, publishing a project to a community platform like Reddit is itself part of open-source maker culture — sharing to get feedback, iterating on improvements, and potentially inspiring others to replicate or remix the design. This kind of open exchange is what keeps the hardware DIY community thriving.

Technical Details Worth Noting

While the original post doesn't provide detailed specs, from an engineering standpoint these types of projects typically need to tackle several key challenges:

• Power management: Multiple servos running simultaneously draw significant current, often requiring a dedicated power supply rather than drawing directly from the controller board
• Motion coordination: Getting multiple servos to work in sync to produce smooth, lifelike biomimetic motion
• Structural stability: The mechanical frame must balance weight against strength

These represent the technical gap between "it moves" and "it moves naturally" — and they're exactly where DIY projects build the most hands-on engineering skill.

Power management is one of the most commonly overlooked aspects of servo-based projects for beginners. Take a typical MG90S-class servo as an example: a single servo can draw over 700mA at stall, and with four to six servos moving simultaneously, peak current can easily exceed 3A — far beyond what an Arduino Uno can deliver via USB or its onboard voltage regulator (typically capped at 500mA). The standard approach is to power the servos from a separate 5V/2A+ supply (such as a Li-Po battery with a buck converter), with the servo GND sharing a common ground with the controller, but the VCC kept separate. Ignoring this is one of the most common causes of controller resets, servo jitter, and even controller damage that beginners encounter during debugging.

Closing Thoughts

This robot duck project built with an Arduino Uno Q and Feetech servos is a snapshot of the countless creative builds happening in the open-source hardware community. It's a reminder that the barrier to entry for robotics keeps getting lower — with mature open-source platforms and standardized components, everyday hobbyists can bring genuinely creative biomimetic designs to life. For anyone looking to get their hands dirty, a project like this is an excellent place to start.
