CodeGraph Tested: How Code Knowledge Graphs Cut Token Consumption by 90%

Introduction

When using AI coding tools like Claude Code and Cursor, there's a persistent pain point: for the AI to understand a project's code architecture, it has to repeatedly execute operations like grep, read, and find — burning through tokens and time. CodeGraph and GBrain (JBrain), two open-source tools, tackle this problem by building GraphRAG-based code knowledge graphs that slash resource consumption dramatically.

The fundamental difference between GraphRAG and traditional RAG lies in how knowledge is organized. Traditional RAG splits documents into text chunks, retrieves relevant fragments via vector similarity, and feeds them to the LLM — an approach with clear limitations when dealing with codebases: code semantics depend on call relationships and module structures, and isolated code snippets often lack context. GraphRAG builds a knowledge graph where entities (functions, classes, modules) serve as nodes and call relationships, inheritance hierarchies, and dependencies serve as edges. This enables context-aware expansion along the graph structure during retrieval, yielding semantically complete code fragments. Microsoft Research's 2024 GraphRAG paper demonstrated that this approach significantly outperforms traditional RAG in accuracy when handling structured knowledge.

This article breaks down both tools' working principles, performance metrics, and use cases based on hands-on testing.

Hands-On Comparison: From 6 Minutes Down to 2

Experiment Design

The experiment design was straightforward: same model, same prompt, analyzing the complete architecture of the JBrain project — before and after installing the CodeGraph plugin.

On the left is the scenario without the plugin — the AI had to make numerous tool calls (reading/writing files, searching code, etc.), consuming massive amounts of tokens, with the entire process taking about 6 minutes.

On the right is the test flow with CodeGraph installed: clear the cache, install the CLI tool, then build the index for the JBrain project. The indexing process took only 25 seconds, after which the same analysis task was run.

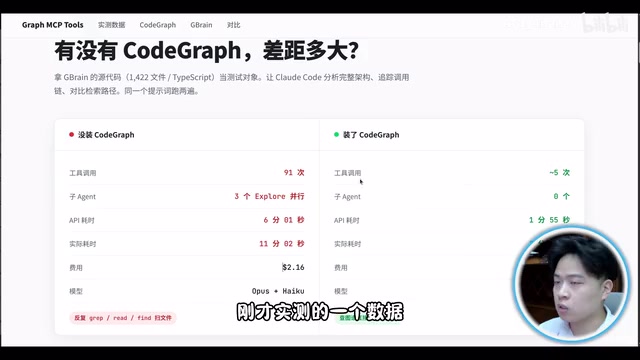

Performance Data

The results were impressive:

• Time consumption: Dropped from 6 minutes to under 2 minutes — roughly a 70% improvement
• Token consumption: Significantly reduced, especially noticeable in engineering scenarios requiring repeated code structure reads
• Index building: Completed project indexing in just 25 seconds

This is essentially a RAG (Retrieval-Augmented Generation) workflow optimization — by pre-building a code knowledge graph, it eliminates the need for the AI to traverse the entire codebase from scratch with every query.

CodeGraph Under the Hood: Why No AI Is Needed to Build the Knowledge Graph

Parsing Code Structure with AST

CodeGraph's core design philosophy is elegant: code itself is structured data, so there's absolutely no need for AI involvement to build a knowledge graph.

The key technology is the AST (Abstract Syntax Tree). ASTs are a core data structure in compiler front-ends, backed by decades of engineering maturity. When a compiler or interpreter processes source code, it goes through three stages — Lexical Analysis (Lexing) → Syntax Analysis (Parsing) → AST Generation — representing the code's syntactic hierarchy as a tree structure: the root node is the program entry point, with child nodes representing modules, classes, functions, statements, and expressions in turn. Tools like Python's ast standard library, JavaScript's Babel, and Java's JavaParser can complete AST parsing in milliseconds.

CodeGraph leverages this mature infrastructure to bypass expensive LLM calls. For a project with 100,000 lines of code, an LLM understanding it file by file could require millions of tokens, whereas AST parsing only needs CPU computation at near-zero cost. This is the fundamental reason why full project indexing can be completed in just 25 seconds.

CodeGraph Build Process in Detail

The complete CodeGraph build process works as follows:

1. Source code input: Read all code files in the project
2. AST parsing: Extract code structure via syntax tree parsers (classes, functions, inter-module call relationships, etc.)
3. Graph mapping: Map parsed results into node-and-edge relationships
4. Storage & indexing: Store the graph in SQLite and build a global index

The result is exposed as an MCP tool for direct invocation by AI coding tools like Claude Code. MCP (Model Context Protocol) is an open protocol released by Anthropic in late 2024 that defines a standard interaction specification between AI models and external tools. Tool providers encapsulate their capabilities as an MCP Server, AI clients invoke them via an MCP Client, and both sides communicate through the JSON-RPC protocol. This means CodeGraph only needs to implement the MCP interface once to be reused by all MCP-compatible AI tools (Claude Code, Cursor, etc.), drastically reducing integration costs. Code's inherently structured nature enables the entire GraphRAG knowledge base to be built without any AI involvement.

GBrain Memory System: Persisting Conversational Knowledge

How GBrain Works

GBrain (JBrain) is a memory knowledge base built for OpenClaw and Hermes Agent, specifically designed to record and retrieve conversational information. The project author has significant influence in the open-source community and has earned a large number of Stars.

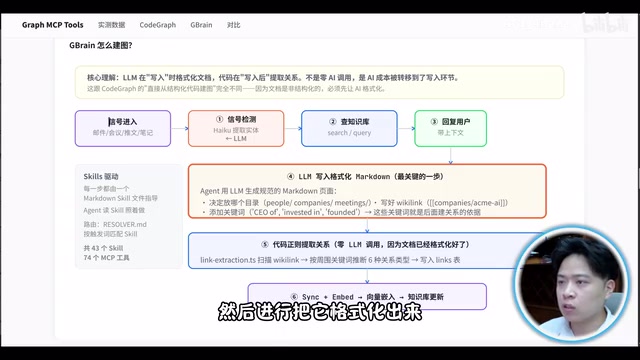

Its graph-building process works as follows:

1. User asks a question
2. The system calls back to the Skills module
3. Content is formatted as Markdown
4. Knowledge graph is built through regex-based extraction
5. Vectorization and incremental graph updates are performed

You might not have noticed, but although GBrain claims "zero AI calls"
