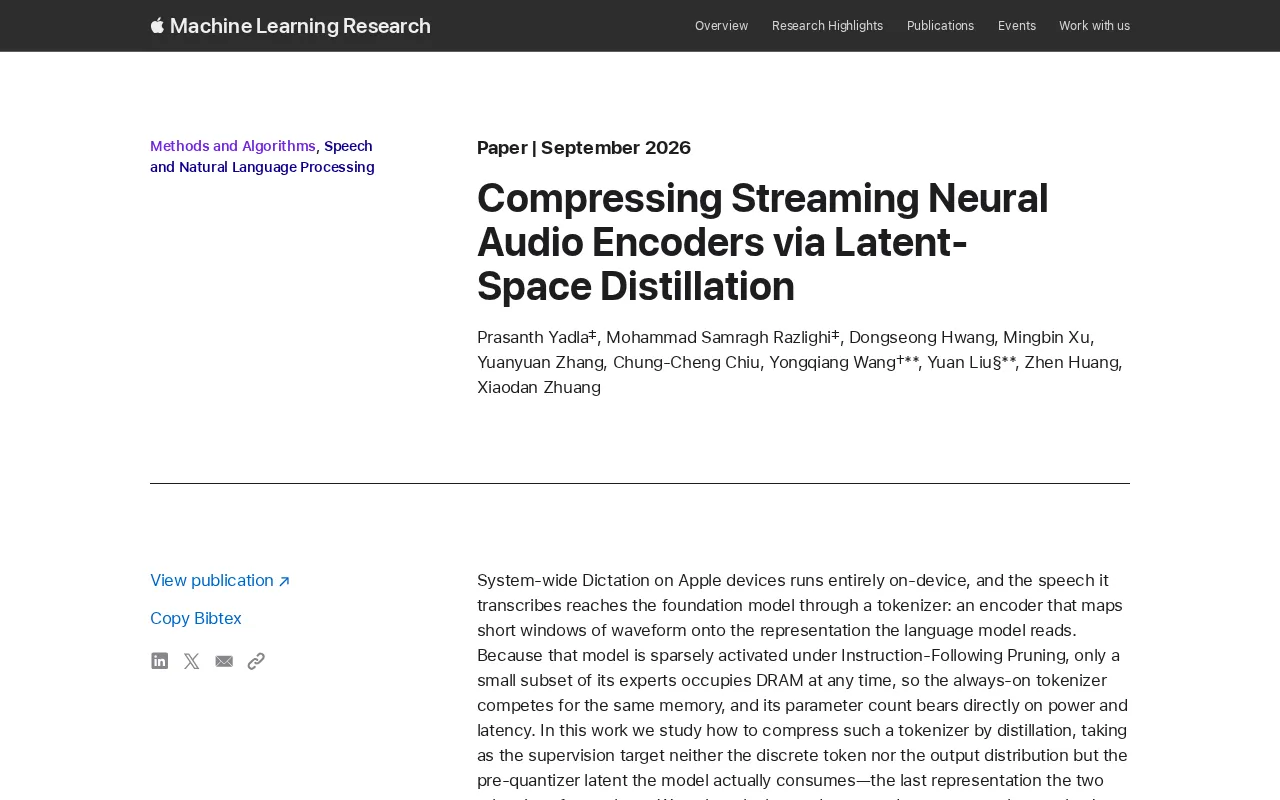

Compressing Streaming Neural Audio Encoders via Latent-Space Distillation: Apple's Memory Optimization for On-Device Speech

The Memory Bottleneck Behind System-Wide Dictation

Apple's system-wide dictation runs entirely on-device, with no cloud dependency. The technical pipeline is straightforward: a user's voice first passes through a tokenizer (essentially an encoder) that maps short waveform windows into representations the language model can consume, after which the foundation model processes those representations.

This seemingly simple flow hides a real engineering challenge. Apple's foundation model uses sparse activation combined with Instruction-Following Pruning — meaning only a small subset of experts actually occupies DRAM at any given moment. The always-on tokenizer, however, must compete with those activated experts for that same precious memory pool.

Sparse activation is one of the key techniques enabling efficient on-device inference for large models, with the Mixture of Experts (MoE) architecture as its most prominent example. In MoE, a model contains multiple parallel "expert" sub-networks, but only a small number are activated per forward pass (determined by a gating network). While total parameter count is large, per-inference compute and memory footprint remain manageable. Apple further combines this with Instruction-Following Pruning to reduce the number of experts resident in memory at any time, allowing most parameters to be paged in and out of DRAM on demand. This design keeps the foundation model's memory footprint dynamic and lean — but precisely because of that, always-resident components like the audio tokenizer represent a proportionally larger and non-negligible static overhead.

Why the Tokenizer's Parameter Count Matters So Much

In an on-device setting, the encoder's parameter count is not an isolated metric — it directly affects power consumption and latency. Dictation is always-on and ready at a moment's notice, which means the tokenizer must occupy memory continuously. More parameters means more DRAM, which in turn increases energy draw and slows response time.

On battery-powered mobile devices, this sustained resource cost is especially pronounced. Once the foundation model has been compressed to the extreme through pruning, the audio encoder — previously unremarkable — becomes the weak link in overall system efficiency. Compressing the tokenizer therefore becomes a genuinely valuable research direction.

Latent-Space Distillation: The Core Compression Strategy

The research proposes using distillation to compress streaming neural audio encoders. Unlike traditional distillation that aligns at the output layer, the key term here is "latent-space" — supervision and alignment are applied at the intermediate representation layer that the encoder produces.

Specifically, the study uses the latent representations produced by a larger, more capable encoder as the supervision signal to guide a smaller, lightweight student encoder. Because the supervision acts directly on the representation space that the language model reads, the student only needs to match the teacher's behavior at that level — enabling dramatic parameter reduction while maintaining downstream speech recognition quality.

The elegance of this approach is that it does not require the student to reproduce the original waveform bit-for-bit. Instead, it focuses on "the information the foundation model actually cares about." Latent-space alignment makes the compression more targeted and better suited to the strict efficiency demands of on-device deployment.

Knowledge distillation was originally proposed by Hinton et al. in 2015, with the core idea of having a small model (student) mimic a large model (teacher) rather than directly fitting hard labels. Traditional distillation aligns at the output probability distribution — for example, making the student's softmax outputs match the teacher's "soft labels." Latent-space distillation moves the alignment point upstream to the intermediate hidden-layer feature representations, and this distinction is critical: for an audio encoder, the final output is not a classification probability but a continuous vector representation consumed by a downstream language model. In this setting, applying supervision directly in the latent space is equivalent to explicitly telling the student model, "your output must look just as useful to the language model as the teacher's output does" — avoiding the compression quality degradation that occurs when a proxy objective diverges from the true usage objective. This explains why this method holds a unique advantage for the specific task of on-device audio encoding.

Special Constraints in the Streaming Setting

It is worth noting that the subject of this research is a streaming encoder. Streaming means the system must process short waveform windows in real time as speech continuously arrives, without waiting for a complete sentence before encoding. This constraint imposes additional requirements on model architecture and latency.

Compressing an encoder under streaming constraints requires simultaneously maintaining real-time performance, controlling memory footprint, and ensuring that representation quality does not degrade noticeably after distillation. Balancing all three is the core engineering and research problem this work aims to solve. It reflects a general principle in on-device AI system design: optimizing a single component must always be considered within the resource constraints of the entire system.

Streaming and non-streaming encoders differ fundamentally in architecture. Non-streaming encoders can use bidirectional attention or global convolutions — they see the complete speech sequence before generating representations, yielding higher accuracy. Streaming encoders are bound by a causal constraint: each timestep can only access the current and past frames, with no access to future context. As a result, their architectures typically rely on unidirectional RNNs, causal convolutions, or masked unidirectional Transformers. This constraint makes distillation for streaming models significantly more complex: if the teacher uses a non-causal architecture, its latent representations naturally encode future information — information the student model simply cannot access at inference time. The research must design careful alignment strategies to ensure the student is not forced to fit information that it is structurally incapable of reproducing; otherwise, distillation backfires.

Implications for On-Device AI Deployment

Although this work focuses on the specific component of the audio encoder, the thinking it embodies has broader implications for on-device AI as a whole. As large models continue to slim down through sparse activation, pruning, and related techniques, the "companion" preprocessing modules — whether audio tokenizers, vision encoders, or text preprocessors — become comparatively heavier and emerge as new system-level bottlenecks.

Latent-space distillation offers a pragmatic path forward: rather than pursuing standalone perfection for each component, compress each one in a targeted way around the downstream model's actual needs. For developers looking to deploy real-time AI capabilities on resource-constrained platforms like smartphones and wearables, this system-level, co-optimization perspective may be more worthwhile than simply stacking more compute.
