DeepSeek-V3.2-Exp Discovers RoPE Implementation Bug: Interleaved Format Mismatch Causes Inference Performance Degradation

Event Overview

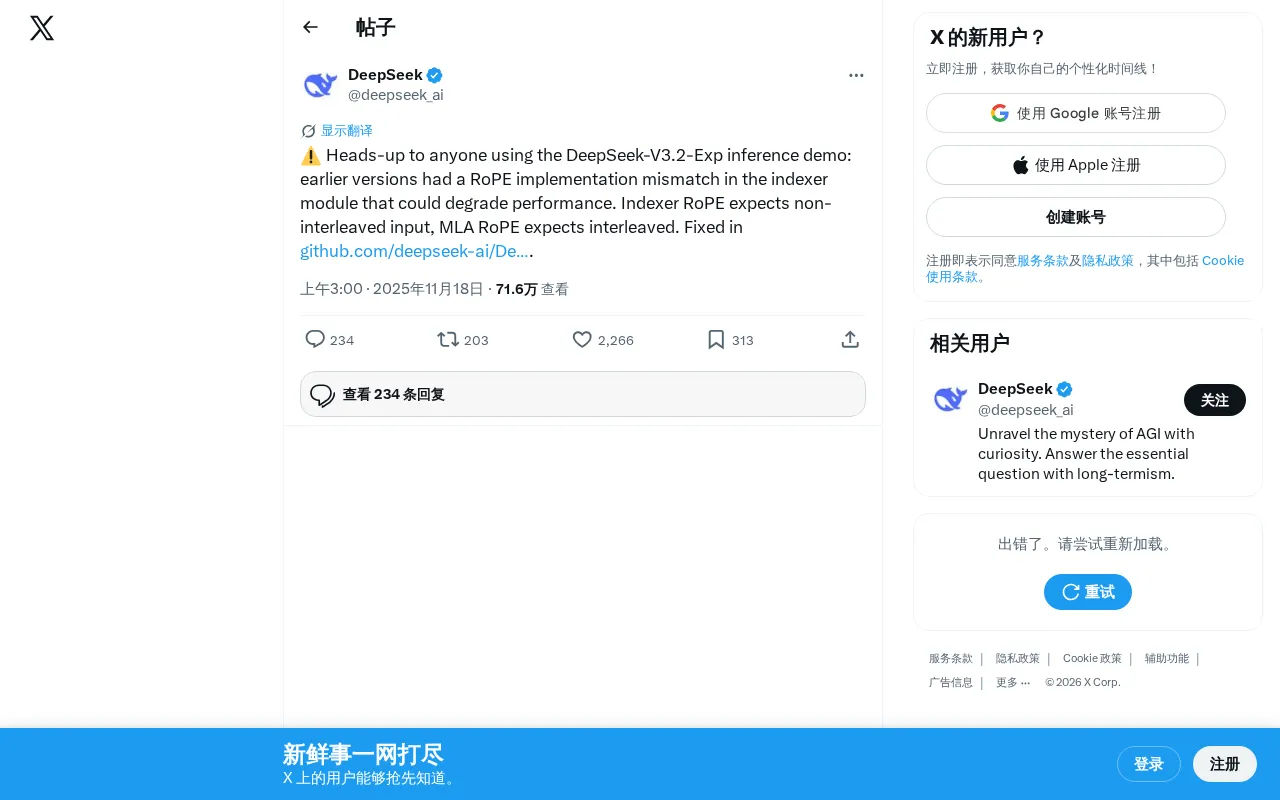

Recently, a developer issued a warning on social media: an early version of the DeepSeek-V3.2-Exp inference demo contained a RoPE (Rotary Position Embedding) implementation mismatch bug that could cause degraded model inference performance. The issue has since been fixed and a corresponding code update has been submitted.

Introduction to RoPE (Rotary Position Embedding)

RoPE (Rotary Position Embedding) is a widely used positional encoding scheme in today's large language models, proposed by Su Jianlin. It injects positional information by applying rotary transformations to Query and Key vectors, offering strong extrapolation capability and computational efficiency. It has been widely adopted by mainstream models such as GPT-NeoX, LLaMA, and DeepSeek.

The core idea behind RoPE originates from rotation operations in the complex number domain. In traditional Transformer architectures, positional encoding schemes have evolved from absolute position encoding (such as the sinusoidal encoding in the original Transformer) to relative position encoding (such as ALiBi and T5 Bias). What makes RoPE unique is that it encodes positional information as rotation matrices applied to the Query and Key vectors in the attention mechanism. Specifically, for each pair of dimensions in a vector, RoPE treats them as coordinates on a 2D plane and applies rotations at different angles based on the token's position. This design ensures that the attention score between two tokens naturally depends only on their relative positional difference rather than their absolute positions, granting the model better length extrapolation capability — meaning it can maintain reasonable performance on sequences longer than those seen during training. Since its introduction in 2021, RoPE has become the de facto standard positional encoding scheme in the open-source LLM community.

Bug Technical Details: Interleaved vs. Non-Interleaved Format Mismatch

Root Cause of the Mismatch

The issue was found in the inconsistency of RoPE input formats between the Indexer module and the MLA (Multi-head Latent Attention) module in DeepSeek-V3.2-Exp:

• Indexer module's RoPE: expects non-interleaved format input
• MLA module's RoPE: expects interleaved format input

The terms interleaved and non-interleaved refer to two different arrangements of vector dimensions when RoPE processes them. For a vector of dimension d:

• Interleaved format: pairs adjacent dimensions for rotation, i.e., (d₀, d₁), (d₂, d₃), ...
• Non-interleaved format: pairs the first half with the second half, i.e., (d₀, d_{d/2}), (d₁, d_{d/2+1}), ...

These two formats are mathematically equivalent, but only if the same format is used consistently during both training and inference. If one format is used during training and a different one during inference, the dimension pairs that receive the rotary transformation will be misaligned, causing positional encoding corruption and ultimately affecting the model's attention computation and output quality.

Historical Framework Differences in Engineering Implementations

The difference between interleaved and non-interleaved formats essentially comes down to different index mapping strategies for how the RoPE rotation matrix acts on vector dimensions. In engineering implementations, these two formats correspond to different open-source framework traditions: Meta's official LLaMA implementation uses the non-interleaved format (also known as the "half-half" format), while GPT-NeoX/EleutherAI's implementation uses the interleaved format. Since the two formats are mathematically identical (they can be converted by simply rearranging dimensions), many developers easily overlook this difference when porting code. The Hugging Face Transformers library also experienced compatibility issues due to this format difference in earlier versions, which was later resolved by introducing explicit configuration parameters. This characteristic of being "mathematically equivalent but not interchangeable in implementation" makes format mismatch one of the classic pitfalls in LLM inference deployment.

Why This Bug Was Hard to Detect

This mismatch does not cause the program to crash or throw errors — the dimension sizes are consistent and computation proceeds normally — but it leads to silent performance degradation. The model may exhibit:

• Reduced long-text comprehension ability
• Weakened contextual coherence
• Unstable generation quality

This type of bug is particularly insidious because the model still produces seemingly reasonable results, just not at the expected quality level, making it difficult to diagnose.

In LLM engineering practice, silent bugs represent a particularly challenging class of problems. Unlike traditional software bugs that trigger exceptions or error return values, silent bugs in deep learning systems typically manifest as "the model runs but produces worse results." The academic community has conducted systematic research on this topic — for example, a Google research team published a paper pointing out that a significant proportion of bugs in deep learning code are "silent errors" where programs execute normally but produce incorrect results. Common types of silent bugs include: incorrect tensor dimension transpositions, wrong parameter loading order in normalization layers, and improper handling of boundary conditions in attention masks. Debugging these issues typically relies on layer-by-layer output comparison against a reference implementation, or through carefully designed unit tests that verify numerical consistency of intermediate computation results.

The Sensitivity of MLA Attention Mechanism to RoPE

The MLA (Multi-head Latent Attention) mechanism used in the DeepSeek model series is an innovative attention mechanism that reduces KV cache memory usage through low-rank compression. It has been a core architectural feature since DeepSeek-V2.

MLA was proposed to address the problem of excessive KV cache usage during LLM inference. In standard Multi-Head Attention (MHA), each attention head needs to independently store Key and Value vectors, causing KV cache to grow linearly with sequence length and batch size, making it a major bottleneck for long-context inference. Previous solutions such as GQA (Grouped-Query Attention) and MQA (Multi-Query Attention) mitigated this by sharing Key/Value heads, but MLA takes a more aggressive approach: it compresses KV pairs into a low-dimensional latent space for caching, then recovers the full Key and Value through up-projection matrices during inference. This design compresses KV cache by several times, significantly reducing memory usage and enabling longer context windows and larger concurrent batch sizes on the same hardware.

The way RoPE is applied in MLA differs from standard multi-head attention — it only applies rotary encoding to a subset of dimensions, making the implementation details of RoPE more sensitive and the impact of format mismatch more subtle. Specifically, since RoPE is position-dependent, it cannot be directly applied to the compressed latent vectors (otherwise positional information would become corrupted during decompression). Therefore, MLA employs a decoupled design: a small subset of dimensions is dedicated to carrying RoPE positional encoding, which is then concatenated with the compressed content vectors. This fine-grained dimension splitting design makes the RoPE implementation format particularly sensitive — any deviation in dimension arrangement directly affects the correct alignment between positional information and content information, which is precisely the architectural reason why this bug had such a significant impact.

Lessons Learned for LLM Inference Deployment

This incident offers several noteworthy lessons for LLM inference deployment:

1. Format consistency checks: When porting or re-implementing model inference code, ensure that the input format of positional encodings like RoPE is consistent with that used during training. This is especially important during cross-framework migration (e.g., from PyTorch to TensorRT, or from Hugging Face to a custom inference engine) — verify the data arrangement conventions of each module individually.
2. Guarding against silent bugs: Dimension matching does not imply semantic correctness — tensor operations with correct shapes may hide logical errors. It is recommended to add numerical assertion checks at critical intermediate layers in the inference pipeline to expose such issues early during development.
3. The importance of benchmarking: Rigorous benchmarking of inference implementations, comparing outputs against the official reference implementation, can help catch these issues early. Recommended practices include: using fixed random seeds and input samples, comparing output tensors at each layer between the reference and new implementation, setting reasonable numerical tolerance thresholds (e.g., 1e-3 for float16 precision), and running regression tests across various input lengths and batch sizes.

Conclusion

The bug has been fixed in the code repository. If you are using the DeepSeek-V3.2-Exp inference demo code, it is recommended to pull the latest version as soon as possible to obtain correct inference performance. This incident serves as yet another reminder that in the process of productionizing LLMs, every seemingly minor implementation detail can significantly impact final results. From positional encoding format conventions to attention mechanism dimension splitting, from KV cache compression strategies to inference engine numerical precision, the reliability of LLM systems is built upon rigor at every engineering level.
