DIY Bipedal Robot CBR-II: Reinforcement Learning from Simulation to Real-Robot Deployment

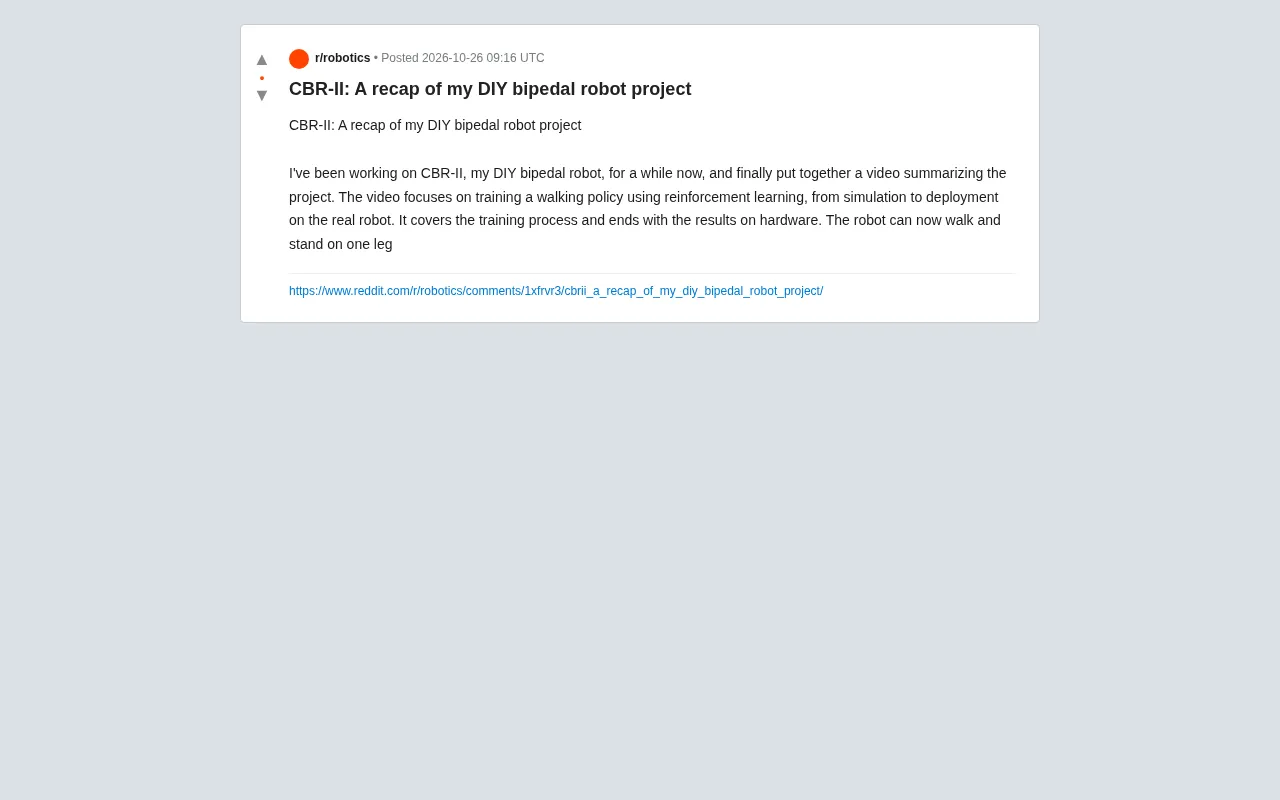

A developer's long-running DIY bipedal robot project, CBR-II, recently released a project recap video, focusing on how reinforcement learning was used to train a walking policy and how it was deployed from simulation to the real robot. The video follows the training process as its main thread and ultimately presents the actual results on hardware—the robot can already walk and even stand on one leg.

From Simulation to Real Robot: Training a Walking Policy with Reinforcement Learning

The core of CBR-II lies in using reinforcement learning (RL) to train a walking control policy. The developer did not disclose the specific algorithm details or training parameters, but based on the project description, the overall workflow follows the typical simulation-to-reality (sim-to-real) paradigm: first train the policy in a simulation environment, then transfer it to the real robot.

The advantage of this approach is that the simulation environment allows low-cost, highly parallel trial and error, while real-robot deployment verifies the robustness of the policy. The video covers the key points of the training process and ultimately shows the results running on hardware, indicating that the policy has a certain degree of transferability under real physical conditions.

Reinforcement learning (RL) is a machine learning paradigm in which an agent interacts with an environment and maximizes cumulative reward through trial and error. In robot control, a policy network typically outputs target joint positions or torques based on the robot's current state (joint angles, angular velocities, IMU readings, etc.). During training, the simulation environment computes the consequences of actions according to a physics engine and provides rewards (such as forward speed, maintaining upright posture, reducing energy consumption, etc.), and the policy is continuously optimized through gradient ascent. Unlike supervised learning, RL does not require labeled "correct actions" but instead discovers control rules on its own from reward signals, making it particularly suitable for tasks that are difficult to teach manually, such as bipedal walking.

Sim-to-real refers to transferring a policy trained in simulation to run on real hardware. Because simulation cannot fully reproduce real-world friction, latency, sensor noise, and motor dynamics, direct transfer often fails. Common countermeasures include: randomizing physical parameters during training (mass, friction coefficients, motor strength), adding observation noise and action latency, using domain randomization to expand the distribution of environments the policy sees, and performing state estimation and action smoothing during deployment. Although CBR-II has not disclosed details, its workflow is a typical practice of this paradigm.

Hardware Results: Walking and Single-Leg Standing

The capabilities explicitly mentioned in the project recap are: the robot can walk and can stand on one leg. Single-leg standing is a challenging balance control task that places high demands on state estimation, control frequency, and joint response. For a DIY project, being able to stably perform this motion indicates that the policy transferred from simulation to the real robot has reached a usable level in dynamic balancing.

The end of the video focuses on results on hardware, which is also consistent with the common presentation style in the DIY robotics community—proving the policy is effective with actual motions rather than stopping at simulation curves.

Single-leg standing is a classic dynamic balance test for bipedal robots. It requires the robot, after lifting one leg, to maintain the stability of the whole-body center of mass using only a single point of contact between the other leg and the ground, while coping with joint friction, ground reaction forces, and sensor noise. Achieving this motion usually requires: high-frequency state estimation (fusing IMU and joint encoders), a low-latency control loop (commonly on the order of hundreds of Hz to 1 kHz), and implicit adjustment by the policy of the center of mass position and support-foot pressure. For DIY projects, actuator response speed and structural stiffness are often the main bottlenecks, so being able to complete single-leg standing indicates that the coordination between hardware and policy has crossed the basic usability threshold.

Takeaways from This Project

The value of sharing CBR-II is not in proposing a new algorithm, but in fully completing the closed loop of "simulation training → real-robot deployment." For developers who want to get started with bipedal robot control, this kind of project provides a reference path: use reinforcement learning to handle complex walking control, use simulation to reduce trial-and-error costs, and ultimately validate on the real robot.

The process and results presented by the developer in the recap video also contribute a practical record to the open-source community. Although the public information is limited, it is enough for readers interested in DIY bipedal robots to understand the level currently achievable by individual projects.

One-line Summary

A developer summarizes the DIY bipedal robot CBR-II, using reinforcement learning to complete the simulation-to-real closed loop and achieve walking and single-leg standing.

Paragraph Summary

CBR-II is a DIY bipedal robot project that a developer has long been refining. A recap video was recently released, focusing on how reinforcement learning was used to train a walking policy and complete deployment from simulation to the real robot. The project follows the typical sim-to-real paradigm: first conduct low-cost, highly parallel trial-and-error training in a simulation environment, then transfer the policy to real hardware to verify robustness. In terms of hardware results, the robot can already walk and complete the challenging dynamic balance motion of single-leg standing, indicating that the transferred policy is usable under real physical conditions. The project does not propose a new algorithm; its value lies in fully completing the closed loop of "simulation training → real-robot deployment," providing a reference practical path for individual developers getting started with bipedal robot control.
