Hardcore Maker Builds Robotic Airsoft Turret with Auto-Aim and Person Tracking

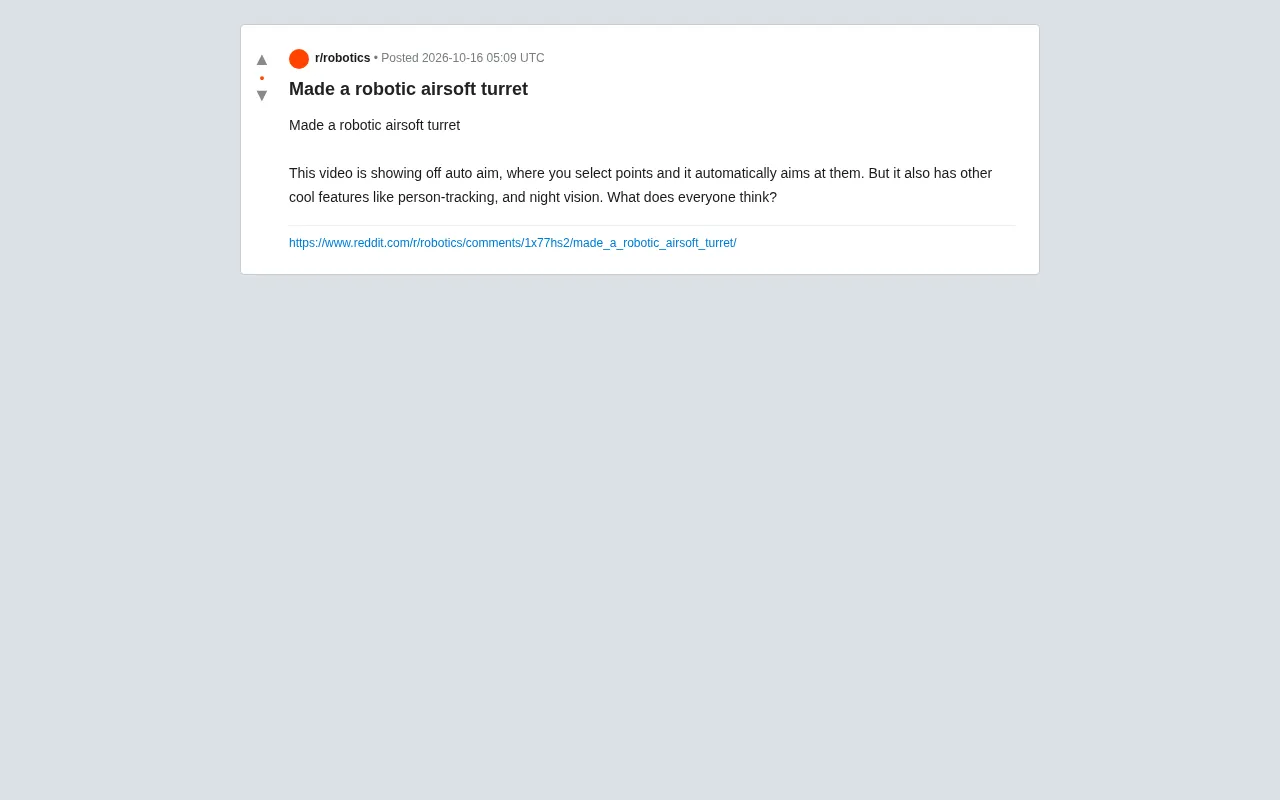

A Reddit user shared their homemade robotic airsoft turret in the community, along with a demo video showcasing its auto-aim capability. The device can not only lock onto targets via point selection, but also integrates person-tracking and night vision, sparking discussion among tech enthusiasts and airsoft players.

From Point-and-Click Aiming to Optical Tracking

According to the author's description in the post, the turret's core capability is "auto aim": the user simply selects a target point in the frame, and the system drives the turret to automatically rotate and aim at that position. This is a step beyond traditional manually remote-controlled turrets, meaning the operator no longer needs to continuously fine-tune the angle by hand — aiming decisions are delegated to the algorithm.

More interestingly, the author mentions the turret also has a "person-tracking" feature. In other words, the system can not only execute static point-selection commands, but also continuously follow a target as it moves. Such functionality typically relies on object detection and tracking algorithms in computer vision, such as deep learning-based pedestrian recognition models paired with servo gimbal control.

The combination of auto-aim and motion tracking pushes this project beyond the realm of a "remote-controlled toy" and closer to a complete visual servoing system.

Visual Servoing refers to a class of methods that use image information captured by a camera as a feedback signal to control the motion of mechanical structures (such as gimbals and robotic arms) in real time. It is generally divided into two major categories: position-based visual servoing (PBVS), which first estimates the target's 3D pose from the image and then plans motion accordingly; and image-based visual servoing (IBVS), which directly computes errors on the 2D image plane and drives the controller without explicit 3D reconstruction. The challenge of visual servoing lies in the latency between image capture, algorithm inference, and actuator response — if the control loop is poorly designed, oscillation or overshoot can occur. Therefore, in projects like airsoft turrets, tracking frame rate, servo response speed, and filtering strategies need to be jointly tuned to achieve smooth and stable tracking.

Night Vision: From Daylight to Low Light

In addition to aiming and tracking, the author also highlights the "night vision" feature. This allows the turret to still identify targets in low-light or even no-light environments. Night vision capability is typically achieved using infrared illumination combined with a camera sensor that lacks an IR-cut filter. The cost is relatively manageable, but it places higher demands on image processing algorithms — noise and contrast issues under low illumination directly affect tracking stability.

Bringing night vision into a consumer-grade DIY project shows that the creator put considerable effort into both hardware selection and image processing. For activities like airsoft, which are often conducted outdoors or in indoor venues, night vision can extend usable hours and add gameplay possibilities.

Infrared night vision and IR-cut filters are key to understanding night vision capability. Ordinary camera sensors themselves also respond to near-infrared light (roughly 700–1000 nanometers), but lenses typically have an IR-cut filter in front to remove infrared light and restore natural colors. Night vision solutions switch to lenses with switchable or removed IR-cut filters, paired with infrared LED illuminators that actively shine on the target. Since infrared light is invisible to the human eye, this illumination does not reveal the light source's position in the dark — this is also the principle behind the "infrared night vision" commonly found in security surveillance. The trade-off is that the image becomes grayscale, losing detail and color information, and nearby objects may be overexposed due to strong reflection, requiring algorithms to handle dynamic range and noise.

Behind the Technical Highlights: Machine Vision Is Descending to the DIY Community

This project is worth attention not just because it's "cool," but because it reflects a trend: machine vision and automatic control technologies are rapidly descending from industrial and research fields to individual creator communities. In the past, automatic target tracking systems often required expensive industrial cameras, professional gimbals, and complex calibration procedures; today, with open-source vision libraries, cheap servos, and single-board computers, individual developers can also build prototypes with practical aiming capabilities.

Of course, airsoft turrets and real weapon systems are fundamentally different in terms of safety boundaries. Airsoft fires plastic pellets with limited kinetic energy, but usage scenarios and safety precautions still need attention. The author solicits feedback in the post with a tone of "what do you all think," which also indicates that such projects are more in a stage of demonstration and discussion.

The maturation of single-board computers and open-source vision libraries is an important driver of this trend. Single-board computers represented by Raspberry Pi, Jetson Nano, and others integrate CPU, GPU, and even dedicated AI acceleration units onto credit-card-sized boards, priced from tens to hundreds of dollars, yet capable of running object detection models locally. Combined with open-source computer vision libraries like OpenCV, developers can quickly implement basic functions such as contour detection, optical flow tracking, face and pedestrian recognition; adding lightweight deep learning models like YOLO enables real-time object detection on edge devices. On the gimbal side, PWM servos or brushless motors with closed-loop controllers are commonly used, communicating with the main controller via serial or I2C. The material cost of the entire solution has dropped to a range affordable for individual hobbyists — this is the underlying reason behind the explosive growth of DIY machine vision projects in recent years.

What the Community Expects

From the details provided in the post itself, key information about the turret's hardware configuration, algorithms used, tracking accuracy, and response latency has not yet been elaborated. For the technical community, these details are precisely the most valuable part — what camera is used? What computing platform does it run on? How are tracking frame rate and gimbal response balanced? If the author can supplement this content later, the project's reference value would be further enhanced.

Based on the information disclosed so far, this is a well-executed personal hardware creation, and it once again proves: when vision algorithms meet open-source hardware, individual makers can do more and more.

One-line Summary

A Reddit user built a homemade robotic airsoft turret integrating point-select auto-aim, person tracking, and night vision, reflecting the trend of machine vision technology descending to the DIY community.

Paragraph Summary

A Reddit user shared their homemade robotic airsoft turret, demonstrating point-select auto-aim, person tracking, and night vision, sparking discussion among tech enthusiasts and airsoft players. The turret's core is auto-aim: the operator simply selects a target point in the frame, and the system drives the gimbal to rotate and aim; person tracking allows the system to continuously follow a moving target, a capability that typically relies on computer vision object detection and tracking algorithms paired with servo gimbal control. Night vision is achieved through infrared illumination and an IR-filter-free camera, allowing the turret to operate in low light. The article notes that the project reflects how machine vision and automatic control technologies are rapidly descending from industrial and research fields to individual maker communities, but the original post did not disclose hardware configuration, algorithm details, or tracking accuracy, leaving room for the author to supplement reference value later.
