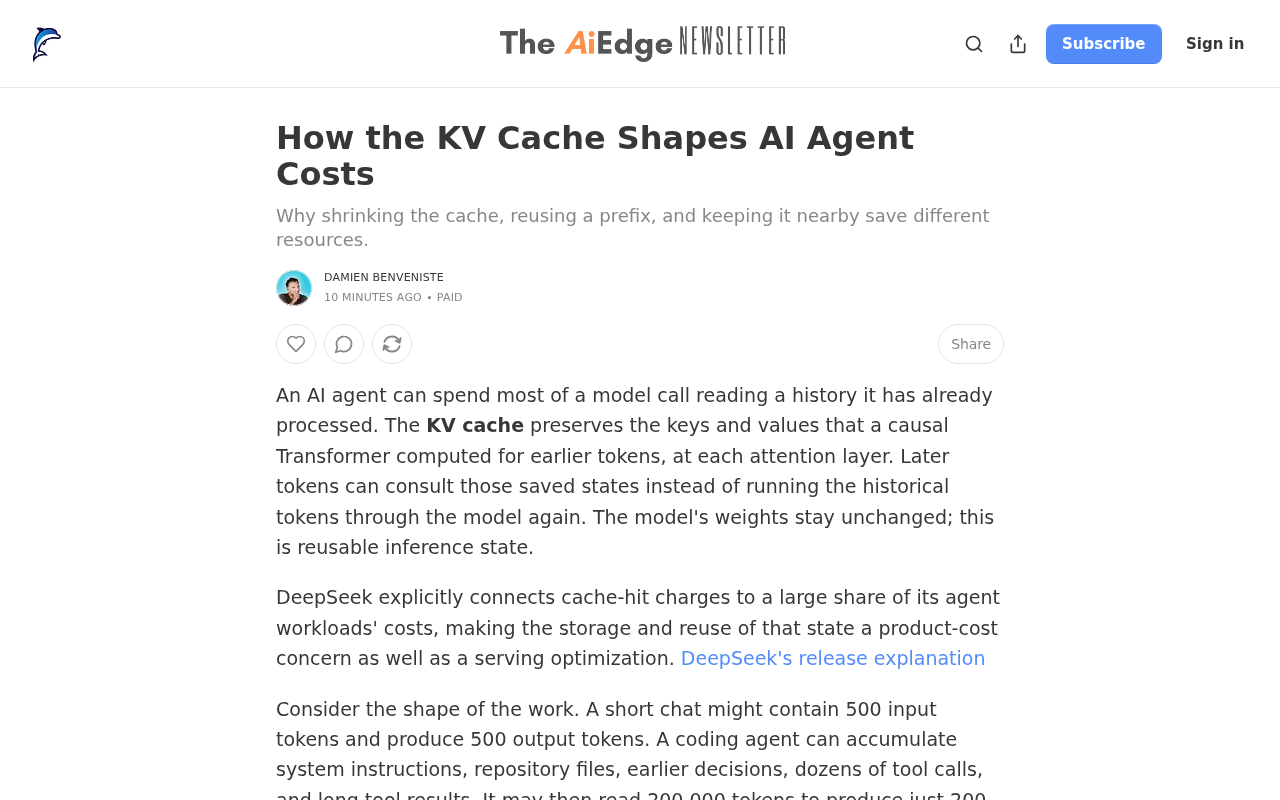

How KV Cache Reshapes AI Agent Cost Structures

The operating cost of an AI Agent goes far beyond the per-token price of model inference. In large-scale multi-turn dialogue and tool-calling scenarios, KV Cache (key-value cache) management strategies are becoming a key variable affecting cost. The source material highlights a core insight: shrinking the cache, reusing prefixes, and storing data nearby — these three things save completely different resources. Understanding this logic is essential to optimizing Agent costs properly.

Why KV Cache Directly Determines Agent Cost

When a large model generates each token, it needs to perform attention computation over the historical context. To avoid redundant computation, the inference engine caches the Key and Value tensors of each layer — this is the KV Cache. For a single question-answer exchange, this cache overhead is negligible; but the typical workload of an Agent involves long conversations, multiple rounds of tool calls, and repeated retries — the context keeps growing longer, cache occupancy grows linearly with sequence length, and memory pressure rises accordingly.

When the cache exceeds GPU memory, the system can only swap some content out to slower storage tiers or simply recompute. The former raises latency, the latter wastes compute. Both ultimately translate into increased costs on the bill. Therefore, KV Cache is not merely an engineering detail but a fundamental lever of Agent economics.

The Relationship Between KV Cache and Attention Mechanisms

During autoregressive generation, a Transformer decoder needs to compute attention over all historical tokens each time it produces a new token. If computed from scratch every time, generating the n-th token requires O(n²) attention computation — an extremely high degree of redundancy. KV Cache works by saving the Key and Value matrices already computed at each layer, so a new token only needs to perform attention once with the cached K, V, reducing the per-step computation to O(n). The cost is that the cache itself occupies GPU memory: the KV Cache size per token is 2 × layers × hidden dimension × precision bytes. For a 70B-class model with 8K context, a single request's cache can reach several GB. This also explains why long context and high concurrency compete for GPU memory.

PagedAttention and GPU Memory Fragmentation

Early inference engines reserved contiguous memory blocks for each request, allocated by the maximum possible sequence length, causing severe internal fragmentation. PagedAttention, proposed by vLLM, borrows the virtual memory paging concept from operating systems, splitting KV Cache into fixed-size blocks allocated on demand, raising memory utilization from about 20%-40% to over 90%. This mechanism is the infrastructure prerequisite that enables the three categories of optimization — "shrinking the cache," "reusing prefixes," and "storing nearby" — discussed below.

Three Optimization Approaches, Three Different Savings

The most valuable part of the source material is separating the three types of optimization that are often conflated.

Shrinking the Cache: Saving Memory Capacity

Methods for compressing KV Cache include quantization, low-rank approximation, and evicting old tokens by importance. Its direct effect is allowing the same amount of memory to hold longer contexts, or to accommodate more concurrent requests at the same context length. In other words, what it buys is capacity — the number of tokens per unit of memory increases.

Reusing Prefixes: Saving Redundant Computation

Agent system prompts, tool definitions, and few-shot examples often appear repeatedly in every request. If the inference engine can identify and reuse the cache of this common prefix, there is no need to recompute attention for these tokens for each request. What this saves is compute and first-token latency, which is a different matter from memory capacity. The higher the prefix cache hit rate, the lower the effective computation cost per request.

Technical Prerequisite for Prefix Caching: The Prefix Must Be Token-for-Token Identical

Prefix Caching relies on a strict condition: the reused portion must be completely identical starting from the very first token of the sequence. Inserting a timestamp into the middle of the system prompt, changing the order of the tool list, or even adjusting the wording of few-shot examples will invalidate the cache and force full recomputation. A common engineering response is to move dynamic content (user input, current time, retrieval results) uniformly after the static prefix, forming a "stable prefix + variable suffix" request structure. Some inference frameworks also support multi-level prefix tree matching, which can hit common ancestor nodes across different requests, thereby improving sharing rates. The benefit of prefix caching can be quantified directly: number of hit tokens × per-token prefill computation cost. In Agent scenarios with long system prompts, this portion often accounts for more than half of total prefill compute.

Storing Nearby: Saving Transmission and Waiting

Where the cache is stored determines the cost of accessing it. Keeping KV Cache in GPU memory offers the fastest access but scarce capacity; offloading to CPU memory or remote storage expands capacity but introduces transmission overhead. The essence of a nearby-storage strategy is tiered scheduling between capacity and access latency, saving data movement time and bandwidth.

Practical Bandwidth Constraints of Tiered Storage and Offloading

When offloading KV Cache from GPU memory to other tiers, the cost is mainly determined by interconnect bandwidth. NVLink can reach hundreds of GB/s to TB/s, PCIe 4.0 x16 is about 32 GB/s, while cross-node Ethernet is typically in the 10-100 Gb/s range — a difference of one to two orders of magnitude. Estimating a single token's KV Cache at about 1 MB, moving an 8K-token cache over PCIe takes hundreds of milliseconds, enough to double first-token latency. Therefore "nearby" is not just about physical distance but about matching bandwidth and latency: hot caches stay in HBM, warm caches go to CPU memory or local NVMe, and only cold caches are allowed to migrate across nodes. Systems like Mooncake and LMCache are designed around "KV Cache-centric" scheduling, turning cache reuse and tiered offloading into independent services.

Implications for Agent Architecture Design

Clearly distinguishing these three avoids a common misconception: assuming that cache quantization alone solves all cost problems. In reality, if an Agent's bottleneck is recomputing long system prompts every round, compressing cache capacity won't improve its latency or wasted compute; conversely, if the bottleneck is that concurrency can't scale up, prefix reuse won't help either.

The sensible approach is to first do cost attribution: use monitoring data to determine whether the current bottleneck lies in memory, compute, or data movement, then choose the corresponding optimization. The three can be combined, but priority should be determined by the bottleneck.

Trade-offs in Practice

Cache compression may cause precision loss and requires calibration between task quality and capacity; prefix reuse demands sufficiently stable request structures, and frequent prompt changes will lower hit rates; tiered storage requires scheduling strategies that can accurately predict which caches will be accessed again. None of these are free lunches — they are areas engineering teams need to continuously tune.

For teams building Agent products, KV Cache management is rising from a low-level detail to an architecture-level decision. Whoever can find the balance point among capacity, compute, and transmission suited to their own workload will achieve lower per-task costs at the same model capability.

One-line Summary

KV Cache shrinking, prefix reuse, and nearby storage save memory, compute, and bandwidth respectively — optimize by attributing the bottleneck.

Paragraph Summary

The article points out that AI Agent costs depend not only on per-token inference pricing but also on KV Cache management, which is becoming a key cost variable in long conversations and multi-turn tool-calling scenarios. KV Cache grows linearly with context length; once it exceeds GPU memory, it triggers swapping or recomputation, ultimately translating into latency and bills. The core insight is to separate three often-conflated optimizations: shrinking the cache (quantization, low-rank approximation, evicting old tokens) buys memory capacity; prefix reuse saves redundant prefill compute and first-token latency; nearby storage schedules between capacity and access latency, saving data movement bandwidth. The three save different resources and are not interchangeable. Teams should first do cost attribution to determine whether the bottleneck lies in memory, compute, or transmission, then decide optimization priorities — while accounting for engineering trade-offs such as precision loss, prompt stability, and cache access prediction.
