Isaac Lab in Practice: Complete Reinforcement Learning Workflow for 6/7-DoF Robotic Arms

Introduction: A New Simulation Paradigm for Robot Learning

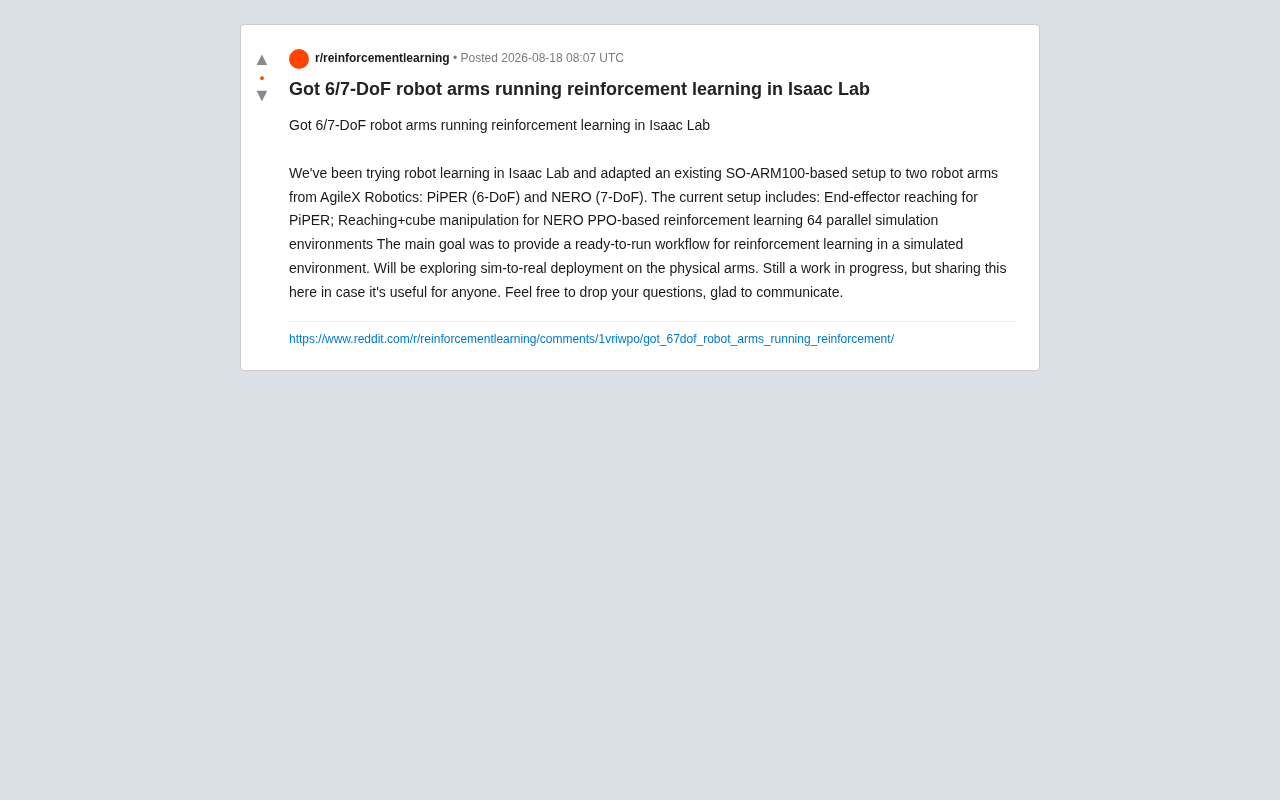

Robot reinforcement learning has long faced a core pain point: training on real robotic arms is expensive, risky, and slow to iterate. NVIDIA's Isaac Lab, a next-generation GPU-accelerated simulation training framework, is changing this reality. Recently, a developer shared on Reddit their successful implementation of reinforcement learning for 6/7 degree-of-freedom (DoF) robotic arms in Isaac Lab, providing the community with a ready-to-run workflow.

This project builds upon the open-source SO-ARM100 configuration, adapted to two robotic arms from AgileX Robotics, demonstrating the complete pipeline from simulation environment setup to policy training. For developers looking to get started with robot reinforcement learning, this serves as an extremely valuable starting point.

Project Core: Differentiated Task Design for Two Robotic Arms

Hardware Platform Selection

The project migrates the existing SO-ARM100 simulation configuration to two robotic arms with different degrees of freedom:

• PiPER (6-DoF): As a lightweight collaborative robotic arm, PiPER is used to implement an end-effector reaching task. This is the most fundamental yet critical capability in robotic manipulation—controlling the arm's end-effector to precisely reach a target position in space.

• NERO (7-DoF): With an additional redundant degree of freedom, NERO takes on the more complex reaching + cube manipulation task. The redundancy provided by 7 degrees of freedom makes the arm more flexible in obstacle avoidance and posture adjustment, but simultaneously increases the learning difficulty of the control policy.

Progressive Logic in Task Design

From PiPER's pure reaching task to NERO's reaching plus manipulation task, this design reflects the typical difficulty gradient in robot learning. End-effector reaching is a relatively simple problem in continuous control, while introducing cube manipulation requires the agent to learn object perception, contact planning, and applying appropriate forces—placing higher demands on reward function design and the expressive capacity of the policy network.

Technical Approach: PPO Algorithm and Large-Scale Parallel Simulation

Why PPO?

The project uses PPO (Proximal Policy Optimization) as the reinforcement learning algorithm. PPO is currently one of the most mainstream algorithms in robotic continuous control, with advantages including:

1. Training stability: By limiting the magnitude of policy updates, it avoids the risk of policy collapse;
2. Moderate sample efficiency: Delivers balanced performance among on-policy algorithms;
3. Easy to tune: Compared to other complex algorithms, PPO has lower hyperparameter sensitivity.

These characteristics make PPO the default choice for simulation platforms like Isaac Lab, and also make it easier for community developers to reproduce and build upon.

The Acceleration Value of 64 Parallel Environments

This configuration uses 64 parallel simulation environments. This is precisely where Isaac Lab's core advantage lies compared to traditional simulators (such as single-environment MuJoCo)—leveraging NVIDIA GPU parallel computing capabilities, thousands of simulation instances can run simultaneously.

The significance of parallel environments lies in dramatically improving data collection efficiency. In reinforcement learning, agents require massive amounts of interaction samples to learn effective policies. 64 parallel environments mean that experience collection per unit time increases by dozens of times, compressing training that would originally take days into just hours. This is the fundamental reason why GPU-accelerated simulation has become standard equipment for robot learning.

Ready-to-Run: Lowering the Barrier to Robot Reinforcement Learning

The developer explicitly stated that the project's primary goal is to provide a ready-to-run reinforcement learning workflow. This point deserves emphasis.

For many researchers and engineers, the biggest obstacle to robot learning is often not the algorithm itself, but the tedious environment configuration—from URDF model import, physics parameter calibration, reward function design, to training pipeline setup, every step can consume enormous amounts of time. A complete, validated workflow allows newcomers to skip this repetitive labor and focus directly on the problems they care about.

This spirit of open-source sharing is exactly what drives the rapid development of the entire robot learning community. Low-cost open-source robotic arm ecosystems like SO-ARM100, combined with Isaac Lab's simulation capabilities, are making robot learning accessible to a broader developer community beyond a few exclusive laboratories.

Sim-to-Real Deployment: The Key Challenge from Simulation to Reality

The project author mentioned that they will explore Sim-to-Real deployment on physical robotic arms as a next step. This is precisely the most difficult yet most valuable phase of robot reinforcement learning.

The Reality Gap Problem

Policies trained in simulation environments often cannot transfer directly to real robots due to the so-called "Reality Gap":

• Physical parameter differences: Friction, mass, and inertia in simulation deviate from real hardware;
• Sensor noise: Real sensor delays and noise are difficult to fully model in simulation;
• Actuator dynamics: Motor response characteristics, gear backlash, etc. are often simplified in simulation.

The industry typically employs Domain Randomization, system identification, and other techniques to narrow this gap. Whether the author can successfully complete Sim-to-Real deployment on PiPER and NERO will be the key test of this workflow's practical value.

Summary and Outlook

Although this Reddit-shared project is still a work in progress, it clearly demonstrates the modern robot learning tech stack: Isaac Lab simulation platform + PPO algorithm + large-scale parallel environments + open-source robotic arm hardware.

For developers looking to get started with robot reinforcement learning, projects like this provide invaluable practical references. As GPU-accelerated simulation, open-source robotic arm ecosystems continue to mature, and Sim-to-Real technology advances, we have good reason to expect that real-world applications of robot learning will arrive at an accelerating pace.

If you're also exploring robot learning, consider following the progress of such open-source projects—start with a runnable workflow and gradually dive deeper into the task domains that interest you.
