Mirror Suit Robot Dataset: Tackling Extreme Specular Reflection Challenges in Computer Vision and Depth Estimation

A Dataset Built for "Extreme Reflectivity"

In the development of computer vision (CV) and depth estimation algorithms, specular reflection has long been a stubborn edge case. Most conventional training data consists of diffuse surfaces, and highly specular objects — especially those approaching perfect mirror-like materials — can cause algorithms to fail completely. Depth sensors may misinterpret a mirror image as real space, while object detection models can be fooled by reflected virtual images.

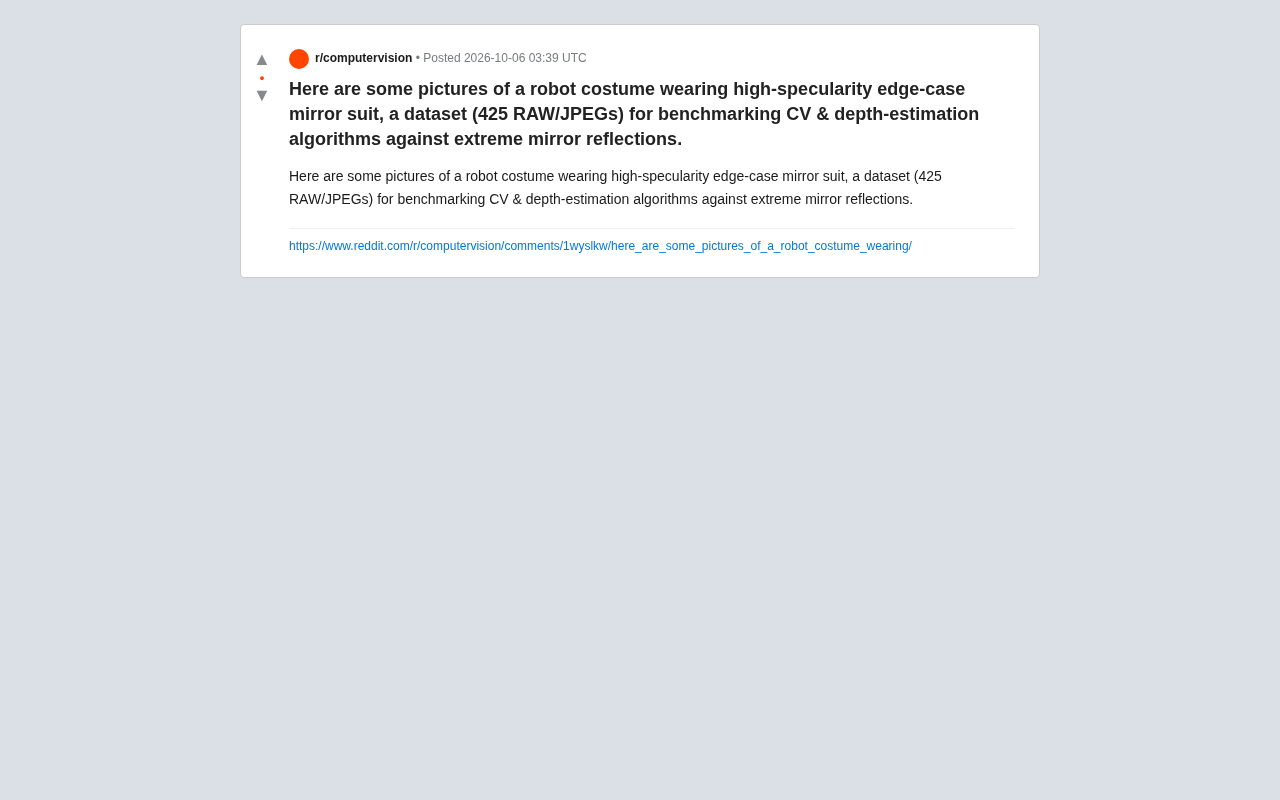

A Reddit user recently shared a unique dataset: captured using a highly specular "mirror suit" robot costume, it contains 425 images in RAW/JPEG format, specifically designed for benchmarking CV and depth estimation algorithms under extreme specular reflection conditions.

Why Specular Reflection Is a "Hard Problem" for CV

A Natural Blind Spot for Depth Estimation

Whether using structured light, ToF (Time of Flight), or stereo vision, specular surfaces introduce systematic errors across the board. Light undergoes specular rather than diffuse reflection off mirror-like surfaces, so sensors receive environmental information reflected back — not the surface signal itself. The result: the depth an algorithm "sees" is a virtual depth in mirror space, not the actual position of the reflective surface.

Structured light computes depth by projecting known patterns and analyzing their deformation. Specular surfaces redirect these patterns away from the sensor rather than back toward it, causing depth values in those regions to go missing or become severely erroneous. ToF sensors emit light pulses and measure round-trip time, but multiple reflections off specular surfaces create multipath interference, inflating measurements — the sensor mistakenly assumes light traveled a longer path. Stereo vision relies on matching feature points between two images from slightly different viewpoints, but a mirror presents entirely different reflected content from each angle, causing matching to fail entirely. Each of these mainstream depth-sensing approaches has its own systematic failure mode when confronted with specular surfaces, making stress testing against mirrors especially important for assessing real-world deployment risks.

Semantic Confusion in Visual Models

For deep learning-based object detection and segmentation models, mirrors create convincingly realistic "phantom" objects. A model may detect an object in a mirror reflection that doesn't physically exist at that location, generating false positives. This is particularly dangerous in applications that rely heavily on spatial understanding — autonomous driving, robotic grasping, indoor navigation, and the like.

The Value of This Dataset

What makes this dataset distinctive is its deliberate construction of extreme conditions. Compared to the occasional glass surface, body of water, or metallic object in everyday scenes, a full-body suit covered in highly specular material pushes reflective interference close to its theoretical limit. This makes it an ideal stress-testing sample:

• Benchmarking: Researchers can use it to measure the robustness of existing algorithms under worst-case conditions, rather than just scoring high on benign data.
• The significance of RAW format: Providing RAW in addition to JPEG means the original, uncompressed, unprocessed sensor data is preserved. This is highly valuable for algorithm developers who need to analyze pixel-level reflective properties or study high dynamic range (HDR) and overexposed regions.
• Edge case supplement: While 425 images isn't a large dataset, as a focused collection targeting a single hard problem, it can serve as a "difficult sample" supplement to existing large-scale datasets — useful for fine-tuning or adversarial evaluation.

Potential Application Areas

From a research perspective, this type of dataset can serve multiple sub-fields. Mirror detection and segmentation is itself an active research topic, and dedicated data helps train models to identify "where is the mirror." Beyond that, depth completion for specular surfaces, robot obstacle avoidance and grasping in mirror-rich environments, and reflection handling in AR/VR scenes could all potentially benefit.

It's worth noting objectively that this dataset was shared in community form. Users should independently verify the completeness of annotations, documentation of capture conditions, and the availability of metadata such as camera intrinsics. As an individual contribution targeting a specific problem, it is better suited as a supplementary validation tool for algorithm robustness than as a primary training data source.

Mirror detection and segmentation as a standalone research topic already has several dedicated datasets, such as MSD (Mirror Segmentation Dataset) and PMD (Progressive Mirror Detection). However, mirrors in these datasets are mostly flat indoor mirrors with relatively regular reflectance and geometry. A "mirror suit" introduces more complex reflection geometry as a curved, highly specular surface: a curved mirror produces a distorted mapping of the environment, making the correspondence between the reflection and the real scene much harder to model. This characteristic offers additional reference value for industrial inspection and robotic vision applications involving car bodies, metal workpieces, or smooth spherical objects — domains where the reflective surfaces are similarly curved.

The Value of Community-Driven "Hard Problem" Data

Datasets like this one — constructed by individuals or small teams to address specific pain points — represent a classic example of the open-source community ecosystem at its best. Large public datasets tend to offer broad coverage but struggle to account for extreme edge cases. A focused contribution like this, zeroing in on the single dimension of specular reflection, fills an important gap in the evaluation landscape. For researchers and engineers working to solve the reflection problem, this dataset might help them surface their algorithm's weaknesses much earlier in the development cycle.
