NCCL Multi-GPU Communication Optimization in Practice: A Guide to Scaling HPC High-Performance Computing

Introduction

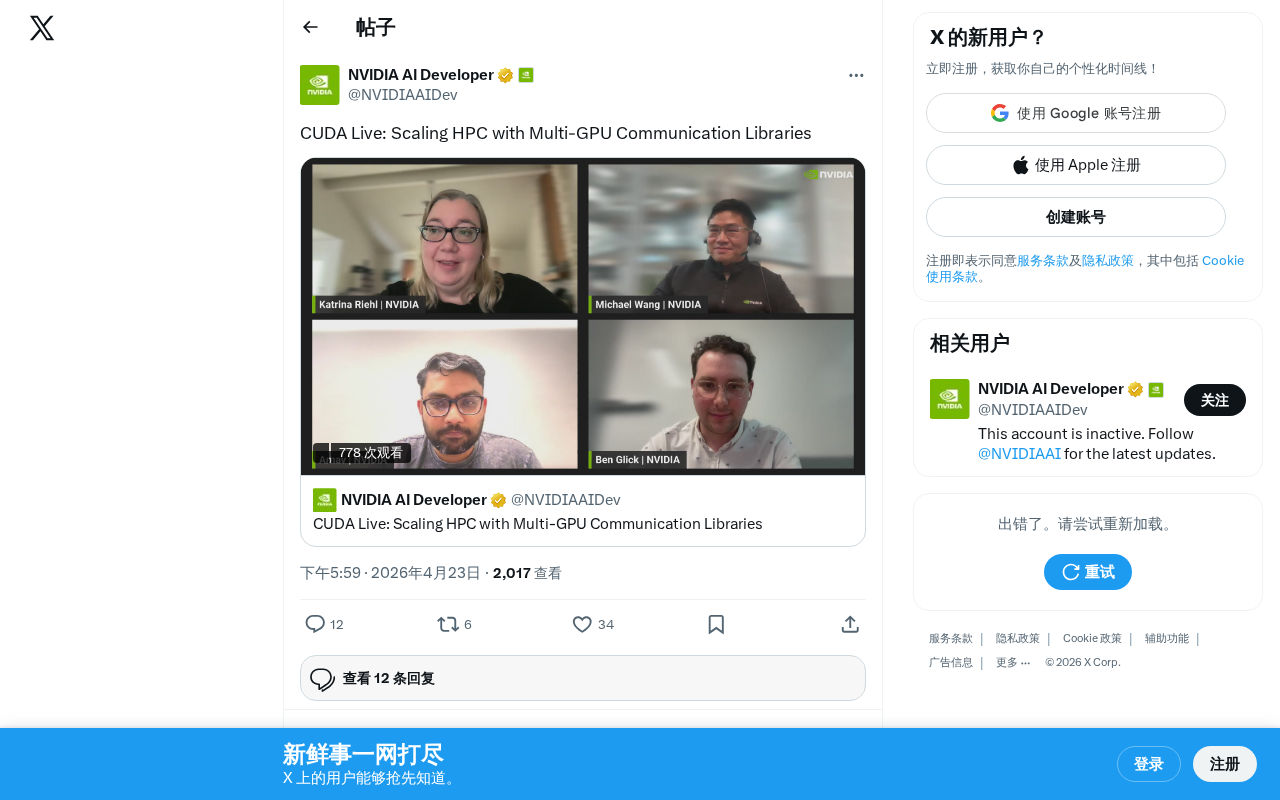

NVIDIA recently shared a systematic technical roadmap for scaling high-performance computing (HPC) capabilities using multi-GPU communication libraries through its CUDA Live series. As AI model parameters leap from tens of billions to trillions, and scientific computing demands grow exponentially, a single GPU can no longer carry the load alone. Multi-GPU collaborative computing has become an industry standard, and the communication efficiency between GPUs is the bottleneck that determines the overall performance ceiling.

Why Multi-GPU Communication Is the Critical Bottleneck for HPC Performance

The Ceiling of Single-GPU Compute Power

Climate simulation, molecular dynamics, large-scale AI training—the computational demands of these typical HPC workloads far exceed what a single GPU can handle. Even NVIDIA's latest H100 and B200 require hundreds or even thousands of GPUs working in concert when facing trillion-parameter large language model training or global-scale physics simulations.

In such multi-GPU architectures, computation itself is often not the bottleneck—data transfer efficiency between GPUs is the true performance-determining factor. Once communication latency is too high or bandwidth is insufficient, GPUs spend a significant amount of time waiting for data, and expensive compute resources are wasted.

Common Multi-GPU Communication Patterns

Multi-GPU communication patterns in HPC applications are diverse, with each pattern corresponding to different use cases:

• AllReduce: All GPUs aggregate their respective gradients and distribute the results back—this is the most critical collective communication operation in distributed deep learning training
• AllGather: Each GPU collects data fragments held by all other GPUs, commonly used in model parallelism scenarios
• Point-to-Point: Direct data transfer between GPUs, suitable for pipeline parallelism and similar scenarios
• Broadcast: Broadcasting data from one GPU to all other GPUs, commonly seen during parameter initialization

Different scenarios have varying communication requirements, demanding that the underlying communication library possess both high flexibility and targeted optimization capabilities.

NCCL Communication Library: Architecture Principles and Core Advantages

What Is NCCL

NVIDIA Collective Communications Library (NCCL, pronounced "Nickel") is a high-performance communication library built by NVIDIA specifically for multi-GPU and multi-node communication. It features deep optimizations tailored to NVIDIA GPU hardware characteristics and can automatically detect system topology—including NVLink, NVSwitch, PCIe, InfiniBand, and other interconnect methods—to select the optimal communication paths and algorithms accordingly.

NCCL's core advantages can be summarized in four points:

1. Topology-aware: Automatically identifies physical connection relationships between GPUs and avoids inefficient communication paths
2. Multi-protocol support: Seamlessly adapts to mainstream interconnect technologies including NVLink, PCIe, and InfiniBand/RoCE
3. Elastic scalability: Runs efficiently from multi-GPU single-node configurations to large-scale clusters spanning thousands of nodes
4. Deep framework integration: Major deep learning frameworks including PyTorch, TensorFlow, and JAX all use NCCL as their default GPU communication backend

Scaling Communication from Single Nodes to Massive Clusters

Intra-Node Communication: NVLink and NVSwitch

Within a single node, NCCL fully leverages the high-bandwidth, low-latency interconnects provided by NVLink and NVSwitch. Taking the DGX H100 as an example, 8 H100 GPUs achieve full interconnection through fourth-generation NVSwitch, with bidirectional bandwidth between GPUs reaching up to 900 GB/s. This means intra-node collective communication operations can complete almost instantaneously without becoming a bottleneck in the training pipeline.

Inter-Node Communication: GPUDirect RDMA

Inter-node communication relies on InfiniBand or RoCE networks. Through GPUDirect RDMA technology, NCCL enables GPUs to directly read from and write to the GPU memory of remote nodes, completely bypassing the CPU and system memory, significantly reducing communication latency. In the latest generation of supercomputers (such as DGX SuperPODs equipped with thousands of GPUs), this technology enables large-scale clusters to collaborate as efficiently as a unified compute resource pool.

Cutting-Edge Trends in Multi-GPU Communication Optimization

Computation-Communication Overlap

Efficient multi-GPU programs don't rely solely on the throughput capability of the communication library itself—they also need to achieve computation-communication overlap at the application level. By leveraging CUDA Streams and asynchronous communication primitives, developers can keep GPUs executing compute tasks while waiting for data transfers to complete, thereby maximizing hardware utilization and avoiding GPU idle time.

Communication Compression and Sparsification

The expansion of model scale directly increases communication data volume. Communication compression techniques are becoming an important means of alleviating this issue, with common approaches including:

• Low-precision quantization: Compressing FP32 gradients to FP16 or BF16, directly halving communication volume
• Sparse communication: Transmitting only gradient elements with large absolute values, skipping elements close to zero
• Mixed-precision strategies: Compressing communication data volume by 2-4x or more while maintaining model convergence accuracy

Co-Evolution of Hardware and Software

NVIDIA's communication optimization has always followed a hardware-software co-design approach. From NVLink 1.0 to the latest NVLink 5.0, interconnect bandwidth has continuously doubled; meanwhile, NCCL's communication algorithms have evolved in tandem to fully unleash the performance potential of new hardware. This integrated hardware-software evolution strategy is a key pillar supporting NVIDIA's continued leadership in HPC and AI infrastructure.

Practical Recommendations for Developers

For developers in the HPC and AI domains, multi-GPU communication optimization has transformed from a "nice-to-have" into a fundamental skill. The following practical recommendations deserve special attention:

• Prioritize mature communication libraries like NCCL—don't reinvent the wheel, as self-implemented communication logic rarely achieves the same depth of optimization
• Pay attention to system topology planning—allocate GPU tasks wisely, keeping communication-intensive tasks within the same node whenever possible to minimize cross-node data movement
• Actively practice computation-communication overlap—use CUDA Streams and asynchronous APIs to eliminate GPU idle waiting
• Make good use of performance analysis tools—Nsight Systems, NCCL's built-in debug logs, and similar tools can help quickly identify communication bottlenecks
• Stay current with NVIDIA toolchain updates—each new NCCL version typically brings performance improvements targeting new hardware and new scenarios

Conclusion

Multi-GPU communication libraries are indispensable infrastructure for modern HPC and large-scale AI training. Through the NCCL communication library, combined with hardware technologies like NVLink, NVSwitch, and GPUDirect RDMA, NVIDIA has built a complete communication solution covering everything from single machines to massive clusters. As model parameter counts and computational scales continue to grow, communication efficiency optimization will continue to play a central role in driving HPC performance breakthroughs. Mastering these communication optimization techniques has become an essential skill for every high-performance computing developer.
