One 7B Model Handles Depth, Panoptic Segmentation, Pose, and Text-Guided Segmentation

One Model, Four Vision Tasks

Using a single model to simultaneously output depth maps, panoptic segmentation, human pose, and text-guided segmentation—instead of deploying a separate specialized model for each task—is an approach increasingly being explored by developers and researchers.

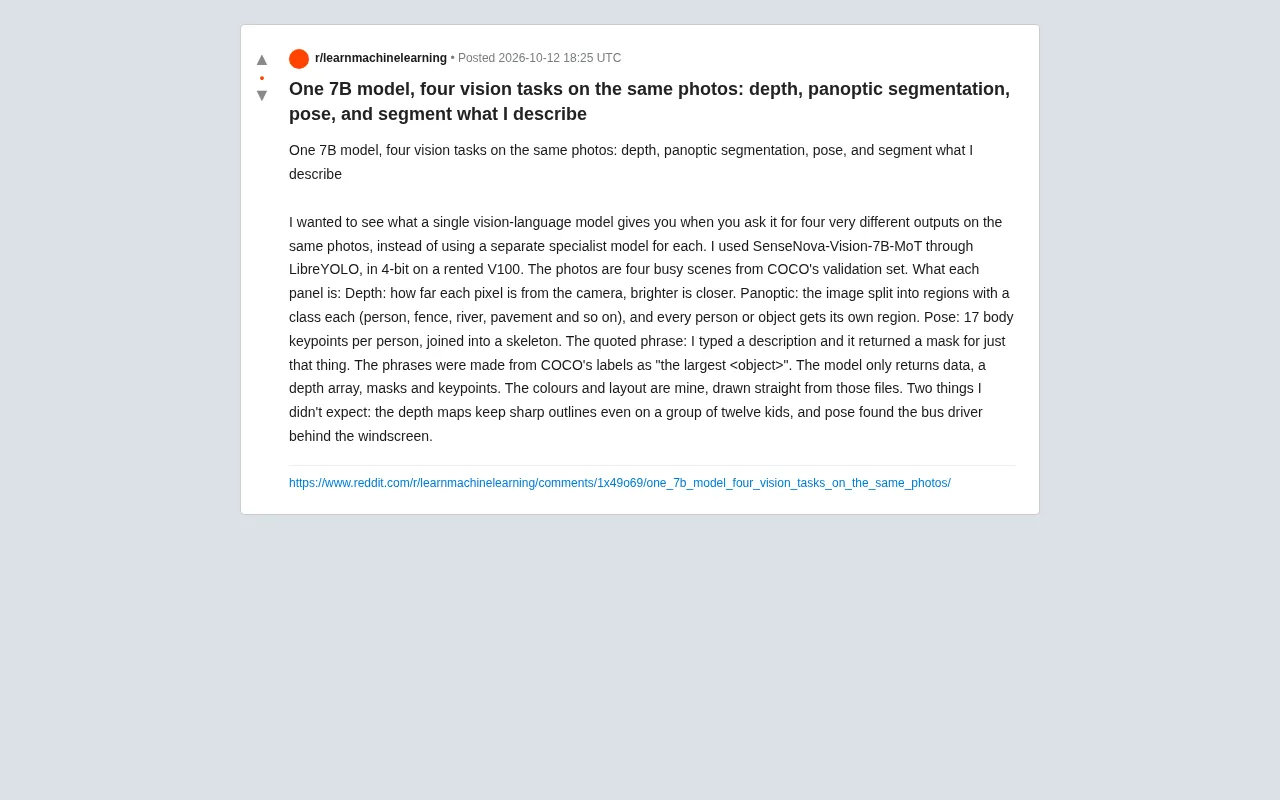

A Reddit user conducted a straightforward experiment with SenseNova-Vision-7B-MoT: running through the LibreYOLO framework at 4-bit quantization on a rented V100, they fed four complex scene photos from the COCO validation set and requested four completely different types of visual output in a single pass.

The four tasks demonstrated in the experiment are:

• Depth Estimation: outputs the distance from each pixel to the camera—brighter means closer
• Panoptic Segmentation: divides the image into categorized regions (people, fences, rivers, road surface, etc.), with each object or person getting its own distinct region
• Pose Estimation: detects 17 body keypoints per person and connects them into a skeleton
• Text-Guided Segmentation: takes a text description as input and returns a mask for the corresponding object

The model itself only returns structured data—depth arrays, masks, and keypoints. All colors and layout are rendered by the user based on this data.

Technical Approach: MoT Architecture and 4-bit Quantization

The MoT in SenseNova-Vision-7B-MoT stands for Mixture of Transformers—an architecture that combines different types of expert modules within a single model, enabling it to handle vision-language multi-task inputs and outputs.

Being able to run a 7B model at 4-bit precision on a single V100 while handling four vision tasks simultaneously shows that quantization techniques and model architecture have matured considerably in their integration. For independent developers with limited compute resources, this is a noteworthy signal: you no longer need to deploy and maintain a separate model for each vision task.

The text-guided segmentation component is designed to be simple and direct—the user constructs a description phrase using COCO category labels in the format "the largest <object>", and the model returns a mask for that target. While straightforward, it validates the model's ability to understand natural language descriptions and locate targets.

Quantization is the technique of converting model weights and activations from high-precision formats (such as FP16 or BF16, each occupying 16 bits) to lower-bit-width formats (such as INT8 or NF4, each occupying 8 or 4 bits). The core principle is finding a scaling factor that maps continuous floating-point values onto a discrete low-bit integer grid, then dequantizing back to approximate floating-point values during inference for computation. 4-bit quantization means each parameter is stored using only 4 bits, compressing a 7B model's theoretical memory footprint from roughly 14 GB (FP16) to about 3.5 GB. The trade-off is precision loss, which is particularly sensitive in the Key/Value matrices of attention layers and normalization layers. In practice, group-wise quantization and outlier preservation strategies are commonly used to mitigate degradation. The V100 is a data center GPU released by NVIDIA in 2017 based on the Volta architecture, featuring 16 GB of HBM2 memory and 32 GB/s NVLink bandwidth, but it does not support native INT4 hardware acceleration—so 4-bit inference relies on software-level dequantization operators. Nevertheless, 16 GB of memory is sufficient to hold the quantized 7B model plus intermediate activations during multi-task inference.

Mixture of Transformers (MoT) shares conceptual roots with the more common Mixture of Experts (MoE) but differs in a fundamental way. MoE places multiple feed-forward network experts within a single Transformer layer, using a gating network to dynamically select which experts to activate for each token, with the goal of expanding parameter count without proportionally increasing computation. MoT elevates this idea to the module level: the model internally contains multiple heterogeneous Transformer sub-modules, each designed for a specific modality or task type (e.g., one excelling at spatially dense prediction, another at language understanding), with a routing mechanism deciding which sub-modules to invoke based on input type and task instructions. The advantage of this design is that depth estimation, segmentation, pose detection, and text-guided segmentation share the same underlying visual encoder while each invoking different task experts—achieving multi-task unification within a single model while avoiding negative transfer between tasks.

Two Unexpected Results

The user specifically highlighted two results that exceeded expectations—these details reveal more about the model's practical capability boundaries than the overall demonstration.

Depth map edge preservation in multi-person scenes: In a complex scene with a group of twelve children, the depth map still maintained clear contours. Depth estimation tends to produce blurred edges or confused depth values when people overlap, but no significant degradation occurred here.

Bus driver detected by the pose model: Pose estimation detected the bus driver behind the windshield. Behind glass, at a distance, partially occluded—these conditions are not favorable for keypoint detection, yet the model successfully located him.

Both cases point to the same conclusion: this 7B model's robustness in occlusion and complex scenes is better than expected.

Keypoint detection under occlusion is a classic challenge in pose estimation. When the human body is partially occluded by glass, railings, or other objects, the number of visible keypoints decreases, and the model must infer the positions of occluded body parts without complete visual evidence. In the bus driver case, the windshield introduced reflections and color shifts, the distance meant the person occupied only a small region of the image, and partial occlusion made lower-body keypoints invisible. Traditional single-task pose models tend to produce keypoint drift or missed detections under such conditions. This model's ability to locate the driver may benefit from feature sharing enabled by multi-task joint training: the region-level semantic information from panoptic segmentation helps the model confirm "there is a person here," while the spatial layering information from depth estimation helps distinguish objects in front of and behind the glass—these auxiliary signals collectively enhance the pose head's robustness under difficult conditions.

Practical Significance of a Unified Multi-Task Model

For developers, the value of one model covering multiple vision tasks goes beyond saving resources.

Simplified deployment. One model weight, one inference pipeline—replacing the combination of three independent models for depth estimation, segmentation, and pose detection. Maintenance costs and version management complexity both decrease significantly.

Cross-task consistency. Depth, segmentation, and pose outputs on the same image come from the same internal representation of the same model, avoiding potential spatial inconsistencies that can arise between outputs from multiple independent models.

Flexible extensibility. The presence of text-guided segmentation means the model's capabilities can be invoked through natural language instructions, without retraining classification heads for each new task.

Of course, the experiment itself is limited in scope—four COCO validation set photos, no quantitative metric comparisons, and no accuracy comparison against specialized models. It's more of a feasibility demonstration than a comprehensive performance evaluation. But from a practical standpoint, the fact that a 7B model can simultaneously output four types of visual results after quantization on a consumer-grade GPU is itself worth noting.

One-line Summary

A single 7B model with MoT architecture and 4-bit quantization simultaneously performs four vision tasks on a V100.

Paragraph Summary

A Reddit user experimented with SenseNova-Vision-7B-MoT under the LibreYOLO framework, using 4-bit quantization on a single V100 to simultaneously output depth maps, panoptic segmentation, human pose, and text-guided segmentation for four COCO validation set photos. The model uses a Mixture of Transformers architecture, combining heterogeneous expert modules within a single model to handle multiple tasks. Two unexpected results stand out: depth map edges remained sharp in a scene with twelve overlapping children, and pose detection located a bus driver behind a windshield—demonstrating good robustness in occlusion and complex scenes. The value of a unified multi-task model lies in simplified deployment, cross-task output consistency, and flexible invocation of new capabilities through natural language. However, the experiment covers only four photos with no quantitative metrics, making it a feasibility demonstration rather than a complete performance evaluation.
