RC AI Car Project Sparks Discussion: Is It Feasible to Drop the Camera and Train Models with Ultrasonic and Angle Sensors?

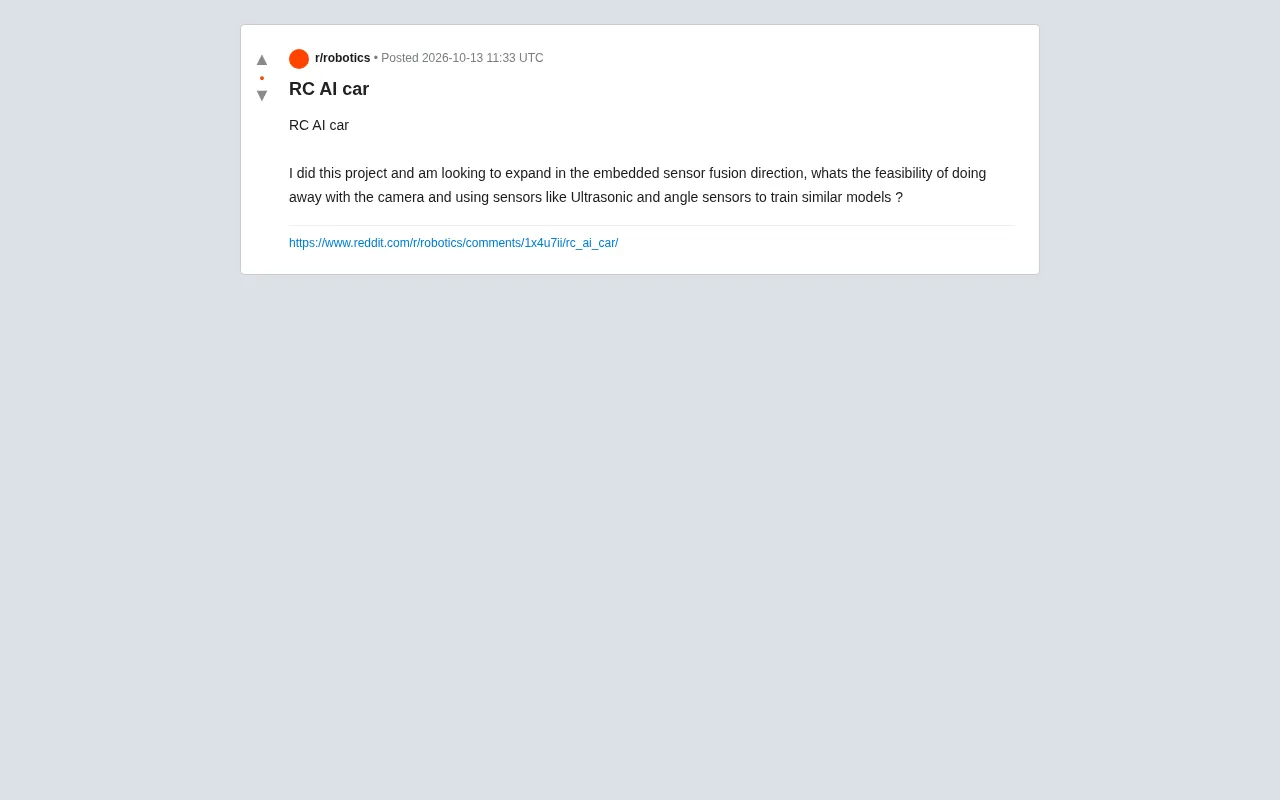

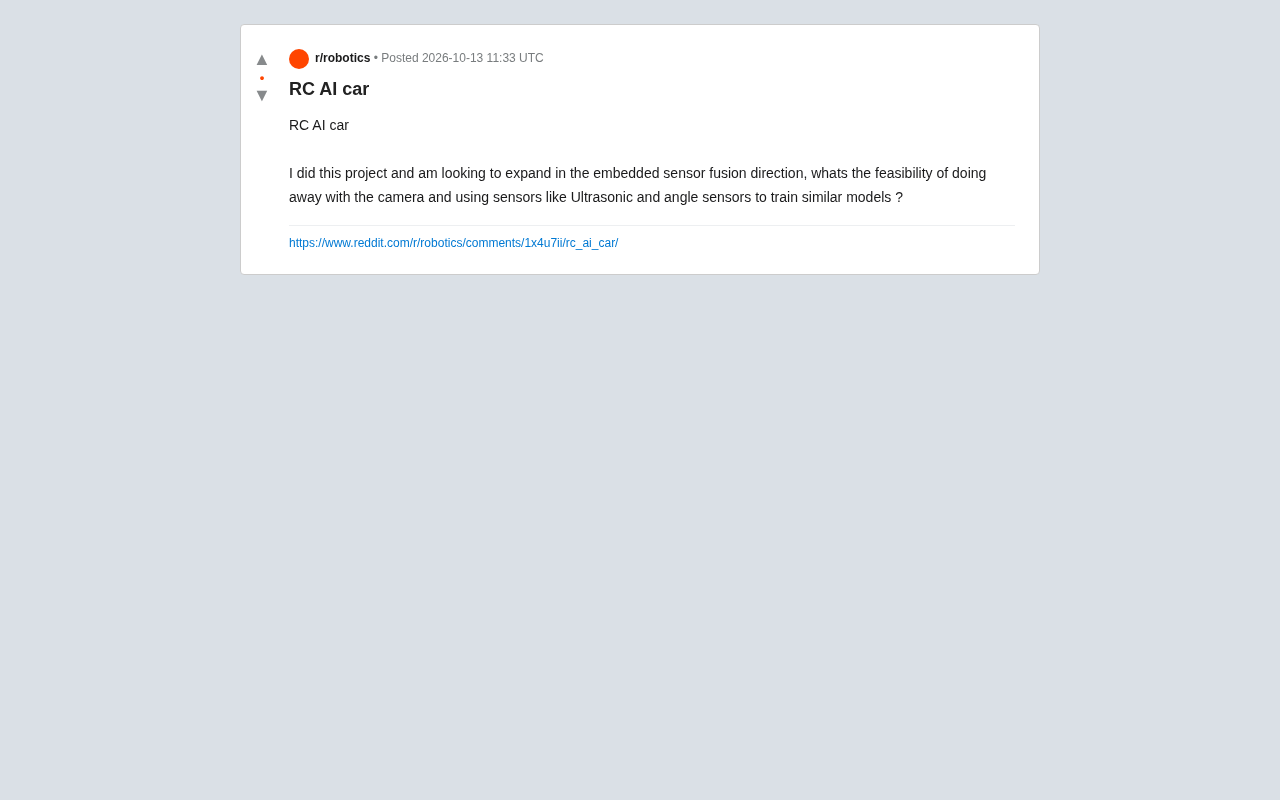

In the machine learning and embedded development communities on Reddit, a maker shared his RC AI car project—a remote-controlled car that can drive autonomously. The post itself was only a few words long, but it raised a sufficiently hardcore question: If you skip the camera and instead use low-cost solutions like ultrasonic and angle sensors to train a similar AI driving model, is that actually reliable?

This question touches on a core dividing line in edge intelligence: vision-based solutions have the highest information density, but they are also the most expensive in terms of compute and cost; sensor fusion solutions are cheap and lightweight, but the perceptual dimensions they can capture are pitifully few. To answer it, we first need to break down what each type of sensor can provide, and what the model can actually learn from it.

What the Camera Approach Actually Provides

In this type of RC AI car project, the camera usually handles the end-to-end perception-to-decision pipeline. Images naturally contain lane lines, obstacle contours, lighting changes, and texture cues, and the model can map directly from pixels to steering and throttle.

The implicit advantage of this approach is information redundancy. Even if a frame is blurry, the texture and motion information in adjacent frames can still help the model infer a feasible direction. In other words, the camera not only tells you "there is something ahead," but also roughly "how far away it is, what it is, and where it is moving."

The cost is also clear: it requires more compute (even when running a lightweight CNN or MobileNet variant), greater memory bandwidth, and is naturally sensitive to lighting and weather. On embedded devices, this combination is not friendly to MCUs or low-end SoCs.

End-to-end learning is the core methodology of this type of RC AI car project. Its basic idea is to bypass the traditional layered pipeline of "perception -> localization -> planning -> control" and directly train a neural network to map raw sensor inputs to chassis execution commands. This paradigm was first systematically validated by NVIDIA in the 2016 DAVE-2 paper—they used a real car to collect front-facing camera images and human drivers' steering angles, trained a CNN to directly output steering wheel angles, and proved that the network could automatically learn intermediate representations such as lane line detection and road boundary recognition without manual labeling. For RC cars, the biggest appeal of end-to-end learning is that it eliminates complex module design and manual feature engineering; but the price is a large data requirement and poor interpretability. Once the model fails, it is hard to pinpoint whether the problem lies in the perception stage or the decision stage. This also explains why the richer the input information, the more likely an end-to-end solution is to work.

What Ultrasonic and Angle Sensors Can Provide

If you switch to ultrasonic plus angle sensors, the perceptual picture becomes completely different.

Ultrasonic modules (such as HC-SR04) provide discrete distance readings: an obstacle 30 centimeters ahead, 80 centimeters of open space to the side. It has no texture, no color, and cannot distinguish between "a wall" and "a slowly walking person." Angle sensors (commonly the gyroscope/accelerometer in an IMU, or servo angle feedback) instead provide the vehicle body's own posture and steering state, which is proprioception, not environmental perception.

Combining the two essentially replaces "seeing the world" with "touching the world + sensing your own actions." This kind of information is very common in classic robot control, but in end-to-end learning models, its information bandwidth is several orders of magnitude away from that of a camera.

The distinction between proprioception and exteroception is key to understanding sensor selection. Proprioception refers to the system's perception of its own internal state, such as angular velocity and linear acceleration provided by an IMU, the current steering angle fed back by a servo, and wheel speed given by an encoder. They describe "what I am doing." Exteroception describes "what is around me," and cameras, LiDAR, and ultrasonic sensors all belong to this category. In classic robot control, proprioception is sufficient for tasks such as balancing, posture stabilization, and odometry estimation, because the control laws for such tasks depend only on the system's own state; but once it is necessary to respond to the external environment, having only proprioception is like walking with your eyes closed. In end-to-end learning scenarios, this distinction is especially important: if the model has only proprioceptive inputs, what it learns is essentially an open-loop or short-term closed-loop dynamic model, and it cannot cope with sudden changes in the environment.

Feasibility Analysis: Technically Possible, but with Clear Boundaries

From a feasibility standpoint, the answer is "you can train it, but the model you get is not solving the same problem as a vision model."

First, the input dimensionality drops sharply. Camera input is tens of thousands to hundreds of thousands of pixel dimensions, while ultrasonic plus angle may have only a single-digit number of feature channels. The model is easier to train and easier to deploy, but its upper bound on representational capacity is also much lower.

Second, the task needs to be redefined. Trained with ultrasonic data, the model is better suited for obstacle avoidance and wall-following, not "understanding the scene." If the goal is to keep the car from hitting walls in a fixed corridor, this solution is completely sufficient; if the goal is to recognize traffic lights or follow a specific object, ultrasonic alone is almost impossible.

Third, sensor fusion itself has barriers. Ultrasonic readings are noisy and have a low refresh rate, and time alignment and filtering across different sensors require additional engineering effort. Angle sensors also have drift problems on bumpy roads. This noise goes directly into the training data, and the model must be robust enough to digest it.

Knowledge distillation was proposed by Hinton et al. in 2015. Its core idea is to have a small "student model" imitate the output distribution of a large "teacher model," rather than just hard labels. The soft probabilities output by the teacher model (after softmax temperature smoothing) contain similarity information between classes and provide richer supervisory signals than one-hot labels. In the autonomous driving field, this idea has been used to compress large vision models onto in-vehicle embedded platforms. But when transferred to RC cars, one premise is often overlooked: what distillation can compress is "the complexity of the decision function," not "the amount of input information." If the teacher model's decisions depend on features such as texture and color in images, while the student model's input contains only ultrasonic distance readings, then no matter how the student is trained, it cannot reconstruct part of the teacher's decisions—because the causal information is already lost at the input stage. Therefore, whether the distillation route is feasible depends on whether the decision information required by the target task can truly be recovered from low-dimensional sensors.

A More Realistic Route: Stack the Two Approaches

Rather than choosing between a camera and ultrasonic sensors, a more pragmatic approach is layering.

Use ultrasonic and angle sensors for low-level safety reflexes and posture control, such as emergency stopping, maintaining straight travel, and preventing rollover; use a camera or a lighter visual module (such as a grayscale line array or infrared array) for high-level behavioral decisions. This preserves the feasibility of a low-cost embedded platform while retaining the scene understanding capability brought by vision.

There is also another path: first use a camera to collect data and train a teacher model, then through distillation, compress the decision-making capability into a small model driven by sensor inputs. This idea has already seen considerable research in autonomous driving, and transferring it to RC cars is entirely feasible, but the premise is that the sensor inputs really do contain enough causal information to reconstruct the decisions—and ultrasonic often does not satisfy this.

A Few Suggestions for Builders

If you are in the early stages of a similar project, you can judge the direction like this:

• First write down the specific task the car needs to accomplish, then decide on the sensors. The task determines the input, not the other way around.
• If it is only obstacle avoidance and simple line following, the combination of ultrasonic and angle sensors is sufficient, and the training cost is low.
• If it is necessary to recognize object categories, follow objects, or read signs, a camera or vision module is basically irreplaceable.
• If you plan to do sensor fusion, plan ahead for synchronized data collection and noise handling, otherwise the model will learn a pile of noise.

The value of this Reddit post is not that it gives an answer, but that it puts a real engineering tradeoff on the table: In edge AI, the choice of perception solution is never just a technical issue, but also a question of task boundaries and cost constraints. Once you think clearly about what the car is actually supposed to do, the feasibility question naturally has a solution.

One-line Summary

Ultrasonic plus angle sensors can train an RC car AI model, but the task boundaries and capability ceiling are far lower than vision-based solutions.

Paragraph Summary

The article revolves around a question from an RC AI car project on Reddit: Is it reliable to drop the camera and instead use ultrasonic and angle sensors to train an AI driving model? The author starts by analyzing the informational nature of the two sensor types—cameras provide high-dimensional, redundant visual information that can support end-to-end scene understanding; ultrasonic and angle sensors provide low-dimensional discrete distance readings and body posture, with information bandwidth differing by several orders of magnitude. The conclusion is that it is technically feasible, but the task needs to be redefined as obstacle avoidance and wall-following, and the model's expressive upper bound is clearly limited. A more pragmatic route is layered design: use ultrasonic plus angle sensors for low-level safety reflexes, and retain vision for high-level behavioral decisions; model distillation is also a possible direction, but the premise is that the low-dimensional input contains enough causal decision information.
