Reverse Engineering Hardware with AI: The Dawn of an Efficiency Revolution

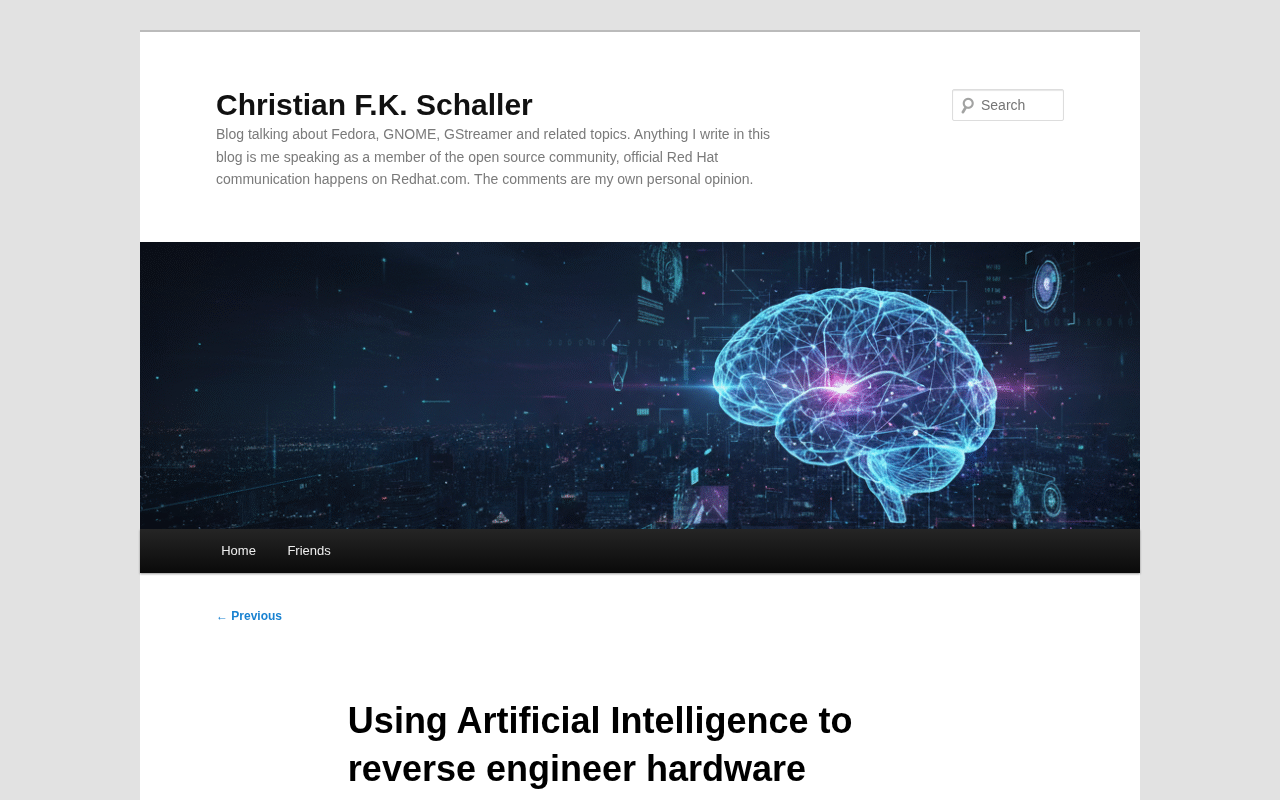

Hardware reverse engineering, a field that has long relied heavily on expert experience and manual work, is being quietly transformed by AI. A discussion thread on Hacker News titled "Using AI to reverse engineer hardware" has drawn attention from the tech community. Although the post itself only received 15 upvotes and 5 comments, it touches on a highly promising intersection: what happens when large language models and computer vision meet circuit boards, chips, and firmware.

The Pain Points of Hardware Reverse Engineering

The traditional hardware reverse engineering workflow is extremely tedious. Engineers need to disassemble devices, identify chip models, trace PCB traces, extract firmware, analyze binary code, and sometimes bypass encryption protections. The entire process takes weeks or even months and depends heavily on individual expertise.

A multilayer PCB may contain thousands of traces, and the firmware of a single SoC can easily amount to several MB of binary data. Manual analysis is not only inefficient but also prone to missing critical details. What makes it even trickier is that many chip manufacturers deliberately erase silkscreen markings or use custom packages to increase the difficulty of reverse engineering. This is precisely where AI can add value.

PCB traces refer to the copper foil routes on a printed circuit board that connect component pins and carry electrical signals. In multilayer boards, traces are distributed across multiple copper layers, and layers are connected through vias. Tracing routes during reverse engineering is difficult because inner-layer traces cannot be seen directly on a finished board; reconstructing the full topology usually requires X-rays or layer-by-layer delamination.

Silkscreen refers to the white or black text and symbols printed on the PCB surface to label component numbers, polarity, and model information. To make reverse engineering harder, chip manufacturers often use chip lapping or custom packaging to erase silkscreen markings, making it impossible for engineers to identify chip models visually. They must instead infer them from pin definitions, package dimensions, and electrical characteristics—a step that often determines the direction of the entire reverse engineering project.

Several Paths for AI to Enter Hardware Reverse Engineering

Judging from community discussions and technology trends, AI applications in hardware reverse engineering are mainly concentrated in the following directions:

Image Recognition and PCB Analysis

Computer vision models can automatically identify components on a circuit board, read chip silkscreen markings, and trace PCB routes. Compared with manually comparing traces one by one under a magnifying glass, AI can complete the topology reconstruction of an entire board in minutes. For teams that need to quickly understand a competitor's design, this is highly significant.

Firmware and Binary Analysis

The ability of large language models to understand and generate code is being transferred to firmware analysis scenarios. When faced with a stripped section of ARM or MIPS assembly code, an LLM can help infer function behavior, identify common encryption algorithms, and even guess data structures. Analysis work that used to take senior reverse engineers several days may be compressed to a few hours with AI assistance.

Stripped binaries are executable files or firmware images whose symbol tables and debugging information have been removed after compilation. During reverse engineering, function names and variable names are not directly visible—only addresses and machine code. For embedded architectures such as ARM or MIPS, engineers first need to disassemble the code into assembly and then infer its logic segment by segment.

Disassembly is the process of converting machine code back into assembly instructions, while decompilation further converts assembly into pseudocode close to a high-level language. The value of large language models in decompilation assistance lies in their ability to infer function purposes from context, recognize constant signatures of common cryptographic algorithms such as AES, RSA, and SHA, and help reconstruct data structures that compilers have optimized beyond recognition. However, LLM output still requires manual verification, because embedded code is filled with logic strongly tied to hardware registers, interrupts, and timing, where models can easily misjudge.

Protocol Reverse Engineering and Signal Analysis

For unknown communication protocols, AI can combine signal data captured by a logic analyzer to automatically identify encoding methods, baud rates, and frame structures. This is far more efficient than manually analyzing waveforms bit by bit.

A logic analyzer is an instrument used to capture and record changes in digital signal high and low levels. It can collect multiple signal channels simultaneously and display waveforms along a time axis. In protocol reverse engineering, engineers attach probes to pins suspected of carrying communication, capture the actual bitstream transmitted between devices, and infer protocol rules from it.

Baud rate is the number of symbols transmitted per second in serial communication, commonly seen in embedded bus protocols such as UART, SPI, and I2C. Frame structure describes the arrangement of start bits, addresses, data, checksums, and stop bits in a complete transmission. When manually analyzing waveforms, engineers need to measure pulse widths one by one to infer the baud rate, then align bits to split frames—an extremely time-consuming process. When AI is combined with logic analyzer data, it can automatically search for candidate baud rates, cluster high and low level sequences, and identify possible frame boundaries, compressing manual comparison that once took days into a much shorter time.

Community Divergence and Real-World Constraints

Although there are not many comments under this post, they reflect two attitudes in the community toward AI hardware reverse engineering. Optimists believe AI will greatly lower the barrier to reverse engineering, enabling small teams to complete chip analysis work that previously only large companies could afford. Cautious voices point out that many parts of hardware reverse engineering—such as precise physical measurements and behavioral analysis of analog circuits—still require real-world experimental verification, and that AI is currently more of an auxiliary tool than a replacement.

A real constraint is data scarcity. Unlike software reverse engineering, public datasets for hardware reverse engineering are very limited, and chip manuals and firmware samples often involve legal and commercial sensitivities. This limits the training effectiveness and generalization ability of AI models.

The reason analog circuit behavioral analysis is difficult for AI to replace is that analog signals involve continuously changing voltage and current, noise, thermal drift, parasitic capacitance, and electromagnetic coupling, and their behavior is highly dependent on the physical environment and specific process. By contrast, digital circuits can be precisely modeled with discrete logic, while analog circuits often require actual measurement with an oscilloscope on a real board to confirm their behavior under real operating conditions. This is the part of hardware reverse engineering that AI will find hardest to cover in the short term.

Data scarcity also brings a chain problem: generalization ability. AI models usually rely on large-scale, diverse training data to perform stably on new samples. Public datasets for hardware reverse engineering are both scarce and fragmented, and the chip architectures, packages, and firmware formats of different manufacturers vary greatly. As a result, even if a model performs well on one series of chips, transferring it to another chip may fail completely. This explains why the cautious camp in the community believes AI is better suited to initial screening and assistance in hardware reverse engineering, rather than end-to-end replacement.

What It Means for the Industry

If AI continues to penetrate the field of hardware reverse engineering, the most direct impact will be the acceleration of security research. Security researchers can discover vulnerabilities in IoT devices faster, and manufacturers can conduct compliance reviews and competitive analysis more efficiently.

Another impact is a lower barrier to entry. In the past, hardware reverse engineering was the territory of a few experts, with complex toolchains and steep learning curves. The emergence of AI-assisted tools may enable more developers to enter this field, thereby spawning more innovation—and possibly also new disputes over intellectual property and security.

This Hacker News post itself contains limited information, but it marks a direction worth continued attention. The combination of AI and hardware reverse engineering is still in its early stages, with immature toolchains and undefined methodologies, but the direction is already clear. For engineers engaged in security research, IoT development, or chip design, now is a good time to pay attention to this interdisciplinary field.

One-line Summary

AI is entering hardware reverse engineering through three paths—image recognition, firmware analysis, and protocol reverse engineering—with efficiency gains coexisting alongside the real constraints of physical verification and data scarcity.

Paragraph Summary

A Hacker News discussion about using AI to reverse engineer hardware reflects an emerging interdisciplinary field. Traditional hardware reverse engineering requires disassembling devices, tracing PCB routes, extracting and analyzing firmware, and reverse engineering unknown protocols. It takes weeks or even months and relies heavily on expert experience. AI mainly enters through three paths: computer vision for component recognition and PCB topology reconstruction; large language models assisting stripped firmware and binary code analysis; and AI combined with logic analyzer data to automatically identify communication protocols. The community is divided on this: optimists emphasize efficiency and lower barriers, while cautious voices stress that analog circuit measurement and physical verification are irreplaceable. In addition, public datasets for hardware reverse engineering are scarce, and legal and commercial sensitivities limit model training, making AI currently more of an auxiliary tool.
