Robot Self-Evolution: Building Custom Tools with 3D Printing

Title

Robot Self-Evolution: Building Custom Tools with 3D Printing

Meta Description

A developer explores robots designing their own tools through evolutionary search and AI-generated CAD, testing them in physics simulation. Next step: physical testing with an Arctos robot and a 3D printer—but automated print removal remains a challenge.

Article Content

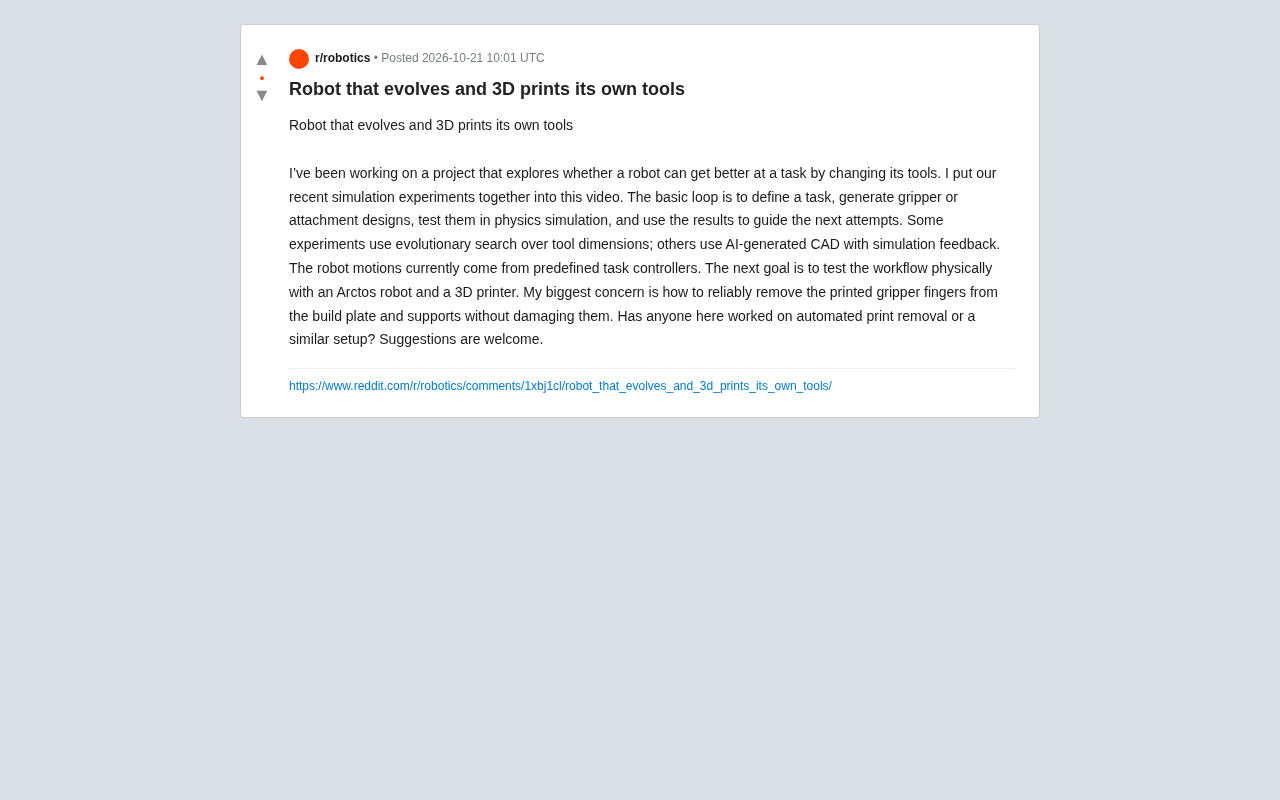

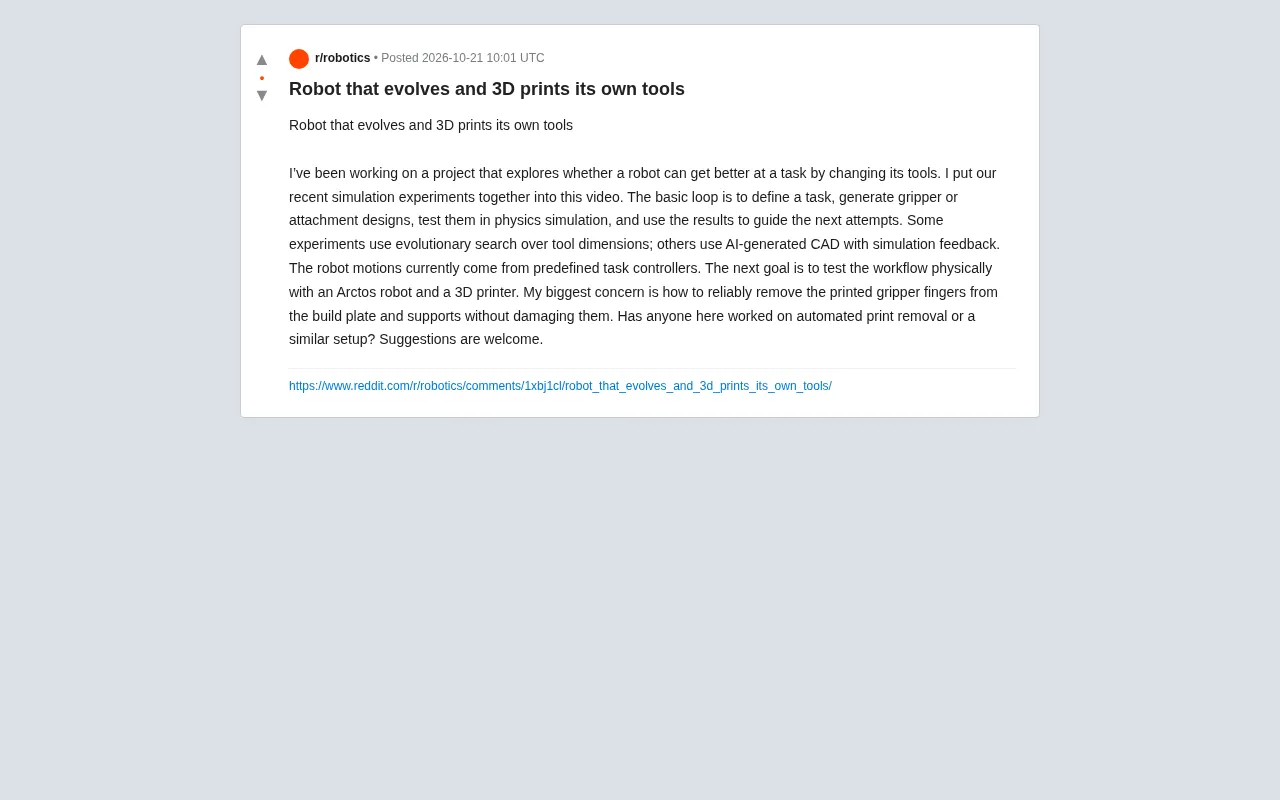

A developer is exploring whether robots can improve task performance by modifying their own tools. He recently compiled his simulation experiments into a video showing a closed-loop pipeline: define a task, generate gripper or attachment designs, test them in physics simulation, and use the results to guide subsequent attempts. Some experiments use evolutionary search to optimize tool dimensions, while others combine AI-generated CAD with simulation feedback. For now, the robot's motions are still driven by a predefined task controller. The next step is physical testing with an Arctos robot paired with a 3D printer. The developer's biggest concern is how to reliably remove gripper fingers and support structures from the print bed without damaging the printed parts, and he is seeking automated removal solutions from the community.

The Core Loop: From Task Definition to Tool Evolution

The entire workflow revolves around a clear loop: given a task, the system generates a series of gripper or attachment designs, which are tested in a physics simulation environment, and the test results in turn guide the next round of design generation. This approach allows the robot to optimize tools through trial and error rather than relying on manual design. The developer notes that some experiments use evolutionary search to tune tool dimensions—such as gripper length, width, or joint angles—finding better solutions over multiple generations. Other experiments use AI to generate CAD models and fine-tune them with simulation feedback. This dual-path strategy demonstrates two possibilities for tool evolution: rule-based optimization and learning-based generation.

Evolution and AI Generation in Simulation

Evolutionary search is a classic optimization method that mimics natural selection: generate multiple variants, evaluate performance, keep the best, and mutate them to produce the next generation. In tool design, this means the system can automatically explore different dimension combinations to find the gripper shape best suited to a specific task. AI-generated CAD, by contrast, focuses on using generative models to directly produce designs, which are then validated through simulation. Each has its strengths: evolutionary search suits parametric tuning, while AI generation may yield more innovative structures. The developer did not disclose specific algorithmic details but emphasized that simulation feedback is the key driver of evolution. This rapid iteration in a virtual environment lays the groundwork for subsequent physical testing.

Evolutionary Search is a class of black-box optimization algorithms inspired by biological evolution, with typical representatives including genetic algorithms (GA), evolution strategies (ES), and CMA-ES. Its basic process is: initialize a set of candidate solutions (a population), compute fitness for each individual (here, task performance in simulation), then produce the next generation through selection, crossover/recombination, and mutation, converging to a better solution after multiple generations. In robot morphology and tool design, evolutionary search is often combined with physics simulators and is known as "Evolutionary Robotics." Its advantage is that it does not rely on gradient information and can handle non-smooth, high-dimensional design spaces; its drawback is the need for a large number of simulation evaluations, which is computationally expensive.

AI-generated CAD typically refers to using generative models (such as diffusion models, variational autoencoders, or parametric scripts driven by large language models) to directly produce 3D geometry or CAD parameters. Unlike evolutionary search, generative models learn the design distribution from training data and can propose structurally more novel candidates, but they require simulation feedback for screening and correction. The combination of the two forms a "generate—evaluate—regenerate" loop, which is a hot direction in computational design and automated robot design today.

The Challenge of Physical Testing: Removing Printed Parts

Although the simulation experiments are progressing well, moving the workflow into the physical world faces a concrete problem: how to reliably remove printed gripper fingers and support structures from the 3D printer's build plate without causing damage. This is a typical automated manufacturing problem, especially in a closed loop with no human intervention. The developer plans to test with an Arctos robot and a 3D printer, but the removal step requires precise control, possibly involving force control on the robotic arm or specialized tools. He has asked the community for help in finding a solution for automated print removal. This reflects a real bottleneck in robot self-evolution: it's not enough to have design and printing capabilities; post-processing capabilities are also needed.

Build plate is the platform on a 3D printer that carries the first layer of a print. The adhesion between the print and the bed surface needs to be strong enough to prevent warping, but not so strong that it becomes difficult to remove. Common aids include: flexible, bendable print sheets (such as PEI spring steel plates, which release prints when bent), heated beds (which exploit material shrinkage differences to release prints automatically upon cooling), interface layers such as glue or masking tape, and mechanical vibration or ultrasonic-assisted detachment. For robotic automated removal, visual positioning, force-controlled grasping, and path planning are also needed to avoid scratching the bed surface or damaging delicate gripper fingers. Support structures are usually more fragile than the main body, and automated removal often requires dedicated cutting or gripping tools—this is the core pain point that the developer is asking the community about.

Future Directions and Community Collaboration

The next step is to make the entire process physical: the robot designs its own tool, 3D-prints it, and then uses it for the task. This requires integrating design, manufacturing, and use. The developer has already taken the first step of simulation validation; physical testing will examine how well the simulation results transfer. Community suggestions could accelerate this process—for example, using heated beds, flexible print plates, or mechanical vibration to aid removal. This project demonstrates the potential of robot self-evolution but also reveals the complexity of hardware integration. As more experiments are conducted, we may see robots that can truly "evolve" their own tools.

One-line Summary

A developer uses a simulation closed loop to let a robot evolve designs and 3D-print its own tools; the next step faces physical testing and automated removal challenges.

Paragraph Summary

A developer explores the possibility of robots improving task performance by modifying their own tools, and has compiled simulation experiments into a video. The entire workflow is a closed loop: define a task, generate gripper or attachment designs, test them in physics simulation, and use the results to guide the next round of attempts. Some experiments use evolutionary search to optimize tool dimensions, while others combine AI-generated CAD with simulation feedback. For now, the robot's motions are still driven by a predefined task controller. The next step is physical testing with an Arctos robot paired with a 3D printer, but the developer's biggest concern is how to reliably remove gripper fingers and support structures from the print bed without damaging the printed parts, and he is seeking automated removal solutions from the community.
