Rust vtable Explained: dyn Trait Fat Pointers and Virtual Table Memory Layout

Introduction: The Secret Behind Dynamic Dispatch

In Rust's type system, dyn Trait is the core mechanism for runtime polymorphism (dynamic dispatch). When you use a trait object, the compiler constructs an elegant memory layout behind the scenes to support dynamic method calls. The heart of this mechanism is the so-called vtable (virtual method table).

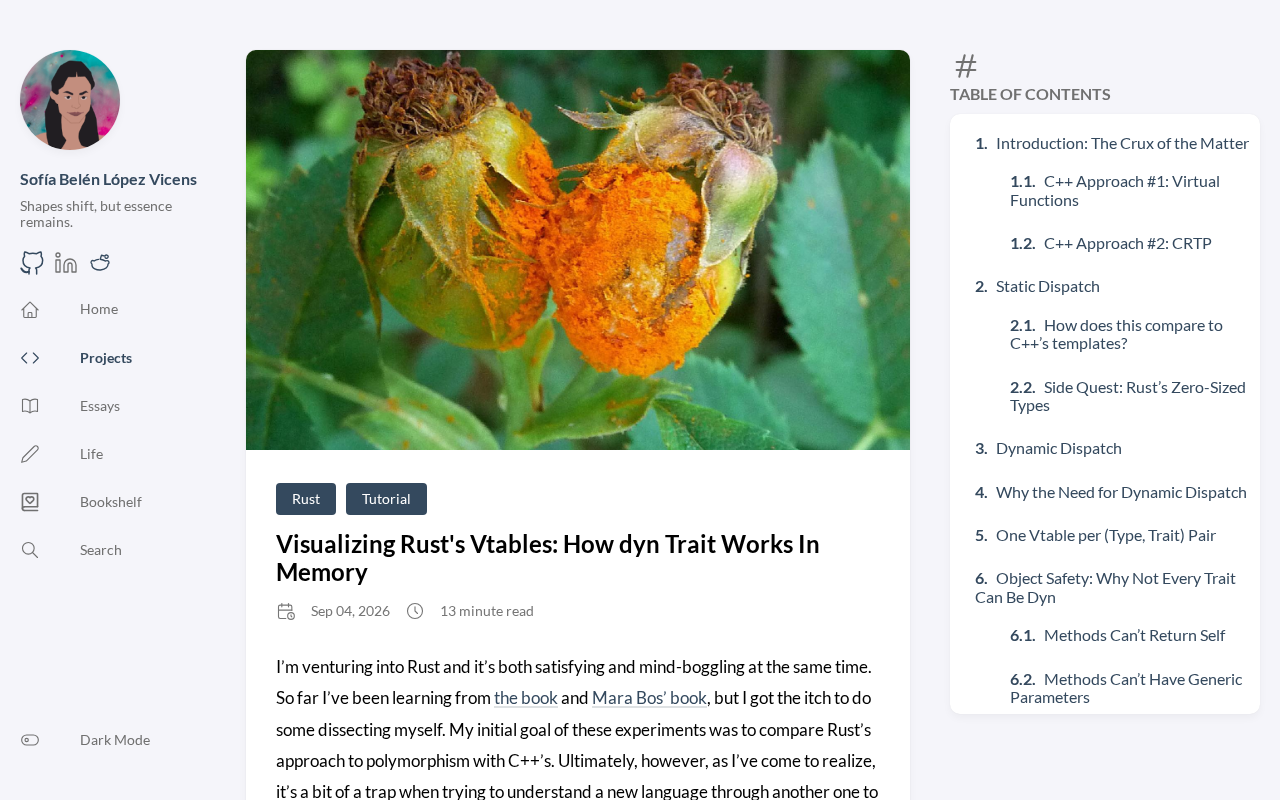

A recent technical article that sparked lively discussion on Hacker News — Visualizing Rust's Vtables: How dyn Trait Works In Memory — provides a deep visual walkthrough of Rust's vtable memory structure. This post builds on those insights to give a systematic overview of how dyn Trait actually works in memory.

Static Dispatch vs. Dynamic Dispatch

The Trade-offs Between Two Approaches to Polymorphism

Rust offers two ways to achieve polymorphism. The first is static dispatch, implemented via generics and trait bounds (e.g., fn foo<T: Trait>(x: T)). The compiler generates specialized code for each concrete type — a process called monomorphization. This approach has zero runtime overhead, but it can lead to binary bloat.

The second is dynamic dispatch, implemented via dyn Trait (e.g., fn foo(x: &dyn Trait)). Here, the concrete type is unknown at compile time, so method calls are resolved at runtime through vtable lookups. You trade a small amount of runtime performance for a smaller binary size and more flexible abstractions.

Why dyn Trait Requires a Fat Pointer

The key to understanding dyn Trait is recognizing that a trait object pointer is not an ordinary pointer — it's a fat pointer. It consists of two machine words:

• Data pointer: Points to the concrete data — the actual object's address in memory
• Vtable pointer: Points to the vtable for that specific type

This is why &dyn Trait is twice the size of a regular reference — it must carry both the data address and type information.

The Memory Structure of a vtable

What's Inside a vtable

A vtable is essentially a static, read-only region of memory generated at compile time for a specific "concrete type implements trait" combination. The original article uses visualizations to clearly illustrate the typical vtable layout, which generally contains the following parts:

1. Destructor pointer (drop_in_place): Points to the type's cleanup logic for correctly releasing resources
2. Type size: Records how many bytes the concrete type occupies
3. Alignment: Records the memory alignment requirement for the type
4. Array of method pointers: The actual function addresses for each method defined in the trait

The first three entries are mandatory metadata present in every vtable — they're essential for correctly moving and destroying trait objects. The method pointers are what actually enable dynamic dispatch.

The Full Method Call Flow

When you call a method through a trait object, the runtime executes the following steps:

1. Extract the vtable pointer from the fat pointer
2. Use the method's fixed offset within the trait to locate the corresponding function pointer in the vtable
3. Extract the data pointer from the fat pointer as the self argument
4. Call the function

The whole process involves just a few pointer dereferences — the overhead is minimal. However, compared to static dispatch, there's one extra level of indirection, which also makes inlining by the compiler difficult.

Why This Design?

Key Differences Between Rust vtables and C++ vtables

Experienced developers will immediately think of C++'s vtable mechanism. The two share the same underlying idea, but with one critical difference: in C++, the vtable pointer is embedded inside the object (objects typically have a vptr in their header); in Rust, the vtable pointer lives in the fat pointer itself, and the object contains no vtable information whatsoever.

This design has a significant advantage: ordinary Rust structs don't get larger just because they might someday be used as trait objects. The vtable pointer only gets "attached" when you actually convert a value to dyn Trait. This aligns perfectly with Rust's core philosophy of zero-cost abstractions — you don't pay for what you don't use.

The Origin of Object Safety Rules

The vtable mechanism also explains the fundamental reason behind Rust's object safety rules. The reason methods with generic parameters or methods returning Self cannot be used with trait objects is precisely that these cases make it impossible to determine a single function address at compile time to place in the vtable — a generic method produces countless monomorphized versions that a vtable simply cannot accommodate.

Practical Implications and Performance Considerations

For everyday Rust development, understanding the vtable mechanism has several practical takeaways:

• On performance-critical hot paths, prefer generic static dispatch over dynamic dispatch to take advantage of inlining opportunities
• When you need heterogeneous collections (e.g., Vec<Box<dyn Trait>>) or want to control binary size, dyn Trait is the more appropriate choice
• Visualizing the vtable layout helps you reason more clearly about ownership and lifetime issues with trait objects, especially when working with the memory layout of Box<dyn Trait>

Conclusion

dyn Trait may look like simple syntax sugar, but underneath it's a sophisticated system of fat pointers and vtables working in concert. Understanding its memory layout visually not only helps you write more efficient Rust code, but also deepens your grasp of the trade-offs between static and dynamic dispatch. Mastering these low-level principles is a critical step on the journey from "knowing Rust" to truly mastering Rust.
