Serverless GPU for LLM Deployment: Cold Start Optimization and Multi-Model Cost Control

Serverless GPU Is Becoming the New Choice for RAG Deployment

As RAG (Retrieval-Augmented Generation) applications gain popularity, more and more developers are turning to Serverless GPU providers (such as RunPod, Modal, Replicate, etc.) to run large language models. Compared to long-term GPU instance rentals, the pay-as-you-go, stop-when-idle nature of the Serverless model is highly attractive for small-to-medium applications with unpredictable traffic.

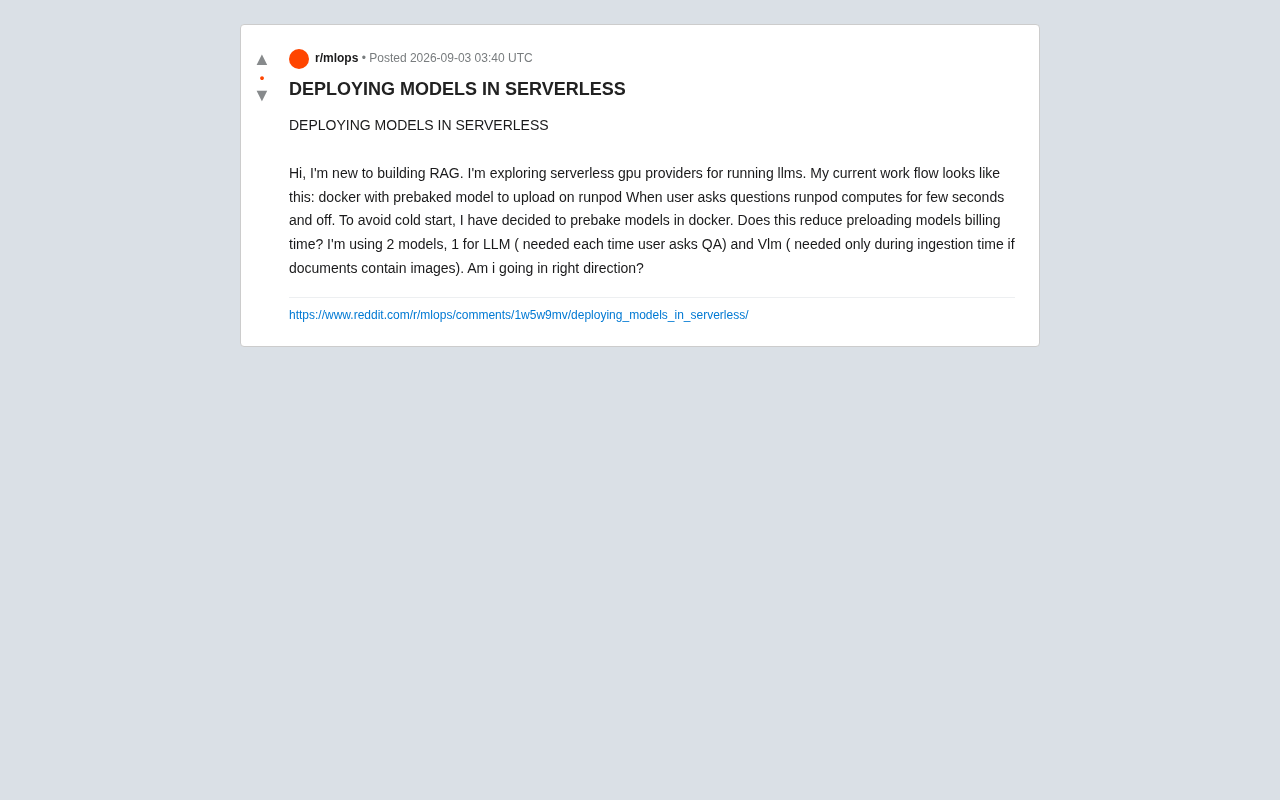

Recently, a Reddit user shared their Serverless deployment approach for building a RAG system and raised several highly representative questions: Can prebaking a model reduce billing time? How should multi-model deployments be designed? Is the overall architecture heading in the right direction? These are questions nearly every developer encounters when first working with Serverless GPUs. This article dives deep into each of these pain points.

Cold Start: The Core Challenge of Serverless Deployment

What Is a Cold Start and Why Does It Matter

In a Serverless architecture, GPU instances don't run continuously — they're spun up only when a request arrives. A cold start refers to the latency from when an instance is launched, the container is loaded, and the model weights are read in, to when the system is finally ready to serve inference requests. For LLM weights that can be several gigabytes or even tens of gigabytes, cold starts can stretch to tens of seconds, severely degrading user experience.

The approach mentioned in the original post — prebaking model weights directly into the Docker image — is the right direction. Compared to downloading the model from remote storage (such as HuggingFace Hub or object storage) after container startup, prebaking eliminates network transfer time and makes the model available as soon as the image is ready.

Cold start issues are not unique to Serverless GPU, but they are significantly amplified in AI inference scenarios. A typical cold start chain includes: the cloud platform scheduling an available node (a few seconds) → pulling the container image (a few seconds to minutes, depending on image size and cache hit rate) → container initialization and CUDA environment setup (a few seconds) → loading model weights from disk into GPU VRAM and completing tensor initialization (a few seconds to tens of seconds). For a 7B-parameter model at FP16 precision, the weights are roughly 14GB — just this transfer step from NVMe SSD to VRAM can take 10–30 seconds. By contrast, long-term rented GPU instances (like AWS EC2 p3 series) run continuously once started and have no cold start penalty, but they rack up significant idle costs during low-traffic periods. This is the fundamental trade-off between the two models.

Does Prebaking Actually Reduce Billing Time?

This is the most critical question from the original post. The answer is: it can reduce some of it, but it cannot completely eliminate the billing time for model loading.

Two concepts need to be distinguished:

• Image pull time: Loading the Docker image onto the GPU node. Prebaking makes the image larger, but many Serverless platforms (like RunPod) cache images, and this phase typically does not count toward GPU billing time.
• Time to load the model into VRAM: Even if the weights are already on local disk, they still need to be read from disk into GPU VRAM and initialized. This duration is typically billed, because the GPU is already occupied at this point.

So the core value of prebaking is eliminating the runtime model download step, avoiding download timeouts caused by network instability and the associated extra billing — but the time to load from disk to VRAM still exists. To optimize further, consider platform features like FlashBoot / persistent Workers that keep an instance warm for a period of time.

Multi-Model Deployment: Decoupled Design for LLM and VLM

Understanding Each Model's Call Frequency and Timing

The architecture in the original post uses two models:

• LLM: Called on every user query (QA stage) — a high-frequency, low-latency need.
• VLM (Vision-Language Model): Only needed during the document ingestion stage, and only when documents contain images — a low-frequency, latency-tolerant batch processing need.

There's a clear architectural optimization opportunity here: bundling both models in the same container or endpoint is inefficient. If you package a VLM and LLM together, every cold start must load two sets of weights, slowing down startup, consuming more VRAM, and driving up costs.

A VLM (Vision-Language Model) is a multimodal model built on top of a traditional LLM with an integrated visual encoder. Prominent examples include LLaVA, Qwen-VL, and InternVL. It accepts mixed image-and-text input, and in RAG scenarios is primarily used to parse charts, scanned documents, or layout-rich PDF pages — converting visual content into retrievable text descriptions. Because it must load both language model weights and a visual encoder (such as CLIP ViT), a VLM typically consumes 20%–40% more VRAM than a text-only LLM of equivalent parameter size, and takes longer to load. This further reinforces the case for separating it from the real-time QA LLM — the two differ significantly in resource requirements, call timing, and latency tolerance, and forcing them together only makes both sides compromise unnecessarily.

Recommended Decoupled Architecture

The more sensible approach is to split the workload into two independent Serverless endpoints, based on call frequency and use case:

1. LLM endpoint: Serves real-time QA; prioritizes low cold start latency and high concurrency. Configure a persistent Worker or a short idle timeout to ensure responsiveness.
2. VLM endpoint: Serves document ingestion, typically an async batch task. Can be configured for pure cold-start mode, accepting longer startup latency in exchange for zero idle cost — since it might only be called once every few hours.

This decoupling not only optimizes cost structure, but also allows each model to scale independently and use different GPU specs. For example, the VLM may need a higher-VRAM card to handle images, while the LLM inference can use a more cost-effective option.

Architecture Evaluation and Advanced Recommendations

The Overall Direction Is Right

Returning to the original poster's final question — "Am I heading in the right direction?" — the overall approach is correct: recognizing the cold start problem, proactively prebaking the model, and distinguishing the use cases for different models are all mature engineering judgments. For a RAG newcomer, this is a very solid starting point.

A Few Directions Worth Exploring Further

1. Decouple Vector Retrieval from Generation

The retrieval phase of RAG (embedding + vector database query) is typically a CPU-intensive or lightweight GPU task and should not be bundled into the same expensive GPU endpoint as LLM generation. It's advisable to deploy the embedding model and vector store (e.g., Qdrant, Pinecone) independently, invoking the GPU only for the final generation step.

2. Quantization to Shorten Load Times

Using INT8/INT4 quantization not only reduces VRAM usage but also shrinks weight size, shortening disk-to-VRAM load time and indirectly compressing billing duration.

3. Monitoring and Cost Visibility

Hidden costs in Serverless often lurk in cold start frequency and idle reclaim policies. It's worth integrating platform billing logs to track actual GPU-seconds per request, and to find the optimal "idle timeout" configuration.

Conclusion

Serverless GPU offers a highly elastic deployment solution for RAG applications, but to truly leverage its cost advantages, the key lies in understanding the billing model, optimizing cold starts, and decoupling models by use case. Prebaking models is an effective way to reduce runtime uncertainty, while splitting the high-frequency LLM from the low-frequency VLM into separate deployments is an essential path toward further cost reduction and improved response speed. For all developers exploring Serverless AI deployment, these practical insights offer solid reference value.

Background: Additional Context

A complete RAG pipeline typically consists of two phases: offline document ingestion and online retrieval-augmented generation. The ingestion phase uses an embedding model to convert document chunks into vectors and store them in a vector database; the online phase vectorizes the user query, retrieves relevant chunks from the database, then injects them into a prompt for the LLM to generate an answer. Embedding models (such as BGE or text-embedding-3-small) are far smaller than LLMs and can usually run on CPU or low-spec GPUs, with per-inference latency in the millisecond range. Separating the embedding service from the LLM endpoint avoids burning expensive A100/H100 VRAM on a task a CPU can handle. Vector databases (Qdrant, Pinecone, Weaviate, etc.) are also independent stateful services that persist retrieval indexes and should likewise not be coupled to stateless Serverless GPU endpoints.

Model quantization is the technique of compressing weights from high-precision floating point (FP32/FP16) to low-bit integer representations. INT8 quantization can halve model size; INT4 quantization (formats like GPTQ, AWQ) can compress to roughly one-quarter of the original size. Take a 13B-parameter model as an example: FP16 is about 26GB, while INT4 quantization brings it down to roughly 6–7GB — enabling it to run on a single consumer-grade GPU, and reducing disk-to-VRAM load time from over 30 seconds to under 10 seconds. Modern quantization methods incur minimal accuracy loss on most tasks. AWQ and GPTQ are the two most widely used formats in Serverless deployment scenarios today, and both are natively supported by leading inference frameworks like vLLM and TGI. For cold-start-sensitive scenarios, quantization is one of the most direct optimization levers available without requiring architectural changes.
