Spec: A Low-Cost Open-Source Full-Size Embodied AI Robot Dog

One Developer's Robot Dog Project

Boston Dynamics' Spot is renowned for its agile locomotion, but its steep price tag has kept it firmly behind the doors of enterprise labs and research institutions. One developer is publicly documenting their journey to build an open-source alternative on Reddit — a project called Spec, with the goal of creating a full-size embodied AI robot dog roughly the same scale as Spot, at a fraction of the cost.

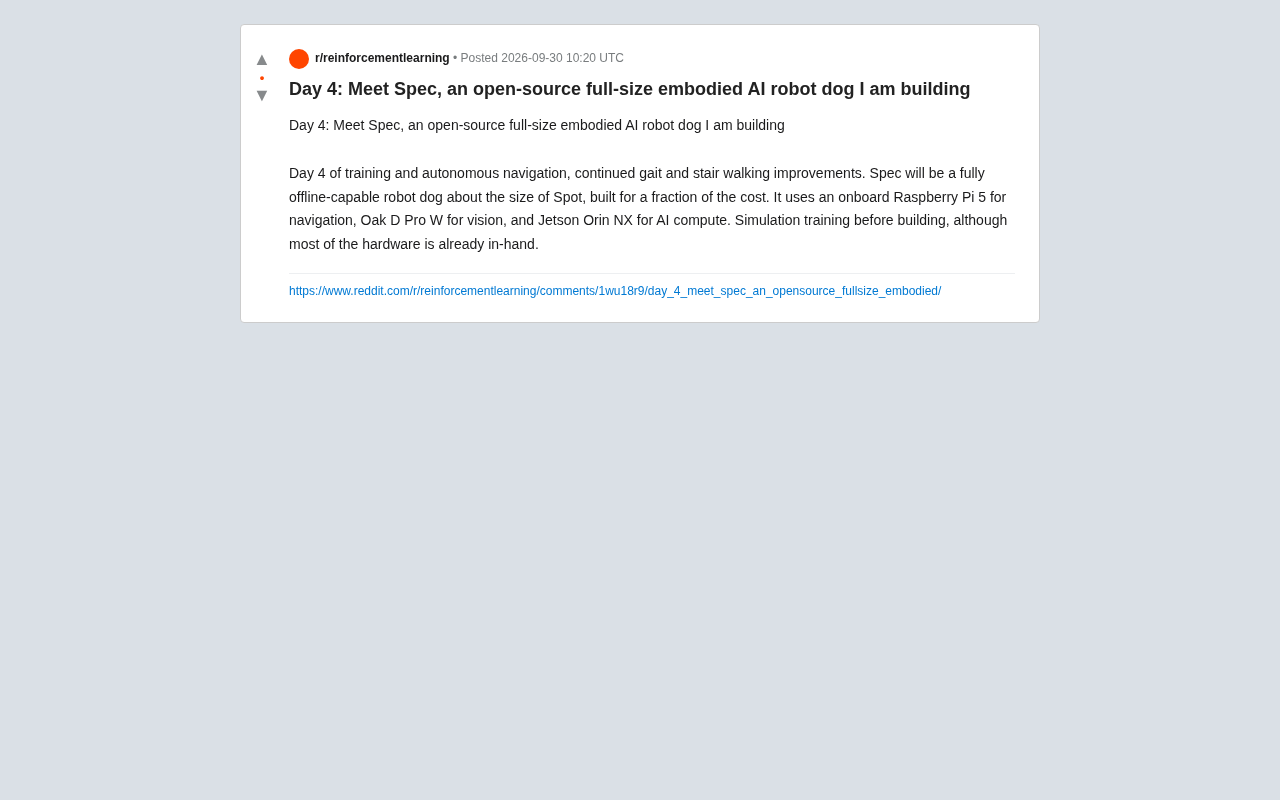

In the Day 4 project update, the author showcased progress on training and autonomous navigation, with a focus on ongoing improvements to gait and stair-climbing capabilities. Unlike many DIY projects that stall at the concept stage, Spec's approach is to complete training in simulation first, then deploy to physical hardware — and according to the author, most of the hardware has already arrived.

Hardware Design: Three Chips, Three Roles

What makes Spec particularly noteworthy is its pragmatic hardware configuration. The author has split different tasks across three accessible compute modules:

• Raspberry Pi 5: Handles navigation. As the core for main control and motion planning, the Pi 5 has enough processing power for path planning and sensor fusion, while remaining affordable and well-supported by a mature ecosystem.
• Oak-D Pro W: Handles vision. This depth-sensing AI camera features a wide field of view (the "W" stands for Wide), helping the robot dog perceive its surroundings, identify obstacles, and read terrain.
• Jetson Orin NX: Handles AI computation. NVIDIA's edge AI module provides the horsepower needed to run neural network inference, making it the key enabler of embodied intelligence.

This "divide and conquer" architecture decouples navigation, perception, and AI inference onto dedicated hardware, reducing pressure on any single compute unit while keeping overall costs manageable. All three modules are available on the consumer market, making the build reproducible for hobbyists.

---

The Oak-D Pro W is a spatial AI camera from Luxonis that integrates a stereo depth sensor with a color camera and a built-in Myriad X VPU, capable of running lightweight neural network inference locally on the camera itself — such as object detection and semantic segmentation — reducing the processing load on the main controller. The division of labor with the Jetson Orin NX follows a clear logic: the Oak-D Pro W handles real-time spatial perception and feature extraction, while the Jetson manages heavier policy inference and motion control computation. This separation of front-end perception from back-end inference mirrors the multi-sensor fusion architectures found in industrial robot platforms like Spot itself — but compresses the cost down to consumer-grade levels.

Fully Offline and Simulation-First

The author emphasizes that Spec will be fully offline-capable. This means it can navigate and make decisions without any cloud connectivity — critical for outdoor, underground, or low-connectivity environments, and it sidesteps latency and privacy concerns associated with real-time communication. All AI inference runs locally on the onboard Jetson Orin NX.

On the development side, Spec follows the industry-standard sim-to-real approach. For complex motions like quadruped gait control and stair climbing, iterating directly on physical hardware is expensive in both wear and debugging time. Training locomotion policies in simulation first, validating navigation logic, and then transferring to the real machine is the standard methodology in legged robotics research — and it dramatically accelerates iteration.

---

Sim-to-real transfer is one of the core challenges in quadruped robotics. Policies trained in simulation often fail in the real world due to the simplified physical assumptions of simulation engines — a gap known as the "sim-to-real gap." Common mitigation strategies include Domain Randomization, which involves randomly perturbing parameters like friction coefficients, joint damping, and terrain height during simulation training, forcing the policy to learn more robust locomotion behaviors. Research from Google, ETH Zurich, and others has shown that quadruped gait policies trained with sufficient domain randomization can transfer zero-shot to real hardware without additional fine-tuning. For a personal project like Spec, this strategy is especially valuable: it dramatically reduces the number of physical debugging sessions, minimizes hardware wear, and allows a developer to complete most controller development without extensive access to a physical robot.

Why This Project Matters

Embodied intelligence is one of the hottest frontiers in AI right now, but truly hands-on full-size legged platforms remain expensive. Spec's significance lies in making this space open and accessible: it demonstrates that building a robot dog approaching Spot's size using consumer-grade hardware is not out of reach.

From a technical standpoint, Spec hits several of the right notes — edge AI inference, depth visual perception, sim-to-real training transfer, and modular compute distribution. These are precisely the core challenges that need to be solved for legged robots to move from research labs into broader adoption.

Of course, as an ongoing personal project, Spec's publicly available information is still focused on the early development stage. The stability of its gait and stair-climbing, the robustness of its navigation, and the actual final cost all remain to be validated in future updates. But for the open-source robotics community, a full-size robot dog project that is actively documented and has hardware largely in hand is itself a meaningful reference and source of inspiration.

Summary

Spec charts a clear path toward low-cost embodied robotics: Raspberry Pi 5 for navigation, Oak-D Pro W for vision, and Jetson Orin NX for AI computation — paired with simulation-based training and a fully offline design — aiming to replicate Spot-like form and capability at a dramatically lower price point. The project is still in its early stages, but its open-source nature and pragmatic engineering approach make it a DIY robotics effort well worth following.
