SVDQuant: 4-bit Quantization Enables Efficient Diffusion Model Inference on Consumer GPUs

Overview

In the thriving era of generative AI, diffusion models have become the core technology in the field of image generation. The fundamental idea behind diffusion models originates from non-equilibrium thermodynamics: during the forward process, Gaussian noise is gradually added to data until it becomes pure noise, and then a neural network is trained to learn the reverse denoising process. The introduction of DDPM (Denoising Diffusion Probabilistic Models) in 2020 marked the maturation of this paradigm, followed by models like Stable Diffusion, DALL·E 3, and FLUX pushing it into industrial applications. Compared to GANs, diffusion models offer more stable training and better generation diversity, but at the cost of requiring multi-step iterative denoising during inference, resulting in significantly higher computational demands.

However, these models—often containing billions of parameters—keep deployment costs prohibitively high, with even high-end GPU memory often falling short. How can we dramatically compress these models without significantly sacrificing generation quality? A research team from MIT and other institutions proposed SVDQuant, a 4-bit quantization scheme based on absorbing outliers through low-rank decomposition, which was accepted as an ICLR 2025 Spotlight paper. Its open-source inference engine Nunchaku has garnered over 3,800 stars on GitHub, making it one of the most watched open-source projects in the diffusion model quantization space.

Why Diffusion Model Quantization Is Particularly Challenging

Model quantization is the classic technique of compressing floating-point weights into low-bit integer representations. The essence of quantization is approximating original floating-point values with fewer bits—taking 4-bit quantization as an example, each weight uses only 4 bits (16 discrete values) for representation. Compared to FP16's 16 bits, storage space is directly reduced to 1/4. Common quantization approaches include uniform quantization and non-uniform quantization, as well as different granularity strategies such as per-tensor, per-channel, and per-group quantization.

For large language models (LLMs), 4-bit and even lower-bit quantization schemes are already quite mature. In the LLM domain, methods like GPTQ, AWQ, and QuIP have thoroughly demonstrated the feasibility of 4-bit quantization, but these methods are designed for the autoregressive characteristics of Transformer decoders and cannot be directly transferred to the U-Net or DiT architectures of diffusion models. Diffusion model quantization faces two unique challenges that make directly applying LLM quantization schemes ineffective.

Outliers Squeeze Quantization Precision

Diffusion model weights and activations contain numerous outliers—a small number of values that are far larger than others. The outlier problem is prevalent in large-scale Transformer models: research shows that as model scale increases, activation values with magnitudes far exceeding other dimensions appear on certain hidden dimensions, and these outliers typically concentrate in a few fixed channels. In diffusion models, due to structures like skip connections, timestep embedding injection, and cross-attention mechanisms, the distribution of outliers is more complex and dynamic than in LLMs.

During quantization, these outliers severely squeeze the representation precision of normal values, causing quantization errors to amplify dramatically. For example, if most values in a channel fall within the [-1, 1] range but an outlier of 100 exists, then the 16 discrete values of 4-bit quantization need to cover the [-1, 100] range, making it nearly impossible to distinguish normal values in the [-1, 1] interval. Traditional methods either ignore outliers leading to noticeable degradation in generation quality, or retain high-precision channels for outliers resulting in insufficient overall compression ratio.

Timestep Dependency Increases Quantization Difficulty

Unlike LLMs, diffusion models exhibit significantly different activation distributions across different denoising timesteps. In the early stages of denoising, the input is close to pure noise, and activation values have larger numerical ranges with relatively uniform distributions; in the later stages of denoising, the model processes data close to clear images, with entirely different activation distribution characteristics. This dynamically changing property across timesteps means that static quantization strategies struggle to accommodate all timesteps simultaneously, further increasing the difficulty of maintaining generation quality at low bit-widths.

SVDQuant's Core Idea: Absorbing Outliers via Low-Rank Decomposition

SVDQuant's key innovation lies in using a low-rank branch produced by Singular Value Decomposition (SVD) to absorb outliers, thereby making the main weight matrix much more "quantization-friendly." This approach is both elegant and efficient.

Singular Value Decomposition is one of the most important matrix factorization methods in linear algebra. For any m×n matrix W, SVD decomposes it into W=UΣV^T, where U and V are orthogonal matrices, and Σ is a diagonal matrix with elements (singular values) arranged in descending order along the diagonal. By retaining only the top-k largest singular values and their corresponding vectors, an optimal rank-k approximation of the original matrix can be obtained—this is low-rank approximation. In deep learning, LoRA (Low-Rank Adaptation) leverages a similar low-rank concept for efficient fine-tuning of large models. SVDQuant takes this a step further, transforming low-rank decomposition from a fine-tuning tool into a quantization-assistance mechanism.

Technical Details

Specifically, SVDQuant decomposes the weight matrix W into two parts:

• Low-Rank Branch: A low-rank matrix extracted via SVD, retained at high precision (e.g., 16-bit), specifically designed to capture outliers and critical information. Since the information corresponding to outliers is often concentrated in the directions associated with the few largest singular values, the low-rank branch can precisely "absorb" these components most destructive to quantization with minimal parameter count.
• Residual Branch: The residual matrix after removing the low-rank component. Since outliers have been absorbed by the low-rank branch, the numerical distribution becomes more uniform and can be safely quantized to 4-bit. The numerical range of the residual matrix shrinks significantly, allowing the 16 discrete values of 4-bit to more evenly cover the actual value range, substantially reducing quantization error.

This "divide and conquer" strategy elegantly resolves the contradiction between outliers and low-bit quantization. The low-rank branch has a very small parameter count (typically only a few percent of total parameters), so the overall model still achieves near 4-bit extreme compression ratios.

SVDQuant vs. Mixed-Precision Quantization

Compared to mixed-precision quantization schemes—which assign different quantization bit-widths to different layers or channels—SVDQuant demonstrates clear advantages across three dimensions:

1. Higher compression ratio: All main weights are quantized to 4-bit, rather than retaining large numbers of high-precision channels. In mixed-precision schemes, sensitive layers may need to maintain 8-bit or even 16-bit precision, limiting overall compression ratio.
2. Better hardware execution efficiency: Uniform 4-bit quantization more easily leverages GPU integer computation units for acceleration. Mixed-precision schemes require frequent switching between computation modes due to different layers using different bit-widths, making it difficult to fully utilize GPU parallel computing capabilities.
3. Less generation quality loss: The low-rank branch precisely captures information most impactful to generation quality, avoiding crude truncation. This mathematically optimal guarantee (SVD provides the optimal low-rank approximation) ensures information loss is minimized.

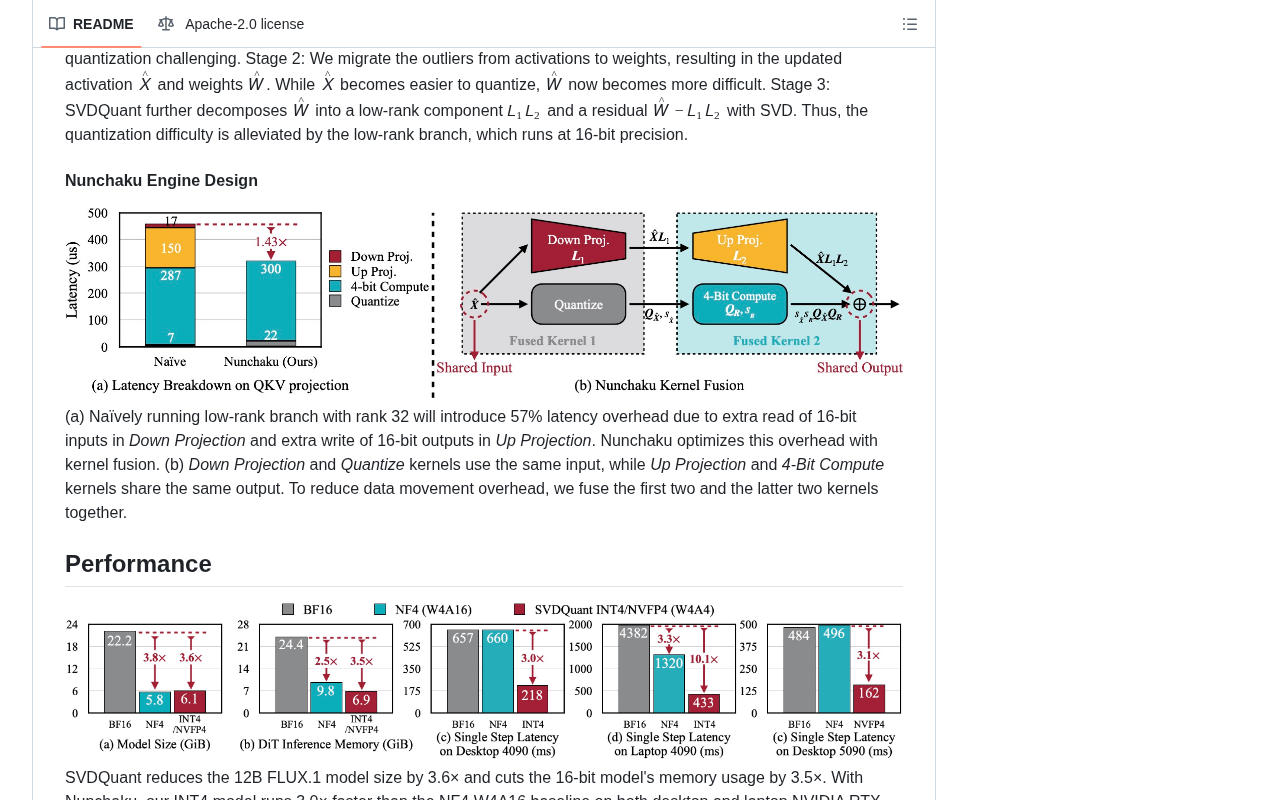

Nunchaku: An Efficient Inference Engine for 4-bit Diffusion Models

The paper's open-source implementation project Nunchaku is not just a quantization tool, but a complete efficient inference engine for 4-bit diffusion models.

Engineering Highlights

• End-to-end inference acceleration: Custom high-efficiency CUDA kernels designed for 4-bit quantized models, achieving full-pipeline optimization from quantization to inference. To truly translate 4-bit quantization into inference speedup requires carefully designed low-level computation kernels. NVIDIA GPUs introduced INT8 tensor cores starting from the Turing architecture, and the Ampere architecture further enhanced integer computation capabilities, but native 4-bit integer hardware support remains limited. Therefore, Nunchaku's CUDA kernels employ a strategy of packing two 4-bit values into a single 8-bit register, performing unpacking and computation through bit operations. Additionally, the kernels need to efficiently handle mixed-precision computation between the low-rank branch (16-bit) and residual branch (4-bit), and optimize memory access patterns to maximize GPU memory bandwidth utilization—a non-trivial systems engineering effort.
• Seamless integration with mainstream frameworks: Supports direct integration with mainstream diffusion model frameworks like Diffusers, reducing migration costs. Developers only need to replace the model loading approach to use quantized models in existing image generation pipelines without rewriting inference code.
• Dramatically reduced memory footprint: 4-bit quantization reduces model memory usage to approximately 1/4 of the original, enabling consumer GPUs to run large diffusion models like FLUX.

FLUX Model Deployment Case Study

FLUX is a next-generation image generation model released by Black Forest Labs (founded by members of the original Stable Diffusion team), adopting the DiT (Diffusion Transformer) architecture that replaces the traditional U-Net structure with pure Transformers. The largest version of FLUX has over 12 billion parameters and requires approximately 24GB of memory at FP16 precision, meaning even an RTX 4090 (24GB) can barely load the model. After SVDQuant's 4-bit quantization, the model's memory requirement can be reduced to approximately 6GB, enabling mid-range GPUs like the RTX 4060 (8GB) to run it—this holds significant importance for the democratization of AI image generation.

Open-Source Community Response

The project has received 3,833 Stars and 247 Forks on GitHub, with Python as the primary development language, indicating the community's high interest in the direction of quantized deployment for diffusion models. The ICLR 2025 Spotlight academic recognition further adds authoritative endorsement to the project.

Practical Significance and Future Prospects

Dramatically Lowering Diffusion Model Deployment Barriers

SVDQuant's most direct value lies in dramatically reducing the deployment cost of diffusion models. Taking the latest large image generation models like FLUX as examples, models that originally required high-end GPUs like the A100 can now potentially run smoothly on mid-range GPUs like the RTX 4060 after 4-bit quantization—this is highly significant for individual developers and small teams. From an economic perspective, a single A100 GPU costs over $10,000, while an RTX 4060 costs only about $300. This order-of-magnitude reduction in deployment costs will greatly expand the application scope of diffusion models.

Pushing Diffusion Model Deployment to Edge Devices

As quantization technology continues to advance, deploying diffusion models on mobile and edge devices is transitioning from impossible to feasible. SVDQuant's low-rank decomposition approach provides an important technical foundation for this direction. Currently, mobile chip manufacturers like Qualcomm and MediaTek have already integrated dedicated AI acceleration units in their latest SoCs, supporting low-bit inference like INT4. Combined with SVDQuant's quantization scheme, high-quality image generation on smartphones may become possible in the future, opening new possibilities for mobile creative tools, real-time filters, and other application scenarios.

Methodology Generalizable to More Large Model Scenarios

The concept of "absorbing outliers with a low-rank branch" is not limited to diffusion models. This methodology has the potential to be extended to video generation models (such as Sora-like models), multimodal large models, and more. Video generation models have parameter counts and computational requirements an order of magnitude larger than image generation models, making the need for quantization compression even more urgent. The combination strategy of low-rank decomposition + low-bit quantization validated by SVDQuant provides a general technical pathway for efficient deployment of various large models.

Summary

SVDQuant solves the core challenge of 4-bit quantization for diffusion models through an elegant mathematical intuition—absorbing outliers via low-rank decomposition. It has not only received academic recognition as an ICLR 2025 Spotlight paper, but its open-source inference engine Nunchaku also demonstrates powerful engineering implementation capability, making efficient inference of large diffusion models on consumer GPUs a reality. For researchers and developers focused on AI model compression and efficient deployment, SVDQuant is an important project worthy of in-depth study and practical application.

Key Takeaways

• SVDQuant uses an SVD low-rank branch to absorb outliers in weights, enabling the residual matrix to be safely quantized to 4-bit for extreme compression of diffusion models
• The method was selected as an ICLR 2025 Spotlight paper, and the open-source project Nunchaku has earned 3,800+ stars—dual recognition from both academia and community
• 4-bit quantization reduces model memory to approximately 1/4, dramatically lowering deployment barriers and enabling consumer GPUs to run large generative models
• The low-rank branch accounts for only a few percent of total parameters, effectively maintaining generation quality while preserving high compression ratios
• The technical approach is generalizable, with potential for extension to video generation, multimodal, and other large model scenarios
