US Electrical Outlets Explained: From NEMA Standards to Real-World Applications

Why Electrical Outlets Deserve a Closer Look

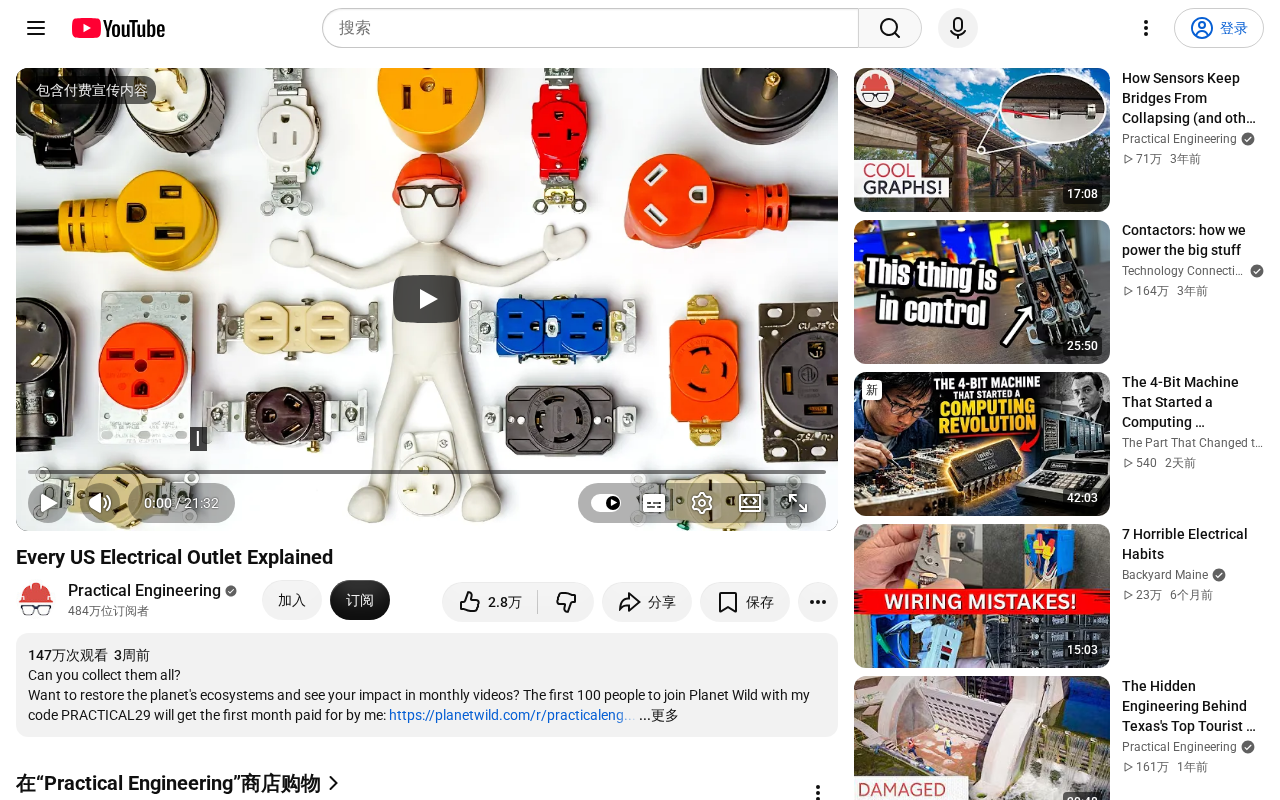

Electrical outlets are among the most overlooked yet fundamental components of any building's infrastructure. Whether you're powering home appliances, office equipment, or industrial machinery, a rigorous set of outlet standards underlies every connection — ensuring both safety and device compatibility. A science explainer video titled Every US Electrical Outlet Explained, which surfaced in a Hacker News discussion, brought this topic back into the spotlight and attempted to systematically walk through the categories, specifications, and use cases of electrical outlets found across the United States.

It's worth noting that the Hacker News post itself had modest traction (7 points, 3 comments), and the original submission was just a video link with no accompanying written content. This article draws on publicly available knowledge about US outlet standards to offer an extended breakdown — helping readers grasp the core concepts the video likely covers.

NEMA Standards: The Foundation for Understanding US Outlets

The classification of US electrical outlets centers on the NEMA (National Electrical Manufacturers Association) standard. NEMA uses a numbering system to describe an outlet or plug's voltage, current rating, and grounding configuration.

How to Read a NEMA Designation

NEMA designations typically combine numbers and letters — for example, the ubiquitous NEMA 5-15. The number before the hyphen indicates the voltage and pole configuration, while the number after the hyphen indicates the ampere rating (15 = 15 amps). The letter R denotes a receptacle (outlet), while P denotes a plug.

Once you understand this naming logic, you can quickly determine how much power a given outlet can handle, whether it's grounded, and what kinds of devices it's suited for. This conceptual framework is precisely what video explainers in this space try to convey.

For a more complete picture, the prefix number carries richer meaning: the 1-series covers two-pole ungrounded outlets (120V); the 5-series covers two-pole grounded outlets (120V); the 6-series covers two-pole grounded outlets at 240V; the 14-series covers three-pole grounded outlets (240V with a neutral wire); and the 10-series represents legacy three-pole ungrounded 240V outlets (now being phased out). These distinctions directly determine whether an outlet can safely serve a given device. For instance, NEMA 6-20 and NEMA 5-20 share the same ampere rating and look similar, but the former operates at 240V while the latter runs at 120V — mixing them up can destroy equipment or start a fire. Beyond NEMA classifications, the NEC (National Electrical Code) mandates specific outlet types and installation densities for different rooms: kitchen countertops must be on 20A circuits, and bathrooms must have GFCI-protected outlets. Together, NEMA classifications and NEC requirements form the safety framework underpinning residential electrical systems in the US.

Common Household Outlet Types

The most prevalent outlet in American homes is the NEMA 5-15R — the standard three-prong grounded outlet rated for 120V and 15A, used for the vast majority of low-power appliances.

For devices requiring more current, the NEMA 5-20 comes into play. Its receptacle features a horizontal slot to accommodate 20A plugs, and it's commonly found in kitchens, garages, and other high-load areas.

High-draw appliances — electric ovens, clothes dryers, EV charging equipment — rely on 240V outlets such as the NEMA 14-30 and NEMA 14-50. The latter has become increasingly familiar to homeowners as the standard interface for residential Level 2 EV chargers, driven by the rapid adoption of electric vehicles.

GFCI (Ground Fault Circuit Interrupter) outlets are another essential fixture in American homes that deserve attention. They look similar to a standard NEMA 5-15R but feature two buttons labeled TEST and RESET in the center. A GFCI continuously monitors the current difference between the hot and neutral wires; if it detects a leakage of approximately 5 milliamps — which could indicate current flowing through a person's body — it cuts power within 1/40 of a second, dramatically reducing the risk of electrocution. Under NEC regulations, GFCI protection is mandatory in areas prone to moisture or water exposure, including kitchens, bathrooms, garages, outdoor spaces, basements, and pool surroundings. GFCI outlets cost more than standard ones, but a single GFCI installed at the first outlet on a circuit can protect all downstream outlets on that same circuit — making it a cost-effective safety upgrade.

What Explainer Videos Reveal About the Public's Electrical Knowledge Gap

Part of the reason videos like this generate discussion is that most everyday users have little systematic understanding of their home's electrical infrastructure. People know the outlets on the wall work — but they don't know the voltage and current differences between outlet types, or the safety risks that come with misuse.

As residential electrical loads continue to grow — smart home devices, EV charging, high-wattage kitchen appliances — understanding outlet specifications is no longer just a trade skill for electricians. It's become practical safety knowledge for ordinary households. A video that clearly explains the NEMA system fills a real gap in public electrical literacy.

Practical Recommendations

For the average user, a few core principles go a long way toward avoiding most risks: verify that your device's power draw doesn't exceed your outlet's rated capacity; always use a dedicated outlet of the correct specification for high-draw appliances; and for any work involving 240V circuits or adding new outlets, hire a licensed electrician.

Outlets may seem simple, but they are the terminal node in your home's entire electrical safety chain. Spending a few minutes understanding their classifications is a high-return investment.

The most straightforward way to assess whether an outlet can handle a load is to calculate wattage: Power (W) = Voltage (V) × Current (A). For a standard NEMA 5-15R: 120V × 15A = 1,800W — but safe continuous use should stay within 80% of that rating, or no more than 1,440W. This 80% rule comes from NEC guidelines on continuous loads and is designed to prevent wiring from overheating under sustained full-load conditions. When multiple devices share a single circuit, the relevant limit is the circuit breaker's capacity, not any individual outlet's rating — the total load on a 15A circuit should also stay at or below 1,440W. Before purchasing high-wattage appliances such as air fryers, tankless water heaters, or space heaters, checking the breaker rating for the circuit you plan to use is a simple, effective way to avoid nuisance tripping and reduce fire risk.
