Will Liquid Metal Cooling Destroy Your PC? Scientific Analysis and a Two-Year Long-Term Test

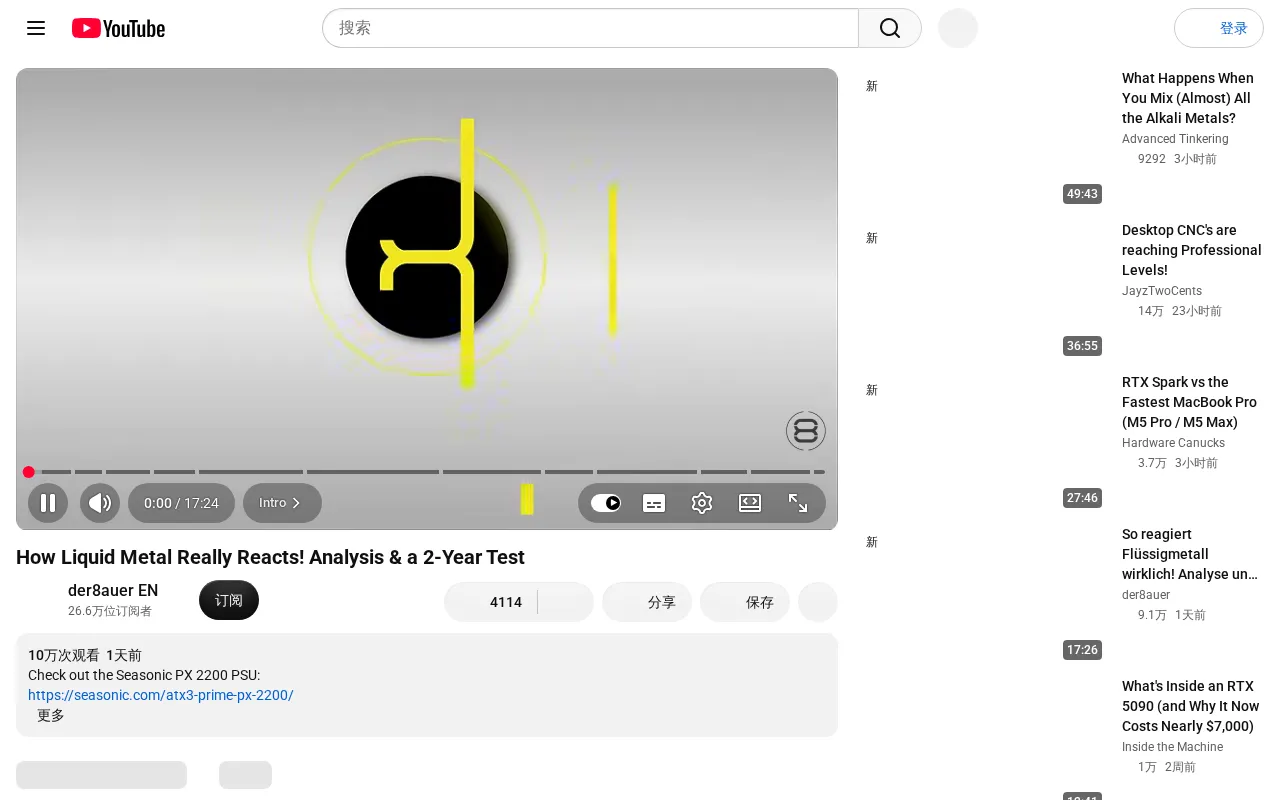

Will liquid metal cooling actually corrode your chip and destroy your computer? This topic has been debated in DIY circles for years. Recently, a hardcore enthusiast conducted a two-year long-term test and provided a scientific analysis.

How Liquid Metal Cooling Works

Liquid metal thermal interface materials (typically gallium-based alloys) have thermal conductivity far higher than traditional thermal paste. Thermal paste typically ranges from 3-12 W/mK, while liquid metal can easily reach 30-70 W/mK — a difference of several times.

This is why liquid metal has become the go-to solution for lowering temperatures in high-end laptops and overclocking scenarios. Every few degrees of temperature reduction can push sustained CPU or GPU performance up a tier, especially critical in thin-and-light laptops with limited cooling space.

But liquid metal has an unavoidable problem: it's electrically conductive, and it reacts with certain metals.

Will Liquid Metal Actually "Eat" Your Chip?

A common concern is that liquid metal will corrode aluminum heatsinks. This claim has a scientific basis — gallium undergoes amalgamation with aluminum, causing the aluminum structure to become brittle and crumble. However, most modern heatsink contact surfaces are nickel-plated copper, and liquid metal corrodes nickel extremely slowly.

Over the two-year test, the tester disassembled liquid metal-equipped devices to observe the condition of the heatsink base, chip IHS, and surrounding components. The conclusion: with proper application and adequate protection, liquid metal's impact on nickel-plated surfaces is far milder than rumors suggest.

The real failure cases typically come from applying too much liquid metal causing overflow, which drips onto small components on the motherboard and causes short circuits, or from users applying liquid metal on incompatible aluminum heatsinks.

Amalgamation is the key to understanding the destructive interaction between liquid metal and aluminum. Amalgamation refers to a process where one metal (in this case, gallium) penetrates the crystal lattice of another metal (aluminum), forming an alloy or solid solution. Gallium atoms diffuse along the grain boundaries of aluminum, gradually making the originally dense aluminum structure brittle, eventually leading to cracking or even spontaneous disintegration. What makes this process special is that it doesn't require high temperatures — it can proceed continuously at room temperature. So once liquid metal contacts exposed aluminum fins or a bare aluminum base, it can cause irreversible damage. It's important to distinguish: a nickel plating layer effectively blocks gallium from diffusing into the underlying metal, which is why liquid metal is relatively safe on nickel-plated copper heatsinks. The most direct way to check if your device is compatible is to confirm whether the heatsink contact surface is nickel-plated copper rather than bare aluminum.

What the Two-Year Long-Term Test Actually Found

The value of this test lies in its time dimension. Short-term tests can only tell you "how much the temperature dropped," but a two-year span allows observation of slow processes like material aging, oxidation, and seepage.

The test recorded several key phenomena: changes in the liquid metal's state at the contact area between the chip IHS and heatsink base, whether there were traces of seepage around the perimeter, and whether long-term temperature performance showed any degradation. According to the analysis, liquid metal remains stable in a sealed environment, but repeated disassembly and reassembly significantly increases risk.

An easily overlooked point: liquid metal doesn't "dry out and crack" like thermal paste. Thermal paste pumps out or hardens after thousands of thermal cycles, while liquid metal remains liquid throughout — this is also its advantage in long-term stability.

Thermal cycling refers to the repeated heating and cooling process electronic devices experience between operation and idle states. When CPU or GPU load changes, chip temperatures can surge from 30-40°C to 80-90°C within tens of seconds, then rapidly drop back — repeating dozens of times per day. For traditional thermal paste, this expansion and contraction gradually "pumps" the material out from the contact surface, while high temperatures accelerate evaporation of the base oil, ultimately causing hardening, cracking, and a significant drop in thermal conductivity. Because liquid metal is a liquid metal, it doesn't have a base oil to evaporate, and thermal cycling has minimal effect on its physical form — this is the fundamental reason why its thermal performance degrades slowly over long-term use. However, the mechanical stress from thermal cycling can still act on auxiliary protective structures like dams and insulating coatings. Therefore, liquid metal's long-term reliability depends not only on the material itself but also on whether the packaging process can withstand repeated thermal expansion and contraction.

When Liquid Metal Is Not Recommended

If you're using an aluminum heatsink, a bare-die GPU, or a scenario requiring frequent disassembly, liquid metal's risks increase significantly. Laptop manufacturers typically pair factory liquid metal applications with dams and insulating coatings — it's very difficult for DIY modifications to replicate this level of protection.

For average users, high-quality thermal paste or phase-change materials perform well enough in most scenarios. Liquid metal's marginal benefits are mainly realized by high-end enthusiasts chasing extreme temperatures.

Dams and insulating coatings are two common protective measures used by laptop manufacturers in factory liquid metal solutions. The dam is typically made of high-temperature-resistant silicone or foam material, surrounding the chip IHS to form a physical barrier — even if liquid metal flows due to gravity or vibration, it will be contained within the dam and won't directly spill onto the motherboard. The insulating coating covers the tiny components and solder joints around the chip with a layer of transparent insulating paint, so even if a trace amount of liquid metal accidentally seeps out, it won't immediately cause a short circuit. These two protective measures are very difficult for DIY modders to replicate perfectly, because the dam's height, fit, and coating uniformity all require precise control. Without these protections, once liquid metal overflows, failure often occurs in an instant and may damage expensive components like the motherboard and RAM.

Conclusion

Liquid metal isn't a "PC killer," but it is a high-risk material that requires proper use. Both scientific analysis and long-term testing point to the same conclusion: the problem isn't liquid metal itself, but the application method and compatibility assessment. Understanding its chemical properties is more valuable than blind fear or blind enthusiasm.

One-line Summary

A two-year test shows liquid metal doesn't corrode nickel-plated chips; risks mainly come from overflow short circuits and aluminum heatsink incompatibility.

Paragraph Summary

Liquid metal cooling has been controversial for years, and an enthusiast's two-year long-term test provides scientific analysis. Liquid metal's thermal conductivity can reach several times that of thermal paste, but it's conductive and undergoes amalgamation with aluminum. The test found that when properly applied on nickel-plated copper heatsinks with dam protection, liquid metal's impact on hardware is far milder than rumors suggest, and it doesn't dry out and crack like thermal paste. Most actual failures come from excessive application causing overflow short circuits, or mistakenly using aluminum heatsinks. The article recommends avoiding liquid metal with aluminum heatsinks, bare-die GPUs, and frequent disassembly scenarios; for average users, high-quality thermal paste or phase-change materials are sufficient. Understanding material chemistry is more valuable than blind fear or enthusiasm.
