AI Agent-Driven C2 Frameworks: Automated Internal Network Penetration Architecture and Defense Strategies

Introduction: AI Is Reshaping the Security Offense-Defense Landscape

As large language model (LLM) capabilities advance rapidly, AI Agents are no longer confined to code completion or Q&A interactions — they are beginning to penetrate the core domains of cybersecurity. Security researchers have recently started exploring the integration of AI Agents into C2 (Command and Control) frameworks, using the MCP (Model Context Protocol) to drive automated internal network reconnaissance and lateral movement. This direction both pushes the boundaries of AI capabilities and poses entirely new challenges to defensive systems.

This article draws on related security research demonstrations to outline the core logic of this trend from both technical architecture and defensive perspectives, for reference by security practitioners.

---

AI Agent + MCP + C2: Architecture Breakdown

The Critical Role of MCP

MCP (Model Context Protocol) is a standardized interface protocol that connects AI models to external tools and services. In traditional C2 frameworks, operators must manually issue commands, interpret outputs, and plan the next move — a process that relies heavily on human expertise. By introducing MCP, AI Agents can directly invoke interfaces exposed by the C2 framework — including command execution, file reading, and network segment scanning — upgrading the workflow from "human-driven" to "model-driven."

In the research demonstration, after launching the C2 controller, operators used AI Agent tools such as Claude Code to initiate tasks. The Agent automatically enumerated available MCP tools and planned an execution path based on the task objective. The core value of this architecture lies in the fact that the AI model itself possesses broad security knowledge, enabling it to autonomously decide the order and depth of information gathering without any pre-written scripts.

Tunnel Traversal and Network Segment Access

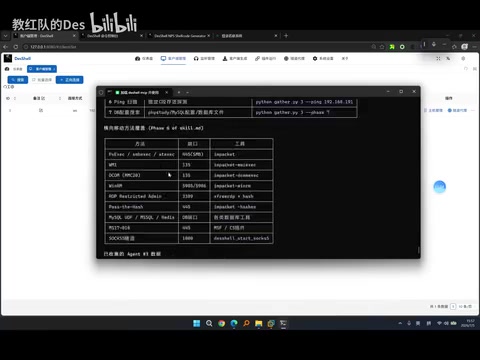

Establishing a communication channel is a prerequisite for lateral movement within an internal network. In the demonstration, researchers set up a port-forwarding tunnel (e.g., mapping local port 50101 to the target network segment), allowing the AI Agent to access internal assets that would otherwise be unreachable. Once the tunnel was established, the Agent could probe private address ranges such as 192.168.x.x to verify which hosts were online and which ports were open.

The researchers also conducted a comparative analysis of two modes — "local-origin" vs. "cross-segment-origin": the local mode offers better network performance and lower AI call latency, while the cross-segment mode is slightly less stable but more representative of real-world penetration scenarios. This trade-off analysis has direct reference value for red team tool design.

---

Skills Knowledge Base: The Key to Going from General to Specialized

The Limitations of General Knowledge

This is one of the most insightful findings of the research. The researchers noted that while large models possess broad security knowledge — network interface enumeration, process listing, port scanning, and so on — this knowledge is inherently "general." It lacks the specialized experience needed for specific environments and specific frameworks. As the researchers put it: "It has no targeted approach — it collects information according to general knowledge categories, not according to the structured chapters in our curriculum."

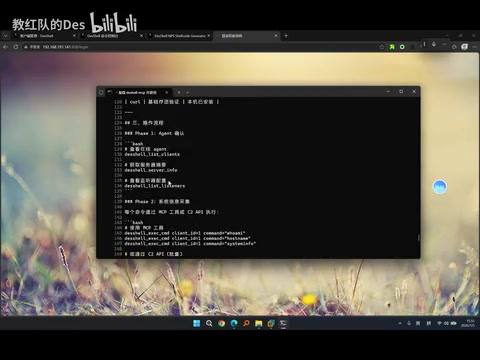

This issue is critically important in real-world scenarios. Different target environments and different attack frameworks each have their own optimal operational paths. Operation sequences generated by a general-purpose model may be overly redundant, and in protected environments, they can produce distinct anomalous behavioral signatures that are easily captured by EDR/SIEM systems.

Practical Impact of Injecting Specialized Skills

The solution is to inject a domain-specific knowledge base (Skills) into the AI Agent. The researchers encapsulated standardized operational workflows for internal lateral movement and host reconnaissance into Skills files. When the Agent calls MCP tools, it automatically retrieves matching Skills to guide the model in executing operations according to validated procedures.

After Skills injection, the model's behavior changed significantly:

• Operation steps became more concise, with a dramatic reduction in redundant actions
• Prioritization improved, such as preferring ARP scans over broad-range ping sweeps
• Sensitive data collection became more focused, concentrating on local configuration files, database connection strings, and credential files

At its core, this is a vertical application of RAG (Retrieval-Augmented Generation) in the security operations domain — providing a reusable paradigm for deploying AI Agents in specialized professional scenarios.

---

Behavioral Noise and Stealth: The Primary Challenge of AI-Driven Operations

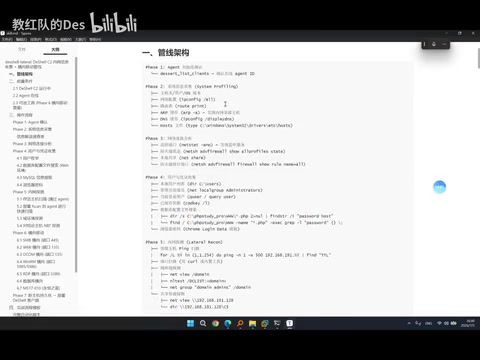

Throughout the demonstration, the researchers repeatedly raised a central concern: the operational behaviors autonomously generated by AI Agents are "too obvious" and are easily detected in protected environments. Take ping sweeps as an example — by default, a model will launch ICMP scans across an entire network segment, a behavioral signature that would trigger alerts in virtually any mainstream NDR (Network Detection and Response) system.

The researchers' assessment is that at the current stage, AI Agents already demonstrate considerable automated penetration capability in unprotected environments — but using AI-generated operation sequences directly against targets with mature defensive systems carries extremely high risk. Planned optimization directions include:

• Adjusting operational tempo based on specific security products in place
• Replacing high-noise tools (e.g., substituting ARP scans for ICMP sweeps)
• Breaking high-sensitivity operations into multiple low-signature steps

This assessment is equally valuable for blue teams: AI-driven attacks in their early stages often exhibit a characteristic pattern of "behaviors that are individually reasonable but rhythmically anomalous." Temporal analysis of operation sequences and contextual correlation detection will become important additions to the defensive toolkit.

---

CLI-First: The Fundamental Difference Between AI and GUI Interaction

The researchers proposed a design principle worth noting: there is no need to give AI GUI operation capabilities. GUIs are interaction interfaces designed for human visual perception, and AI retrieves and processes information far more efficiently through command-line interfaces and structured APIs than through screen recognition. As they put it: "Let AI do these things completely without relying on a GUI — just expose the interfaces, let it read the data and operate on the data, and that's enough."

This perspective has important practical implications for engineering. Some current AI Agent solutions choose to interact with desktop GUIs through computer vision — an approach that is not only inefficient but also introduces significant unnecessary complexity. For AI-driven transformations of security tooling, prioritizing the development of structured CLI interfaces and APIs will unlock far more practical value from AI Agents than providing visual dashboards.

---

Defensive Perspective: What Security Teams Need to Watch

This type of research offers the following direct takeaways for blue teams and defensive system development:

• Detect MCP traffic signatures: When AI Agents communicate with C2 frameworks via MCP, they produce specific API call patterns that can serve as a detection entry point for network traffic analysis.
• Monitor for temporal anomalies in operation sequences: AI-automated operations typically execute far faster than manual ones. An operation sequence involving system information gathering, network segment scanning, and credential file access within a short time window should trigger high-priority alerts.
• Strengthen monitoring of lateral movement paths: Operations covered in the research — including ARP scans, port probing, and tunnel establishment — should have dedicated detection rules configured in EDR and NDR products.
• Prioritize credential and configuration file protection: During the reconnaissance phase, AI Agents will preferentially seek out sensitive assets such as database configuration files and local credential stores. Access to these locations should be subject to fine-grained auditing.

---

Conclusion

The integration of AI Agents with C2 frameworks represents a significant evolutionary direction for security tool automation. From a research perspective, the primary bottleneck at the current stage lies not in the AI's reasoning capability, but in the quality of specialized knowledge injection and the optimization of operational stealth. For security practitioners, understanding the architectural logic behind this technical trend matters more than focusing on specific tools — because both offensive and defensive sides will continue to evolve along this trajectory.

Disclaimer: The techniques discussed in this article are intended solely for authorized security testing, security research, and defensive capability development. Any unauthorized penetration testing is illegal. Readers are expected to strictly comply with all applicable laws and regulations.
