Automating Homelab Topology Maps: Say Goodbye to Manual Network Diagrams

From Manual Maintenance to Automation

Anyone who runs self-hosted services or a homelab has likely hit the same wall: as devices, containers, and services multiply, that carefully drawn network topology diagram quickly falls out of sync with reality. Every time you add a new device, migrate a service, or restructure the network, you're back in the diagramming tool making manual edits. Over time, the diagram either becomes hopelessly outdated — or gets abandoned entirely.

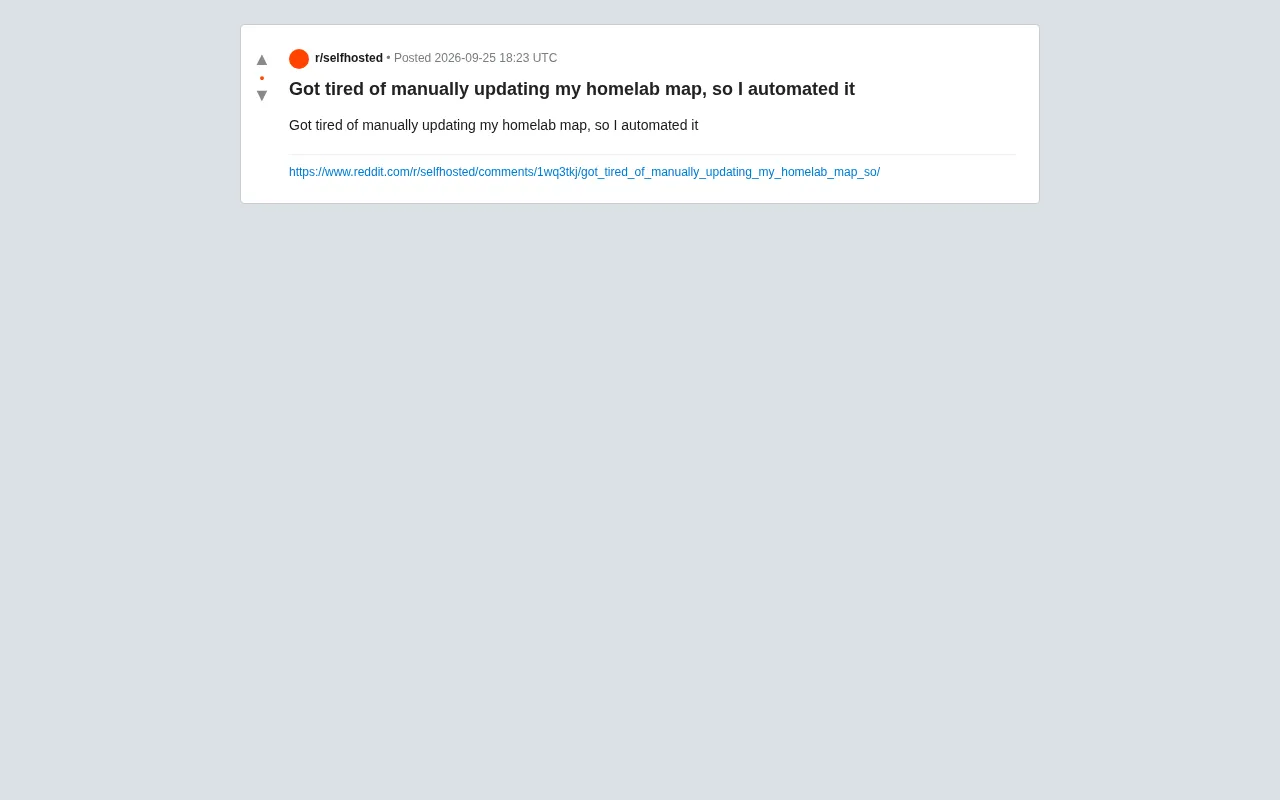

This is exactly the frustration behind a Reddit post titled "Got tired of manually updating my homelab map, so I automated it." The motivation is simple, but it hits on a genuine, long-standing pain point in the homelab community.

The Pain Points of Manual Topology Maintenance

In a homelab setting, a network topology diagram isn't just a pretty picture — it's a critical reference for troubleshooting, capacity planning, and documenting your architecture. But maintaining it by hand comes with some serious drawbacks:

• Always out of date: Environments change constantly, and diagrams always lag behind. Eventually they lose their value as a reference.
• High labor cost: Every change means opening the diagramming tool and manually adjusting things — tedious and repetitive.
• Easy to miss things: Temporary devices or test containers rarely get documented, causing the diagram to drift further from reality.

For users who treat their homelab as a learning platform and sandbox, the feeling that "the diagram is always behind reality" is especially frustrating.

The Core Approach to Automation

While the original post didn't go deep on technical details, the broader homelab community has converged on a few common approaches to automated topology generation:

Network Discovery and Data Collection

The first step is getting your program to actively "see" what's on the network. This typically involves network scanning (probing for online hosts and open ports), pulling ARP/DHCP lease tables from routers or switches, or calling the APIs of container orchestration platforms like Docker or Kubernetes to read the live list of running services.

ARP (Address Resolution Protocol) tables and DHCP lease tables are the two most commonly used data sources for network discovery. ARP tables record the IP-to-MAC address mappings that a router or switch has recently seen — devices can be identified even if they have no open ports. DHCP lease tables add hostnames and lease expiration times, which helps distinguish long-running servers from temporarily connected devices. For hosts running Docker, the Docker daemon exposes a local Unix socket or TCP API, letting you use docker inspect or an SDK to directly read each container's network namespace, IP address, port mappings, and associated bridge/overlay networks — no scanning required. Combining multiple data sources ensures your collection covers both physical-layer devices and purely software-defined container networks.

Building the Topology Graph

Once you've collected raw data on devices and services, the next step is inferring the relationships between them — which device connects to which switch, which containers share the same subnet. This is what transforms a "device inventory" into a true "relationship graph."

Visualization and Rendering

The final step is rendering the structured data into a human-readable diagram. Common approaches include using Graphviz, Mermaid, or frontend graph libraries to automatically generate visuals, regenerating them whenever the data changes — so the diagram always reflects the actual environment.

Graphviz is an open-source graph visualization toolkit that uses the DOT language to describe nodes and edges. Your program simply outputs a text description, and the engine automatically calculates the layout and renders it as SVG or PNG. Mermaid targets a more concise, Markdown-style syntax and can be embedded directly into GitHub READMEs, Notion pages, or wikis for in-browser rendering — no installation needed. For scenarios that require interactive exploration (zooming, clicking for details), frontend libraries like D3.js or Cytoscape.js are more appropriate, though they come with a higher implementation cost. In an automated pipeline, you typically compare the current and previous collection results after each run and only trigger a re-render when the topology has actually changed, avoiding unnecessary rebuilds.

Why This Is Worth Doing

Automating your topology diagram fundamentally transforms "documentation" into a "live snapshot of system state." The value goes beyond saving manual effort:

A diagram that's always in sync with reality lets you quickly pinpoint affected nodes when something goes wrong, visualize resource distribution when planning new services, and prevents your long-maintained homelab from becoming a black box that only you can decipher. For technically minded enthusiasts who love tinkering and care about observability, the practical value of small tools like this often far exceeds their technical complexity.

Takeaways for Homelab Enthusiasts

The most valuable lesson from this example is the mindset it demonstrates — a quintessential homelab way of thinking: when you encounter a repetitive, error-prone manual task, find a way to automate it with a script or tool. Whether it's topology diagrams, backups, monitoring alerts, or certificate renewal, the more you can automate, the more maintainable your entire lab becomes.

If you're running your own homelab, start with the manual task that frustrates you the most and try building an automated workflow with the tools you already have. Even a rough script to begin with will gradually grow, through iteration, into a foundational piece of infrastructure supporting your entire setup.
