Can Spiking Neural Networks Actually Improve Efficiency on Edge Devices?

A Recurring Question in Edge AI

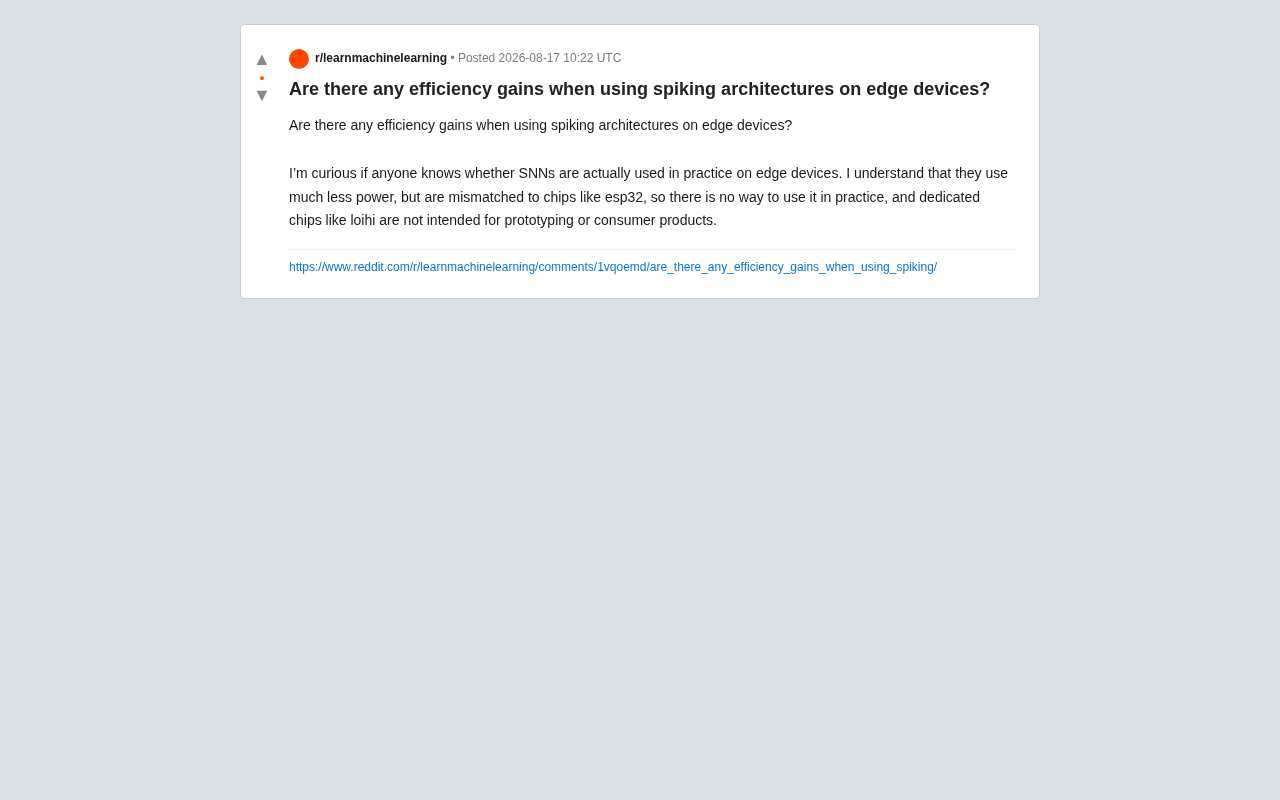

In the world of edge computing and low-power AI, Spiking Neural Networks (SNNs) have always been a topic full of contradictions. Recently, a developer on Reddit raised a question that hits right at the heart of the matter: can spiking architectures actually deliver real efficiency gains on edge devices?

The developer's confusion is highly representative: "I know SNNs are lower power, but they don't match chips like ESP32 and can't really be used directly; meanwhile, dedicated chips like Intel's Loihi aren't designed for prototyping or consumer products."

This question touches on the most critical barrier in bringing neuromorphic computing from the lab to industrial deployment — the enormous gap between theoretical energy efficiency advantages and engineering reality. The concept of neuromorphic computing can be traced back to the 1980s work of Professor Carver Mead at Caltech, who proposed using analog circuits to directly emulate biological neural information processing rather than relying on digital logic abstractions. After nearly four decades of development, the field has made significant progress at both the algorithm and chip levels, but industrial deployment still faces dual bottlenecks in hardware ecosystems and development tools.

Where Does SNN's Energy Efficiency Advantage Come From?

Event-Driven Computing Paradigm

Traditional Artificial Neural Networks (ANNs) perform dense matrix operations across the entire network during each inference pass, regardless of whether the input signal has changed. SNNs, drawing from biological neuron mechanisms, employ an event-driven sparse computing approach: neurons only fire spikes and participate in computation when they receive sufficient input spikes to reach their activation threshold.

The biological basis of this mechanism is worth understanding deeply. In the biological brain, neurons communicate through action potentials — when a neuron's membrane potential accumulates beyond a threshold, it generates an electrical pulse lasting about 1 millisecond that travels along the axon to synaptically connected downstream neurons. This all-or-nothing signaling means that at any given moment, only a tiny fraction of neurons in the brain are active, and the human brain's approximately 86 billion neurons consume only about 20 watts total. The Leaky Integrate-and-Fire (LIF) neuron model commonly used in SNNs is a mathematical abstraction of this biological process: the membrane potential decays exponentially over time (leak), accumulates when input spikes arrive (integrate), and fires a spike then resets once the threshold is reached.

This mechanism means that in scenarios with sparse or slowly changing data (such as low-frame-rate video surveillance or sensor signal processing), a large number of neurons remain "silent," significantly reducing computation and energy consumption. Theoretically, this is the core reason SNNs have generated so much hope.

The Gap Between Theoretical and Actual Energy Efficiency

However, the question raised in the post is exactly the key issue: whether this energy efficiency advantage can be realized on real hardware depends heavily on the underlying hardware architecture. Traditional chips based on the von Neumann architecture (such as the MCU used in ESP32) are not designed to accommodate the asynchronous, sparse, event-driven characteristics of SNNs.

To understand this, one must recognize the fundamental differences between von Neumann and neuromorphic architectures. The core feature of the von Neumann architecture is the separation of compute units from memory units, requiring data to be shuttled back and forth between them — creating the famous "von Neumann bottleneck" where the primary source of energy consumption is not computation itself but data transfer. Traditional CPUs/MCUs drive all operations with a unified clock signal, consuming energy every clock cycle regardless of whether useful computation occurs. Neuromorphic architectures, by contrast, adopt a compute-in-memory design that embeds computation directly within memory arrays, while using asynchronous circuit design — no global clock, with individual neuron cores activated only when they receive spike events, consuming nearly zero power when idle. This architectural difference is the hardware foundation of SNN's energy efficiency advantage.

Simulating SNNs on von Neumann architecture chips may actually negate or even exceed their theoretical energy efficiency gains due to the overhead of additional timestep loops and state maintenance.

The Reality of Edge Devices

Architecture Mismatch with General-Purpose MCUs

Mainstream microcontrollers like ESP32 and STM32 use synchronous clock-driven traditional architectures, with their core strength in processing deterministic, dense fixed-point/floating-point operations. When you try to run SNNs on these chips, you're essentially simulating spike firing and membrane potential integration in software — requiring iterative computation across multiple timesteps, which actually increases computational burden.

In other words, SNN's sparsity advantage can only truly be unleashed on hardware that natively supports asynchronous event processing. On general-purpose MCUs, quantized traditional CNNs/MLPs often have advantages in both energy efficiency and accuracy — this is why mainstream TinyML (tiny machine learning) currently adopts traditional quantized models.

TinyML refers to the technical direction of running machine learning inference on microcontrollers with power consumption at the milliwatt level. Its core enabling technologies include model quantization (compressing 32-bit floating-point weights to 8-bit or even 4-bit integers), knowledge distillation (using large models to guide training of small models), and pruning (removing unimportant network connections). Mature toolchains like TensorFlow Lite Micro, CMSIS-NN, and Edge Impulse make deploying quantized CNNs on ARM Cortex-M series MCUs engineering-feasible. For example, an INT8-quantized MobileNet-v2 can complete an image classification inference in about 100ms on an STM32H7, with power consumption in the hundreds-of-milliwatts range. These mature solutions constitute the direct competitors to SNNs on general-purpose edge devices.

The Industrialization Challenge of Neuromorphic Chips

On the other end are dedicated neuromorphic chips like Intel Loihi, IBM TrueNorth, and Tsinghua's Tianjic. These chips natively support spike-based computation at the hardware level, with extremely high theoretical energy efficiency. But as the post states, they face clear deployment barriers:

• Poor accessibility: Loihi is primarily available to research institutions through Intel's research community application process, and is difficult for ordinary developers to purchase.
• Not designed for consumer products: These chips are positioned for research validation and lack mature mass-production supply chains and commercialization paths.
• Immature toolchains: Development frameworks (such as Lava) are still rapidly evolving and lack the mature ecosystem of traditional deep learning frameworks.

Taking Intel Loihi as an example, its second-generation chip Loihi 2, released in 2021, uses the Intel 4 process and integrates 128 neuromorphic cores, each capable of simulating up to 8,192 neurons, supporting over 1 million neurons and 120 million synapses in total. Its core innovations include: programmable neuron models (supporting multiple dynamics beyond LIF), on-chip learning engines (supporting local learning rules like STDP), and a message-passing-based asynchronous communication architecture. Intel developed an open-source software framework called Lava for it, aiming to provide a hardware-agnostic neuromorphic programming interface, but currently the framework's API stability and documentation completeness are far behind PyTorch or TensorFlow.

This creates an awkward middle ground: the chips that can run aren't energy-efficient, and the energy-efficient chips aren't available.

Current Applications: Scenarios Remain Limited

Existing Commercial Explorations

Despite the heavy challenges, SNNs show signs of practical application in specific scenarios. The most typical is the combination with event cameras (Event Camera / DVS) — these sensors inherently output data in an event-driven manner, naturally aligning with SNN's computational paradigm, demonstrating low-latency and low-power potential in high-speed motion detection, robotic vision, and similar scenarios.

Event cameras (also known as Dynamic Vision Sensors, DVS) are a new type of visual sensor inspired by the biological retina. Unlike traditional frame cameras that capture complete images at fixed frame rates, each pixel in an event camera independently and asynchronously detects brightness changes — when a pixel's light intensity change exceeds a threshold, that pixel immediately outputs an event (containing coordinates, timestamp, and polarity). This approach delivers microsecond-level temporal resolution, extremely high dynamic range (>120dB), and extremely low data redundancy. Since event camera output is inherently sparse, asynchronous temporal event streams, it forms an end-to-end event-driven pipeline from sensor to processor with SNNs, avoiding frame-to-spike format conversion overhead. Companies like Prophesee and iniVation have already released commercial event camera modules.

Additionally, some low-power "always-on" tasks such as keyword wake-up detection and anomaly detection are also considered potential application directions for SNNs. In recent years, commercial neuromorphic processors like BrainChip's Akida have begun attempting to enter the edge AI market, trying to fill the industrialization gap left by Loihi.

BrainChip is currently one of the few companies attempting to push neuromorphic chips toward the commercial market. Its Akida processor uses an event-driven architecture, supporting spike-based inference for convolutional and fully connected layers, while also being compatible with traditional CNN model deployment (through ANN-to-SNN conversion). The second-generation Akida chip (AKD1500) was released in 2023, targeting edge AI applications including object detection, keyword recognition, and olfactory sensing. Its commercial strategy differs from pure research chips, providing MetaTF development tools (a conversion pipeline based on TensorFlow/Keras) to lower the barrier to neuromorphic development. However, its actual deployment cases remain relatively limited, and it still lags behind traditional NPU solutions in accuracy and model compatibility, with market acceptance yet to be proven.

A Pragmatic Conclusion for Now

Overall, for developers currently seeking energy efficiency improvements on general-purpose edge devices like ESP32, SNNs are not yet a mature practical choice. The reasons are:

1. General-purpose MCUs lack native hardware support, and software simulation cannot deliver the energy efficiency advantage;
2. Dedicated neuromorphic chips are difficult to obtain and not aimed at the consumer market;
3. By comparison, quantized traditional neural networks paired with mature inference frameworks (like TensorFlow Lite Micro) are far superior in engineering feasibility.

Looking Ahead: Waiting for the Hardware Ecosystem to Mature

SNN's energy efficiency potential is real, but it is a hardware-software co-design problem, not purely an algorithm problem. Only when neuromorphic hardware supporting event-driven computation becomes as inexpensive and accessible as today's MCUs, equipped with mature development toolchains, will spiking architectures be able to achieve large-scale deployment on edge devices.

Notably, some positive signals are emerging in this field. Beyond BrainChip Akida's commercialization efforts, SynSense (formerly aiCTX) has launched its Xylo series chips focusing on ultra-low-power audio processing, and Innatera's analog neuromorphic processor targets sensor fusion scenarios — all representing the trend of neuromorphic chips penetrating from pure research into vertical application domains. Additionally, the rise of the RISC-V open instruction set architecture provides new possibilities for custom neuromorphic acceleration instructions.

For developers who wish to explore this direction, the recommended approach is: use open-source frameworks like snnTorch and Norse for algorithm research on GPUs, keep an eye on gradually commercializing neuromorphic chips like BrainChip Akida, or explore sensor scenarios natively suited for SNNs such as event cameras. For current general-purpose edge devices, the pragmatic choice remains optimized traditional quantized models.
