Deliberately Sabotaging ESP32 OTA Updates: A Firmware Fault Tolerance Experiment

What Happens When Embedded Device Updates Go Wrong

Over-The-Air (OTA) wireless firmware updates are a standard capability for modern IoT devices. They allow field-deployed devices to receive software updates without any physical intervention — and for tens of thousands of scattered sensors, smart home devices, and industrial nodes, this is often the only practical maintenance approach. Yet OTA updates are also one of the most fragile points in embedded systems. A power cut, network drop, or corrupted image during the update process can turn a device into an unbootable "brick."

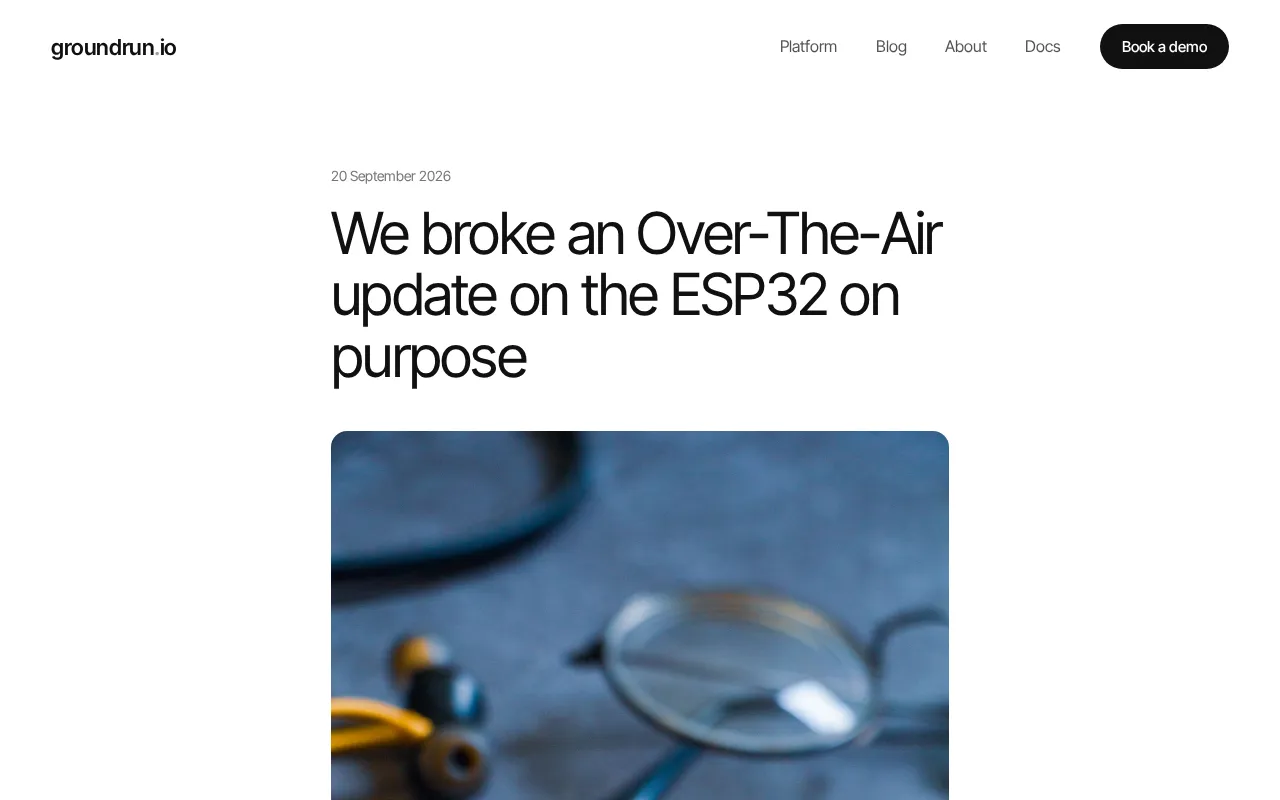

This experiment, documented in a Hacker News post, addresses exactly this pain point: the author's team deliberately sabotaged an OTA update on the widely used ESP32 platform to see whether its fault tolerance and recovery mechanisms could hold up against real-world failures.

Why Deliberately Break the Update Process

In embedded development, validating the failure path is often more important than validating the success path. Anyone can make a normal update complete successfully — what truly tests system robustness are the abnormal scenarios:

• Sudden power loss mid-update
• Network interruption leaving an incomplete image download
• Checksum errors during Flash writes
• A new firmware image that crashes on boot

Actively injecting these failures — known as "fault injection testing" — exposes defects that normal testing simply cannot find. If a device can roll back to the previous version and boot normally after losing power mid-update, its OTA mechanism passes the test. If it can't, you're looking at a bricking risk at scale.

---

Fault Injection Testing is a systematic reliability engineering method that evaluates fault tolerance by deliberately introducing hardware or software anomalies into a running system. In the embedded world, common injection techniques include: cutting power at the critical moment of a Flash write (simulating power loss), writing random bytes into a download buffer (simulating network corruption), manually modifying an image's CRC field (simulating storage corruption), and making new firmware intentionally loop forever (simulating a boot crash). These tests typically require a logic analyzer or serial log output to confirm which recovery path the system actually took — not just that "the device rebooted." Unlike software-level unit tests, fault injection operates directly on runtime state and physical hardware, making it the most direct way to verify that safety nets actually work. It's also a mandatory evaluation component for certifications like IEC 62443 and DO-178C.

---

ESP32's Dual-Partition Rollback Mechanism

The ESP32, developed by Espressif, has become one of the most widely used microcontrollers in IoT projects thanks to its low cost, dual-mode Wi-Fi/Bluetooth support, and mature development ecosystem. Its OTA capability is built on a dual OTA partition + rollback mechanism.

The basic principle: Flash memory is divided into at least two application partitions (e.g., ota_0 and ota_1). During an update, the new firmware is written to whichever partition is not currently running. Only after the write is complete and verification passes does the bootloader switch the boot pointer to the new partition. If the new firmware fails to "confirm its own health" within a set time window after first boot (by calling esp_ota_mark_app_valid_cancel_rollback), the system will automatically roll back to the last known-good version on the next reboot.

This design is precisely what makes "deliberately sabotaging an update" a safe and controlled experiment — in theory, no matter what stage the failure occurs at, the device should be able to recover to a working state.

---

It's worth noting that the rollback mechanism in ESP-IDF relies on a key assumption: the new firmware must successfully boot and actively call the confirmation function. This means that if new firmware crashes early in the boot sequence (before app_main executes, for instance), the system can still trigger a rollback. But if the firmware boots yet never calls the confirmation function due to a logic error, the system must rely on a watchdog timeout to force a reboot and trigger the rollback. ESP-IDF also supports an "anti-rollback" mechanism that writes version numbers into eFuse to prevent downgrading to versions with known security vulnerabilities — critical in security-sensitive scenarios, but also meaning that if a newer firmware has a serious bug, the rollback path may be permanently sealed off. Partition table design also affects fault tolerance: minimizing the number of OTA partitions saves Flash space, but with only two OTA slots, the "currently running version" and the "last known-good version" fill all available slots with no buffer room.

---

The Value and Lessons of This Experiment

While the original source material is brief, this type of experiment sends several clear signals to embedded developers:

Fault tolerance must be verified, not assumed. Many teams enable ESP-IDF's OTA rollback feature and consider the job done, yet never actually test power-loss or bad-image scenarios. Only by actively creating failures can you confirm these safety nets will actually catch you.

Rollback is not a silver bullet. If both old and new firmware have issues, or if the rollback logic itself contains a bug, devices can still end up in an unrecoverable state. A complete OTA solution therefore requires watchdogs, secure boot, and image signature verification working together.

The reliability of edge devices directly affects operational costs. A device deployed in a remote location that gets bricked often requires a physical site visit to fix — a cost that far exceeds running a few extra rounds of fault testing during development.

Final Thoughts

This post didn't generate much traction on Hacker News (9 points, 1 comment), but it touches on a problem that every team shipping production IoT products cannot avoid: can your firmware update survive real-world accidents? Actively breaking things, then actively verifying recovery — that might just be the right mindset for building reliable embedded systems.

Note: Due to the limited information in the original source material, this article extends the analysis based on general ESP32 OTA technical background. Please refer to the original post for specific experimental details.
