How Production RAG Systems Handle Complex PDFs Without Losing Document Structure

An Underestimated Engineering Challenge

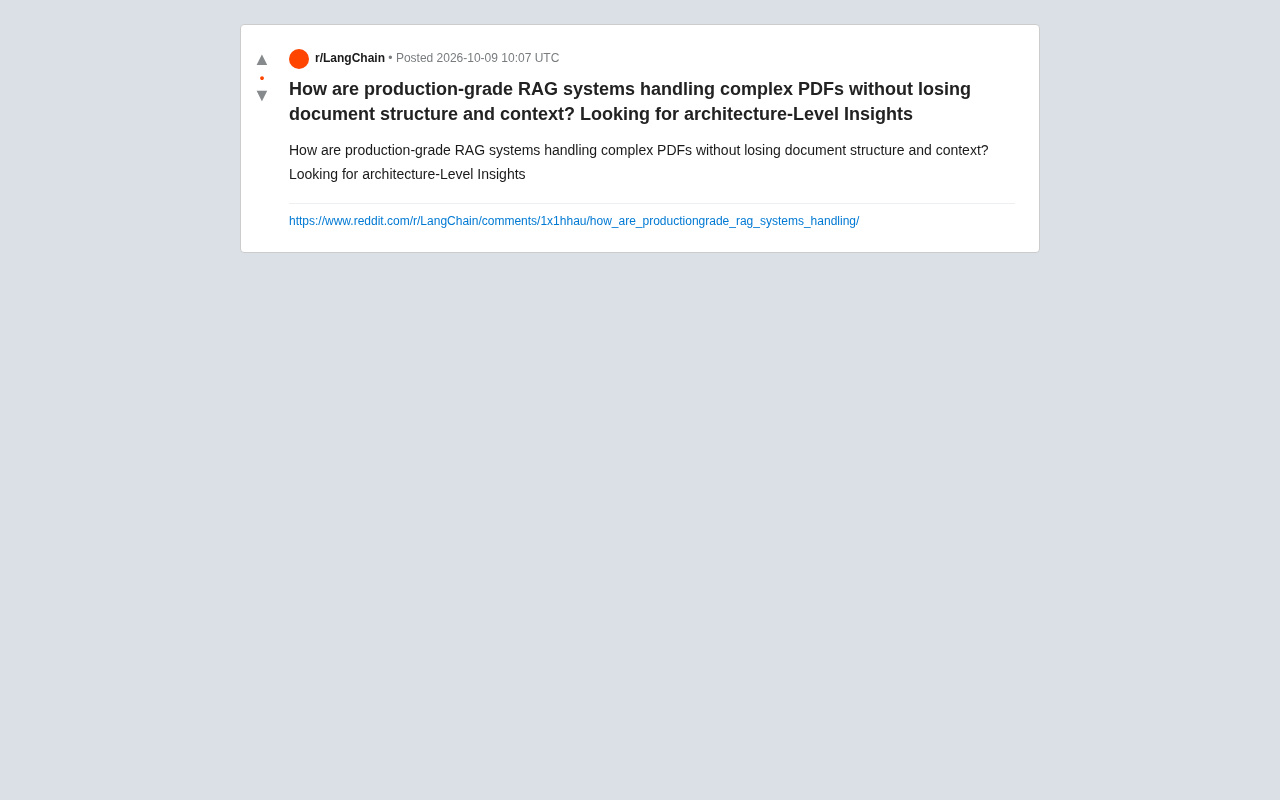

In real-world deployments of Retrieval-Augmented Generation (RAG) systems, PDF parsing is often the most fragile and underestimated link in the entire pipeline. A developer sparked a discussion on Reddit with a question that cuts straight to the heart of the matter: how do production-grade RAG systems actually process complex PDFs without losing document structure and context? They were looking for architectural insights, not just tool recommendations like "parse it with some library."

This question deserves a deep dive because complex PDFs are far more challenging than plain text. Documents featuring multi-column layouts, nested tables, charts, headers and footers, footnotes, and cross-page paragraphs lose their inherent hierarchical relationships and semantic boundaries the moment they're naively "extracted into a blob of plain text." Yet that structural information is precisely what determines the accuracy of downstream retrieval.

Why Losing Structure Is a Critical Failure

Consider a typical scenario: a table in a financial report with column headers at the top and data spread across multiple rows below. If the parser flattens the table into a string of text, a data point like "2023 Revenue 500" becomes completely severed from its context. When a user asks "What was last year's revenue?", the retrieved chunk can neither determine which year "last year" refers to, nor restore the units and dimensions behind the number.

Multi-column layouts are another high-frequency trap. Academic papers, magazines, and contracts often use two-column formats. Naive text extraction reads line by line in visual order from left to right, causing sentences from the left column to be suddenly interrupted by content from the right column — completely scrambling the semantics. Noise like headers, footers, and watermarks will also pollute every chunk if they aren't identified and stripped out.

The shared root cause of these problems is this: PDF is fundamentally a format designed for printing and display, not for machine comprehension. It records "which characters to draw at which coordinates" and doesn't natively carry semantic annotations like "this is a heading" or "this is the second row of a table."

Mainstream Architectural Approaches

From community discussions and industry practice, production-grade RAG handling of complex PDFs is typically not solvable by any single tool — it requires a layered pipeline.

Layer 1: High-Quality Document Parsing

The goal of the parsing stage is to convert PDFs into a structured intermediate representation (such as Markdown, HTML, or JSON) while preserving as much information as possible: heading hierarchy, lists, tables, image placement, and so on. A clear technical divergence has emerged at this layer:

• Rule-based / layout analysis parsers infer structure through heuristics like font size, coordinates, and character spacing. They're fast and cheap, but tend to break down on complex layouts.
• Vision model-based parsers treat PDF pages as images and use document understanding models (document layout models or multimodal LLMs) to identify block types and reading order. They're far more robust against complex layouts, but come with higher inference cost and latency.

Production systems often make trade-offs between accuracy and cost, and may even apply different parsing strategies for different document types.

Some tools with notable industry adoption serve as useful reference points. On the rule/layout analysis side: PyMuPDF, pdfplumber, Camelot (focused on tables), and Adobe PDF Extract API. On the vision model side: Unstructured.io, LlamaParse, Microsoft's LayoutLM family of models, and directly calling multimodal LLMs like GPT-4V or Claude to interpret page screenshots. It's worth noting that "Document Layout Analysis" refers to a class of computer vision models specifically trained to detect document block types — they segment pages into regions like titles, body text, tables, and captions while annotating reading order. Their key difference from general-purpose OCR is that they output structure, not just a character sequence. For scanned PDFs (documents that are essentially images), an OCR step is still required before any of the above can be applied, which introduces additional recognition errors and becomes a major pain point when scan quality is poor.

Layer 2: Structure-Aware Chunking

Once you have a structured intermediate representation, chunking should no longer be the mechanical operation of "cut every 500 characters." A more rational approach is to split along semantic boundaries — dividing by natural units like chapters, sections, tables, and paragraphs — and attaching metadata to each chunk: which chapter and section it belongs to, its page number, and whether it came from a table. This metadata proves valuable during both retrieval and reranking.

Chunking strategies in the RAG field have evolved along a recognizable spectrum, which helps illustrate exactly where "structure-aware chunking" improves on naive approaches. The most basic is fixed-size chunking — hard cuts by character count or token count, simple to implement but completely blind to semantics. A step up is sliding window chunking, where adjacent chunks share overlapping content to reduce information loss at boundaries. Further along is recursive character splitting (like LangChain's RecursiveCharacterTextSplitter), which attempts split points in priority order: paragraphs → sentences → characters. Structure-aware chunking operates at a higher level still — it uses the document's own logical units (chapters, clauses, table row groups) as split boundaries, letting content structure rather than external parameters determine chunk granularity. The quality ceiling of this layer is directly constrained by the accuracy of the parsing layer above it — if parsing failed to identify heading hierarchy in the first place, structure-aware chunking has nothing to work with.

Layer 3: Metadata and Context Enrichment

To address the problem of "fragments losing their context," a common technique is to prepend each chunk with its hierarchical path (e.g., "Chapter 3 > 3.2 Financial Overview") or a model-generated contextual summary, so that isolated fragments still carry sufficient positioning information. Tables can be separately serialized into structured text, or even retained as queryable structured data.

At this layer, Anthropic's Contextual Retrieval approach — described in their technical blog — offers a concrete reference: during indexing, a language model generates a brief contextual description for each chunk (explaining where the fragment appears in the source document and what role it plays), which is then prepended to the chunk itself before vectorization. Reported results show this reduces the retrieval failure rate by approximately 49%. A related concept is parent-child chunking: the document is indexed simultaneously as coarse-grained "parent chunks" and fine-grained "child chunks." Retrieval uses the smaller chunks for precise matching, but when results are returned to the LLM, they're expanded to their parent for sufficient context. The shared logic behind all these methods is: vector similarity search is inherently "context-stripping" by nature, so context must be actively reintroduced during indexing or retrieval.

No Silver Bullet, Only Trade-offs

This discussion reflects a practical reality: there is still no "out-of-the-box" standard answer for RAG processing of complex PDFs. Within the community, some champion the powerful parsing capabilities of vision-based LLMs, while others maintain that traditional layout analysis remains entirely practical in cost-sensitive scenarios. Real production systems tend to favor a combined approach — assembling a pipeline tailored to their own business needs based on document type, accuracy requirements, latency budget, and cost constraints.

For engineers building such systems, a few points are worth keeping in mind: parsing quality sets the ceiling for every downstream stage, and "garbage in, garbage out" is especially pronounced in RAG; chunking must respect the document's semantic structure rather than cutting mechanically; and metadata is the bridge connecting fragmented chunks back to the full document context. Getting these three things right is the foundation for building a RAG system that can truly comprehend complex documents.
