Marker-Free Localization + Collision-Avoidant Admittance Control: An Open-Source Robotics Practice

Introduction: Enabling Robots to "Perceive" Virtual Boundaries

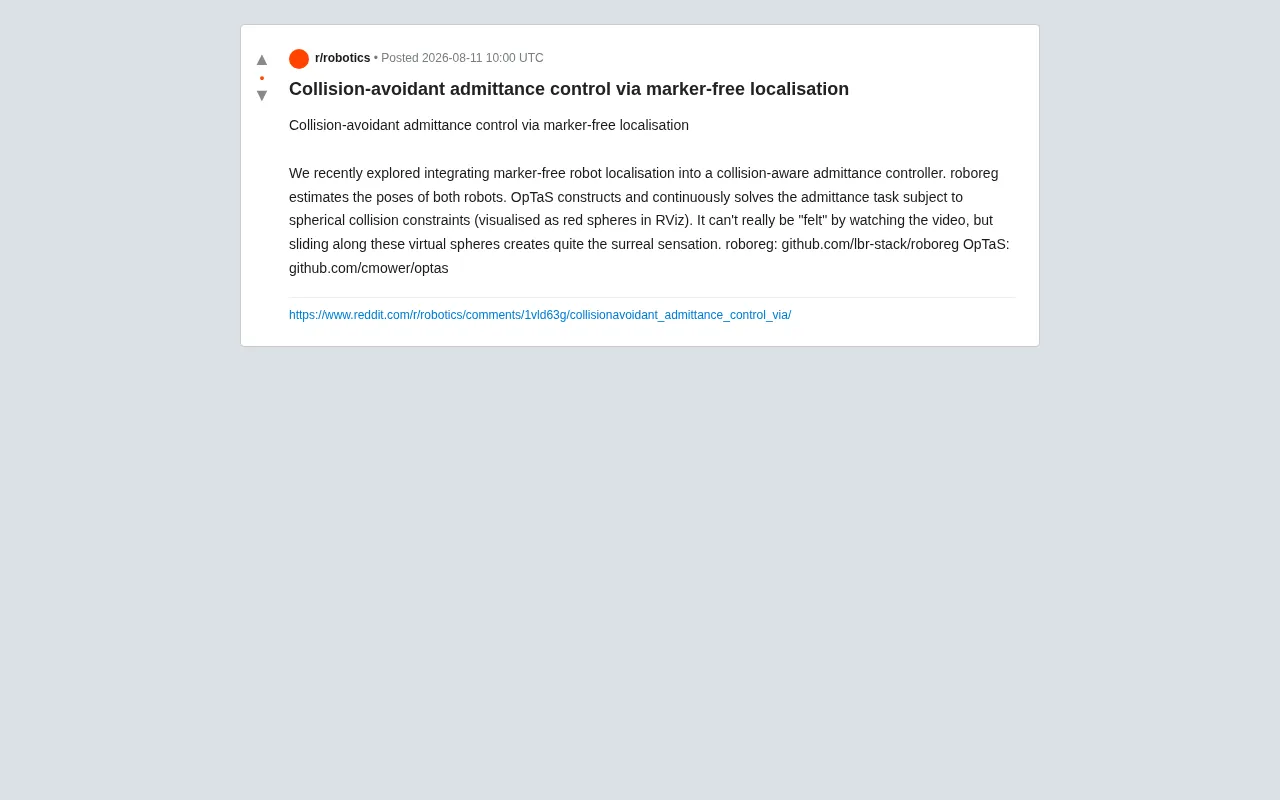

In human-robot collaboration and multi-robot coordination scenarios, enabling a robot to remain compliant when manually guided while actively avoiding collisions has long been a core challenge in the control domain. Recently, an open-source project from the Reddit robotics community attracted attention: researchers integrated marker-free robot localization technology into a collision-avoidant admittance controller, achieving an interaction experience with a distinctly "futuristic" feel.

According to the original author, when a human hand pushes the robot to slide along the surface of a virtual collision sphere (visualized as a red sphere in RViz), a "surreal" tactile sensation emerges — as if the robot were truly touching an invisible force-field boundary. Behind this lies the combined capabilities of two open-source tools: roboreg handles robot pose estimation, while OpTaS handles real-time solving of constrained admittance tasks.

Admittance Control Principles: The Compliance Paradigm of Trading Force for Displacement

Admittance control is one of the classic paradigms for compliant robot control. Simply put, it maps externally applied forces to the robot's motion response — you push it, and it moves with the force; you let go, and it stops. This "force-to-displacement" characteristic enables robots to exhibit spring-damper-like compliant behavior when in contact with humans or the environment, rather than rigidly resisting external forces.

In contrast, impedance control maps displacement to force. The two are essentially a dual pair — admittance control is better suited for scenarios where the robot itself has high rigidity and needs external force guidance, such as manual teaching and human-robot collaborative assembly. From a control-theoretic causality perspective, in impedance control, the controller input is motion deviation (position/velocity error) and the output is force/torque commands — suitable for torque-controllable robots (e.g., direct-drive joint robots). In admittance control, the input is external force/torque (typically measured by a force sensor) and the output is motion commands — suitable for position-controllable but highly rigid industrial robots. A typical admittance model can be expressed as M·ẍ + B·ẋ + K·x = F_ext, where M, B, and K are the desired virtual inertia, damping, and stiffness matrices respectively, and F_ext is the detected external force. By tuning these parameters, one can precisely customize the robot's response characteristics to external forces: high damping produces smooth but sluggish motion, while low damping yields responsive but potentially oscillatory behavior. This art of parameter tuning is precisely the critical aspect that requires careful calibration when deploying admittance control in practice.

Marker-Free Localization: Breaking Free from Physical Markers

Traditional robot pose estimation often relies on visual markers (such as ArUco, AprilTag, etc.) attached to the robot body. While this approach offers reliable accuracy, it requires additional physical markers that are neither aesthetically pleasing nor easy to deploy in certain industrial scenarios.

The roboreg tool (from lbr-stack) used in this project implements marker-free localization, capable of directly estimating the poses of two robots in the scene. This means the system requires no markers on the robots at all — it completes registration and pose tracking using only visual and model information, greatly simplifying deployment and providing a more flexible perceptual foundation for dynamic multi-robot environments.

From a technical implementation perspective, marker-free pose estimation typically relies on deep learning or model registration methods. The former, such as PoseCNN and DenseFusion, trains neural networks to directly regress object 6DoF poses; the latter uses the robot's CAD model with point clouds or depth images from sensors to perform matching through ICP (Iterative Closest Point) and similar registration algorithms. The lbr-stack to which roboreg belongs is an open-source software stack targeting collaborative robots like KUKA LBR iiwa. Its marker-free localization method likely combines prior knowledge from the robot's kinematic model with visual sensor data, estimating pose through comparison between model renderings and actual images. Compared to ArUco/AprilTag-based approaches, marker-free methods eliminate issues such as marker occlusion, detachment, and viewing angle limitations, but impose higher requirements on robustness to lighting changes and background complexity.

The OpTaS Optimization Framework: Real-Time Solving of Collision-Constrained Tasks

The "brain" of the control is handled by OpTaS (Optimization-based Task Specification, by cmower). It is an optimization-based task specification framework capable of modeling admittance control as a constrained optimization problem and continuously solving it online.

In this case, the key constraints are spherical collision constraints. The system abstracts potential collision zones as a series of spheres (visualized as red spheres in RViz) and incorporates "the robot end-effector must not penetrate these spheres" as hard constraints in the optimization objective. This way, when an operator pushes the robot toward a forbidden zone, the optimizer automatically adjusts the robot's motion to make it "slide" along the sphere surface rather than penetrate it — this is precisely the source of that "surreal sliding sensation."

From a mathematical perspective, the spherical collision constraint manifests as an inequality constraint ‖p_ee - p_obs‖² ≥ r², where p_ee is the end-effector position, p_obs is the obstacle sphere center, and r is the safety radius. The advantage of such constraints lies in their simple gradient computation and geometric intuitiveness, facilitating real-time solving. OpTaS is built on the CasADi symbolic computation framework — an open-source tool for nonlinear optimization and algorithmic differentiation that can automatically generate Jacobian and Hessian matrices for constraints, thereby efficiently calling nonlinear solvers like IPOPT. In real-time control, each control cycle (admittance control typically runs at 100-500Hz) requires completing an optimization solve within milliseconds, imposing strict requirements on solver convergence speed and numerical stability. OpTaS supports multiple solving formats including quadratic programming (QP) and nonlinear programming (NLP), allowing developers to choose appropriate backends based on constraint complexity.

RViz, as the core 3D visualization tool in the ROS (Robot Operating System) ecosystem, serves the role of intuitively presenting virtual collision boundaries in this project. It can render robot URDF models, sensor data, and custom Marker messages in real time. The red spheres are precisely the visualization of virtual collision boundaries published through RViz's Marker messages. Although RViz itself does not participate in control computation, it provides developers with an intuitive interface for debugging collision constraint parameters (sphere center positions, radius sizes).

Modular Synergy Between Perception and Control

The elegance of this project lies not in building from scratch, but in organically combining two mature open-source components:

• roboreg: Solves the perception problem of "where is the robot," providing marker-free real-time pose input;
• OpTaS: Solves the decision problem of "how should the robot move," transforming perception results into compliant motion that satisfies collision constraints.

The perception layer provides accurate spatial information to the control layer, which then constructs real-time collision-avoidant admittance tasks accordingly. This modular, open-source technical approach lowers the implementation barrier for complex compliant control systems and enables researchers and developers to rapidly iterate and validate their ideas on existing foundations.

It's worth noting that the original author acknowledged this interaction "cannot be truly felt by watching a video" — the charm of compliant control lies precisely in the physical experience of force feedback. Visual presentation can only capture motion trajectories but struggles to convey the subtle tactile sensation of sliding along a virtual boundary. Haptic feedback is one of the core research directions in human-robot interaction. The human hand possesses approximately 17,000 tactile receptors capable of sensing force changes as low as 0.4mN. When an operator pushes a robot equipped with admittance control, the virtual reaction force generated by collision constraints is transmitted to the human hand through the robot's rigid structure, creating a mechanical experience similar to touching a physical surface. This algorithmically generated "virtual wall" effect already has mature applications in teleoperation and virtual surgical training (e.g., Phantom Omni, Force Dimension haptic devices), but achieving transparent and safe force feedback interaction directly on industrial collaborative robots remains an engineering balancing act between control precision, communication latency, and safety redundancy.

Application Prospects and Deployment Scenarios

This type of collision-avoidant admittance control technology has deployment potential across multiple domains:

1. Human-robot collaborative assembly: When workers manually guide robotic arms for precision operations, the system automatically avoids collisions with humans and equipment, enhancing safety;
2. Surgical assistance robots: When doctors hold guiding instruments, virtual boundaries can prevent accidental entry into sensitive tissue areas;
3. Multi-robot coordination: When multiple robots collaborate in shared workspaces, real-time collision-avoidance constraints effectively prevent mutual interference.

From a technological evolution perspective, combining marker-free perception with optimization-based constrained control represents the transition of robots from "pre-programmed execution" to "context-aware interaction." When robots can understand their spatial relationship with the environment in real time and compliantly adjust their behavior accordingly, the boundaries of human-robot collaboration will be further expanded. This trend also echoes the rapid growth of the Industry 4.0 and collaborative robot (cobot) market — according to the International Federation of Robotics (IFR), global collaborative robot installations have maintained an annual growth rate of over 30% in the past five years, with safety and ease of use being the core drivers of this growth.

Open-Source Project Links

For developers wishing to reproduce or conduct further research, both projects are open-sourced:

• roboreg: github.com/lbr-stack/roboreg
• OpTaS: github.com/cmower/optas

Both projects are built on the ROS ecosystem. Developers need basic proficiency with ROS 2 (or ROS 1) and should have depth-sensing visual sensors (such as Intel RealSense or Azure Kinect) along with compatible collaborative robot hardware platforms. The lbr-stack is specifically adapted for KUKA LBR iiwa series robots, but its core algorithmic concepts are generalizable and can be migrated to other platforms.

Conclusion

This practice from the open-source community, while only a demonstration project, clearly showcases an elegant paradigm in modern robot control: using marker-free perception to acquire spatial awareness, and using optimization frameworks to impose compliance and safety constraints. It reminds us that cutting-edge robotic capabilities often don't stem from single-point breakthroughs, but rather from the clever integration of mature tools. That surreal experience of sliding along "invisible red spheres" is precisely the natural emergent product of deep fusion between perception and control.
