Open-Source 6-DOF Servo Robotic Hand: 3D-Printed STL Files and TPU Fingertip Design
Open-source 6-DOF servo robotic hand with rigid-flexible hybrid design and editable STEP files for education and prototyping.
This project modifies the open-source HRI Hand, replacing its drive scheme with low-cost servos and providing STL and editable STEP files. The structure uses a PLA-printed body for rigidity and TPU-printed fingertips for enhanced grasping contact, forming a rigid-flexible hybrid design. The 6-DOF design improves gesture richness and grasping flexibility, but requires self-supplied servos, electronics, and hardware, and lacks assembly tutorials and control code. It is best suited for robotics education, grasping experiments, and maker prototype validation, significantly lowering the entry barrier for multi-DOF robotic hands, though grasping precision, durability, and control complexity still require iteration.
From HRI Hand to Servo Version: A Printable 6-DOF Robotic Hand

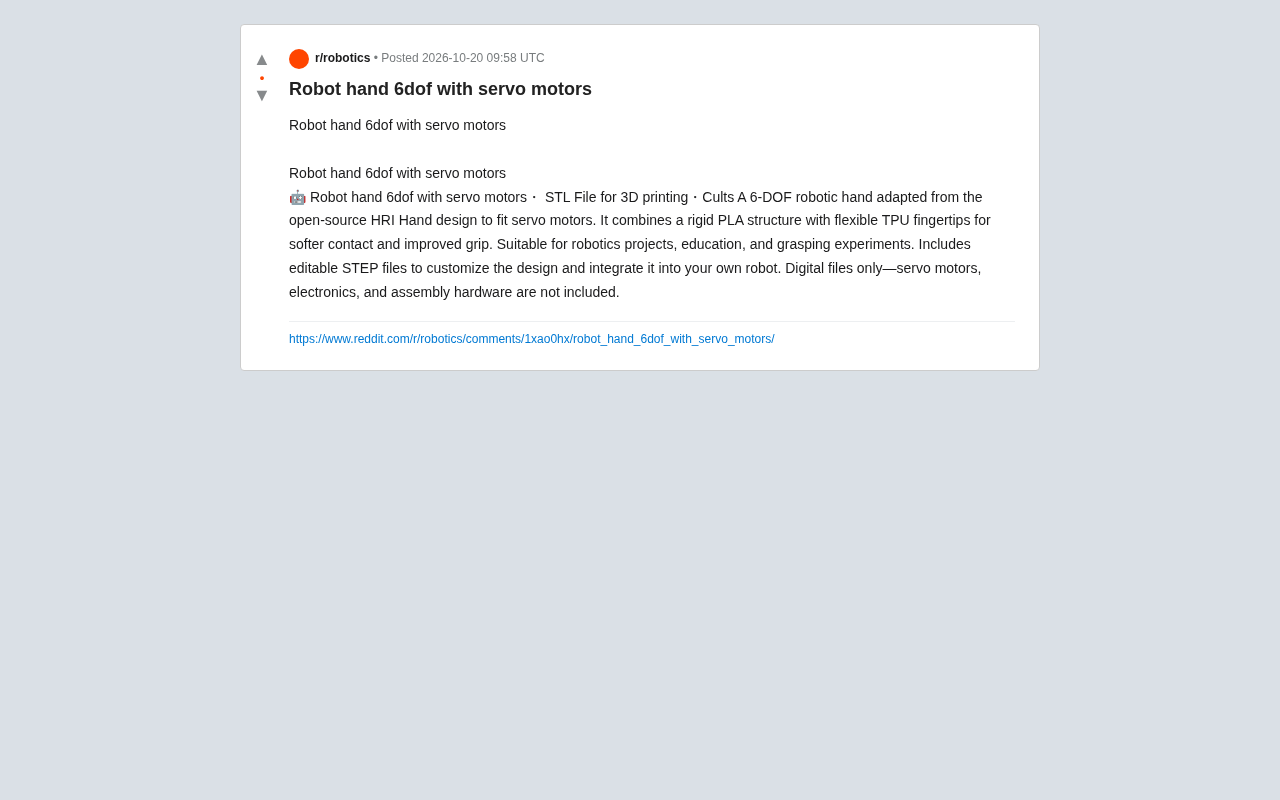

A 6-DOF robotic hand project based on the open-source HRI Hand has attracted attention in the Reddit community. Its standout feature is replacing the original drive scheme with common, low-cost servo motors while retaining the rapid-iteration advantages of 3D printing. The entire design is published on the Cults platform as STL files and editable STEP files, aimed at robotics enthusiasts, educational settings, and grasping experiments.
Unlike many conceptual designs that only provide renderings, this project explicitly delivers an actionable file package: a rigid PLA structure for skeleton strength and flexible TPU fingertips for contact-surface cushioning and enhanced friction. The official description emphasizes "digital files only"—servos, electronics, and assembly hardware must be sourced separately, meaning it is more of an open hardware starting point than a finished kit.
Design Analysis: A Hybrid Structure of Rigid Skeleton and Flexible Fingertips
Why PLA for the Body and TPU for the Fingertips
The structural parts of the hand are printed in PLA, the material most readily available in FDM printing for achieving high rigidity, suitable for withstanding servo torque and linkage loads. The fingertips switch to TPU, leveraging its elasticity to deform upon contact with objects, thereby increasing contact area and improving grasping stability while reducing impact on fragile items. This "rigid-flexible hybrid" approach is not new in the open-source robotic hand community, but combining it with standard servo actuation lowers the barrier to replication.
FDM Printing and Material Properties: FDM (Fused Deposition Modeling) is the most widespread 3D printing technology, building objects layer by layer by heating and extruding thermoplastic filament. PLA (polylactic acid) has a glass transition temperature of about 60°C, high rigidity, and low printing odor, but is relatively brittle; TPU (thermoplastic polyurethane) is a flexible material with Shore hardness ranging from 85A to 95A, requiring reduced print speed (20-30mm/s) and minimized retraction to avoid stringing or clogging. The key to rigid-flexible hybrid design lies in interlayer bonding between the two materials—PLA and TPU have generally poor chemical compatibility, so mechanical interlocking (such as grooves or holes) is typically used to enhance interface strength and prevent fingertips from detaching during grasping.
What 6 Degrees of Freedom Means
6-DOF typically corresponds to the number of independent finger joints, determining the richness of gestures and the flexibility of grasping postures. More degrees of freedom allow better simulation of different human grasp patterns, but also impose higher demands on the number of servos, control channels, and structural strength. The original text does not enumerate the specific allocation of each degree of freedom (e.g., how many joints per finger), which is a detail potential replicators need to confirm from the STEP files themselves.
Degrees of Freedom (DOF) and Robotic Hand Configuration: Degrees of freedom refer to the number of independent motions of a mechanism. For robotic hands, common configurations include 2-3 joints per finger; 6-DOF might mean four fingers with 1 joint each plus a thumb with 2 joints, or three fingers with 2 joints each. Servo-driven hands typically use linkage or tendon transmission, with one servo per degree of freedom (or reduced count via differential mechanisms). For control, PWM signals (pulse width 500-2500μs corresponding to 0-180°) drive the servos, and multiple degrees of freedom require a servo control board (such as PCA9685) to expand channels. When replicating, count the number of servo mounting positions from the STEP files to infer the DOF allocation, and check whether servo torque (common MG996R at about 10kg·cm) meets grasping force requirements.
Key Modifications for Servo Adaptation
The core change of the project is converting the HRI Hand's drive interface to servo mounting positions. The servo approach offers advantages of a mature supply chain, simple control (PWM driving), and controllable cost, suitable for teaching and rapid prototyping. The trade-off is that servo size and torque limitations affect finger dimensions and grasping force, requiring designers to balance structural compactness and output capability.
The editability of the STEP files is another highlight. Replicators can modify mounting hole positions, linkage lengths, or fingertip shapes to integrate this hand onto their own robotic arm end-effectors or mobile robots. For developers needing customized grasping scenarios, this is far more practical than "black box" designs that only offer printable STLs.
HRI Hand and the Open-Source Robotic Hand Ecosystem: HRI Hand is an earlier 3D-printed robotic hand project in the open-source community, possibly originally designed with tendon or motor actuation. Converting it to a servo version involves redesigning the drive interface—the servo output shaft connects directly to linkages or spools, requiring coaxial alignment to avoid jamming. The servo approach is plug-and-play, but has obvious drawbacks: the internal potentiometer has limited lifespan (typically 500,000 cycles), and servos can burn out under stall conditions—adding current detection or mechanical limits to control code is recommended. The editability of STEP files allows users to adjust linkage lengths to accommodate different servo sizes, which STL files cannot achieve.
Use Cases and Getting Started Tips
Education and Grasping Experiments
This type of open-source robotic hand is best suited for two groups: robotics course teaching scenarios where students can understand multi-DOF control through printing, assembly, and programming; and early-stage validation in grasping research, using low-cost hardware to quickly test algorithms before migrating to more expensive platforms. The TPU fingertips make it friendlier for grasping objects like paper cups and fruit compared to purely rigid fingertips.
What to Prepare Before Replicating
According to the project description, servos, electronic control boards, and assembly screws/hardware must be self-supplied. It is recommended to first confirm the servo model and torque, then verify mounting dimensions against the STEP files; when printing, PLA structural parts can use higher infill, while TPU fingertips require adjusted print speed and extrusion for stable elasticity. Since the original text provides no assembly tutorial or servo list, first-time replication may require some mechanical assembly experience.
Realistic Boundaries of Open-Source Robotic Hands
It should be calmly noted that the currently public information for this project is mainly the file package, lacking complete assembly documentation, control code, and grasping force test data. 6-DOF servo hands already have multiple variants in the community, and the real differences often lie in structural details and documentation completeness. For users wanting to get started directly, it is recommended to first confirm the file version and update history on the Cults page, and refer to the original HRI Hand project materials to complete the control portion.
From a trend perspective, the combination of 3D printing and standard servos is pushing the entry barrier for multi-DOF robotic hands down to the few-hundred-yuan level, which is a substantial benefit for education and the maker community. However, grasping precision, durability, and control complexity remain areas requiring continuous iteration for such low-cost solutions.
One-line Summary
Open-source 6-DOF servo robotic hand with rigid-flexible hybrid design, editable STEP files, suitable for education and prototype validation.
Paragraph Summary
This project is based on the open-source HRI Hand, replacing the drive scheme with low-cost servos and providing STL and editable STEP files. The structure uses PLA-printed body for rigidity and TPU-printed fingertips for enhanced grasping contact performance, forming a rigid-flexible hybrid design. The 6-DOF design improves gesture richness and grasping flexibility, but requires self-supplied servos, electronics, and hardware, and lacks assembly tutorials and control code. It is best suited for robotics education, grasping experiments, and maker prototype validation, significantly lowering the entry barrier for multi-DOF robotic hands, though grasping precision, durability, and control complexity still require iteration.
