Open-Source eInk Bike Computer: A DIY Hardware Alternative for Cyclists

When Bike Computers Meet Open Source and eInk Displays

A project called "Open-Source eInk Bike Computer" has sparked significant buzz on Hacker News, quickly racking up 206 upvotes and 66 comments. At its core is a fully open-source eInk bike computer — using open hardware designs and software to directly challenge the expensive, closed-ecosystem commercial bike computers on the market.

For cycling enthusiasts and hardware hackers alike, the appeal is obvious: it meets real-time data needs (speed, distance, navigation) while giving users complete autonomy — from hardware selection to firmware code, everything is visible, modifiable, and reproducible.

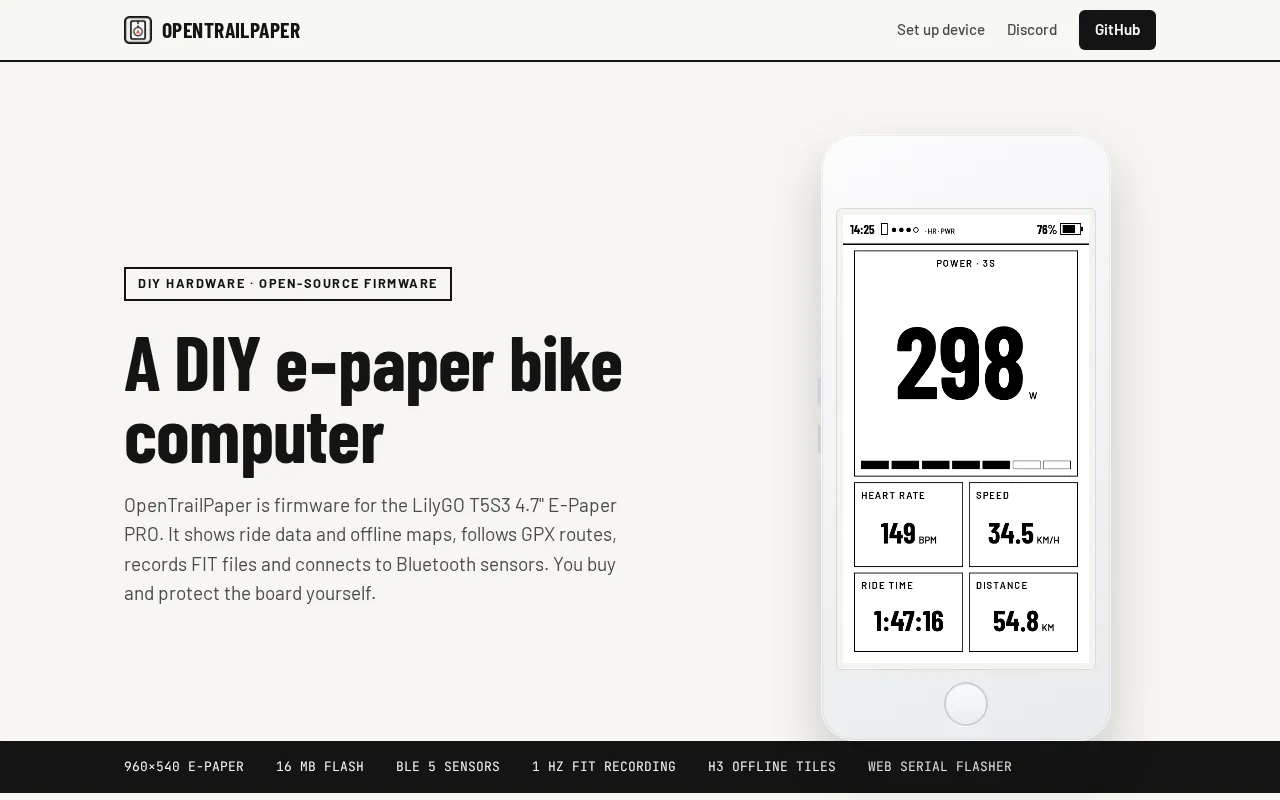

Open-Source eInk Bike Computer

Why eInk Is an Ideal Display for Bike Computers

For bike computers, eInk displays are almost a perfect match. Compared to traditional LCD or OLED screens, eInk offers several irreplaceable advantages.

Exceptional Readability in Bright Sunlight

Cycling typically happens outdoors, where direct midday sunlight is a major challenge for conventional screens — OLED displays tend to wash out and look gray under intense light, making data hard to read. eInk screens, however, work by reflecting ambient light, meaning the brighter the environment, the clearer the display. This mirrors the experience of reading on paper, making it ideal for long outdoor sessions where you need to glance at data repeatedly.

Ultra-Low Power Consumption for Extended Battery Life

eInk screens have a "bistable" property — they only consume power when the image is being refreshed, drawing virtually no energy while displaying a static image. For cyclists on multi-hour or multi-day rides, this means a smaller battery can deliver far longer runtime, eliminating the anxiety of frequent recharging. It's a key reason why some high-end commercial bike computers have begun adopting similar display technologies.

Technical Note: "Bistable" is the core physical principle behind eInk screens. Microcapsules inside the display contain positively and negatively charged black and white pigment particles. When voltage is applied, the particles migrate to specific positions to form an image; when power is removed, electrostatic attraction holds them in place without any continuous power supply. This stands in sharp contrast to LCDs, which require constant backlighting, and OLEDs, which need continuous pixel-level power. In practice, a small lithium battery in the 300–500mAh range paired with an eInk screen can support dozens of hours of riding, whereas the same capacity on an OLED display might last only a few hours.

The Core Value of an Open-Source Bike Computer: From Closed Ecosystems to User Control

Most mainstream bike computers on the market today (such as those from Garmin and Wahoo) operate within closed ecosystems: proprietary data formats, non-modifiable firmware, and accessories locked to the manufacturer. Users get a polished experience, but lose the freedom to customize or extend.

This open-source bike computer project derives its value precisely from tearing down those walls:

Transparent Hardware: Circuit designs and component selections are fully public. Enthusiasts can source parts, solder, and assemble the unit themselves, or adjust the sensor configuration to suit their needs.
Software Control: Open-source firmware means you can customize the display layout, add new data fields, and integrate features you care about — no need to wait for a manufacturer update.
Cost Control: DIY solutions can typically replicate core functionality at a fraction of the price of commercial products, making them especially accessible to budget-conscious cyclists.

This philosophy of "self-determination" is the core pursuit of the open-source hardware community, and the fundamental reason this project has resonated so widely in the tech community.

Key Concerns from the Community Discussion

With 66 comments driving the discussion, the community's attention on this open-source bike computer project centers on a few practical issues.

eInk Refresh Rate Is the Biggest Weakness

The most obvious drawback of eInk is slow refresh speed. For real-time cycling data like instantaneous speed or heart rate, slow refreshes can create a noticeable lag. Developers must strike a balance between low power consumption and data responsiveness, typically using techniques like partial refresh and zone-based updates to improve the experience.

Technical Note: A full eInk refresh typically takes 500ms to 2 seconds and is accompanied by a visible black-and-white flicker (the ghosting-elimination step). To address this, modern eInk drivers have introduced "partial refresh" technology — only updating the regions of the screen that have changed — bringing update times down to 100–300ms, though at the cost of potential ghosting artifacts. Some bike computer projects use a zone-based layout strategy: high-frequency data like speed gets its own partial-refresh zone, while low-frequency data like distance and elevation uses full refreshes, striking a balance between visual experience and power consumption.

One of the major selling points of commercial bike computers is robust map navigation. For an open-source solution to catch up, it needs to solve a series of engineering challenges around map data storage, rendering, and GPS accuracy. This remains the most obvious gap between DIY bike computer projects and mature products like those from Garmin.

Community Ecosystem and Long-Term Maintainability

The long-term value of any open-source project depends heavily on community activity and documentation quality. A well-designed project that lacks ongoing maintenance will struggle to gain widespread adoption. For users who want to build their own, clear assembly documentation and stable firmware updates often matter more than features alone.

The Open-Source Hardware Trend and Its Lessons for Cycling

This eInk bike computer is a microcosm of the broader open-source hardware wave in recent years. From mechanical keyboards and home NAS devices to smartwatches and eInk gadgets, more and more enthusiasts are choosing open-source alternatives to closed commercial products.

Several forces are driving this trend: the proliferation of low-cost development boards (such as the ESP32 and Raspberry Pi Pico) and mature sensor modules has dramatically lowered the barrier to hardware development; the rich libraries and toolchains accumulated by the open-source community allow individual developers to quickly prototype working products; and users are increasingly prioritizing data sovereignty and product autonomy.

For everyday cyclists, projects like this may not replace mature commercial products in the short term — but they open up a new possibility: you're no longer just a consumer of the product, but a potential co-creator. And for the cycling electronics industry as a whole, the transparency and competitive pressure brought by open-source hardware is pushing commercial vendors to become more open and more attuned to user needs.

Technical Note: The ESP32 is a low-cost dual-core microcontroller from Espressif Systems with integrated Wi-Fi and Bluetooth, typically priced between $2–5. It has become one of the most widely used main controllers in open-source hardware projects. The Raspberry Pi Pico is an RP2040-based development board from the Raspberry Pi Foundation, priced around $4, known for its high performance and rich peripheral interfaces. The widespread availability of these boards means hobbyist developers don't need to design their own PCBs or write low-level drivers — they can focus on application logic and user experience, dramatically compressing the time from idea to working prototype. This is a key reason why open-source hardware projects have exploded in number in recent years.

Conclusion

"Open-Source eInk Bike Computer" is a quintessential hacker project — not necessarily perfect, but full of DIY spirit and the joy of technical exploration. The natural advantages of eInk in outdoor settings, the freedom that comes with open source, and the energy of community collaboration together form its unique appeal.

For cyclists who love to tinker, this might be a weekend project worth attempting. And for those following the open-source hardware ecosystem, it reaffirms a clear trend: across more and more niche domains, openness is becoming a force that simply cannot be ignored.
