The Panasonic camera firmware reverse engineering project LumX recently disclosed its latest progress: software-layer reverse engineering has advanced to a fairly deep stage, but the core goal—unlocking factory-locked video formats and parameters—still faces bottlenecks. The project's main line is shifting from software analysis to hardware hacking, with plans to read complete firmware images through disassembly and wire-tapping.

SEM2 Software Reverse Engineering: Container Analysis Complete, Payload Decoding Stuck

According to the LumX project introduction on Bilibili, the underlying research on SEM2 has completed V1.4 UPD container directory analysis, extracting 62 original components, with sizes and hashes matching. Of these, 49 components have not yet been decrypted into credible plaintext and remain unverified, due to the lack of a complete RAM dump from a real device.

Public source code and QEMU can only serve as auxiliary means. The research team used V1.3 and GH2 for comparative analysis, statically reconstructing the ASS-CBC process from GH2's P2, but this method has not yet succeeded on SEM2. PTP message construction and DAT configuration containers have also been analyzed; the current focus is on payload decoding, actual code and data recovery loading, and mapping the key functions and data structures of the boot update chain.

The bottleneck is clear: the encoding components have no plaintext, the loader and proprietary program decoding mechanisms are unconfirmed, there is no complete RAM dump or device-side arbitrary address read permission, and the output range, medium, and protocol of RAM Backup are also unconfirmed.

UPD container is the packaging format for Panasonic camera firmware update packages, typically containing header metadata, component directories, and compressed or encrypted payloads. The 62 components extracted from V1.4 each correspond to a functional module in the firmware (such as encoders, loaders, drivers, etc.). Directory analysis can confirm component sizes and hashes, but the payloads themselves often use proprietary compression or encryption; without plaintext, they cannot be disassembled and analyzed. ASS-CBC is a custom encryption process observed in GH2 firmware (the name comes from features during static analysis), combining CBC-mode block encryption with specific transformations, used to protect P2 media data or firmware sections. The method has not been successfully reproduced on SEM2, indicating version differences in the encryption mechanism or an additional key layer. PTP (Picture Transfer Protocol) is the standard protocol for camera-host communication; reverse engineering PTP messages helps understand the instruction structure for firmware updates and configuration writes. DAT configuration containers store camera parameters and function switches, and their parsing is a prerequisite for modifying hidden parameters.

Achieved Results: Hidden Formats of First-Gen S5 Unearthed

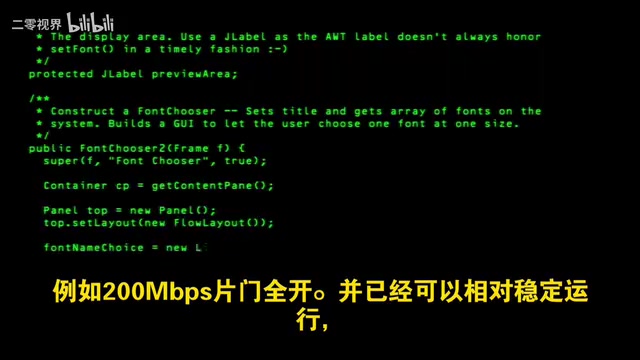

The software layer has not been fruitless. By reverse engineering the weakly encrypted LAMX-SYNC protocol, some hidden formats of the first-gen S5 have been unearthed, such as the 200Mbps open-gate mode, which can now run relatively stably. This provides a reference path for research on later models.

Bluetooth Link: A New Breakthrough for Second-Gen Models

Second-gen models such as S5M2 and S1R2 no longer support LAMX-SYNC; Bluetooth connections rely on the official app LAMX-LAB. App reverse engineering is currently underway, and the team is reverse engineering the Bluetooth communication link, with the goal of bypassing restrictions or directly taking over the link.

LAMX-SYNC is a proprietary sync protocol used by first-gen S5 and other models, with low encryption strength, and was therefore reverse engineered. Starting with second-gen models, Panasonic replaced direct protocol access with the official app LAMX-LAB, making Bluetooth communication the only wireless entry point. LAMX-LAB connects to the camera via Bluetooth Low Energy (BLE), transmitting control commands and configuration data. Reverse engineering the app requires analyzing its Bluetooth GATT services, characteristics, and application-layer packet formats. Ideas for bypassing restrictions include: directly simulating the app's Bluetooth communication, replaying or tampering with characteristic writes, or exploiting weaknesses in the pairing process to take over the link. Since the Bluetooth link does not depend on network services in the camera firmware, it provides a configuration channel independent of PTP and may expose new parameter write interfaces.

Software-Layer Bottleneck for Function Unlocking

Through configuration writes, currently only parameters already present in the firmware can be controlled. New video formats are very tightly restricted at the firmware level; basically only flagship models can unlock and see the menus, while entry-level bodies are sealed very strictly. Continuing to work around configurations and apps at the software layer yields diminishing returns.

Next Main Line: Disassembly and Wire-Tapping, Breaking Through from the Hardware Side

The project focus is shifting to hardware. The approach is direct: disassemble and wire-tap to read complete firmware images and boot-stage data from storage and debug interfaces.

Specific steps include: first confirm whether the storage medium on the motherboard is eMMC or SPI Flash; look for debug interfaces or test points and wire-tap to connect a reading device; insist on read-only, no writing, striving to obtain a full-chip image and boot logs. SERR models have been disassembled before, but no one has actually wire-tapped and read them yet; this is the next main breakthrough point.

After obtaining the raw image, return to compare it against the UPD container loading chain and update process to verify the decoding mechanism and loading mapping. Continue following the Bluetooth link after app reverse engineering, with the S5's ALT and monitor software areas as transitional directions. If Panasonic S1MR and S5MR can be thoroughly cracked, there may even be opportunities to add 6K, 6K 422, and even in-camera HR functions.

eMMC and SPI Flash are two common storage media on camera motherboards. eMMC integrates a controller and is usually soldered in a BGA package; reading requires wire-tapping to its DAT/CMD/CLK pins or using a dedicated programmer. SPI Flash is mostly in 8-pin SOIC or WSON packages, making wire-tapping relatively easy and allowing direct reading with a programmer. Wire-tapping refers to soldering thin wires to motherboard test points or chip pins to bring out signals for external reading. Read-only operations must ensure no write commands or erase instructions are sent to the chip, avoiding triggering write protection or damage. Debug interfaces such as JTAG or UART test points, if present, can directly provide boot logs and memory access. Reading a complete image requires confirming the storage mapping and partition table; otherwise only partial data may be obtained. Before wire-tapping, a multimeter must be used to confirm pin definitions and voltage levels, operate with power off, and take anti-static measures; otherwise pads may be shorted or the chip locked.

Risks and To-Dos: Wire-Tapping Requires Caution

Wire-tapping risks are clear: easy to short and lift pads, lock up chips. Before operation, power must be off and anti-static measures taken; first confirm pin definitions and voltages.

To-do items include: organize a summary of cracking progress for each model and upload it to Git (not yet completed due to local environment and token limitations); continue following the reverse engineering of the Bluetooth connection link after app reverse engineering; advance disassembly and wire-tapping, striving to obtain complete firmware images.

The project side emphasizes that at this stage it is for learning and exchange only, and there is still a distance before ordinary photographers can actually use it. Do not crack or modify parameters privately; otherwise you bear the consequences. At the same time, more experts in related industries are welcome to join and advance the project together.

From a technical route perspective, the LumX project is shifting from pure software analysis to a combination of software and hardware; hardware-level read-only image acquisition will become the key to verifying software hypotheses. This approach is not uncommon in the camera cracking community, but success depends on accurately identifying the motherboard's storage medium and debug interfaces.
