PRISM: How Multimodal Language Models Are Reshaping Clinical Prognosis Prediction

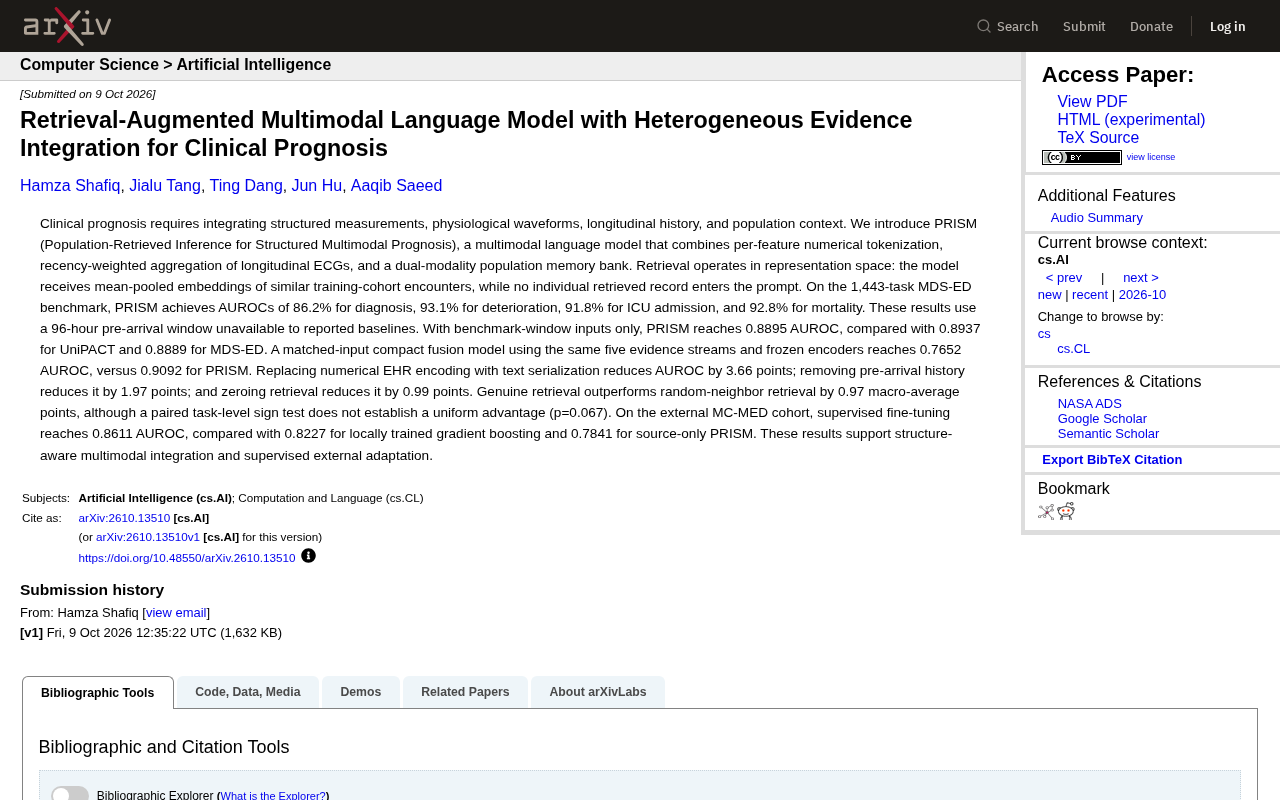

Clinical prognosis in medicine has never been a problem that any single data source can solve. Physicians must synthesize structured lab values, physiological waveform signals, longitudinal medical history, and broader population-level context. A new study called PRISM (Population-Retrieved Inference for Structured Multimodal Prognosis) attempts to use a retrieval-augmented multimodal language model to integrate these heterogeneous sources of evidence into a unified framework.

Core Design Philosophy of PRISM

PRISM doesn't simply feed patient records into a large language model. It introduces structured processing at three critical stages: per-feature numerical tokenization for each numerical feature, recency-weighted aggregation for longitudinal ECGs, and a dual-modality population memory bank.

The intent behind this design is clear — the numerical precision and temporal ordering of clinical data carry diagnostic information in their own right. Naively converting them into text sequences loses this structure. The study's ablation experiments confirm this: replacing numerical EHR encoding with text serialization caused a direct 3.66-point drop in AUROC, the largest impact of any single intervention tested.

Retrieval Happens in Representation Space, Not at the Prompt Level

PRISM's retrieval mechanism features a privacy-friendly design worth noting: retrieval operates in representation space. What the model receives are mean-pooled embeddings from similar training-cohort visits — not any individually traceable patient record inserted into the prompt. This means the system leverages population-level experience while avoiding the exposure of specific patient data in context, which has real practical significance for healthcare compliance.

Numerical tokenization of electronic health records (EHR) is one of PRISM's defining design choices that sets it apart from general-purpose LLMs. The conventional approach converts lab values (e.g., serum creatinine 1.2 mg/dL) directly into strings, causing the language model to treat them as text token sequences and lose the continuity and magnitude information inherent in the numbers — the textual distance between "1.2" and "1.3" doesn't reflect their clinical proximity. The idea behind per-feature numerical tokenization is to maintain a separate discretized numerical vocabulary for each feature, enabling the model to perceive the ordinal relationships between different values of the same feature while preserving semantic independence across features. Recency-weighted aggregation for longitudinal ECGs addresses a different dimension: a patient may have multiple ECGs recorded at different visit times, and more recent readings should carry greater diagnostic weight than older ones. Simply averaging multiple ECG embeddings blurs this temporal structure, while recency weighting uses exponential decay or a similar mechanism to assign higher fusion weight to the most recent ECG, preserving the directional information about how physiological state evolves over time.

This retrieval paradigm is technically a variant of Retrieval-Augmented Generation (RAG), but fundamentally different from typical document-level RAG. Standard RAG concatenates retrieved raw text snippets into the prompt, giving the model direct access to specific record content. PRISM's approach instead mean-pools the embedding vectors of similar cohort records and feeds them as soft contextual input — the model encounters an abstract statistical representation rather than any recoverable individual information. This shares conceptual ground with federated learning's principle of "aggregating gradients, not raw data." From a retrieval quality standpoint, mean-pooled embeddings provide the target patient with a composite impression of a "typical similar patient," which can help with soft correction on rare phenotypes outside the training distribution — but this also means the system sacrifices the fine-grained diagnostic signals that the single most-similar case might carry, which may partly explain why the retrieval contribution in ablation experiments is relatively modest.

Performance on Benchmarks

On the MDS-ED benchmark comprising 1,443 tasks, PRISM's results are impressive: diagnostic AUROC of 86.2%, deterioration prediction of 93.1%, ICU admission prediction of 91.8%, and mortality prediction of 92.8%.

However, the researchers remain candid here. These high scores were obtained using a 96-hour pre-arrival time window, an input condition that the comparison baseline models do not have access to. For a fair comparison, the study also reports results using only the standard benchmark window: under these conditions, PRISM's AUROC is 0.8895, roughly on par with UniPACT's 0.8937 and MDS-ED's 0.8889.

In other words, under equivalent input conditions, PRISM holds no dominant advantage. The gap it opens up largely comes from its effective utilization of evidence across a longer time window. This is a distinction that deserves objective consideration.

How Much Does Structured Fusion Matter?

The study designed a key comparison: a compact fusion model using the same five-stream evidence and the same frozen encoders reached only 0.7652 AUROC under matched inputs, while PRISM achieved 0.9092 under the same setting. This gap shows that having the same raw evidence doesn't mean you can use it well — how the model organizes and integrates these heterogeneous sources of information is the determining factor in performance.

Evidence Weights Revealed by Ablation Studies

PRISM's ablation results provide quantitative insight into the contribution of each evidence type:

• Replacing numerical EHR encoding with text serialization: AUROC drops 3.66 points
• Removing pre-arrival history: drops 1.97 points
• Zeroing out retrieval: drops 0.99 points

This ranking is highly informative: numerical precision > longitudinal history > population retrieval. Retrieval does contribute positively, but relatively modestly.

Furthermore, real retrieval outperforms random-neighbor retrieval by 0.97 points in macro-average, but a paired task-level sign test did not establish consistent advantage (p=0.067). The researchers did not sidestep this borderline statistical result — retrieval is useful, but its advantage is not universally robust across all tasks. This honest acknowledgment of uncertainty is exactly the kind of attitude medical AI research should embody.

The Real-World Challenge of Cross-Institutional Transfer

One of the greatest challenges for medical models is cross-institutional generalization. PRISM's performance on the external MC-MED cohort illustrates this clearly: the source-only PRISM transferred directly achieved only 0.7841 AUROC, falling below even the locally trained gradient boosting model at 0.8227.

But after supervised fine-tuning, PRISM improved to 0.8611 on the external cohort, surpassing the local traditional model. The message from this comparison is clear: the pretrained multimodal architecture is indeed a valuable starting point, but supervised external adaptation is indispensable for deployment at a new institution — zero-shot direct transfer simply cannot be relied upon.

Domain shift is the core mechanism behind cross-institutional generalization failures in medical AI. Different hospitals use different lab instruments, follow different clinical pathways, and adopt different coding conventions, meaning the feature distributions for the same disease can differ significantly across institutions. Traditional machine learning models like gradient boosting directly fit the target distribution on local training data, giving them a competitive edge on local test sets. Pretrained multimodal models, on the other hand, carry the inductive biases of the source institution and face distribution mismatch when transferred directly. Supervised fine-tuning (SFT) continues to update model parameters on labeled samples from the target institution, gradually adapting it to the new data distribution. PRISM's experiments show that the multimodal structural understanding capabilities accumulated during pretraining are preserved and amplified after fine-tuning, ultimately surpassing traditional models fitted from scratch on local data — a conclusion consistent with the "pretraining + fine-tuning" paradigm in computer vision and NLP. In healthcare settings, however, the required volume of annotated samples for fine-tuning and the associated compliance costs remain practical barriers to deployment, compounded by data scarcity and privacy constraints.

Conclusions and Reflections

PRISM's work supports two arguments: first, structure-aware multimodal integration outperforms flattening everything into text; second, cross-institutional deployment requires supervised external adaptation.

For practitioners focused on deploying medical AI in the real world, several lessons from PRISM are worth taking away: preserving numerical and temporal structure matters more than pursuing a uniform text interface; performing population retrieval in representation space allows leveraging collective experience while respecting privacy; and behind any high-performance number, you must always examine whether the input conditions are truly comparable. This study's rigor lies not only in achieving high scores, but in clearly delineating the boundaries under which those scores hold.
