Regular Expressions Turned Into a 3D Marble Track: A New Take on Visual Learning

When a Regular Expression Becomes a Marble

For most developers, regular expressions are a string of bewildering symbols: parentheses, question marks, and asterisks nested layer upon layer—guessed at when writing, memorized when reading. A recent project that sparked discussion on the tech community Hacker News attempts to present regex logic in a completely different way—turning expressions into a 3D marble track.

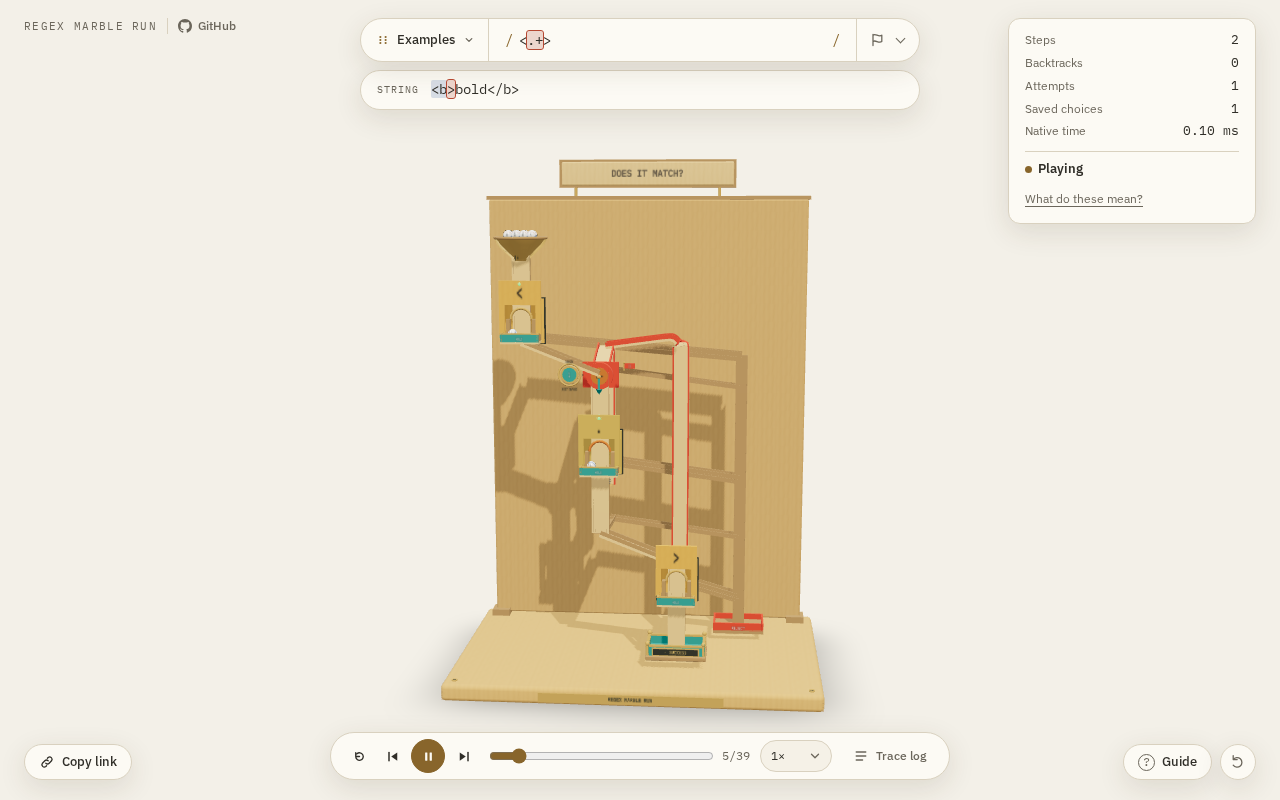

In this visualization model, a marble travels along the track, and every branch, loop, and match corresponds to a fork or a loop-back on the track. What was once an abstract matching process becomes a physical process you can "watch the marble roll through." This approach doesn't aim to make regex easier to write, but rather to solve a more fundamental problem: letting people truly understand what a regular expression is doing for the first time.

Why Regex Visualization Has Always Been Hard

Regex visualization tools are not in short supply, but most stay at the two-dimensional level: syntax trees, railroad diagrams, and character-by-character match highlighting. These tools work well for people already familiar with regex, but they still present a barrier for beginners—a railroad diagram is itself another symbol system.

The 3D marble track takes a different path: it leverages people's intuition about the physical world. Tracks, forks, and funnels require no additional learning—viewers naturally map "where the marble is" to "how far the match has progressed." According to feedback in the Hacker News discussion thread, this presentation is especially intuitive when explaining concepts like greedy matching, backtracking, and optional groups, precisely because these are the hardest parts of regex to explain clearly.

A railroad diagram is a notation that represents grammar rules using graphics resembling railway route maps. It was first proposed by Lauren Wood in the 1980s and later widely used to describe the grammars of programming languages (such as JSON and the SQL standard) as well as regular expressions. In the diagram, the main line running from left to right represents sequential matching, forking side lines represent optional or alternative branches, and looping arrows represent repetition. Its advantages are clear structure and unlimited nesting; its drawback is that readers must first understand this graphical convention—essentially, it translates one symbol system into another, and beginners often have to cross-reference between the two diagrams to establish the correspondence.

Greedy matching means that quantifiers (*, +, ?, {n,m}) by default consume as many characters as possible, and only step back gradually when a subsequent match fails—this stepping-back process is "backtracking." For example, when matching a123b456b with a.*b, .* first swallows everything up to the last b; if the overall match succeeds, no backtracking occurs. If later constraints cause a failure, the engine then returns characters one by one and retries. Backtracking is the root of regex performance problems (catastrophic backtracking, i.e., exponential time), and it is also the dynamic process that beginners find hardest to see in static diagrams—a marble repeatedly doubling back along a looping track vividly concretizes this process.

From Teaching Demo to Engineering Trade-offs

Bringing 3D visualization into regex education comes with obvious costs as well. The information density of a 3D scene is far lower than that of 2D graphics; once a moderately complex regular expression is expanded, the track quickly becomes hard to follow. The time cost of marble animation is also higher than that of static diagrams, and it cannot quickly pinpoint problems the way character-by-character highlighting does.

A more realistic positioning is this: the 3D marble track is better suited as a first lesson for beginners and a concept demo, rather than a daily debugging tool. Its value lies in building mental models, so that when developers see (a|b)*, they can picture "a fork followed by a loop back" in their minds rather than a string of rules to be memorized. When actually writing complex regex, 2D tools and test cases remain the mainstay.

A mental model refers to the internal representation a person forms of how a system works internally; it determines how people predict system behavior and troubleshoot problems. Research in cognitive science shows that the core difference between experts and novices often lies not in the number of rules memorized, but in the structural quality of their mental models. For regex, developers who possess procedural mental models like "fork—loop-back" can reason about the engine's execution path when a match doesn't behave as expected, whereas those who only memorize syntax rules tend to rely on trial and error. This is also why the value of visualization demos lies in building models, not in teaching syntax.

The Broader Trend in Visualization Education

The attention this project has drawn actually reflects a broader trend: reducing abstract concepts in computer science to perceivable processes. From algorithm animations to data structure visualizations, and now to 3D regex tracks, the core demand is the same—lowering the cost of understanding, not the cost of use.

For content creators and educators, such projects point to an effective path: rather than repeatedly explaining rules, design a scenario that lets people "see" the rules. The marble track may not become a mainstream tool for learning regex, but it proves the potential of physical intuition in technical education and gives regex visualization a new space for imagination.

FAQ

Can the 3D marble track replace regex debugging tools?

No. It is better suited for concept demos and introductory teaching; debugging complex regex still relies on character-by-character highlighting, syntax trees, and test cases.

Why use 3D instead of 2D diagrams?

3D tracks leverage people's intuition about physical motion and are more intuitive when explaining dynamic processes like backtracking and greedy matching, but their information density is lower and their applicable scenarios are limited.

One-line Summary

The 3D marble track turns regular expressions into watchable physical motion, lowering the comprehension barrier but struggling to replace debugging tools.

Paragraph Summary

The article introduces a project that sparked discussion on Hacker News: visualizing regular expressions as a 3D marble track, where the marble's forward motion corresponds to the matching process, and forks and loops correspond to branches and repetitions. Compared with 2D tools like syntax trees, railroad diagrams, and character-by-character highlighting, this format leverages people's intuition about the physical world and is especially intuitive when explaining dynamic concepts such as greedy matching, backtracking, and optional groups. However, 3D scenes have low information density and animations are time-consuming; the tracks for moderately complex regex quickly become hard to follow, making it better suited as a first lesson and concept demo rather than a daily debugging tool. The article then extends to the broader trend in technical visualization education: lowering the cost of understanding rather than the cost of use.
