Robust Logo Detection Without LLMs: A Deep Dive into Traditional CV Approaches

Why Build a Logo Detector Without Relying on an LLM

A topic that's been generating significant discussion in the tech community lately is "Robust Logo Detection in an Image Without Using an LLM." At a time when multimodal large models have become something of a universal solution, deliberately sidestepping LLMs for what seems like a straightforward task is actually worth serious thought.

For logo detection, calling a vision-capable large model does yield quick results — but at a steep cost: high inference expenses, significant latency, heavy compute requirements, and outputs that are difficult to reproduce consistently. For scenarios requiring high concurrency, low latency, local deployment, or offline operation, traditional computer vision (CV) approaches are typically the more pragmatic choice.

Technical Approaches in Traditional CV

Setting aside large models, logo detection in images can return to the classic computer vision pipeline — one composed of interpretable, debuggable modules rather than a single black-box network.

Feature Matching

When the target logo is known (i.e., a reference template is available), feature matching is one of the most robust approaches. The typical workflow uses local feature descriptors like SIFT, ORB, or AKAZE to find corresponding keypoints between the query image and the template, then applies RANSAC to filter out false matches and estimate the geometric transformation. This approach handles rotation, scaling, and partial occlusion well, and requires no training data at all — making it ideal for business scenarios with a fixed set of logos.

SIFT (Scale-Invariant Feature Transform), proposed by David Lowe in 1999, detects stable keypoints across different scale spaces and generates 128-dimensional descriptors that are invariant to rotation and illumination changes. It's a cornerstone of classical feature matching, but due to its relatively high computational cost and former patent protection (which expired in 2020), engineers often substitute ORB (Oriented FAST and Rotated BRIEF) — a fully open-source alternative that runs roughly 10–100× faster and is well-suited for real-time applications. RANSAC (Random Sample Consensus) is then the critical step after matching: it repeatedly samples minimal point sets to estimate a transformation model, classifying consistent points as inliers, and can reliably estimate the homography matrix between two images even when a large proportion of matches are incorrect. This combination allows the system to deliver confident detection results even when a logo is 30–40% occluded in the target image.

Lightweight Object Detection Models

When you need to recognize multiple logos or handle more complex backgrounds, training a dedicated object detection model — such as a member of the YOLO family or SSD — is a strong option. Compared to general-purpose vision foundation models, these models are compact, fast, and capable of running in real time on edge devices. While they do require annotated data and a training phase, once deployed their stability and cost advantages are significant.

The YOLO (You Only Look Once) series has evolved since its 2016 introduction to YOLOv10 and various derivatives (YOLOv8, YOLO-NAS, etc.). Its core idea is to reframe object detection as a single-pass regression problem — predicting bounding box coordinates and class probabilities simultaneously in one forward pass, making it far faster than two-stage detectors like Faster R-CNN. For logo detection, you typically only need transfer learning (fine-tuning) on top of publicly available pretrained weights; annotating a few hundred to a few thousand target logo images is usually sufficient for practical accuracy. YOLOv8-nano weighs in at roughly 6MB and achieves 10+ FPS on a Raspberry Pi 4B, making it a common choice for edge deployment. When going this route, annotation quality and data diversity (varied backgrounds, lighting, and angles) tend to matter more to final performance than the model architecture itself.

Template Matching with Color and Shape Priors

For logos with strong regularity and a fixed appearance, combining template matching with color histograms and contour analysis can yield solid results in controlled environments. This approach has extremely low computational overhead, making it suitable for resource-constrained embedded systems.

OpenCV's built-in template matching (cv2.matchTemplate) works by sliding the template across the target image, computing a similarity score at each position (commonly using Normalized Cross-Correlation or Sum of Squared Differences), and returning a heatmap where the peak indicates the candidate location. The upside is a trivially simple implementation with zero training required; the downside is equally clear: it has virtually no tolerance for scaling or rotation, and computational complexity grows linearly with image size. In practice, this is often paired with image pyramids (coarse localization at low resolution, then precise search in the original image region) to reduce overhead, along with HSV color range filtering or Canny edge contour matching to bring false positive rates down to an acceptable level. This combination is still widely used in scenarios with controlled backgrounds, such as factory assembly lines or fixed-camera surveillance.

The Real Challenge Behind "Robust"

The word "Robust" in the title is where the real difficulty lies. Real-world images are far from ideal: logos may appear under varying lighting conditions, at different angles, partially occluded, with motion blur, or printed on curved packaging and reflective screens.

To handle these challenges, engineering practice typically combines several strategies:

• Data augmentation: Introducing rotation, blur, brightness variation, and affine transforms during detection model training to improve resilience to real-world noise.
• Multi-scale detection: Since logos can vary enormously in size within an image, image pyramids or multi-scale feature fusion help detect both large and small instances reliably.
• Geometric verification: After feature matching, using the homography matrix for geometric consistency checks effectively filters out false positives.
• Post-processing constraints: Applying business-specific priors (e.g., expected logo locations, aspect ratio ranges) to further refine results.

Traditional CV vs. Large Model Approaches

These two routes are not mutually exclusive — they each have their own applicable boundaries.

The strength of large models lies in their zero-shot or few-shot generalization: no need to prepare a separate pipeline for each new logo, and they can produce reasonable inferences even for entirely unknown targets. But the drawbacks are equally pronounced: high inference cost, unpredictable latency, difficulty deploying at the edge, and weaker interpretability and controllability over outputs.

Traditional CV approaches are the inverse — low deployment cost, stable latency, traceable results, and the ability to run offline. The tradeoff is limited generalization; adding new target categories often requires re-annotation or pipeline adjustments.

For a task like logo detection — where targets are relatively fixed and the goal is high throughput at low cost — traditional CV approaches typically offer better engineering value. The worth of community discussions like this lies precisely in reminding developers: just because large models are capable doesn't mean you should overlook lighter, faster, and more controllable classical approaches.

Conclusion

Whether or not to use an LLM is fundamentally an engineering tradeoff, not a binary judgment of technical superiority. For the specific use case of logo detection, feature matching, lightweight detection models, and solid post-processing strategies remain reliable foundations for building robust systems. Understanding the applicable boundaries of each approach and choosing accordingly — that's the kind of judgment that separates good engineers.

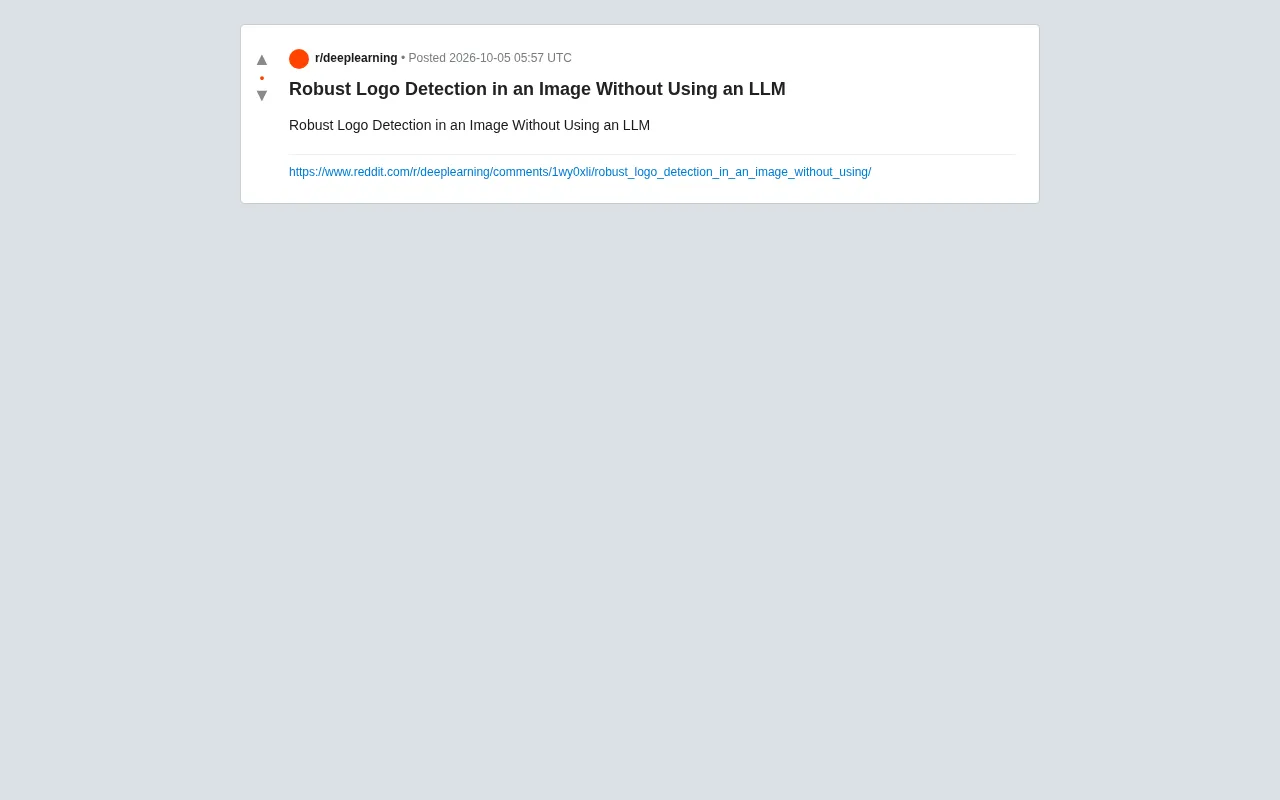

Note: This article is based on a community discussion thread. The original post provided only a high-level topic description with limited implementation details. The technical approaches described here represent a synthesis and analysis of common practices in the field.
