Semantica: A Deep Dive into the Open-Source Palantir for Graph Context Infrastructure

What is Semantica

As AI Agents evolve rapidly, one of the core engineering challenges has become: how do you get an agent to genuinely understand context, rather than just dumping a wall of text at an LLM and hoping for the best? Semantica is an open-source project built to solve exactly that problem. The community has dubbed it the "open-source Palantir," and it has already earned over 8,000 stars on GitHub.

At its core, Semantica is a graph-based context infrastructure designed specifically for Agentic AI systems. Its primary capability is transforming a raw string into a structured, graph-enriched context. This lets agents navigate information relationships by traversing nodes and edges, enabling more accurate decision-making.

The core idea is straightforward: instead of feeding a long, unstructured block of text to an LLM and leaving it to figure things out, you first decompose that text into a graph of entities and relationships, then guide the agent to reason over that structured context.

Knowledge Graph is a data model that represents real-world entities and their relationships using a graph structure. Google first introduced the concept to its search engine in 2012. Nodes in the graph represent entities (people, places, events), and edges represent the relationships between them ("founded," "belongs to," "occurred in"). Compared to plain text, a graph structure explicitly encodes connections between pieces of information, enabling computers to perform path reasoning and relationship queries. Palantir is a well-known data analytics company whose flagship products — Palantir Gotham and Foundry — are also built around graph-based knowledge management. However, they are closed-source commercial software with high licensing costs, primarily serving governments and large enterprises. Calling Semantica the "open-source Palantir" means it provides similar graph-based context management capabilities in an open way, making it accessible to small teams and independent developers building agentic infrastructure.

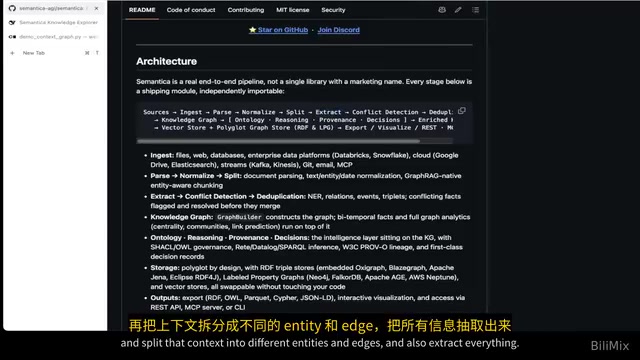

Core Architecture: From Raw Text to Knowledge Graph

Semantica's architecture is clean and well-structured. The entire data flow can be broken down into a few key stages.

Context Parsing and Entity Extraction

At the front end are Sources (raw context inputs). When context enters the system, it is parsed into objects and normalized, then decomposed into distinct Entities and Edges — extracting all the key information.

Notably, the extraction process includes a built-in conflict detection mechanism that resolves information conflicts and deduplicates entries. This step is critical for maintaining knowledge graph accuracy — dirty data directly degrades the quality of an agent's reasoning.

Knowledge Graph Construction

Once entities and edges are extracted, the system moves into the Graph construction phase. Two construction paths are available: the traditional direct-build approach, and an LLM-assisted approach.

In the LLM-assisted path, the flow works roughly like this: a large block of context is read in, passed to an LLM for entity and edge extraction, then run through a Relationship Extractor to establish connections between entities, and finally handed to a Graph Builder to assemble the complete graph. Once built, the graph is stored in a VectorStore for later retrieval.

Semantica also supports Polyglot GraphStore export, which lets you export the entire graph as a JSON file for visualization and migration.

VectorStore refers to a class of databases designed specifically to store and retrieve high-dimensional vectors — examples include Chroma, Pinecone, and Weaviate. In a knowledge graph context, each entity node is not only stored with its structured attributes but also encoded as a semantic vector, enabling "semantic similarity search" — finding semantically related nodes by vector distance even without exact keyword matches. Semantica combines graph structure with vector retrieval, meaning agents can traverse the graph via edge relationships for structured queries and use vector similarity for fuzzy semantic search. The two retrieval modes complement each other, covering a much broader range of query scenarios. Polyglot GraphStore refers to the system's ability to export to multiple graph database formats or standards (such as JSON or Neo4j), reflecting the architecture's flexibility and portability.

Decision Intelligence: Giving Agents a Reasoned Basis for Action

One of Semantica's most valuable design choices is treating "decisions" as first-class citizens within the graph structure. Everything ultimately comes down to making better decisions based on context.

Once the graph is built, recording a decision is as simple as calling Record Decision on the graph. From there, the system supports a powerful set of operations:

• Trace decision history: See exactly how a particular decision was reached, step by step
• Find similar decisions: Reuse historical experience
• Analyze decision impact: Evaluate downstream effects
• Check decision rules: Verify whether a decision conforms to established logic

These capabilities are fundamentally about helping agents understand "how context operates" and "how to make better decisions within a context." The project also provides decision tree visualization — when you create a decision, it is rendered as a decision graph, giving you a clear view of the branching relationships between decisions.

Semantic Explorer: A Powerful Graph Visualization Tool

The underlying structure alone is not enough — Semantica ships with a full-featured web visualization tool called Semantic Explorer that makes abstract knowledge graphs immediately comprehensible.

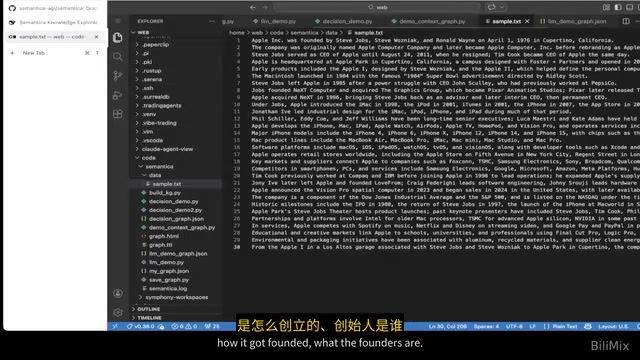

In a demo, the author pasted a passage describing Apple Inc. The system automatically decomposed it into 140 Nodes and 11 Edges. You can clearly see how Apple was founded, who its founders are, and how all the entities connect to each other.

Semantic Explorer offers multiple browsing perspectives:

• Neighbor view: Click any node to see its direct neighbors. Clicking the "2007" node, for example, reveals its connections to both iPhone and Apple

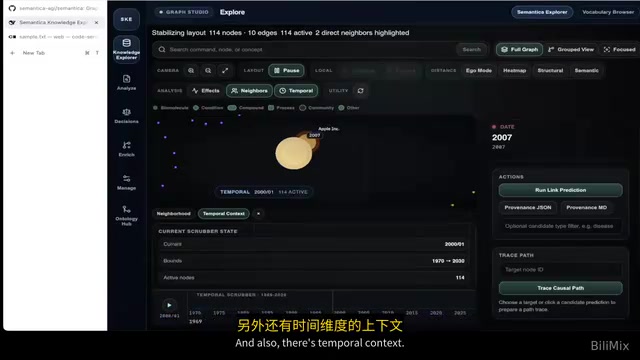

• Time dimension: Browse how context evolved along a timeline
• Ego mode: Expand a relationship network centered on a specific node
• Heatmaps: Including structural heatmaps and metaphorical heatmaps
• Group view and full graph: Observe context at different levels of granularity
• Link Prediction: Run link prediction with a single click
• Search: Searching "Apple" lists all related nodes, such as Apple Park, Apple Silicon, and more

Compared to feeding a long, raw passage directly to an agent — where comprehension can be incomplete or inaccurate — decomposing content into Nodes and Edges, combined with decision information, meaningfully improves the quality of an agent's contextual understanding.

Multi-Agent Shared Context and Integration Options

Another standout feature of Semantica is support for shared context. Typically, context is isolated per agent — each agent owns its own independent context. In Semantica, a single context graph can be shared across multiple agents.

For example, you can pass the same shared context to both a Researcher Agent and a Knowledge Agent simultaneously, or even group multiple agents into a team that collaborates on top of the same graph infrastructure. This is extremely useful when building complex multi-agent systems.

For integration, Semantica offers several connection methods:

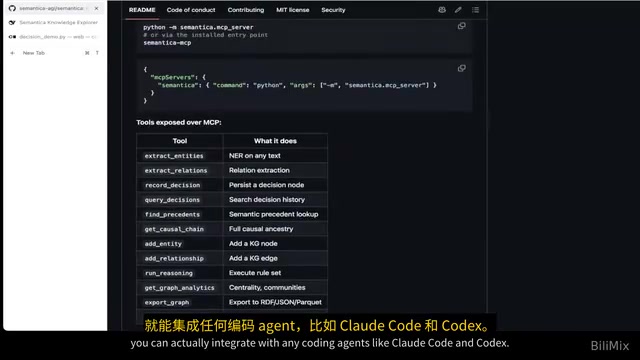

• MCP Server integration: Plug directly into coding agents like Claude Code or Codex
• REST API integration: Standard HTTP interface
• CLI: Command-line access

In short, once Semantica is connected to an MCP or backend server, any coding agent can query it to retrieve structured context.

MCP (Model Context Protocol) is an open protocol introduced by Anthropic in 2024, designed to standardize communication between AI models and external tools or data sources. Think of it as the "USB port" of the AI world — tool providers implement an MCP Server, and model-side clients implement an MCP Client, allowing seamless interoperability without custom integration work for each tool. Leading coding agents like Claude Code and Cursor already support MCP. This means that once Semantica is deployed as an MCP Server, these agents can call Semantica's graph query and decision interfaces directly during a conversation to retrieve structured context in real time — no glue code required. This integration path dramatically lowers the barrier to adding Semantica to an existing workflow.

Getting Started: Installation and Configuration Guide

For developers who want to try it out, the setup process is straightforward.

Basic Installation Steps

1. Clone the repository locally
2. Run pip install to install all dependencies
3. Install the openai library (for the LLM-assisted path)
4. Install vector store and embedding-related dependencies

Starting the Services

After installation, you can selectively start the following components:

• Semantic Kernel / Semantic Server (REST server)
• Explorer (data browsing and visualization)
• Semantica MCP (for agent consumption)

Key Environment Variables

A few important variables to be aware of:

• CORS Origins: If deploying to a VPS, set the allowed cross-origin sources for Explorer
• API Key: The access key for Semantica
• Allow Anonymous: Defaults to false. You can set it to true for testing to allow anonymous access, but always set it to false in production for security
• OpenAI API Key and Base URL: Configure the LLM backend. Supports OpenAI, Bedrock, Llama, and other models

Conclusion

Semantica earns the "open-source Palantir" label by bringing complex context management, knowledge graph construction, and decision intelligence together in a single open-source framework. For developers building Agentic AI systems, it offers a clear path forward: transform unstructured text into a graph structure that can be reasoned over, and let agents make more reliable decisions based on structured context.

Whether it's the rich visualization capabilities, decision tracing, multi-agent context sharing, or flexible MCP/REST integration, Semantica demonstrates real potential as a next-generation AI context infrastructure. The 8,000+ stars from the community are a strong signal that this direction is worth pursuing.
