SIMITTAG Circular Fiducial Markers: Reimagining Pose Estimation with Ellipse Mathematics

When Square Fiducial Markers Hit Their Limits

In computer vision and robotics, fiducial markers are essential tools for pose estimation. Over the past decade, square markers like ArUco and AprilTag have become industry standards — they determine a marker's spatial orientation through corner detection and are widely used in robot localization, AR tracking, and camera calibration.

Pose estimation solves for a marker's 6-degree-of-freedom (6 DoF) transform relative to the camera — three translation values (x, y, z) plus three rotation values (pitch, yaw, roll). ArUco was introduced by the University of Seville in 2014, while AprilTag came from the University of Michigan Robotics Lab. Both rely on the PnP (Perspective-n-Point) algorithm, establishing correspondences between known geometric corner coordinates and detected pixel coordinates in the image, then solving for pose using least squares or iterative methods. This approach performs well under controlled conditions, but corner detection is highly sensitive to image quality — blur, overexposure, or strong perspective distortion can introduce pixel-level errors, ultimately causing pose estimation jitter or outright failure.

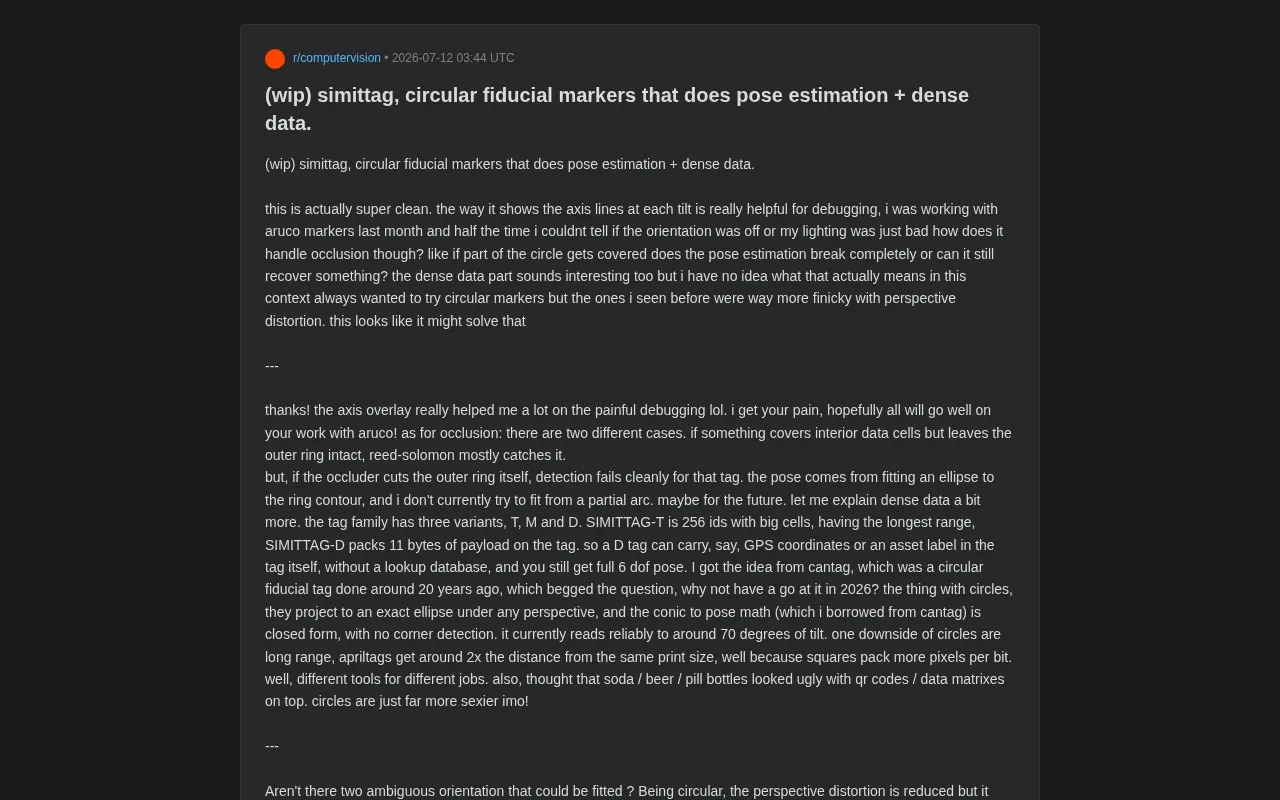

Square markers are far from perfect. One developer shared their experience with ArUco markers on Reddit: "Half the time I can't tell if the orientation estimation is wrong, or if the lighting is just bad." This debugging ambiguity has been a persistent pain point in fiducial marker systems.

It's against this backdrop that a circular fiducial marker project called SIMITTAG has caught the community's attention. It attempts to solve both pose estimation and data payload problems simultaneously with a more mathematically elegant approach.

The Mathematical Advantage of Circular Markers: Ellipse Fitting and Closed-Form Solutions

SIMITTAG's core concept traces back to an academic project called Cantag from roughly 20 years ago. The author's motivation is straightforward: "A circle projects exactly to an ellipse under any perspective transformation, and the math from a conic to a pose is closed form — no corner detection needed at all."

This mathematical property can be precisely described using the theory of conics in projective geometry. A circle is a special conic whose image under a homography transformation is always an ellipse. Given the camera intrinsic matrix K and the conic matrix C of the ellipse, one can directly compute the normal vector direction via matrix decomposition and then recover the translation vector. The entire process is deterministic algebraic computation requiring no iteration. Ellipse fitting has a natural statistical averaging effect on noisy edge pixels — even if individual contour pixels shift, least-squares ellipse fitting still yields a robust estimate. This is the fundamental reason circular markers outperform square ones on low-quality images.

This is a foundational advantage of circular markers over square ones. Square markers rely on corner detection, and corners are prone to errors under perspective distortion, image blur, or poor lighting. Circular markers solve pose directly by fitting an ellipse to the outer contour, which is mathematically cleaner and more stable. SIMITTAG currently achieves stable readout at tilt angles up to approximately 70 degrees, covering the vast majority of real-world use cases.

A practical highlight of the project is its visual debugging capability: the system overlays axis lines on each marker at various tilt angles. Community members noted that this feature "helped enormously during painful debugging sessions" — developers can directly see whether a marker's orientation is being correctly identified, without having to guess between "wrong orientation" and "bad lighting."

Dense Data: Letting Markers Carry Their Own Metadata

Another noteworthy feature of SIMITTAG is "dense data." The project divides its marker family into three variants:

Three Variants, Each with Trade-offs

• SIMITTAG-T: Provides 256 IDs, with larger data cells and the longest recognition range;
• SIMITTAG-M: A balanced variant trading off capacity and range;
• SIMITTAG-D: Packs an 11-byte payload into a single marker.

The design philosophy behind the D variant offers real practical value. As the author explains: "A D tag can carry GPS coordinates or an asset tag directly, no database lookup needed, while still giving full 6 DoF pose."

This means the marker itself becomes a miniature information carrier. In scenarios like logistics tracking or asset management, the marker is no longer just an ID requiring a database lookup — it can self-contain critical metadata. To ensure data reliability, SIMITTAG incorporates Reed-Solomon error correction coding.

Reed-Solomon (RS) codes were introduced by Irving Reed and Gustave Solomon in 1960 and are widely used in CDs/DVDs, QR codes, and deep-space communications. The core idea is to treat data symbols as polynomial coefficients over the finite field GF(2^m), appending redundant symbols so that the message polynomial is divisible by a specific generator polynomial. During decoding, as long as the number of erroneous symbols doesn't exceed the error correction threshold, the algorithm can exactly recover the original data by solving a system of linear equations. In SIMITTAG's D variant, RS codes allow the system to recover the full 11-byte payload even if some inner data cells are occluded or damaged — essentially the same error correction mechanism used in QR codes, though the circular layout requires specially designed geometric distribution of data cells to ensure physical occlusion doesn't happen to hit more symbols than the correction threshold can handle.

Occlusion and Orientation Ambiguity: Unavoidable Real-World Challenges

Every fiducial marker system must confront occlusion. SIMITTAG's author offers a clear taxonomy:

If occlusion covers inner data cells but leaves the outer ring intact, Reed-Solomon error correction can usually recover the data; but if the occlusion cuts through the outer ring itself, detection "fails cleanly."

This limitation stems from the pose-solving mechanism itself — pose depends entirely on ellipse fitting of the outer ring contour. The author has not yet attempted to recover pose from partial arcs and acknowledges this as a direction for future improvement.

Flip Ambiguity: A Classic Challenge for Circular Markers

A community commenter raised the classic problem for circular markers: two ambiguous orientations.

"Circles reduce interference from perspective distortion, but also make it harder to uniquely determine which face is closer to the observer." — The same ellipse projection can correspond to two mirror-symmetric spatial orientations, the well-known "flip ambiguity" in conic pose solving.

Mathematically, recovering a 3D pose from a single ellipse has a natural dual solution: the same ellipse corresponds to two geometrically symmetric circles in space — one with its normal vector facing the observer, the other a mirrored solution with the opposite tilt angle — and the two are algebraically equivalent, indistinguishable from a single image contour alone. Square markers naturally resolve this through their internally asymmetric binary patterns. Circular markers typically need to encode orientation information through asymmetry in the inner data region, prior motion models, or additional known geometric features. SIMITTAG has not yet presented a complete solution to this problem — making it a technical open question worth tracking, and a critical threshold the approach must cross before achieving production-grade reliability.

Recognition Range vs. Visual Aesthetics

In a direct comparison with AprilTag, the author maintains a commendable honesty: "One disadvantage of circles is detection range. At the same printed size, AprilTag achieves about 2x the distance because squares can fit more pixels per bit."

This gap has clear engineering roots: square markers (such as the AprilTag 36h11 family) arrange data bits in a tight grid, and edge detectors only need to identify light/dark transitions for decoding — low contrast requirements and high SNR tolerance. Circular markers dedicate the outer ring area to pose solving, leaving limited radial depth for data rings, resulting in fewer data pixels per unit area. In engineering selection, this means that if a scenario requires long-range recognition (>3 meters) with size-constrained markers, square markers remain the better choice. If the range is within 1–2 meters and there's a need for aesthetic appeal or self-contained data payloads, circular markers can fully demonstrate their advantages.

This is a pragmatic technical judgment — different tools suit different scenarios. The author also raises an interesting differentiating angle: visual aesthetics. "I think QR codes or Data Matrix codes on soda bottles, beer bottles, and medicine bottles are ugly — circles are just much more attractive."

In consumer packaging and bottle labels where visual presentation matters, circular markers do integrate more naturally into product design than square barcodes — and this may be exactly where their differentiation potential lies.

Conclusion: A Worthwhile Revisitation of an Alternative Approach

SIMITTAG is still a WIP (work in progress), but it has already demonstrated the unique value of circular fiducial markers: closed-form pose solving, no corner detection required, self-contained data payloads, and more visually appealing aesthetics. At the same time, it honestly exposes the inherent weaknesses of the circular approach — shorter recognition range, failure when the outer ring is occluded, and an orientation ambiguity problem that hasn't been fully resolved.

In an era when square markers dominate pose estimation, revisiting the mathematical path of circular markers and implementing it with modern engineering methods is a meaningful technical exploration in its own right. For developers seeking an alternative to ArUco/AprilTag in robotics, AR, or industrial vision scenarios, SIMITTAG offers a new option worth evaluating.
