Technical Analysis and Implementation Path of Six-Axis Desktop Robotic Arm Synchronous Control

From Three-Axis to Six-Axis: The Technical Leap in Synchronous Control

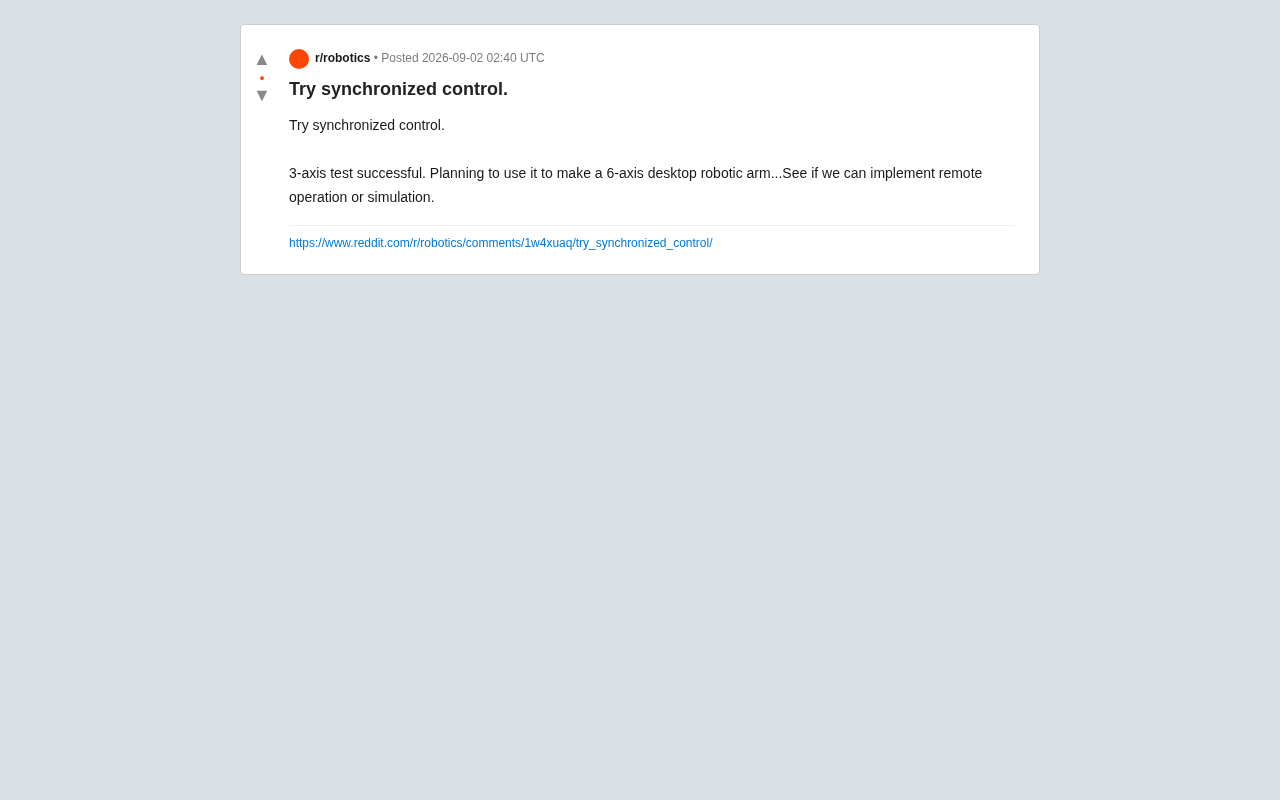

In the field of robotics control, multi-axis synchronous motion has always been a core challenge for hobbyists and engineers alike. Recently, a developer in the Reddit community shared a noteworthy advancement—successfully completing three-axis synchronous control testing and, based on this foundation, embarking on building a six-axis desktop robotic arm, with the ultimate goal of including remote control and simulation capabilities.

The value of this project lies not only in the technical implementation itself, but more importantly in how it demonstrates that small teams or even individual developers can approach the core capabilities of industrial-grade robot control systems with limited resources.

Three-Axis Synchronous Control: Foundation Validation Toward Six-Axis

Why Synchronous Control is Critical

If the motion of each axis of a robotic arm lacks synchronized coordination, the end effector will follow an unintended motion trajectory, resulting in reduced positioning accuracy at best, or mechanical collision damage at worst. The essence of synchronous control lies in coordinating multiple motors to move according to predetermined speed-position curves within a unified timing framework, ensuring the end-effector path is smooth and predictable.

Successful three-axis testing means that the underlying control logic—including interpolation algorithms, communication bus timing, and feedback regulation mechanisms—has passed basic verification. This is a necessary prerequisite for expanding to six axes.

Among these, interpolation algorithms are the mathematical core of multi-axis synchronous control, functioning to generate smooth intermediate point sequences between two or more path points. Common interpolation methods include linear interpolation (straight-line motion) and circular interpolation, while more advanced methods include spline interpolation (such as cubic B-splines, NURBS curves), which can ensure path continuity while maintaining smooth transitions in velocity and acceleration. Communication bus timing involves the data exchange rhythm between the master controller and each axis driver. Industrial bus protocols like EtherCAT can achieve microsecond-level synchronization precision, while in desktop-level projects, CAN bus or SPI bus can also provide millisecond-level deterministic communication. The core requirement of bus synchronization is that all axes receive update commands simultaneously in the same control cycle and execute them concurrently; any command delay on any axis will cause end-effector trajectory deviation.

Escalating Challenges from Three-Axis to Six-Axis

Expanding from three axes to six is not a simple linear addition. The direct impacts of increased degrees of freedom include:

• Dramatically expanded inverse kinematics solution space: IK solving for six-degree-of-freedom robotic arms is far more complex than three-axis, requiring handling of multiple solution selection problems. Inverse kinematics is a classic problem in robotics: given the target pose (position + orientation) of the end effector in Cartesian space, calculate the angle values for each joint. For six-degree-of-freedom robotic arms, when they satisfy the Pieper criterion (i.e., three consecutive joint axes intersect at a point, typically a spherical wrist structure), closed-form solutions can be obtained with extremely fast computation, usually completed within microseconds. However, not all configurations satisfy this condition, requiring numerical iterative methods such as Newton-Raphson or damped least squares (Levenberg-Marquardt). Six-degree-of-freedom robotic arms typically have multiple solution sets (up to 16 sets), and the system must select the optimal solution based on current joint states, joint limits, motion continuity, and other constraints to avoid joint jumps.

• Singularity avoidance: At specific joint configurations, Jacobian matrix degeneration can cause joint velocities to approach infinity. The Jacobian matrix is the core mathematical tool describing the mapping relationship between joint velocity space and Cartesian velocity space. It is a 6×6 matrix (for six-axis robotic arms) that maps joint angular velocity vectors to the end effector's linear and angular velocities. When the robotic arm is in certain specific configurations—such as when two or more joint axes are collinear, or the arm is fully extended or folded—the determinant of the Jacobian matrix approaches zero and the matrix becomes rank-deficient, resulting in what are called kinematic singularities. Near singularities, even if the end effector requires only minimal Cartesian velocity, some joints may require extremely high angular velocities, which not only exceed the physical capabilities of motors but may also cause control system instability. Common avoidance strategies in engineering include damped least squares inverse (DLS), singularity-robust inverse, and singularity detection and circumvention during path planning.

• Joint limit handling: More axes mean more complex constraint spaces

• Increased real-time computational load: For desktop-level systems, maintaining millisecond-level control cycles on embedded platforms with limited computing power is a critical bottleneck for engineering implementation

Hardware and Software Design for Six-Axis Desktop Robotic Arms

Two Hardware Architecture Routes

Desktop-level six-axis robotic arms typically face trade-offs between two design routes:

Approach	Advantages	Limitations
Stepper motors + open-loop control	Low cost, simple structure	Limited accuracy and dynamic response
Servo motors + encoder closed-loop	High accuracy, good dynamic performance	Significantly increased cost and system complexity

From the information revealed by this project, the implementation of synchronous control suggests that the underlying system already has a certain degree of feedback capability, laying the foundation for subsequent high-precision trajectory control.

Layered Architecture of Control Software Stack

A complete six-axis robotic arm control software typically includes the following layers:

1. Motion planning layer: Responsible for path generation and trajectory interpolation
2. Inverse kinematics solver layer: Converts Cartesian space targets to joint space commands
3. Joint control layer: PID or higher-order controllers implement servo tracking. PID (Proportional-Integral-Derivative) controllers are the most widely used feedback control algorithms in industrial control. The proportional term provides immediate error response, the integral term eliminates steady-state error, and the derivative term suppresses overshoot and oscillation. In robotic arm joint servo control, cascaded PID structures are typically used: the outer loop is the position loop, the middle is the velocity loop, and the inner loop is the current/torque loop, with three loops nested to achieve high-precision trajectory tracking. However, for high-speed, high-precision applications, traditional PID may not be sufficient, and feedforward compensation (predicting required torque based on dynamic models), adaptive control (online identification of load changes), or even model predictive control (MPC) can be introduced. For desktop-level robotic arms, dynamic coupling effects are particularly pronounced during high-speed motion, and simple single-joint PID may not effectively cope with coupling interference between joints.
4. Hardware Abstraction Layer (HAL): Shields underlying hardware differences and provides unified interfaces

For projects planning to introduce simulation capabilities, additional consideration must be given to interface design for integration with physics engines. Currently, the three mainstream robot simulation engines each have their focus: PyBullet is a Python wrapper based on the Bullet physics engine, lightweight and easy to get started with, particularly suitable for reinforcement learning research, supporting rapid simulation environment setup directly in Python scripts and integration with OpenAI Gym; Gazebo is the official simulator for the ROS ecosystem, feature-rich, supporting multi-sensor simulation (lidar, cameras, IMU, etc.) and multi-robot simulation, but with substantial resource requirements; MuJoCo (Multi-Joint dynamics with Contact) is maintained by DeepMind and now open-source, renowned for its high contact dynamics simulation accuracy and excellent computational efficiency, widely adopted in reinforcement learning research for robot manipulation and locomotion. For desktop robotic arm projects, if the focus is on rapid prototype verification, PyBullet is the lowest-barrier choice; if deep integration with ROS is needed, Gazebo is more suitable; for complex contact manipulation learning, MuJoCo is the preferred option.

Remote Control and Simulation: Expanding Application Boundaries of Robotic Arms

Implementation Path for Remote Control

The core of implementing robotic arm remote control lies in low-latency command transmission and reliable state feedback. Common technical approaches include:

• ROS-based network-transparent communication: Mature ecosystem with abundant community resources. ROS (Robot Operating System) is not a traditional operating system but a middleware framework for robot development. One of its core design principles is "network transparency"—communication between nodes uses the same interface for both local inter-process and cross-network machine communication, allowing developers to implement distributed deployment without code modification. ROS 1 uses a publish-subscribe model and service call model based on TCP/UDP, with a central Master node managing topic registration. ROS 2 is based on the DDS (Data Distribution Service) standard, eliminating central Master dependency, natively supporting QoS policy configuration (such as reliability, latency priority, history depth), making it more suitable for robot control scenarios with high real-time requirements. For remote control applications, ROS 2's DDS architecture can more flexibly establish communication in both LAN and WAN environments while balancing latency and reliability through QoS parameter tuning.

• Custom WebSocket/MQTT protocol stack: More lightweight, suitable for embedded scenarios. MQTT (Message Queuing Telemetry Transport) is a lightweight publish-subscribe messaging protocol originally designed for bandwidth-constrained and unstable network environments, with minimal packet overhead (minimum 2-byte header), supporting three quality-of-service levels (QoS 0/1/2), ideal for resource-constrained embedded devices. WebSocket provides a full-duplex communication channel based on HTTP upgrade, allowing servers to actively push data, widely used in real-time Web applications. In robotic arm remote control scenarios, MQTT is suitable as a lightweight channel for command delivery and status reporting, easily implementing one-to-many publish-subscribe topology with a Broker (like Mosquitto); WebSocket is more suitable for scenarios requiring direct browser access, such as real-time monitoring of robotic arm status or sending control commands through a Web interface. The two can also be used in combination, with MQTT handling device-layer communication and WebSocket handling frontend presentation layer.

Latency is the decisive metric for remote control experience. For precision operation tasks, end-to-end latency needs to be controlled within 100ms, otherwise operators struggle to form effective visual-motor closed loops. Further introduction of force feedback or haptic feedback can significantly enhance control immersion and safety, which is also a frontier direction in current teleoperation robot research.

Multiple Values of Digital Twin Simulation

The value of simulation environments extends far beyond debugging assistance:

• Safety testing: Testing new algorithms on real hardware risks collision, overcurrent, and joint damage; simulation environments allow zero-cost rapid iteration
• Path verification: Advance verification of motion planning correctness and reachability
• Data collection: Provides large-scale simulation data for subsequent machine learning training

For desktop robotic arm projects, building a digital twin model synchronized with the physical entity not only accelerates development and debugging but also provides infrastructure for introducing AI methods like reinforcement learning. The concept of Digital Twin originates from Industry 4.0, referring to the precise mapping of physical entities in virtual space, with real-time data flow maintaining synchronization between the two. In reinforcement learning applications, simulation environments can run thousands of training instances in parallel at hundreds of times real-time speed, greatly reducing the time cost and hardware wear of extensive trial-and-error interaction on real robots. The key challenge lies in Sim-to-Real transfer: can policies trained in simulation work effectively on real hardware. Common bridging methods include domain randomization (randomizing physical parameters and visual appearance in simulation to enhance policy generalization) and system identification (precisely calibrating simulation model parameters to approximate real systems).

Open-Source Ecosystem Lowers Multi-Axis Robotic Arm Development Barriers

The continuous public sharing of such projects has significant demonstration effects on the robot hobbyist community. From proof of concept to system integration, each publicly shared technical milestone reduces exploration costs for those who follow.

With the proliferation of low-cost, high-performance microcontrollers (such as STM32 series, ESP32-S3) and open-source motion control firmware, individual developers building desktop robotic arms with industrial reference value is no longer an unattainable goal. These open-source firmware represent three different levels of motion control: GRBL is one of the earliest open-source CNC control firmware, running on Arduino (ATmega328P), supporting up to 3-axis G-code interpretation and stepper motor control, widely used in DIY CNC and laser engraving communities for its extreme simplicity and reliability; Marlin originally forked from GRBL, is the mainstream firmware in the 3D printing field, supporting up to 6 or more axes, with extremely rich functionality (temperature control, auto-leveling, input shaping, etc.), with runtime platforms expanding from 8-bit AVR to 32-bit ARM (such as STM32); ODrive is completely different—it is an open-source brushless motor (BLDC) servo driver project, including hardware design and firmware, capable of turning ordinary brushless motors into high-performance closed-loop servo systems, supporting position, velocity, and torque control modes. For six-axis robotic arm projects, closed-loop solutions like ODrive are particularly valuable because they provide dynamic response and overload detection capabilities that stepper motor solutions struggle to achieve. The success of synchronous control testing is powerful evidence of this trend.

Technical Milestones Worth Following

During the advancement of this project, the following milestones are worth continuous tracking:

• Stability of six-axis coordinated testing: Synchronization accuracy and reliability under long-term operation
• Inverse kinematics solution selection: Closed-form or numerical iteration directly impacts real-time performance
• Synchronization accuracy between simulation and physical entity: Can the digital twin model truly reflect physical system behavior
• Remote control robustness under network jitter: Control experience validation in real network environments

Each link is a critical checkpoint for desktop robot engineering implementation and will contribute valuable first-hand engineering experience to the community.
