Testing Robot Mechanisms with Remote Control: New Possibilities for DIY Robotics Automation

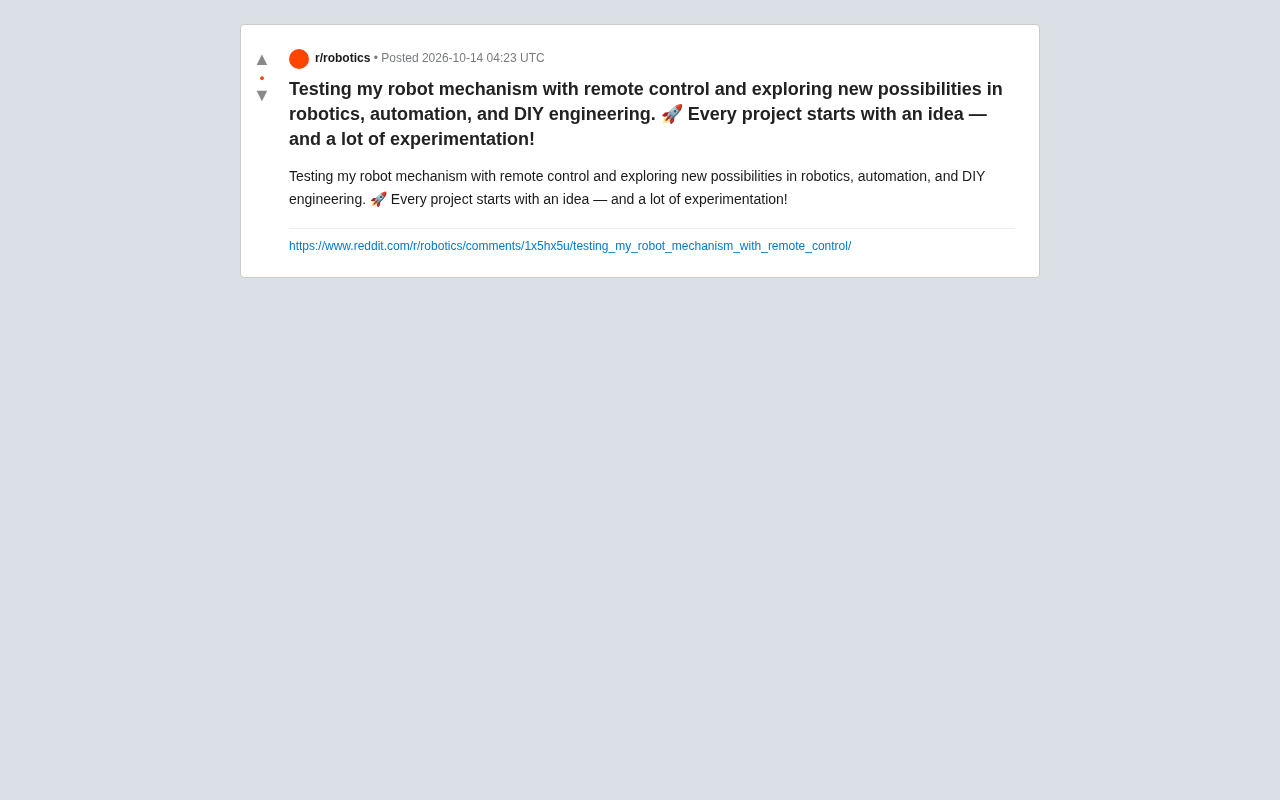

In the Reddit robotics community, a creator shared his experience of testing a homemade robot mechanism with a remote control. This seemingly simple post actually touches on a core question in DIY robotics development: How many rounds of experimentation does it take to go from an idea to a working prototype?

Why remote-control testing is a key step in robot development

Many DIY robot projects fail not because the mechanical structure was poorly designed, but because developers rush to add autonomous control logic without sufficient testing. This creator's approach was to put remote-control testing before automation—first verifying in the simplest way whether the mechanism itself can work properly.

The value of remote-control testing is that it isolates variables. A robot system usually includes multiple subsystems such as the mechanical structure, motor drive, sensors, and control algorithms. If all subsystems are running at the same time while you troubleshoot, it is very difficult to determine which layer the fault is in. Remote-control testing temporarily removes the control algorithm layer, allowing developers to focus on verifying:

• Whether the motor's direction and speed match expectations
• Whether the mechanical transmission has jamming or slipping
• Whether the power system can support multiple motors running simultaneously
• Whether the overall structure remains stable during motion

This step-by-step verification approach also applies in professional robot development.

Common design trade-offs in DIY robot mechanisms

Based on the post description, this project is a typical small DIY robot. In such projects, developers usually face several key trade-offs.

Motor choice: servo vs. DC gear motor

Servos are suitable for applications requiring precise angle control, such as robotic arm joints, but their torque and speed are limited. DC gear motors are better suited for wheeled or tracked mobile platforms and can be paired with encoders to achieve closed-loop speed control. Which solution to choose depends on the specific motion requirements of the mechanism.

The difference in drive methods between servos and DC gear motors is worth expanding on. A servo integrates a motor, reduction gear set, potentiometer, and control circuit internally. It takes a PWM signal as input, corresponding to a target angle, and is a position closed loop, so wiring is simple and use is convenient. A DC gear motor, by contrast, only has a motor and a gearbox and requires an external motor driver board (such as L298N, TB6612, or DRV8833) to control direction and speed. The input is usually a PWM duty cycle plus a direction signal. The former is suitable for scenarios of "turn to a certain angle and hold it," while the latter is suitable for scenarios of "continuous rotation." There is also the option of a brushless motor paired with an electronic speed controller (ESC), which has high power density and is common in DIY projects requiring high speed or high torque. Understanding these differences helps you choose the right power solution early in the project and avoid having to start over later.

Structural materials: 3D printing vs. metal parts

3D printing greatly speeds up iteration in DIY robotics; going from modeling to a physical object may take only a few hours. However, the strength and stiffness of printed parts are usually inferior to metal parts, and fatigue fractures are more likely under high loads or high-frequency vibration. Many experienced hobbyists combine the two—using 3D printing for prototype validation and metal parts for the final version.

Remote-control solution: traditional RC vs. custom controller

Traditional RC transmitters and receivers are inexpensive and highly reliable, making them suitable for the rapid validation stage. But if you later need to switch to autonomous control, a custom controller (such as one based on Arduino or ESP32) is more flexible at the software level. Some developers first use an RC transmitter to complete mechanism testing, then gradually replace it with autonomous control logic.

Encoders and closed-loop speed control are common concepts in mobile robot control. An encoder is a sensor installed on the motor shaft that outputs pulse signals proportional to rotational speed. Based on this, the controller estimates how many turns the wheel has actually made and what the current speed is. The so-called "closed-loop speed control" means that the controller compares the actual speed measured by the encoder with the target speed and adjusts the PWM duty cycle sent to the motor in real time according to the deviation, so that the robot can maintain the set speed even when going uphill or when the load changes. In contrast, when an ordinary DC motor is driven in open loop, a drop in battery voltage or a change in ground resistance will cause speed drift, making it difficult even to drive in a straight line. Therefore, in wheeled platforms, encoders are almost the foundation for precise motion and are also necessary hardware for transitioning from the remote-control stage to semi-autonomous and fully autonomous stages.

From remote control to automation: path planning

The "exploring new possibilities" mentioned in the post implies an intention to transition from manual control to automation. This transition usually follows a gradual path:

1. Pure remote-control stage: Verify the basic functions of the hardware and mechanism
2. Semi-autonomous stage: Introduce sensor feedback, such as using ultrasonic or infrared sensors for obstacle avoidance, while the direction of motion is still controlled by a human
3. Fully autonomous stage: Add path planning or behavior decision algorithms, and the robot decides its own motion based on sensor data

Each jump is bigger than it looks. From remote control to semi-autonomous, you need to handle sensor noise and real-time issues; from semi-autonomous to fully autonomous, you need to solve the complexity explosion of environmental perception and decision logic. Experienced developers recommend keeping the system rollback-capable at every step—if the newly added functionality is unstable, you can at least return to the previous usable state.

Sensor noise and real-time performance are the first two hurdles encountered when moving from remote control to semi-autonomous operation. Take ultrasonic sensors as an example: they calculate distance by measuring the round-trip time of sound waves, but sound waves can be absorbed by soft objects and reflected by slanted surfaces, so readings often jump or are completely wrong; infrared distance measurement is significantly affected by ambient light. Without filtering (such as median filtering or Kalman filtering), the robot may suddenly turn because of a single incorrect reading. In terms of real-time performance, the control loop must execute fast enough—usually requiring tens to hundreds of hertz—otherwise the environment has already changed by the time sensor data arrives. On microcontrollers such as Arduino, you also need to be careful that blocking code slows down the entire loop. These engineering details often determine whether semi-autonomous functionality is actually usable.

What this sharing implies for the DIY community

The value of project sharing like this on Reddit often lies not in how polished the final product is, but in the fact that it shows the real development process. The barrier to entry for robot development is lowering—open-source hardware platforms, cheap 3D printing services, and abundant community tutorials allow more people to start their own projects at lower cost.

But a lower barrier does not mean the process becomes simple. Behind every DIY robot that can run stably is a great deal of debugging, failure, and redesign. The creator's statement that "every project starts with an idea—and a lot of experimentation" is the most accurate summary of this process.

Open-source hardware platforms are one of the main forces driving down the barrier to entry for DIY robotics in recent years. Arduino is known for being simple and easy to use and for its rich library ecosystem, making it suitable for entry-level control and rapid prototyping; ESP32 adds Wi-Fi and Bluetooth on top of Arduino, making remote control and networking easier; single-board computers such as Raspberry Pi can run a full Linux system and are suitable for projects requiring vision processing or complex decision-making. Many platforms also provide companion motor driver expansion boards, sensor modules, and graphical programming environments, enabling people without an electronic engineering background to get started. Tutorials, sample code, and troubleshooting posts accumulated by the community further shorten the distance from idea to working prototype.

One-line Summary

DIY robot development should first verify the mechanism via remote control, then introduce autonomous control in stages.

Paragraph Summary

The article uses a Reddit post about testing a homemade robot mechanism with a remote control as an entry point to discuss the DIY robotics development path from idea to prototype. The core point is that remote-control testing should come before automation because it removes the control algorithm as a variable and lets developers focus on verifying basic issues such as motors, transmission, power, and structure. The article sorts out common trade-offs in DIY projects, including choices between servos and DC gear motors, 3D printing and metal parts, and traditional RC and custom controllers, and gives a gradual path from pure remote control to semi-autonomous and fully autonomous operation. Finally, it points out that open-source hardware and 3D printing have lowered the entry barrier, but debugging and iteration remain central to project success.
