Turning Claude into an Excalidraw Assistant: A New Approach to AI-Powered Diagramming

When AI Enters the Whiteboard

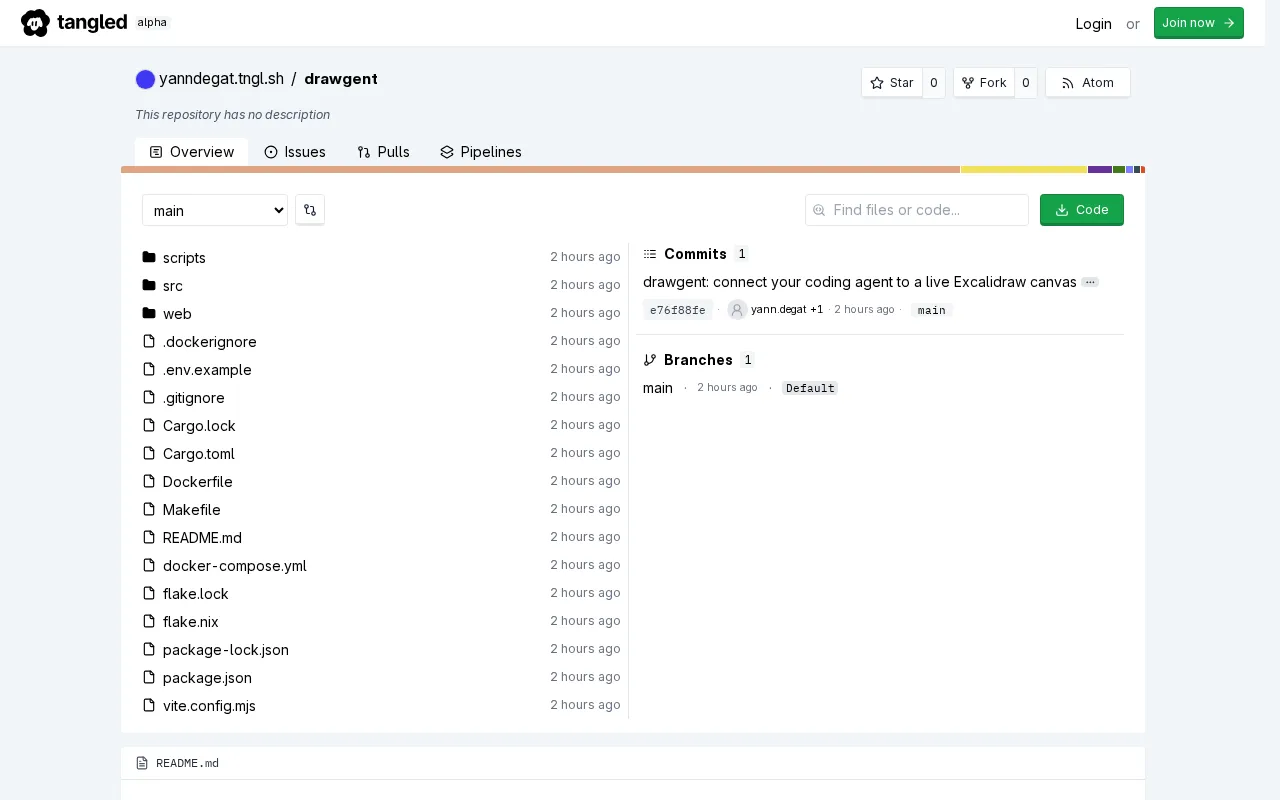

Excalidraw has become a go-to open-source whiteboard tool among developers and product teams, celebrated for its hand-drawn aesthetic, clean interface, and local-first data handling. A project surfaced on Hacker News proposes an intriguing direction: integrating Anthropic's Claude into Excalidraw to serve as an AI collaborator during the drawing process.

The core value of this kind of effort lies in bridging natural language and visual canvas. Traditionally, creating flowcharts, architecture diagrams, or wireframes requires manually dragging, connecting, and aligning elements. Once Claude gains the ability to understand canvas content and generate drawing instructions, users can create, modify, and rearrange shapes through conversation.

What Problem Does This Solve?

In real-world workflows, the barrier to diagramming isn't usually the idea — it's the execution. Translating a system architecture from your head onto a canvas demands repeated adjustments to position, style, and connections. With Claude as an assistant, several common scenarios become noticeably smoother:

From Text to Diagram

A user describes what they need in plain language — say, "draw a three-tier architecture with a frontend, API gateway, and database" — and the AI generates the corresponding Excalidraw element structure. This shifts diagramming from an operation to an expression, lowering the bar for users without a design background.

This pattern relies technically on the large language model's structured output capability — rather than returning a natural-language description, the model outputs JSON that conforms to a specific schema. Anthropic provides a Tool Use interface for Claude, allowing developers to pre-define Excalidraw element data structures as tool parameters. When Claude responds, it fills in concrete coordinates, dimensions, colors, and binding relationships instead of saying "draw a rectangle." This constrained generation is more reliable than free-form text output and makes format validation and error recovery much easier.

Iterative Editing

Diagrams are rarely finished on the first try. With conversational interaction, users can keep issuing instructions like "replace the database with a cluster" or "add a grouping box around these three nodes," and the AI makes incremental adjustments on top of the existing canvas rather than starting from scratch.

Structural Understanding

Excalidraw's scene data is fundamentally structured JSON — a format that large language models handle well. Claude can read the current canvas state, understand the relationships between elements, and output properly formatted modifications.

In Excalidraw's JSON format, each element contains base fields like id, type, x, y, width, and height. Arrow elements express connections by referencing other elements' id values via startBinding and endBinding. When canvas content is passed to Claude, the model is essentially reading a structured document describing a graph's topology. For complex diagrams with dozens of nodes, the total token count of the JSON can be substantial — which is why maintaining a multi-turn interaction loop requires context compression or passing only change diffs, to keep per-request cost and latency under control.

Key Technical Considerations

For Claude to function as a genuinely useful assistant — rather than just generating descriptions that can't be rendered — the implementation needs to address several layers:

First, canvas state serialization and deserialization. Excalidraw uses a specific element model (rectangles, arrows, text, binding relationships, etc.). The AI must use this model as the "language" for both input and output to ensure generated results can be rendered directly.

Second, prompt engineering and constraints. Letting the model freely generate coordinates and styles often leads to overlapping elements, misaligned connectors, and other layout issues. Typically, you need to provide the model with canvas conventions, layout rules, and sometimes a middleware layer for coordinate correction and auto-alignment.

Third, closing the interaction loop. An effective assistant needs to "see" the user's current canvas and update its context after each edit — otherwise, it can't support continuous multi-turn editing and instead treats each instruction in isolation.

Its Place in the Open-Source Ecosystem

The project currently has modest traction on Hacker News (around 5 points, 1 comment) and is firmly in the early exploration stage. But it reflects a rapidly emerging trend: AI is moving out of standalone chat interfaces and embedding itself into the internal workflows of productivity tools.

From open-source whiteboards like Excalidraw to design tools, note-taking apps, and IDEs, the pattern of "embedding AI into existing tools" holds clear advantages over "building a new tool from scratch" — it reuses habits and data users already have, reduces adoption friction, and lowers the cost of integration.

Limitations Worth Acknowledging

Objectively, this category of project still faces real challenges. AI-generated layout quality is inconsistent, and complex diagrams often require manual cleanup. Conversational diagramming is efficient for simple scenarios, but as diagrams grow in complexity, precise control becomes harder than just doing it by hand. Connecting to an external AI API also raises data privacy and cost tradeoffs — a tension with Excalidraw's longstanding commitment to local-first design.

For developers interested in exploring this space, it remains a direction worth watching. As models improve at structured output and multimodal understanding, the experience of "drawing by talking" has real room to mature.

The root cause of layout quality issues is that large language models are fundamentally probabilistic text-prediction systems — they don't have spatial or geometric reasoning capabilities. Without external assistance, they struggle to guarantee that nodes don't overlap, arrows don't cross, and the overall diagram looks balanced. Common mitigation strategies include: injecting grid-alignment rules into the prompt, constraining coordinate values to multiples of a fixed step size, or running a programmatic layout algorithm (such as ELK or Dagre) as a post-processing step to recalculate positions after the model responds. These post-processing steps can significantly improve output quality, but they also add engineering complexity.
