Vectorizing CLZ and CTZ: A Deep Dive into SIMD Bit Operation Optimization

From Scalar to Vector: The Performance Leap in Bit-Counting Instructions

CLZ (Count Leading Zeros) and CTZ (Count Trailing Zeros) are among the most commonly used bit manipulation instructions in modern processors. They appear widely in floating-point normalization, hash table probing, bitmap indexing, compression algorithms, and fast lookup routines across various data structures. Scalar CLZ/CTZ have long been native instructions on mainstream CPUs — but when you need to execute these operations simultaneously across multiple data lanes within a vector register, things get considerably more complex.

The core challenge of vectorized CLZ and CTZ is this: how do you leverage a SIMD (Single Instruction, Multiple Data) architecture to count leading or trailing zeros across multiple data elements in parallel, within a single instruction cycle? This is not just a question of instruction set design — it demands a clever combination of low-level algorithmic techniques.

Why Vectorization Isn't Straightforward

Not all instruction sets natively provide vectorized bit-counting instructions. ARM's NEON, for example, offers a vector form of CLZ, while many x86 SIMD extensions (such as SSE and AVX2) went without a direct vectorized CLZ/CTZ for a long time. Developers have had to rely on a variety of workaround techniques — exploiting the exponent bits of floating-point numbers, lookup tables (LUTs), or cascaded bit manipulation operations.

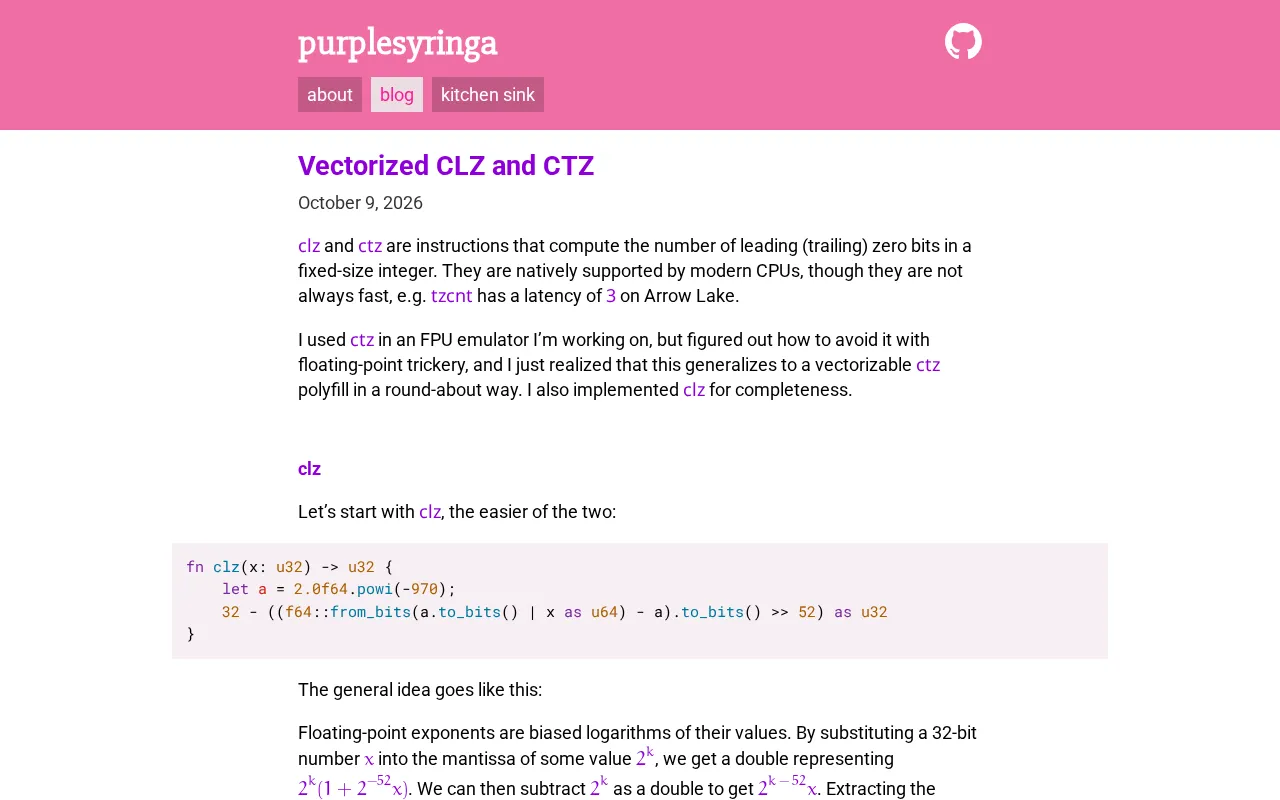

One classic trick is to convert an integer to a floating-point number, then extract the exponent field from its IEEE 754 representation to indirectly determine the position of the most significant bit. This cleverly borrows the normalization capability of the hardware floating-point unit, but introduces challenges around precision and edge cases — zero inputs and large integers that exceed the representable range of floating-point precision both require special handling.

For CTZ, a common approach is to use x & (-x) to isolate the lowest set bit, then combine it with a de Bruijn sequence lookup to determine the bit position. Vectorizing these scalar techniques requires ensuring that each data lane executes independently and correctly, without any cross-lane interference.

The reason the IEEE 754 exponent-bit trick works lies in the encoding rules themselves: a single-precision float stores the exponent in 8 bits using a biased representation (bias = 127). When an unsigned integer n is converted to float, the exponent field of the normalized result equals floor(log2(n)) + 127. Extracting the exponent and subtracting the bias thus yields the position of the most significant bit, from which the leading zero count follows directly. On x86, CVTDQ2PS can convert an integer vector to floating-point, after which bit shifts and masks extract the exponent field — the entire process is branch-free. The main limitations are: a zero input produces -∞ (all-zero exponent), requiring extra handling; and for 32-bit integers exceeding 2²⁴, single-precision mantissa precision is insufficient for exact representation, causing the exponent field to be understated — requiring double precision or an alternative approach.

Implementation Paths and Trade-offs

When implementing vectorized CLZ/CTZ, engineers typically weigh several competing approaches:

Native Instructions First

If the target platform provides native vectorized instructions (such as certain AVX-512 extensions or ARM SVE), using them directly is obviously the optimal choice, delivering maximum throughput and minimum latency.

AVX-512's VPLZCNTD/VPLZCNTQ instructions (part of the AVX-512 CD subset) can perform leading zero counts on all 32-bit or 64-bit integer lanes in a 512-bit register in a single instruction — the most direct vectorized CLZ implementation available on x86. ARM SVE provides a vector form of CLZ along with variable-length vector registers, allowing the same code to adaptively select vector width across different hardware, simplifying portability. Note that AVX-512 CD is not present on all CPUs that support AVX-512 — some Skylake-X server CPUs, for instance, do not include this subset. Always verify via CPUID before deployment, or rely on compiler feature flags (such as GCC's -mavx512cd) for conditional compilation.

Lookup Tables and de Bruijn Sequences

Where native support is unavailable, lookup tables are the classic fallback. With a precomputed table, bit counting can be completed in just a handful of instructions. Vectorized table lookups rely on byte-shuffle instructions like pshufb, but the limited table entry size means you often need to split the nibbles (high and low half-bytes) and merge the results.

A de Bruijn sequence is a cyclic sequence in which every possible substring of length k appears exactly once. In bit counting, the common trick is to select a specific 32-bit de Bruijn constant (such as 0x077CB531), multiply the lowest set bit value obtained from x & (-x) by this constant, then right-shift by 27 bits. The resulting 5-bit index uniquely maps to a bit position in a precomputed table. This is essentially a perfect hash: the multiplicative diffusion property maps all 32 powers of two to unique indices in the range 0–31. When vectorized, both the multiplication and the shift can be handled with SIMD instructions, while the table lookup relies on VPSHUFB (applied twice for the high and low nibbles) or gather instructions. Compared to the floating-point approach, de Bruijn lookup tables are more integer-unit-friendly and free from precision issues — making them one of the go-to techniques for simulating vectorized CTZ under x86 AVX2.

The Floating-Point Conversion Trick

The method that extracts information from floating-point exponents can yield more compact code in some scenarios, but its correctness depends heavily on rigorous handling of edge cases, making it more expensive to debug and less portable across platforms.

The choice between these approaches is fundamentally about balancing throughput, latency, code maintainability, and cross-platform compatibility. For performance-critical hot paths, hand-tuning for a specific architecture is often worthwhile. For general-purpose libraries, a portable composite implementation tends to be the more pragmatic choice.

Practical Value and Use Cases

Vectorized bit counting has real, tangible value in high-performance computing. In database engines, batch scans of bitmap indexes can use vectorized CTZ to quickly skip over empty slots. In compression and encoding algorithms, leading zero counts determine the bit width for variable-length encoding. In graphics and scientific computing, floating-point normalization also indirectly benefits from efficient CLZ implementations.

When the data scale is large enough that bit operations become a bottleneck, replacing scalar loops with vectorized implementations can deliver several-fold performance improvements. That said, vectorization itself carries overhead — data loading, lane alignment, and tail element handling all introduce additional cost. Vectorization truly pays off only when processing data in bulk at sufficient volume.

Summary

Vectorized CLZ and CTZ represent a classic engineering challenge at the frontier of low-level performance optimization — one that demands both deep instruction set knowledge and algorithmic ingenuity. As more modern SIMD architectures like AVX-512 and ARM SVE progressively adopt native bit-counting instructions, the burden of manual emulation is easing. Yet understanding these underlying techniques remains important — for writing high-performance code and for making sense of what compilers are doing under the hood.

Note: This article is based on a discussion thread from the Hacker News community. Source material is limited in scope; for specific implementation details, please refer to the relevant instruction set manuals and the original community discussion.
