Why Can Gyroscopes Be So Small? Unpacking MEMS Technology

Gyroscopes are everywhere—in phones, drones, game controllers, and even cars. But many people are surprised the first time they open up a device: that chip just a few millimeters square is really a gyroscope? It has no shaft, no rotor, yet it can sensitively sense rotation.

Recently, a Hacker News discussion titled "Gyroscopes Got So Small" drew attention, and in the comments section many engineers exchanged technical views on the miniaturization path of MEMS gyroscopes. From macroscopic mechanical gyroscopes to vibrating structures on silicon wafers, the miniaturization of gyroscopes is not simply a matter of shrinking them down—it is a redesign at the level of principle.

From Rotation to Vibration: Only When the Principle Changes Can the Size Change

Traditional mechanical gyroscopes rely on conservation of angular momentum: a rotor spinning at high speed keeps the direction of its axis unchanged in space. This kind of structure has high measurement accuracy, but it is bulky, power-hungry, and has moving parts that wear out. Typical examples include gyroscopes on early aircraft and missiles, which were often the size of a fist or even larger.

Microelectromechanical systems (MEMS) gyroscopes instead use a vibratory approach. A proof mass fabricated through silicon micromachining vibrates at high frequency under the action of drive electrodes. When the device rotates, the Coriolis force deflects the direction of vibration, and by detecting capacitance changes the angular velocity can be calculated. According to engineering practitioners in the Hacker News discussion, this approach has no macroscopic rotating parts, and the entire sensitive structure can be directly photolithographically formed on a silicon wafer, so the size naturally drops to the millimeter scale.

The Coriolis force is the key to understanding vibratory gyroscopes. It is a kind of "virtual force": when an object moves in a straight line in a rotating reference frame, an observer will see its trajectory bend. Specifically, if the proof mass vibrates along the X axis while the entire device rotates about the Z axis, then the proof mass experiences a Coriolis force along the Y axis, with magnitude proportional to the angular velocity of rotation. MEMS gyroscopes exploit exactly this effect: the drive mode makes the proof mass vibrate at high frequency in the plane, rotation couples part of the vibration energy into the orthogonal sense mode, and the sense electrodes read out this tiny displacement through capacitance changes and then infer the angular velocity. Because the Coriolis force is proportional to the drive velocity, the drive frequency is usually chosen near the structural resonant frequency to amplify the response. This also explains why MEMS gyroscopes are especially sensitive to the stability of drive amplitude, quadrature coupling errors, and temperature drift—all of these directly affect bias accuracy.

Silicon Micromachining: The Manufacturing Foundation Behind the Small Size

The widespread adoption of MEMS gyroscopes depends not only on design but also on manufacturing. Semiconductor processes allow micron-scale beams, combs, and electrodes to be fabricated in batches on silicon wafers, and a single tape-out can produce hundreds or thousands of sensitive structures.

Someone in the comments pointed out that the yield and stability of early MEMS gyroscopes were the main bottlenecks, and that temperature drift and packaging stress could both affect bias. As processes such as deep reactive ion etching and wafer-level vacuum packaging matured, these problems were gradually brought under control, and only then did MEMS gyroscopes move from the laboratory to consumer electronics.

Deep reactive ion etching (DRIE) is a core process in MEMS gyroscope manufacturing. It uses alternating etching and passivation steps to carve high-aspect-ratio vertical structures into silicon wafers, such as beams and combs several microns wide and tens of microns deep. This "deep silicon etching" capability allows the sensitive structure to be made both thin and tall, ensuring mechanical strength while also providing sufficient capacitive sensing area. Another key technology is wafer-level vacuum packaging: bonding the MEMS chip to a cap wafer in a vacuum environment reduces air damping, increases the quality factor, and at the same time isolates moisture and particulate contamination. If packaging stress is not well controlled, it can deform the silicon structure and cause bias to drift with temperature or time. Therefore, packaging is not just protection—it is an important part of determining the long-term stability of a gyroscope.

The Trade-off Between Precision and Size: It Is Hard to Be Both Small and Accurate

There were also disagreements in the discussion. Some commenters believed that MEMS gyroscopes are already good enough, and that navigation and image stabilization in phones depend on them; but other professionals cautioned that miniaturization inevitably sacrifices some performance. The bias stability of MEMS gyroscopes is usually far lower than that of fiber-optic gyroscopes and ring laser gyroscopes, and high-precision scenarios such as submarines and aerospace still rely on larger optical gyroscopes.

This is not a technological regression, but rather application stratification: consumer-grade devices want small, cheap, and good enough; strategic-grade devices want extreme precision and can accept the size and cost.

Bias stability is one of the core metrics for measuring gyroscope precision. It refers to the degree to which the output drifts over time under zero input, usually expressed in degrees per hour (°/h). The bias stability of consumer-grade MEMS gyroscopes may be several degrees to several tens of degrees per hour, while fiber-optic gyroscopes can achieve 0.01°/h or even lower, and ring laser gyroscopes even more. The gap mainly comes from physical principles: MEMS relies on detecting tiny capacitance changes, so the signal is weak and susceptible to temperature and stress interference; optical gyroscopes use the Sagnac effect, and the longer the optical path and the larger the area, the higher the sensitivity, which makes it difficult to reduce size. In addition, the angle random walk of MEMS (which characterizes short-term noise) is also usually greater than that of optical gyroscopes. So application stratification is not an engineering compromise, but an inevitable trade-off among precision, size, and cost for different physical mechanisms.

Conclusion

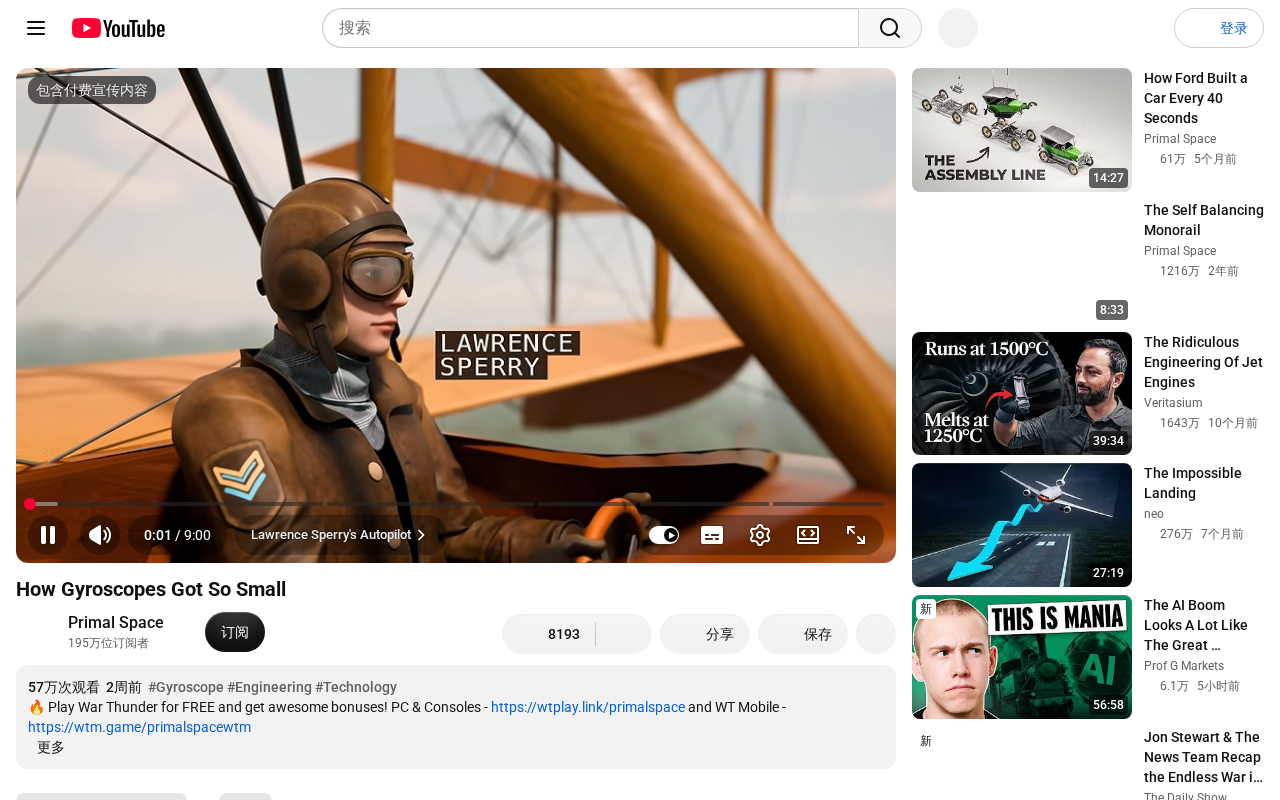

The shrinking of gyroscopes is essentially the result of principle innovation and semiconductor processes working together. From rotors to vibrating structures, from mechanical assembly to batch manufacturing on silicon wafers, every step determines whether it can fit into your phone. The value of this video and discussion may not lie in some specific parameter, but in reminding us that behind many "taken-for-granted" small components there is an engineering evolution lasting decades.

One-line Summary

MEMS gyroscopes replace mechanical rotors with vibrating structures and the Coriolis force, using silicon micromachining to achieve millimeter-scale size, though they still remain stratified from optical gyroscopes in precision applications.

Paragraph Summary

Starting from a Hacker News discussion about gyroscope miniaturization, the article explains why MEMS gyroscopes can be made so small. Traditional mechanical gyroscopes rely on high-speed rotors and conservation of angular momentum, making them bulky and power-hungry; MEMS approaches instead use vibrating proof masses fabricated by silicon micromachining, exploit the Coriolis force to deflect the vibration direction, and infer angular velocity through capacitive detection, thereby shrinking the sensitive structure to the millimeter scale. In manufacturing, semiconductor processes such as deep reactive ion etching and wafer-level vacuum packaging are the foundation for mass production and stability, and early yield and temperature drift problems have gradually improved as the processes matured. But miniaturization is not without cost: the bias stability of MEMS gyroscopes is far lower than that of fiber-optic gyroscopes and ring laser gyroscopes, and high-precision scenarios still rely on optical gyroscopes. The article thus points out that the shrinking of gyroscopes is the result of both principle innovation and semiconductor manufacturing, and also reflects the stratified trade-offs between precision, size, and cost in consumer-grade and strategic-grade applications.
