A $120 Robot Arm Learns to Actively Search: How Squint Breaks the Field-of-View Barrier

When the Robot's Workspace Exceeds Its Field of View

In the field of Visual Reinforcement Learning (Visual RL), the vast majority of research is built on an implicit assumption: the target object is always within the camera's field of view (FOV). Visual RL sits at the intersection of reinforcement learning and computer vision, with the core idea of letting an agent learn policies directly from pixel images rather than relying on hand-crafted state features. This paradigm achieved a breakthrough with Atari games (DQN, 2013) and has since extended to robotic manipulation tasks — yet the "target is always visible" assumption has almost never been directly challenged along the way.

This assumption greatly simplifies the problem: the policy network only needs to handle scenes it can "see," with no need to deal with exploration under uncertainty. But the real world is far less forgiving. Objects may be occluded, or simply outside the field of view — robots must actively move and search, just like humans, in order to complete a task.

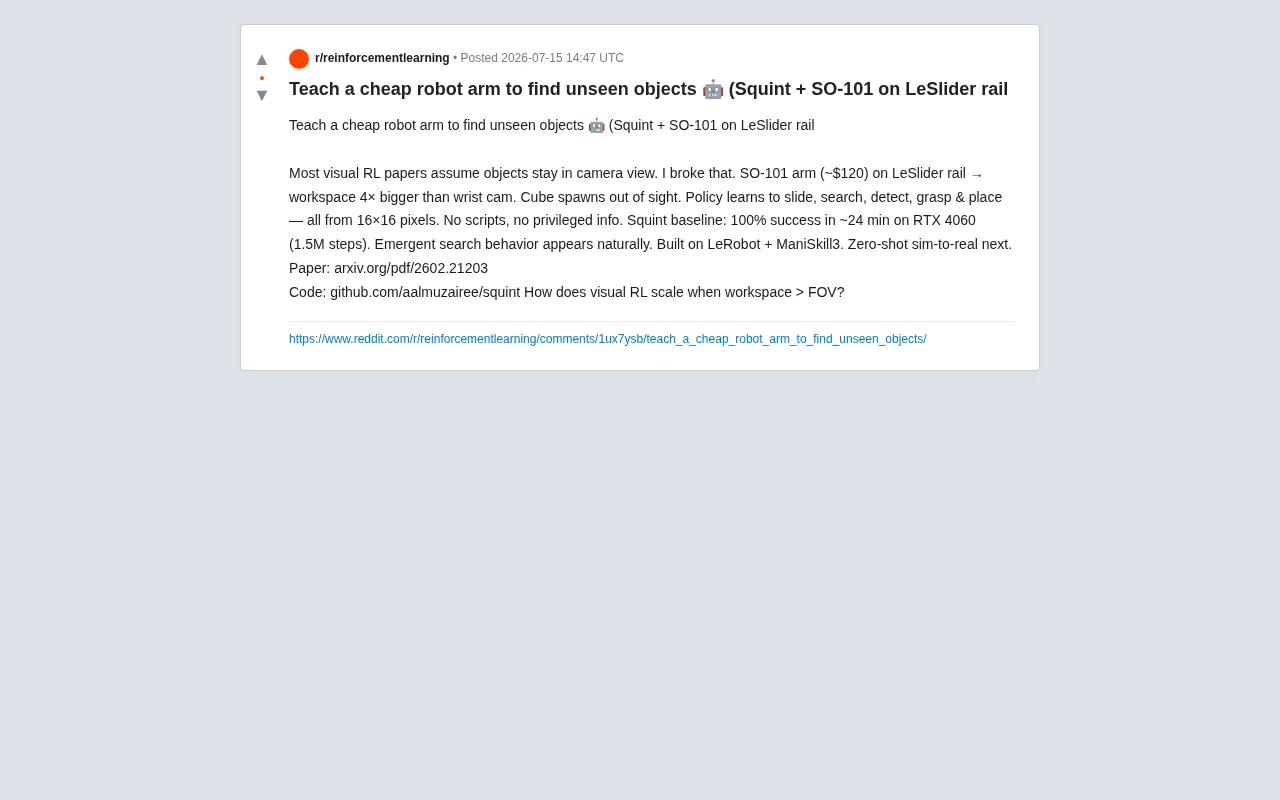

A recent open-source project called Squint directly challenges this deeply entrenched assumption. The researchers used a SO-101 robotic arm costing roughly $120, mounted on a LeSlider linear rail, expanding the workspace to 4× the wrist camera's field of view. The SO-101 is a low-cost serial manipulator developed by the open-source robotics community, driven by standard servos and 3D-printed structural parts — keeping the total cost in the low hundreds of dollars. Compared to industrial-grade arms like the UR5 or Franka Panda, which can cost tens of thousands to hundreds of thousands of dollars, this class of low-cost hardware has dramatically lowered the barrier to entry for embodied AI research. The LeSlider is a linear guide module that adds one translational degree of freedom to a fixed-mount robot arm at minimal cost, with straightforward motion planning and stable control — maximally expanding the workspace with minimal engineering complexity. In this setup, the target cube spawns outside the camera's field of view, and the robot must learn to "find" before it can "grasp."

Active Search Behavior Emerging from 16×16 Pixels

Perhaps the most surprising aspect of this work is how "bare-bones" its input is. The entire policy is learned from only 16×16 pixel visual input — a resolution so low that object details are barely discernible. Even the early MNIST handwritten digit dataset used 28×28 resolution. Yet in reinforcement learning, low-resolution input has deep technical motivation: a smaller state space means fewer sample requirements, faster feature extraction, and stronger generalization. It's worth noting that Vision Transformers (ViT) split images into 16×16 patches as their basic processing unit, which in some ways validates the expressive potential of information at this granularity. At 16×16, the image is forced to strip away texture details and retain only high-level semantic information — object position, direction of motion — which is precisely the core perceptual dimension needed for the "search-and-grasp" task. Yet this "bare-bones" input is sufficient to give rise to a complete chain of complex behaviors.

A Complete Behavioral Loop

The policy must autonomously complete an entire pipeline: slide → search → detect → grasp → place. Critically, the process relies on neither scripted preset actions nor any "privileged information" (i.e., ground-truth object coordinates and other data only available in simulation). The robot figures out the complete strategy entirely through trial-and-error interaction with the environment via reinforcement learning.

Active Search as an Emergent Behavior

The researchers particularly emphasize that active search behavior emerges naturally (emergent search behavior). Emergent behavior is a core concept in complex systems science, referring to the spontaneous appearance of complex functionality beyond design intent, arising from simple rules and interactions. Classic examples in the reinforcement learning context include: OpenAI's multi-agent hide-and-seek experiment where AI spontaneously invented the strategy of "using ramps to climb over obstacles," and AlphaGo Zero independently rediscovering hundreds of years of Go theory without any human game records. The emergent search behavior in Squint is, in essence, the policy network discovering under the pressure of sparse task rewards that "expanding the field of view is a necessary precondition for grasping" — an instrumental sub-goal. This behavior was not explicitly programmed; it grew naturally from the task structure and reward signal, which is one of the most fascinating qualities of reinforcement learning.

Efficient Training on Consumer-Grade Hardware

On the training efficiency front, Squint's baseline results are equally impressive. According to the researchers, on a consumer-grade RTX 4060 GPU, only about 24 minutes and 1.5 million training steps are needed to reach a 100% task success rate. This speed is largely attributable to the GPU-parallelized architecture of the underlying simulation platform ManiSkill3, built on the SAPIEN physics engine — its single-GPU parallel throughput can reach hundreds of times that of traditional CPU-based simulators, making it the key infrastructure enabling such efficient training.

This carries two layers of significance. First, it demonstrates that even in the harder setting of "workspace larger than field of view," the problem remains tractable and converges quite quickly. Second, it dramatically lowers the hardware barrier — the RTX 4060 is a GPU affordable to ordinary gamers, and combined with a sub-$200 robotic arm, the total reproduction cost of the entire system is pushed to an extremely low level, making it highly valuable for academic replication, educational practice, and individual hobbyist exploration.

Built on the Open-Source Embodied AI Ecosystem

Squint was not built from scratch — it stands on the shoulders of mature open-source tools, built on top of LeRobot (Hugging Face's robot learning framework) and ManiSkill3 (a high-performance robotic manipulation simulation platform).

LeRobot is an open-source robot learning framework launched by Hugging Face in 2024, aiming to replicate the "model sharing + standardized interface" ecosystem that Hugging Face established in NLP/CV into the robotics domain. It provides a unified dataset format (LeRobot Dataset), a library of pretrained policy models, and standardized interfaces with mainstream simulators, significantly lowering the engineering barrier for robot learning research. ManiSkill3, maintained by institutions including Hong Kong University, is known for its highly parallelized GPU simulation capabilities and is the core infrastructure supporting Squint's efficient training.

The combination of "open-source hardware + open-source framework + open-source code" represents an important trend in current embodied AI research: by reducing costs and increasing reproducibility, more researchers can participate in the frontier of robot learning. The project code is publicly available on GitHub (github.com/aalmuzairee/squint), with the paper simultaneously published on arXiv.

Next Step: Zero-Shot Sim-to-Real Transfer

The researchers reveal that the next direction is zero-shot sim-to-real transfer — the ultimate test for any robot policy trained in simulation. The so-called "Reality Gap" between simulation and the real world manifests primarily in: visual domain differences (textures, lighting, sensor noise), physical dynamics discrepancies (friction coefficients, contact force modeling errors), and actuator latency and nonlinear characteristics. The mainstream strategies for addressing this include domain randomization (randomizing visual and physical parameters during simulation) and domain adaptation (aligning image distributions via GAN and similar methods).

Notably, the ultra-low 16×16 resolution input may actually be a hidden advantage for sim-to-real transfer: the visual differences between simulation and reality largely exist in high-frequency texture details, not in low-frequency spatial position information. Low-resolution input naturally discards the former while retaining the latter — a mechanism highly aligned with the goals of domain randomization. By aggressively applying an "information bottleneck," the policy's reliance on visual details is minimized, potentially making it easier to bridge the gap between simulation and reality and producing unexpectedly positive effects in zero-shot transfer.

Active Perception: A Core Problem Long Avoided

The researchers close with an open question: How does Visual RL scale when the workspace is larger than the field of view?

This question cuts to the core of embodied AI's challenges and touches on Active Perception — a research direction with deep academic roots. Active perception as a formal field of study traces back to Ruzena Bajcsy's foundational 1988 paper in IEEE Proceedings, whose central claim is that perception is fundamentally an active process: agents should actively control the orientation, position, and parameters of their sensors according to task requirements, rather than passively receiving information. This idea was constrained by computational resources at the time and could not be fully developed, until the rise of deep reinforcement learning gave it new life — in attention mechanisms for visual question answering, active robotic SLAM, and active viewpoint planning for Neural Radiance Fields (NeRF).

When humans and animals act in the physical world, they never assume the target is always visible — we constantly move our heads and bodies to actively construct our understanding of the environment. Yet current robot learning paradigms remain largely confined to the comfort zone of "passive perception." The value of Squint may not lie in solving a specific task, but in using an extremely simple, low-cost setup to put the long-avoided problem of "active perception" back on the table — and proving with a 100% task success rate that this problem can be effectively addressed through end-to-end learning.

As sim-to-real transfer validation progresses, this line of research has the potential to open a new path for low-cost, reproducible embodied AI exploration.
