A Quadruped Robot Lifts Its Foot 4mm: The Full Breakdown of Servo Load and Mechanical Challenges

A Deceptively Simple Goal: Making a Robot Dog Lift Its Foot

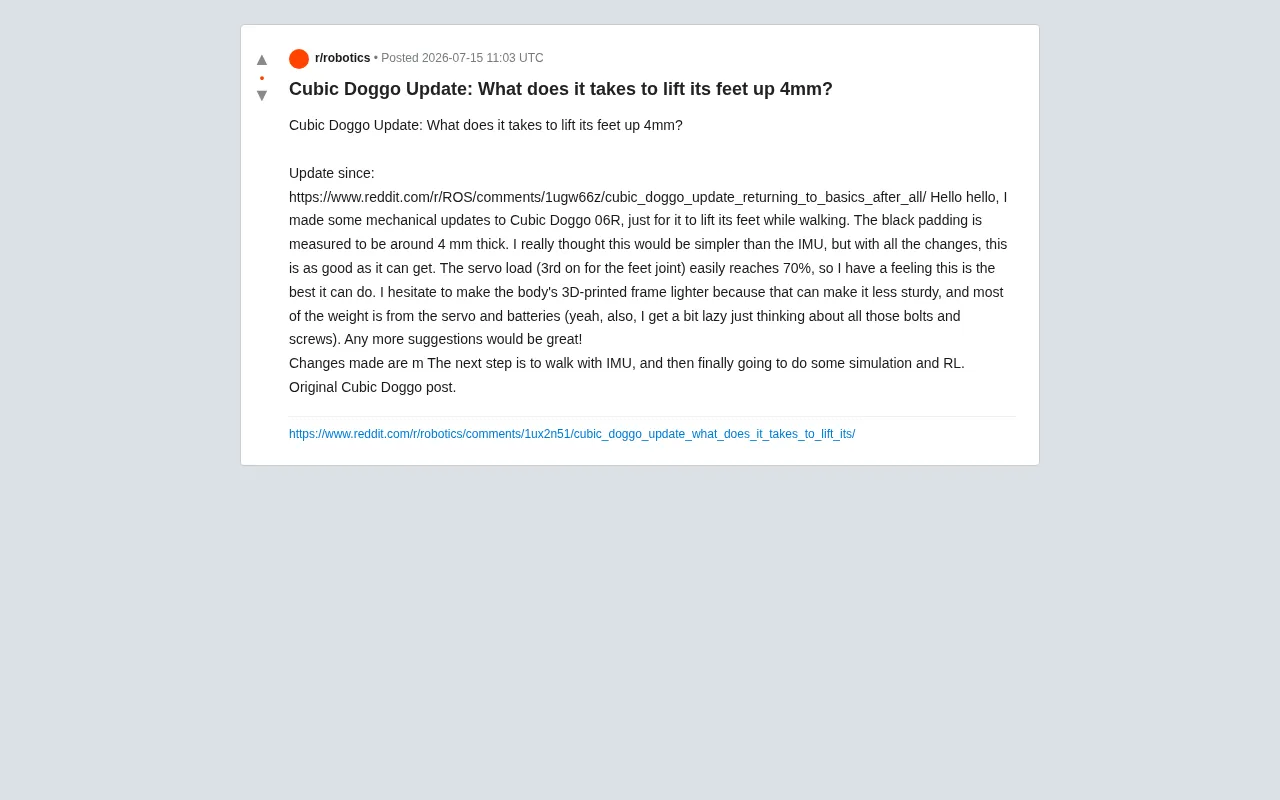

In robotics development, some goals sound trivial until you actually try to implement them — that's when the hidden complexity reveals itself. A robotics enthusiast recently shared an update on their quadruped robot project, "Cubic Doggo 06R," in Reddit's ROS community. The goal seemed modest: get the robot dog to lift its feet about 4 millimeters while walking.

The developer admitted they originally thought this would be far simpler than dealing with IMU data — but after a series of mechanical changes, they discovered it was anything but. "This is the best it can do right now" — a phrase that captures the stubborn, slightly exasperated spirit of DIY robotics development.

About IMU: An IMU (Inertial Measurement Unit) is a sensor module integrating an accelerometer, gyroscope, and sometimes a magnetometer. It measures linear acceleration, angular velocity, and attitude angles (pitch, roll, yaw) in real time. In quadruped robots, the IMU is the core sensing element for dynamic balance control — but its raw data is noisy and typically requires Kalman filtering or complementary filtering for fusion, and is susceptible to integration drift. This is precisely why the developer placed IMU integration in Phase 2: introducing complex sensor fusion on top of an unstable hardware platform would only make debugging worse.

The Mechanical Engineering Challenges Behind 4 Millimeters

Servo Load Approaching Its Limit

To achieve the lifting motion, the developer added approximately 4mm-thick black rubber pads to the robot's feet. But the real bottleneck emerged in the drive system — the third servo responsible for the foot joint was running at "easily 70% load."

That number is critical. Servos are the core actuators for joint drive in quadruped robots. A 70% load means the actual output torque is already at 70% of the rated maximum. The danger: dynamic loads during walking are anything but stable — ground impacts, acceleration/deceleration, and center-of-mass shifts all generate instantaneous peak torques. If the static load is already at 70%, peak moments can easily exceed the rated value, triggering thermal protection (causing sudden gait instability) or permanent damage.

Industrial-grade quadrupeds like Boston Dynamics' Spot use custom brushless motors with gearboxes, leaving ample torque margin. DIY projects, constrained by budget, typically use consumer-grade PWM servos whose continuous operating torque is often only 50%–60% of peak torque. Standard engineering practice recommends maintaining a 30%–40% torque reserve.

A servo running continuously at 70% load leaves almost no headroom for unexpected movements or additional resistance, and signals a chain of problems: increased heat, shortened lifespan, and degraded motion accuracy. For gait control, insufficient actuator margin is a hard constraint — and it's exactly why the developer concluded they may have "already hit the limit."

The Weight-vs-Rigidity Dilemma

The second core contradiction the developer faces is the trade-off between weight reduction and structural rigidity. They considered making the 3D-printed chassis frame lighter to reduce servo load, but quickly realized doing so would sacrifice overall structural integrity.

This dilemma is especially common in 3D-printed robot projects. There are generally two approaches to lightening a frame: reduce infill density or wall thickness (which directly weakens rigidity), or use topology-optimized designs (bio-inspired skeletal structures) that maintain strength while cutting weight — but this requires professional FEA tools. Quadruped robot frames must also withstand cyclic vibration and impact loads during locomotion, and overly thin printed parts are prone to fatigue cracking. Professional robotics companies typically resolve this with aluminum alloy or carbon fiber composites — materials that are generally out of reach for DIY budgets.

More practically, the robot's primary weight comes from the servos and battery — precisely the components that can't easily be cut. The gains from lightening the frame are limited, while the cost in structural strength is real. The developer half-jokingly mentioned feeling "a bit lazy thinking about all those bolts and screws" — a comment that surfaces an often-overlooked hidden cost of hardware iteration: the physical labor of mechanical rework is itself a form of friction.

Roadmap: From Mechanical Tuning to Intelligent Control

A Phased Development Strategy

What's notable here is the developer's clear technical roadmap. The mechanical implementation of foot-lifting is just the starting point. They've outlined three subsequent phases:

• Phase 1: Complete basic foot-lifting locomotion (current progress)
• Phase 2: Integrate IMU for attitude sensing and balance control
• Phase 3: Enter simulation environments, ultimately applying reinforcement learning (RL)

This "mechanics first, then sensing, then intelligence" progressive approach follows standard robotics engineering logic. Getting the basic movements working reliably at the hardware level first — before layering in sensor fusion and algorithm optimization — effectively avoids the "debugging hell" that comes from tuning high-level algorithms on top of an unstable physical platform.

The Value of Simulation and Reinforcement Learning

Placing reinforcement learning at the end of the roadmap is a sound decision. RL has made breakthrough advances in quadruped gait control in recent years — research from ETH Zurich, UC Berkeley, and others has shown that RL policies trained in simulation can enable quadruped robots to achieve near-animal-level gait adaptability on rough terrain, without relying on precise dynamic modeling. Quadruped locomotion is inherently a high-dimensional, multi-constraint control problem. Training RL policies in simulation allows exploration of more efficient gait strategies without wearing out real hardware — especially that servo already running at 70% load.

However, sim-to-real transfer is itself a well-recognized core challenge in quadruped robotics. Simulation environments cannot perfectly replicate real-world friction, elastic deformation, motor delays, and other physical details — meaning policies that perform well in simulation may fall short on real hardware. To bridge this gap, researchers have developed techniques like Domain Randomization and System Identification. The servo load problem exposed in this project would be further amplified during sim-to-real transfer: if the simulator assumes actuator capabilities beyond what the real servos can physically deliver, the trained policy may simply be unexecutable on the actual robot.

Lessons for DIY Robotics Developers

This project is small in scale, but it reflects the typical challenges individual developers encounter in quadruped robotics:

Actuator selection matters far more than expected. Servos are the core cost and performance bottleneck in quadruped robots. Insufficient torque margin almost entirely determines the motion ceiling of the entire platform. Building in adequate servo headroom early (at least 30%–40% is recommended) is almost always more economical than repeated late-stage tuning.

Mechanical and software challenges deserve equal respect. The developer initially underestimated the mechanical difficulty, thinking the IMU would be more complex — a reminder that robots are deeply software-hardware coupled systems, and a weakness in any single component becomes the ceiling for the whole.

Embrace pragmatism: "good enough" is a legitimate engineering judgment. When the developer says "this is the best it can do right now," they're making a rational compromise within hardware constraints. For DIY projects, recognizing what can be optimized versus what is a hard physical constraint is itself a mark of engineering maturity.

Conclusion

This update to Cubic Doggo 06R looks, on the surface, like the minor achievement of "lifting a foot 4 millimeters" — but behind it lies a tug-of-war between servo load, structural strength, and weight distribution. For robotics enthusiasts following development projects, honest and candid development logs like this are often more valuable than polished showcase demos — they authentically portray the long road from mechanical prototype to intelligent control, where every step requires constant negotiation between ideals and reality. From the filtering challenges of IMU data fusion, to the sim-to-real gap in RL policy transfer, to the hard constraints of servo torque margin — every technical checkpoint along this path is worth exploring in depth. We look forward to seeing what this developer shares when they reach the IMU integration and reinforcement learning phases.
