Core Technology Behind WebRTC-Powered Real-Time Voice Agent Conversations
How WebRTC powers real-time audio capture, transport, and playback in AI Voice Agent applications.
This article systematically explains the core role and complete workflow of WebRTC in AI Voice Agent applications. WebRTC captures microphone audio via the getUserMedia API, establishes connections through PeerConnection, performs media and network negotiation via SDP and ICE, and transmits bidirectional audio streams between client and server. On the server side, an AI pipeline of STT, LLM, and TTS processes and generates spoken responses, which the client plays back via srcObject. The article clearly delineates the responsibilities of WebRTC (transport layer) and AI (application layer), and outlines key knowledge areas developers must master.
In AI voice conversation applications, WebRTC plays a critical role as the core transport layer. This article takes a deep dive into how WebRTC is applied in Voice Agents, helping developers understand the underlying principles of real-time voice interaction.
The Core Role of WebRTC in Voice Agents
For a Voice Agent to enable real-time voice conversations with AI, WebRTC provides the essential foundational capabilities. This manifests in two key areas:
Audio Capture: When a user engages in voice interaction with an AI, the system needs to access the user's microphone input. The getUserMedia API provided by WebRTC can directly access the user's media devices, enabling high-quality audio capture. It offers a unified calling interface for both web and mobile platforms.
Audio Playback and Return: After the AI processes the user's voice request, the generated audio content needs to be streamed back to the client in real time for playback. This process relies on WebRTC's streaming capabilities to ensure a smooth, low-latency conversational experience.
The Complete WebRTC Workflow
Connection Establishment and Negotiation
The WebRTC workflow begins with establishing a PeerConnection. When a user opens a Voice Agent application, the client establishes a WebRTC connection with the server. This process includes a critical SDP (Session Description Protocol) exchange for completing both media and network negotiation.
Media negotiation determines the audio codec formats, sample rates, and other parameters supported by both sides, while network negotiation uses the ICE (Interactive Connectivity Establishment) protocol to find the optimal network transmission path. Only after these negotiations are complete can a stable real-time communication channel be established.
Upstream Audio Transmission
Once the connection is established, the audio data captured by the client is transmitted in real time to the server through the WebRTC channel. Upon receiving the audio stream, the server first converts speech to text using STT (Speech-to-Text) technology, then passes it to a large language model for semantic understanding and response generation, and finally converts the text back to speech using TTS (Text-to-Speech) technology.

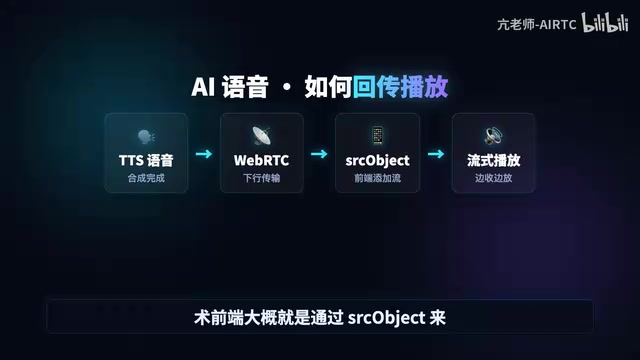

Downstream Audio Playback
The speech generated by the server needs to be sent back to the client. The front end binds the received media stream to an audio element via the srcObject property to enable streaming playback. This mechanism allows users to hear the AI's real-time responses without waiting for the complete audio to be generated, significantly enhancing the interaction experience.
Division of Responsibilities: WebRTC vs. AI
In a Voice Agent system, WebRTC and AI technologies each handle distinct responsibilities while working in tandem:
WebRTC handles the transport layer:
- Client-side audio capture (
getUserMediaAPI) - Connection establishment between client and server (PeerConnection)
- Media and network negotiation (SDP exchange, ICE protocol)
- Real-time bidirectional audio stream transmission
- Client-side streaming audio playback
AI handles the application layer:
- Speech recognition (STT) — converting audio to text
- Natural language understanding and response generation (LLM)
- Speech synthesis (TTS) — converting text to speech
This layered architecture clearly separates the responsibilities of the transport layer and the application layer. WebRTC, as the transport layer technology, ensures real-time and stable audio data transmission. AI, as the application layer technology, is responsible for understanding and generating spoken content.
Essential WebRTC Knowledge for Developers
For developers building Voice Agent applications, a deep understanding of WebRTC is a must-have skill. Beyond basic API usage, developers also need to master:
- Media Negotiation Mechanisms: Understanding SDP formats, codec selection, and media capability matching
- Network Negotiation Principles: Familiarity with ICE candidates, STUN/TURN server configuration, and NAT traversal techniques
- Audio Processing Techniques: Knowledge of audio sample rates, encoding formats, noise reduction, and echo cancellation
- Connection Management Strategies: Handling connection state monitoring, reconnection on disconnect, and network switching edge cases
These core WebRTC concepts are independent of AI technology, yet they form the foundation of any stable and reliable Voice Agent system.
Conclusion
WebRTC serves as the real-time communication bridge in Voice Agents. From audio capture and transmission to playback, every step depends on WebRTC. For developers building AI voice applications, WebRTC is not merely a technical option — it is an essential part of the stack for achieving low-latency, high-quality voice interactions. Mastering the core principles of WebRTC is key to fully unlocking the potential of AI voice technology.
