Exploring Passive Flexible Spines with MuJoCo and Reinforcement Learning

Project Overview

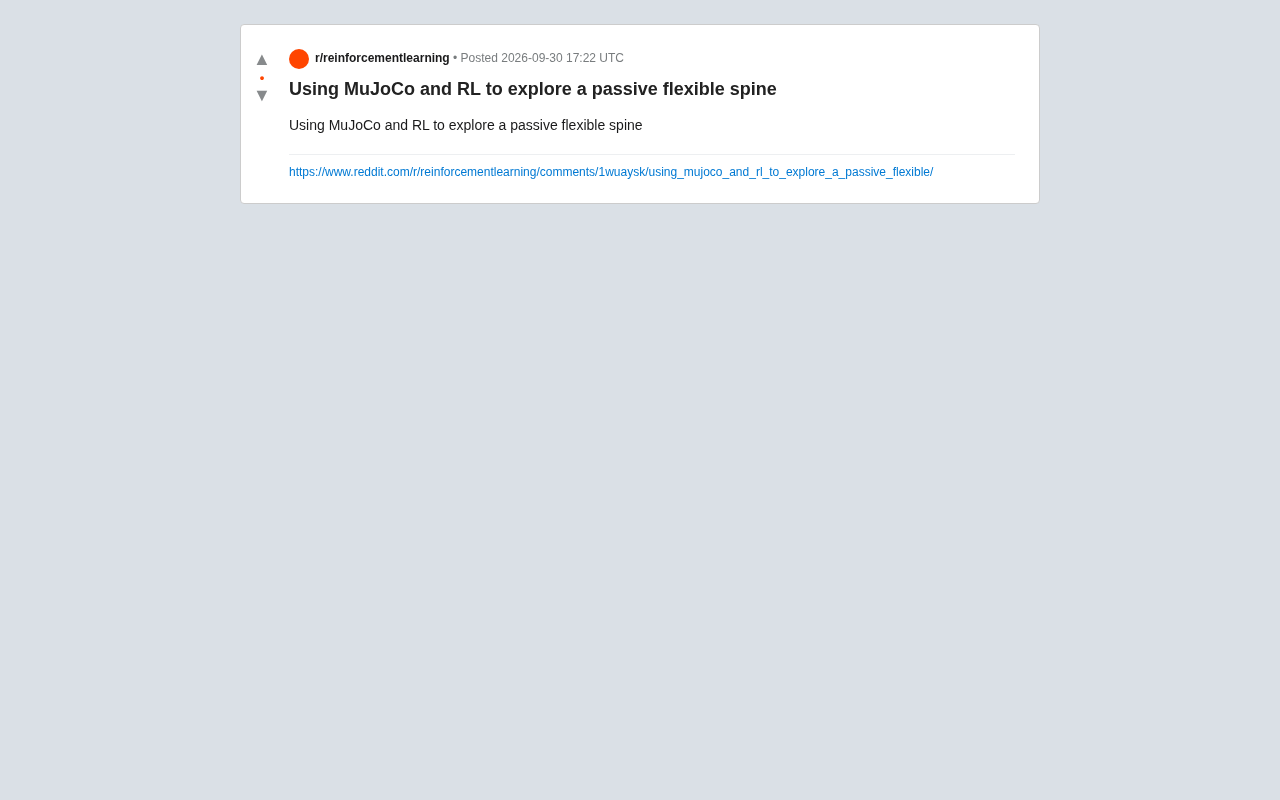

A post shared on Reddit caught the attention of robotics and simulation enthusiasts: a developer is using the MuJoCo physics simulation engine combined with reinforcement learning (RL) to explore the role of passive flexible spines in locomotion control.

It's worth noting that the publicly available source material is extremely limited — only a title and a screenshot, with no detailed experimental methodology, parameter configurations, or result data. This article therefore focuses primarily on providing background context to help readers understand the research landscape surrounding this experiment, rather than reviewing specific findings.

Why Flexible Spines Are Worth Studying

In nature, the spines of mammals like cats and cheetahs are not rigid structures — they possess a degree of elasticity and flexibility. This passive flexibility allows energy to be stored and released during running and jumping, improving both locomotion efficiency and stability. Traditional quadruped robots typically use rigid torso designs, overlooking the dynamic advantages that spinal deformation can provide.

The term "passive" here means the spine does not actively apply control forces — instead, it responds naturally to movement loads through material elasticity and joint structure. Incorporating this kind of passive flexibility into robot design has the potential to improve gait performance without significantly increasing the number of actuators or control complexity.

A cheetah's spine flexes and extends by approximately 40° during high-speed running. Research suggests this spinal motion can extend stride length by around 30% and reduce muscular metabolic expenditure by storing and releasing elastic potential energy. Biomechanics refers to this mechanism as "elastic energy storage" — analogous to how tendons function during running. In robotics engineering, platforms like MIT Cheetah and ANYmal have already introduced Series Elastic Actuators (SEA) in leg joints to achieve similar effects, but research into flexible spines in the torso has lagged behind. The primary reason is that spinal deformation shifts the whole-body center of mass trajectory, introducing additional complexity for traditional controllers built on rigid-body assumptions. The passive flexible spine approach sidesteps the complexity of active control, instead relying on the structure's own mechanical properties to "freely" capture some of the dynamic benefits.

The MuJoCo + Reinforcement Learning Combination

MuJoCo (Multi-Joint dynamics with Contact) is a physics engine widely used in robotics simulation and reinforcement learning research, renowned for its high-accuracy contact dynamics modeling and fast simulation speeds. It is particularly well-suited for modeling systems with elastic joints, flexible links, and other complex structures.

The core idea behind applying reinforcement learning to this kind of simulation environment is to let an agent learn through repeated trial and error in simulation — discovering how to generate efficient and stable locomotion strategies on a body with a passive flexible spine. Compared to hand-designed controllers, RL can automatically discover non-intuitive gaits that exploit spinal elasticity, which is precisely where the research value of this direction lies.

Potential Technical Challenges

From an engineering perspective, this kind of exploration typically faces several challenges:

• Modeling accuracy: The elastic coefficients and damping parameters of the flexible spine must be set appropriately, otherwise simulation results become difficult to transfer to reality (sim-to-real gap).
• Reward design: Defining a reward function that encourages the agent to "exploit" rather than "fight against" the passive deformation of the spine is critical to successful policy learning.
• Training stability: Flexible structures introduce higher degrees of freedom and greater nonlinearity, which can increase the difficulty of RL training convergence.

MuJoCo was developed by Emo Todorov's team and open-sourced after being acquired by DeepMind in 2021. It has since become one of the core simulation backends in the OpenAI Gym / Gymnasium ecosystem. Its key advantage lies in its efficient solver under generalized coordinates and its analytical modeling of soft contact — which means simulating elastic joints doesn't require discretizing flexible bodies into large finite element meshes. Instead, elastic behavior can be approximated by tuning joint stiffness and damping parameters, significantly reducing computational overhead. On the RL side, PPO (Proximal Policy Optimization) and SAC (Soft Actor-Critic) are currently the most mature algorithms for use with MuJoCo environments. PPO is known for training stability, while SAC offers higher sample efficiency in continuous action spaces — both are widely used in quadruped locomotion control research.

The sim-to-real gap is especially pronounced in flexible structures. The mass and inertia parameters of rigid robots are relatively easy to measure, whereas the elastic modulus of a flexible spine varies with temperature, fatigue, and preload — making it difficult to eliminate the dynamic discrepancy between the simulation model and the physical robot. The leading mitigation strategies include domain randomization — adding random perturbations to parameters like elastic coefficients and friction coefficients during training to force the policy to be more robust — and system identification, which involves fitting simulation parameters by inverting real-world experimental data. For purely simulation-based exploration projects, if the ultimate goal is to replicate results on a real robot, the design of this stage often determines the practical upper bound of the entire approach.

Significance for Robotics Research

While community experiments like this are small in scale, they reflect a noteworthy trend: researchers are increasingly using open-source simulation tools to validate bio-inspired robotics design concepts at low cost. Passive flexibility, energy recovery, and co-design of structure and control are all frontier topics in embodied intelligence and robot locomotion control.

For developers looking to get started in this area, the MuJoCo + RL combination provides a reproducible and iterative experimental platform. Even personal projects can yield genuinely insightful results within this framework.

Summary

Due to the limited source material, this article cannot present specific data or conclusions from the experiment. But directionally, using MuJoCo combined with reinforcement learning to study passive flexible spines is an exploration with both bio-inspired significance and real engineering value. We look forward to the author eventually sharing more complete experimental details and code for the community to further validate and discuss.
